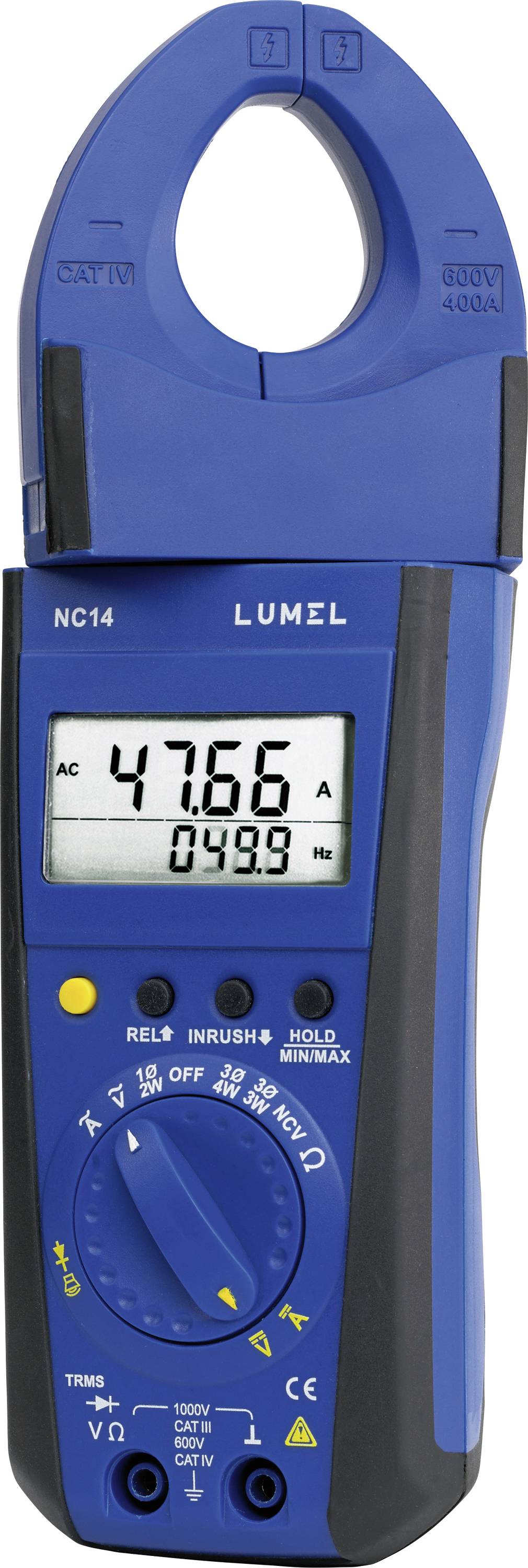

Lumel Zangenstrommessgerät NC14 200E1 Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (cou
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Zangenstrommessgerät NC14 200E1
- CAT IV 600 V, CAT III 1000 V
Technical specifications
- Rotating jaws
- In-rush current measurement (starting current)
- Power measurement (W, HP, VA, VAr)
- Energy measurement (kWh)
- Harmonic analysis up to 49. Harmonic
- Contact-free voltage detection
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
999.9 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
999.9 V
- Amperage reading range DC (min.)
0.1 A
- A DC reading range (max.)
999.9 A
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
999.9 A
- Reading range - resistance
9999 Ω
- Frequency reading range
40 Hz to 400 Hz (influence range)
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
40-400 Hz
- Power supply (details)
9 V
- Height
70 mm
- Width
90 mm
- Length
270 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
CAT III 1000 V
- Voltage metering
AC
DC
AC/DC
- Current reading
AC
DC
AC/DC
- Type
Zangenstrommessgerät NC14 200E1
- Display
Digital
- Display (counts)
9999
- Dim
(L x W x H) 270 x 90 x 70 mm
- Features
Screen back-lighting
IP50
IP20
- Opening range of current clamps
51 mm
Documents & Downloads
Datasheet
Datasheet 3741946 Lumel Zangenstrommessgerät NC14 200E1 Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (cou
User & Safety Instructions
User & Safety Instructions 3741946 Lumel Zangenstrommessgerät NC14 200E1 Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (cou
Description
Lumel NC14-200E1: Precision & Safety in Performance Analysis.
Get total control of your electrical systems! The NC14-200E1 is not only a simple clamp meter, but an advanced analysis tool for demanding professionals. Whether in industrial use with motors or in complex three-phase networks – this device gives you precise TRMS measurement values of up to 1000 A and 1000 V.
Innovative design with rotating jaws lets you reach the ladder easily even in difficult to reach areas, while the shutter release placed below will always keep your hands within safe distance from the tension. With the NC14-200E1 you are opting for a tool, which perfectly combines safety, ergonomics and multi-functionality.
This text is machine translated.
Get total control of your electrical systems! The NC14-200E1 is not only a simple clamp meter, but an advanced analysis tool for demanding professionals. Whether in industrial use with motors or in complex three-phase networks – this device gives you precise TRMS measurement values of up to 1000 A and 1000 V.
Innovative design with rotating jaws lets you reach the ladder easily even in difficult to reach areas, while the shutter release placed below will always keep your hands within safe distance from the tension. With the NC14-200E1 you are opting for a tool, which perfectly combines safety, ergonomics and multi-functionality.
This text is machine translated.
Features
- LPF mode (low-pass filter) for VFD applications
- Automatic shut-off after 10 minutes (can be deactivated)
Scope of delivery
- Clamp meter
- Test probe set (probe set)
- User manual/guarantee card
- Carrying case
- Test certificate
- Two alligator clips
- 9 V battery pack
