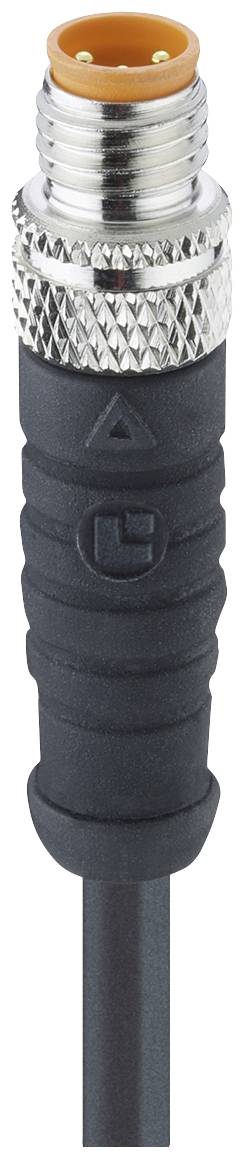

Lutronic 0810 03 001 5m Sensor/actuator cable M8 Plug, straight 5 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
Highlights & Details
M8 actuator/sensor cables
- Actuator/sensor cable with molded connectorCable end 1:M8-PlugstraightA-codedIP67Cable end 2: Open endCable: PVCBlack
- This text is machine translated.
Technical specifications
- Insertion force: ≤ 23 N *1Drag force: ≤ 23 N *2Resistance: ≤ 10 mΩDimensioning surge voltage: 1.5 kVMareital contact carrier: TPU GF, HB according to UL94Mating cycles: ≥ 100
- Type
0810 ... 0...
- Product type
Sensor/actuator cable
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
5 m
- Jacket material
PVC
- Nominal voltage
50 V AC
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Thread type connection side
M8
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Manufacturer part #
0810 03 001 5m
- Content
1 pc(s)
- RoHS-compliant
Yes
