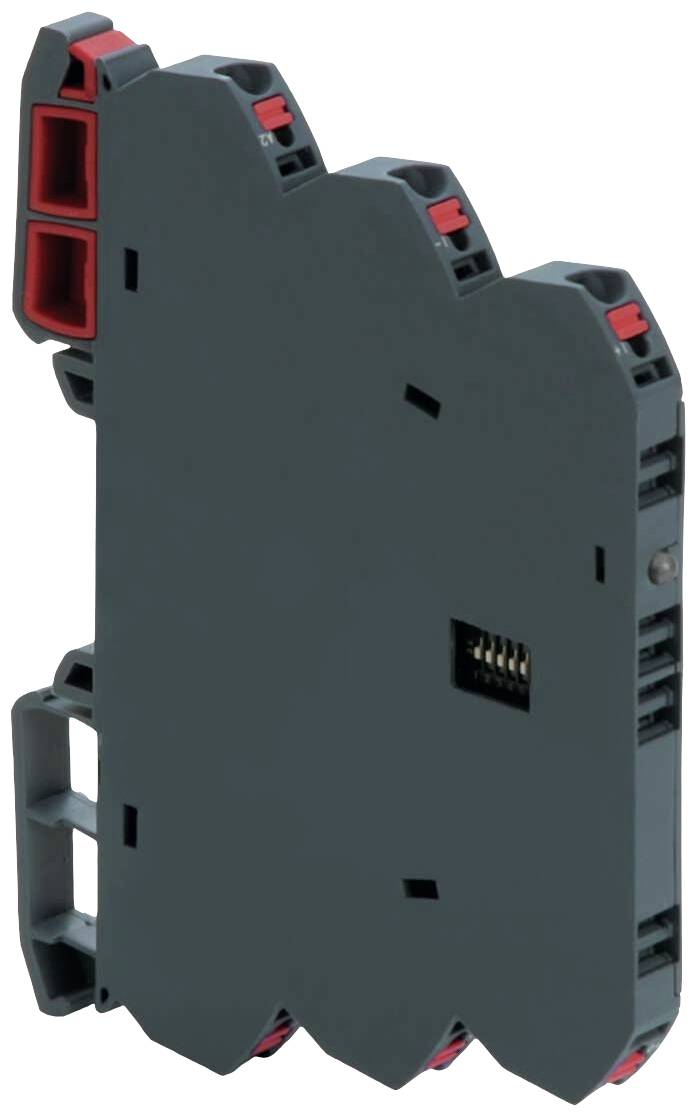

Lütze LCIS-WAA-1539-62-PI 751539.0000 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
10 V
Type
LCIS-WAA-1539-62-PI
Dim
(L x W x H) 73 x 6.20 x 93 mm
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 2 Piece(s) available
Technical specifications
- WORKING VOLTAGE RANGE 19.2 - 26.4 V/AC, 18 - 31.2 V/DC
- Status indicator: Green LED
- Housing color: Basalt gray
- Protection class: IP20
- Weight: 30 g
- Type
LCIS-WAA-1539-62-PI
- Product type
ATA
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 73 x 6.20 x 93 mm
- Output (voltage)
10 V
- Output (current)
20 mA
- Operating voltage
24, 24 V AC, V DC (max)
- Max. operating voltage
24 V AC
24 V DC
- Input signal (voltage)
0–10 V
- Input signal (current)
0–20 mA / 4–20 mA
- Content
1 pc(s)
- Width
6.20 mm
- Height
93 mm
- Length
73 mm
- Operating voltage U(B)
19.2 - 26.4 V/AC. 18 - 31.2 V/DC
Documents & Downloads
Datasheet
Datasheet 3124491 Lütze LCIS-WAA-1539-62-PI 751539.0000 ATA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3124491 Lütze LCIS-WAA-1539-62-PI 751539.0000 ATA 1 pc(s)
Description
Interface technology, LCIS analogue/analogue converter, input: 0–10 V / 0–20 mA / 4–20 mA, output: 0–10 V / 0–20 mA / 4–20 mA, isolation: 2.5 kV, 3-way isolation
