Luxonis Expansion board MBS-SES-274-03
EAN:
Part number:
Item no:
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
Technical specifications
- Dimension: 40 x 40 x 4 mm
- Weight: 5 g
- Product type
Expansion board
- Length
40 mm
- Width
40 mm
- Manufacturer part #
MBS-SES-274-03
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204939 Luxonis Expansion board MBS-SES-274-03
Description

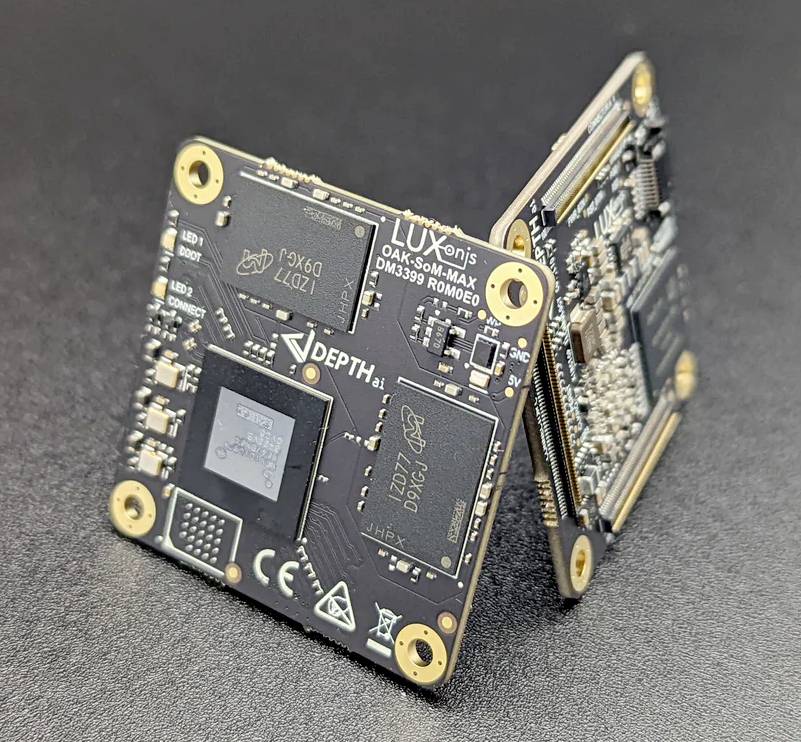

The OAK-SOM MAX is perfect for applications in industrial automation, robotics and security systems. It has the Robotics Vision Core 3 and a Quad-Core ARM CPU. It is connected to the system via three 10 Gbps compatible 100-pin board-to-board mezzanine connectors. All signal I/O and 5V input are transmitted. The 5V input and regulated by the integrated SMPS system. Furthermore, it supplies all the necessary digital and analogue power supplies. Integration with top-level systems, which require a power-saving, powerful real-time AI and depth perception, is enabled.
This text is machine translated.
This text is machine translated.
Features
- 3.0 TOPS for AI
- Imaging: ISP, max 6 cameras, 500 MP/s HDR, 3A
- Executes each AI model, as well as custom-developed models
- Encoding/decoding: H.264, H.265, MJPEG - 4K/30fps, 1080P/60fps
- Computer Vision: Warp/dewarp, resize, crop, edge detection, object tracking
- Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
- Object tracking: 2D and 3D tracking
- Interface to system: Three 100-pin 10-Gbps connectors (DF40C-100DP-0.4V (51))
- 4GB RAM (2x 16GBit)
- Connections: 3x 100-pin mezzanine connector (makes additional MIPI RX/TX lines accessible)
- 6x 2-lane MIPI RX lines
- 2x 2-lane, 1x 4-lane MIPI TX-lines
- RAM: 2x DDR RAM on-board (for maximum performance)
- Voltage level: All 12C buses at 1.8V
- Pull-up resistors: 2.2k pull-up resistors on SOM
- Min/Max Data rates: Robotics Vision Core supports the following on 12C buses:
- Standard mode 100kHz
- Fast mode: 400kHz
- Fast Mode Plus: 1MHz
- High-speed mode 3.4 MHz
- 12C0 bus: RTC circuit (address: 0xD2) and EEPROM (address: 0x50)
- USB 3.1 1st Gen 2
Scope of delivery
- 1x Luxonis OAK SOM Max 2
