m-e modern-electronics 41012 Bell panel 1x Silver 8-24 V AC/DC/1 A
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bell panel
- Max. contact load capacity
8-24 V AC/DC/1 A
- Material
Stainless steel
- Factory colour
Silver
- No. of keys
1 Buttons
- Operating voltage
8 - 24 V
- Backlit
Yes
IP65
- Width
100 mm
- Height
100 mm
- Depth
5 mm
- Dim
(W x H x D) 100 x 100 x 5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1384864 m-e modern-electronics 41012 Bell panel 1x Silver 8-24 V AC/DC/1 A
Warranty Terms
Warranty Terms 1384864 m-e modern-electronics 41012 Bell panel 1x Silver 8-24 V AC/DC/1 A
Description

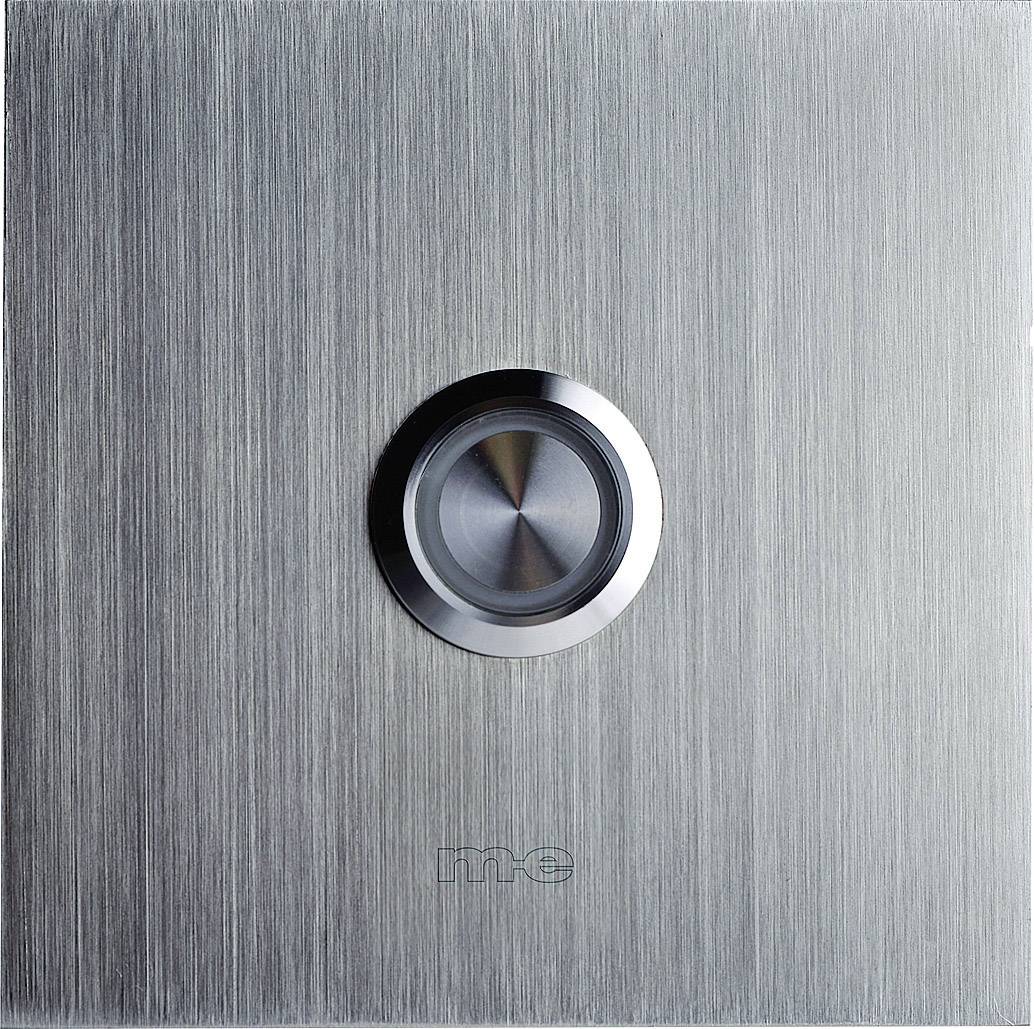

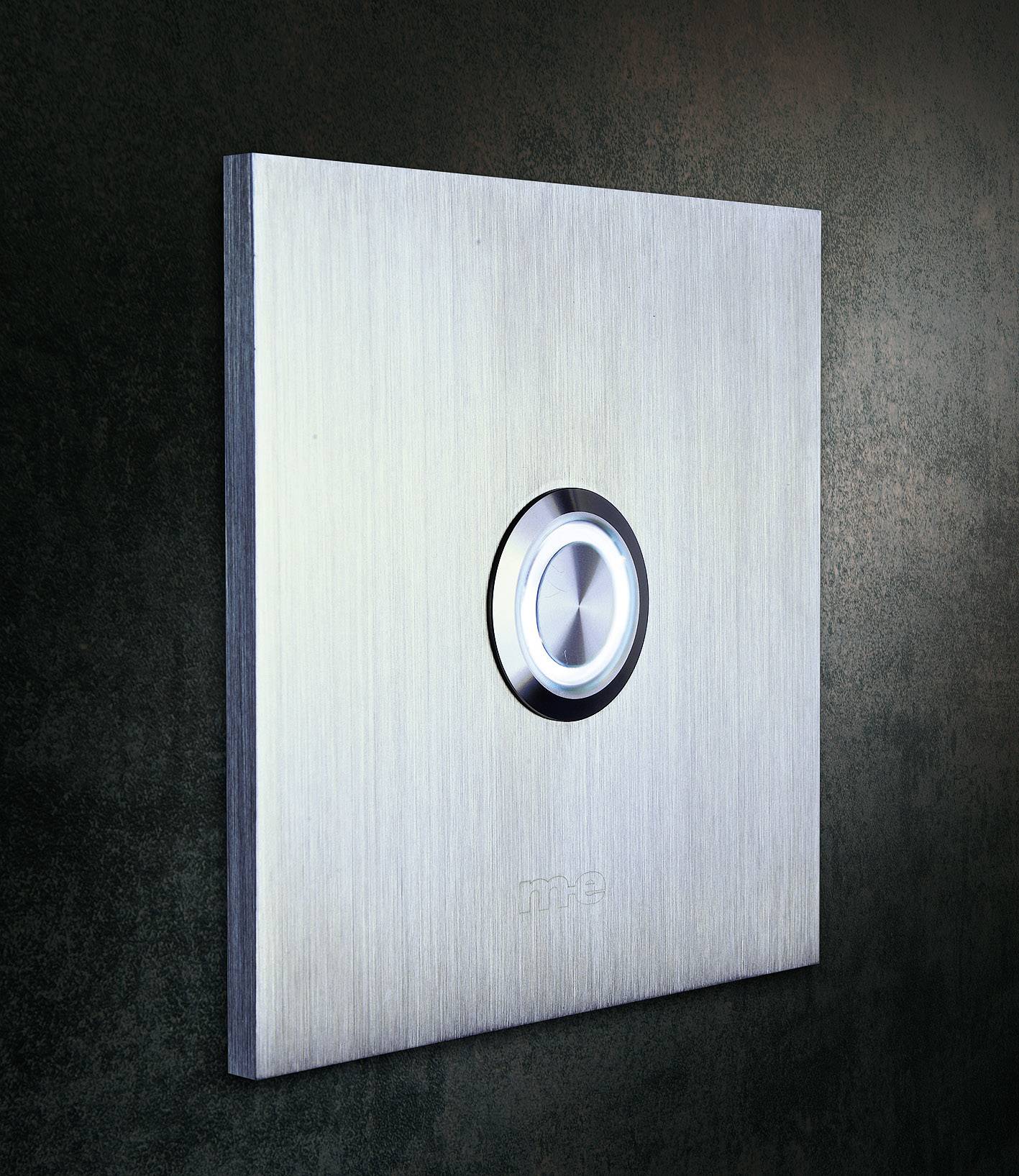

Bell plate made of 5 mm-thick stainless steel plate with stainless steel switches and integrated light ring. 20 mm large bell with lighting.
Flush mounting. Dust proof and water-protected in accordance with IP65. Simple installation (e.g. to the existing bell wire). Silicone cable sleeve. Works with any standard door bells or exempted from this. Suitable for 8-24 Volt bell transformer (ac or dc voltage transformer). Contact rating: max. 24 volt / 1 ampere. Temperature range: -20 to +50 °C. Power consumption approx. 0.5 W
This text is machine translated.
Flush mounting. Dust proof and water-protected in accordance with IP65. Simple installation (e.g. to the existing bell wire). Silicone cable sleeve. Works with any standard door bells or exempted from this. Suitable for 8-24 Volt bell transformer (ac or dc voltage transformer). Contact rating: max. 24 volt / 1 ampere. Temperature range: -20 to +50 °C. Power consumption approx. 0.5 W
This text is machine translated.
Scope of delivery
- Bell incl. mounting material and drill template.
