m-e modern-electronics 41384 Radio Mini-Converter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details

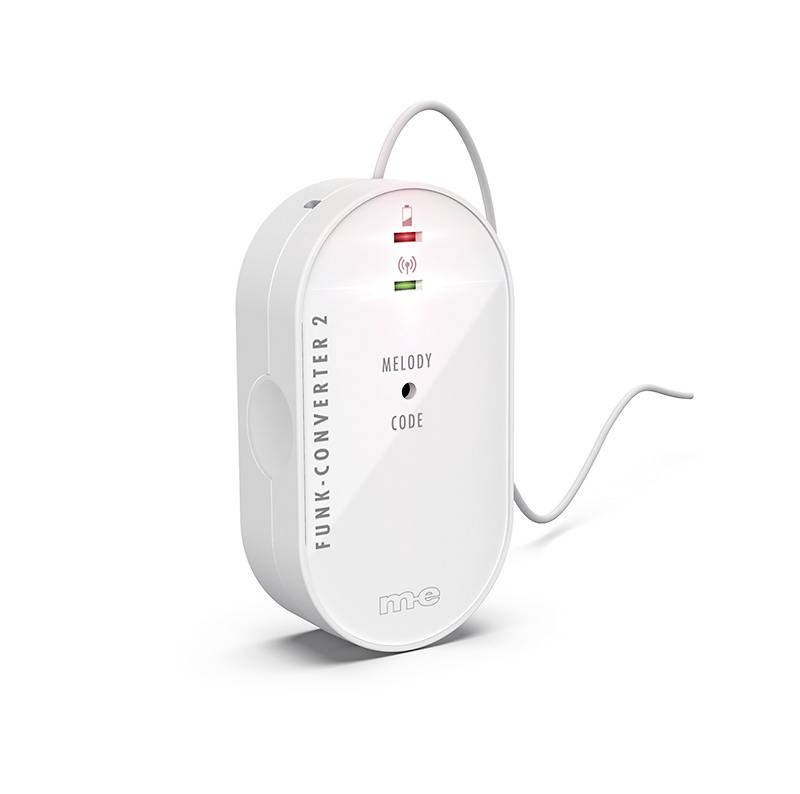

MINI radio converter BELL-555 TX
- For wireless extension of bell systems
- Mini-transmitter casing with connection cable for a simple and inconspicuous installation in the housing
- Compatible with all M-e radio gong receivers of BELL and FG series (several receivers possible)
Technical specifications
- Product type
Door intercom accessories
- Component
Converter
- Transfer type
Radio
- Frequency
434 MHz
300 m
- Mounting type (interior)
Recess-mount
- Power supply (LOV)
battery-powered
- Tunes
16
- Width
30 mm
- Height
55 mm
- Depth
15 mm
Documents & Downloads
Datasheet
Datasheet 2886921 m-e modern-electronics 41384 Radio Mini-Converter
User & Safety Instructions
User & Safety Instructions 2886921 m-e modern-electronics 41384 Radio Mini-Converter
Description

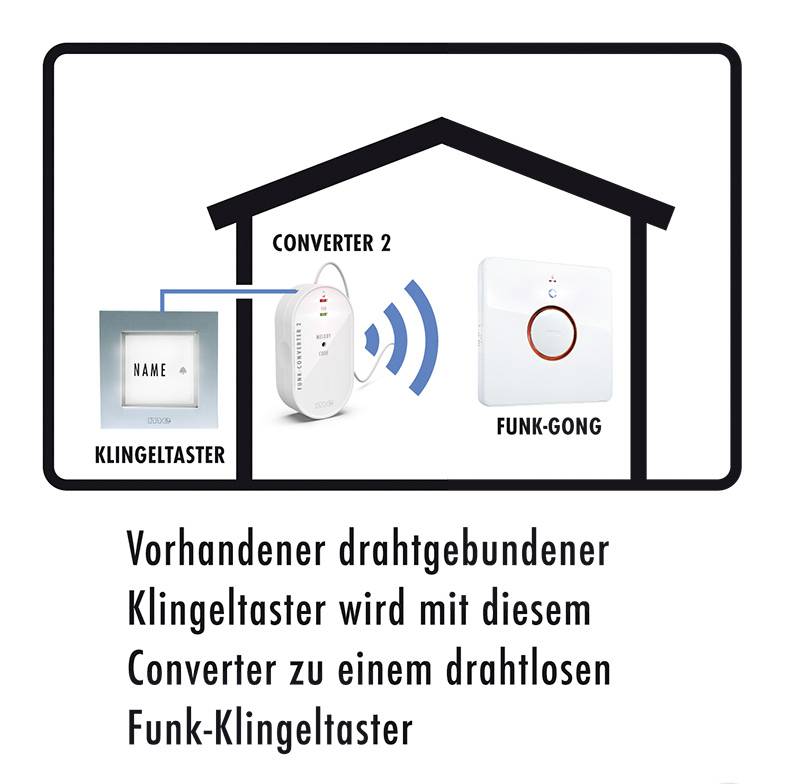

The mini wireless converter (transmitter) is connected directly to the bell wire or hidden in the casing of your existing gong and sends a radio signal to door bells from THE BELL and FG-series. Compatible with all M-e radio gong receivers of BELL and FG series (several receivers possible).
This text is machine translated.
This text is machine translated.
Features
- Selection switch for 8 or 16 melodies (number depends on the receiver used
- Battery-operated with 1 x 3 V lithium CR 2477 (already inserted)
- Battery life-span: Up to 5 years
- Transmission and battery control light (plus external cable with LED)

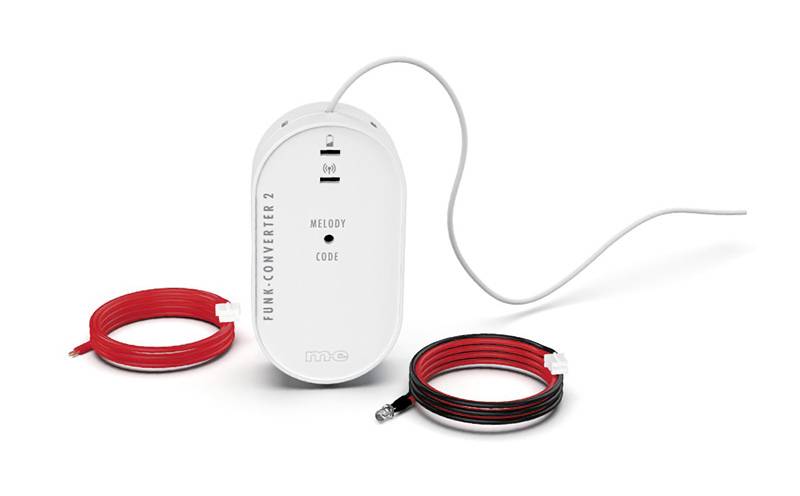

Scope of delivery
- 1 x wireless converter in white
- 1 x connection cable approx. 20 cm
- 1 x external LEDs, cable length 20 cm
- 1 x 3 Volt Lithium battery CR 2477 (installed)
- 1 x double-sided adhesive pad.
System requirements
- They also need a wireless doorbell receiver from the series BELL or FG from m-e.
