Buy m-e modern-electronics 41413 Wireless door bell Transmitter backlit, incl. nameplate

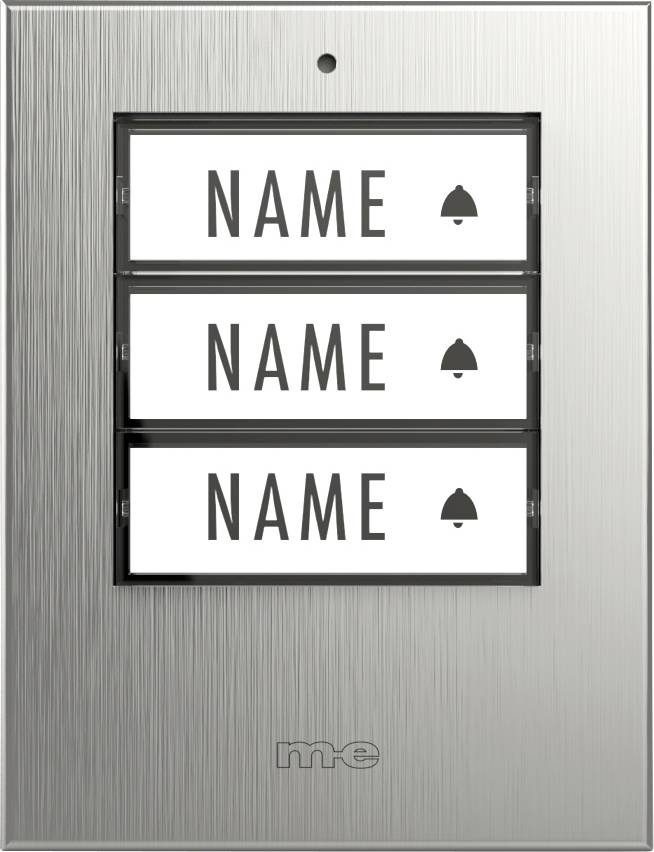

Three doorbells on a metal plate, each with the text 'NAME' and a bell symbol.

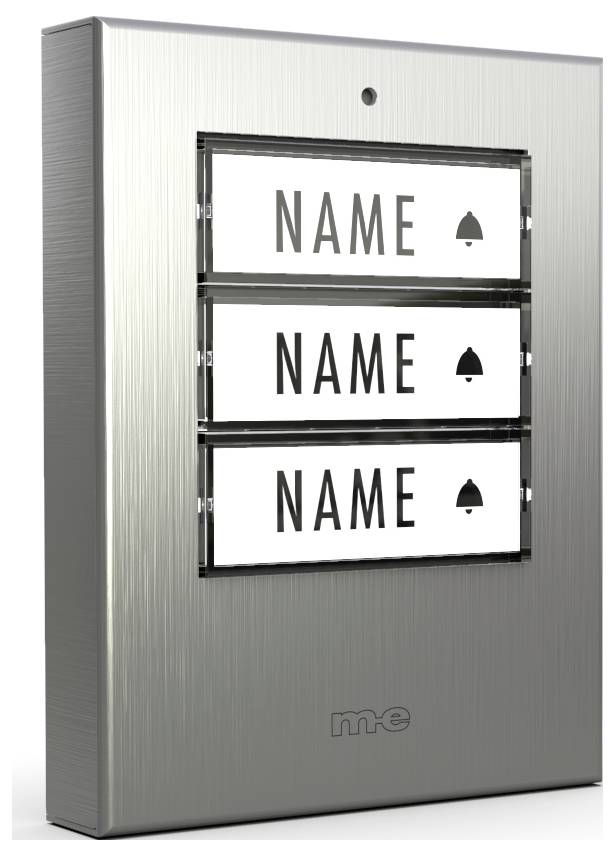

Three stainless steel doorbell plates with the inscription 'Name' and a bell symbol beside it. Above the plates is a camera opening.

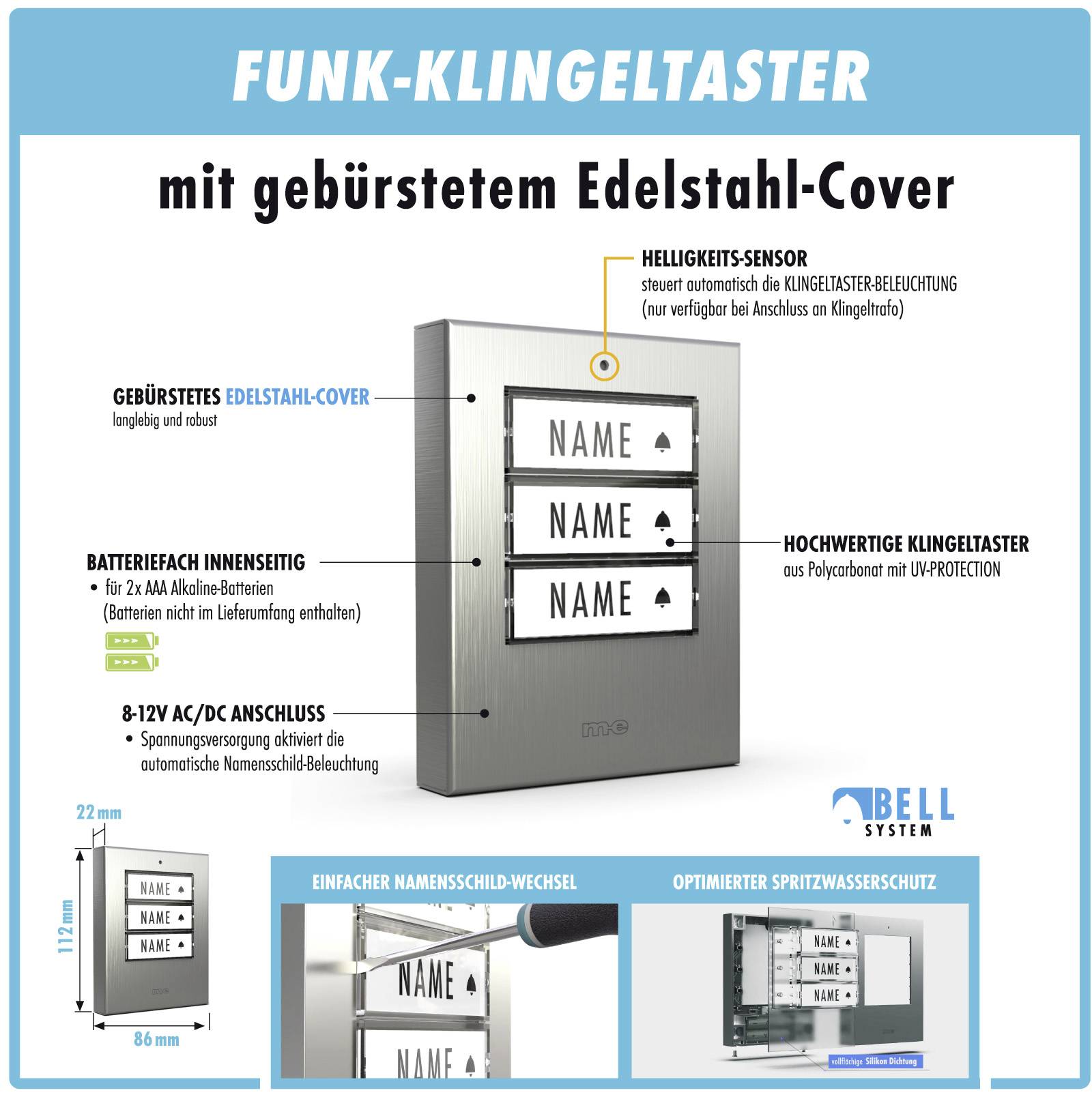

Wireless Doorbell Push Button with Stainless Steel Cover. Brightness sensor, replaceable name plate. Operates on 8-12V AC/DC. Manufacturer: Bell System.

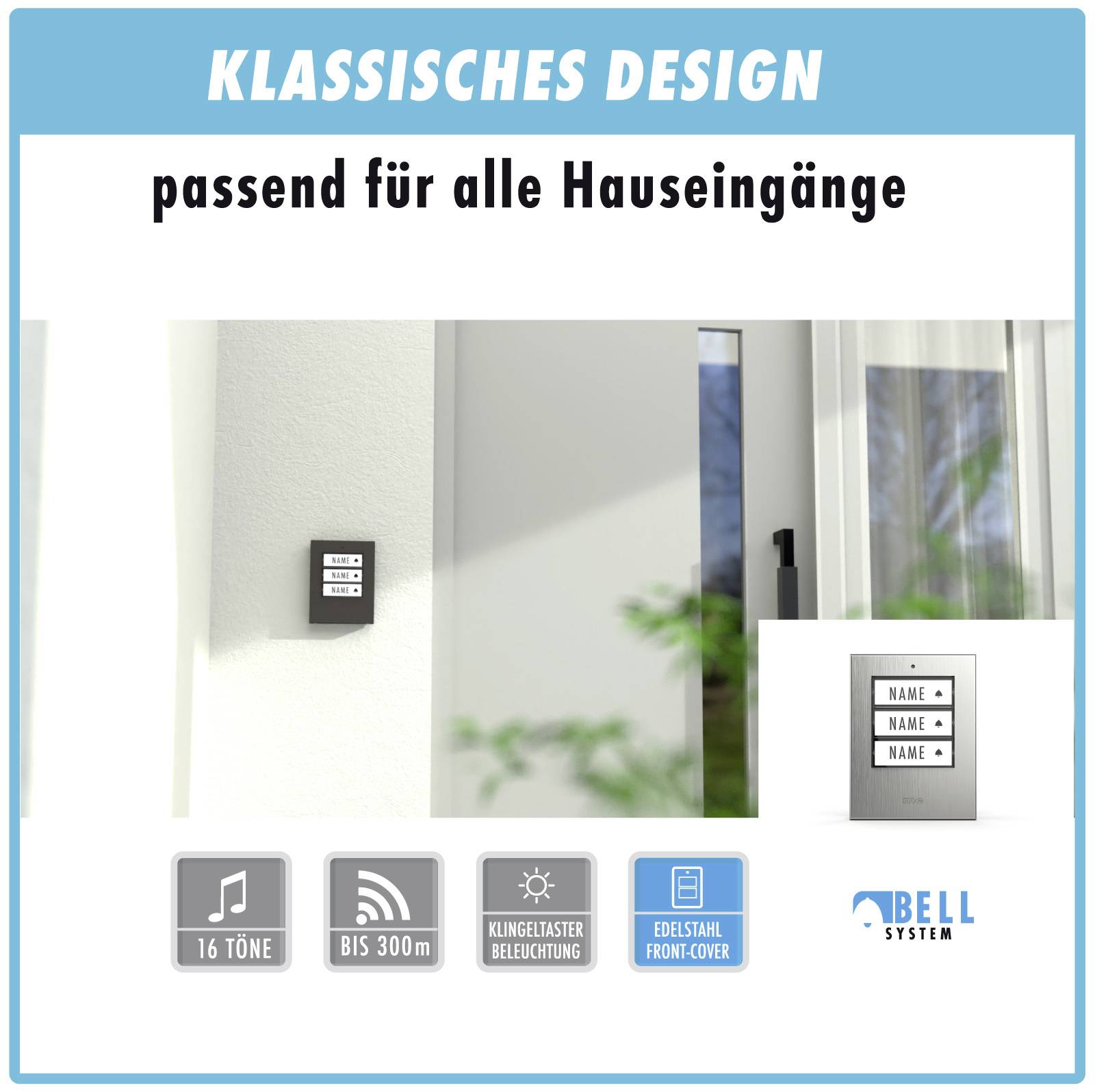

'Classic Design' doorbell system for house entrances. Includes stainless steel front cover, 16 tones, range up to 300m.

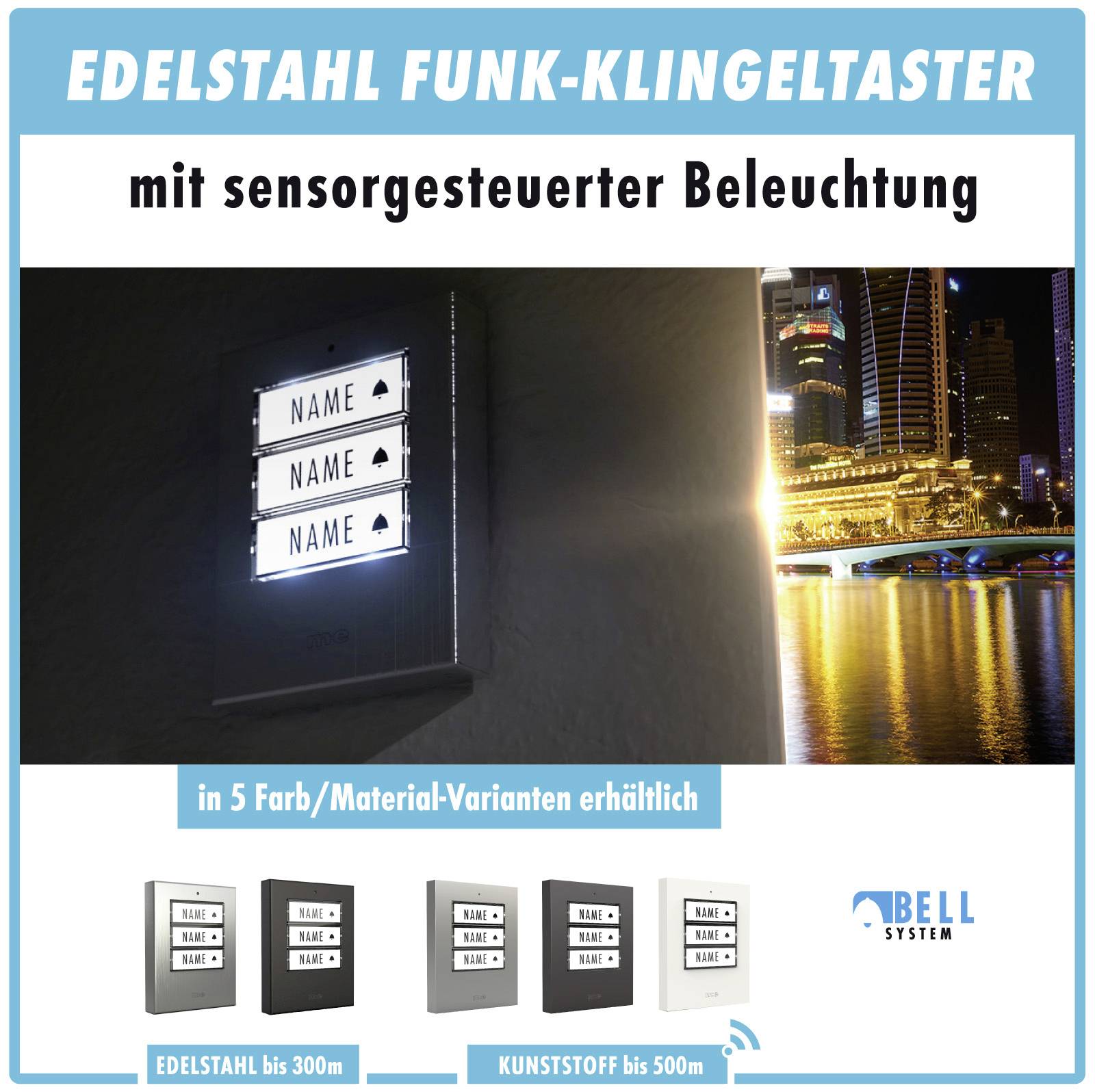

The stainless steel wireless doorbell button with sensor-controlled lighting displays three name plates. Available in 5 material variants. Maximum range: Stainless steel up to 300m, plastic up to 500m.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Bell-503 TX-EG radio bell button 3-family house brushed stainless steel

For 3-family house
Battery- or power operation possible
Expandable with multiple transmitters and receivers

Technical specifications

Product type: Wireless door bell

Component: Transmitter

Doorbell features: backlit
incl. nameplate

: 300 m

Tunes: 16

Factory colour: Stainless steel (brushed)

Frequency: 434 MHz

Dim: (W x H x D) 86 x 112 x 22 mm

Width: 86 mm

Height: 112 mm

Depth: 22 mm

Documents & Downloads

Datasheet

Datasheet 3347259 m-e modern-electronics 41413 Wireless door bell Transmitter backlit, incl. nameplate

User & Safety Instructions

User & Safety Instructions 3347259 m-e modern-electronics 41413 Wireless door bell Transmitter backlit, incl. nameplate

Description

Wireless doorbell button for a 3-family house from the series BELL-503.

This text is machine translated.

Features

Power supply optionally with 8 - 12 V DC or 2 x AAA batteries (not included in delivery)
Light sensor-controlled name plate lighting (only with connection with bell transformer DC 8 - 12 Volt)
Name plate can be changed from outside
Splash-proof acc IP54
High quality stainless steel front housing (brushed)
Simple surface mounting

Scope of delivery

1x wireless doorbell button (transmitter) for 1-family house
1x installation material

Hints

The full range of up to 300 meters (free field) as well as all 16 ring tones are available only with the exclusive use of BELL-500 components. In the use of BELL-500 components with transmitters or receivers from the FG or BELL series the wireless range is max. 200 meters and only 8 melodies are available.
