m-e modern-electronics Odyon pro WE20/230 230 V Wireless wall receiver/transmitter 2-channel Max. range (open field) 4 k
EAN:
Part number:
Item no:
Highlights & Details
Odyon Pro WE20/230 radio wall receiver 2-channel 230V
- Integrated repeater increases the rangeSelector switch for 3 switching modesBi-directional receiver
Technical specifications
- Product type
Wireless wall receiver/transmitter
- Series
Odyon
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
2
- Frequency
869.5 MHz
4 km
- Width
10.5 cm
- Height
5 cm
- Depth
11 cm
- Dim
(W x H x D) 10.5 x 5 x 11 cm
- Hub
Not required
- Data exchange
Bidirectional (bi)
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614237 m-e modern-electronics Odyon pro WE20/230 230 V Wireless wall receiver/transmitter 2-channel Max. range (open field) 4 k
Description

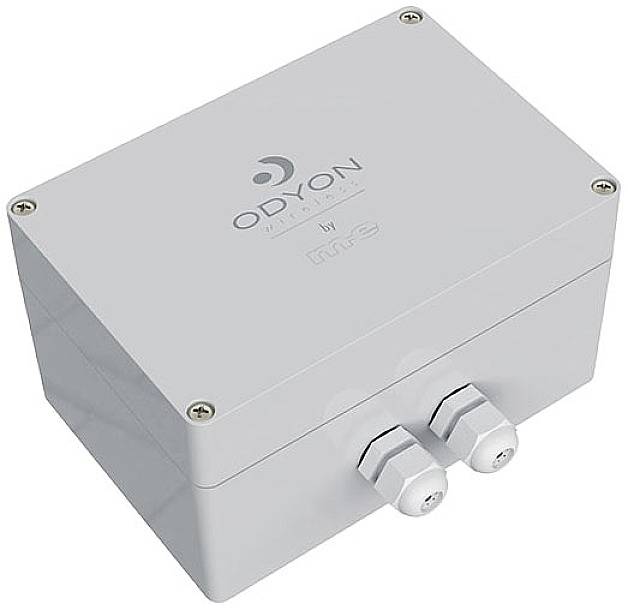

The Odyon PRO WE20/230 radio wall receiver 2-channel 230 V is compatible with all devices from the Odyon PRO series.
This text is machine translated.
This text is machine translated.
Features

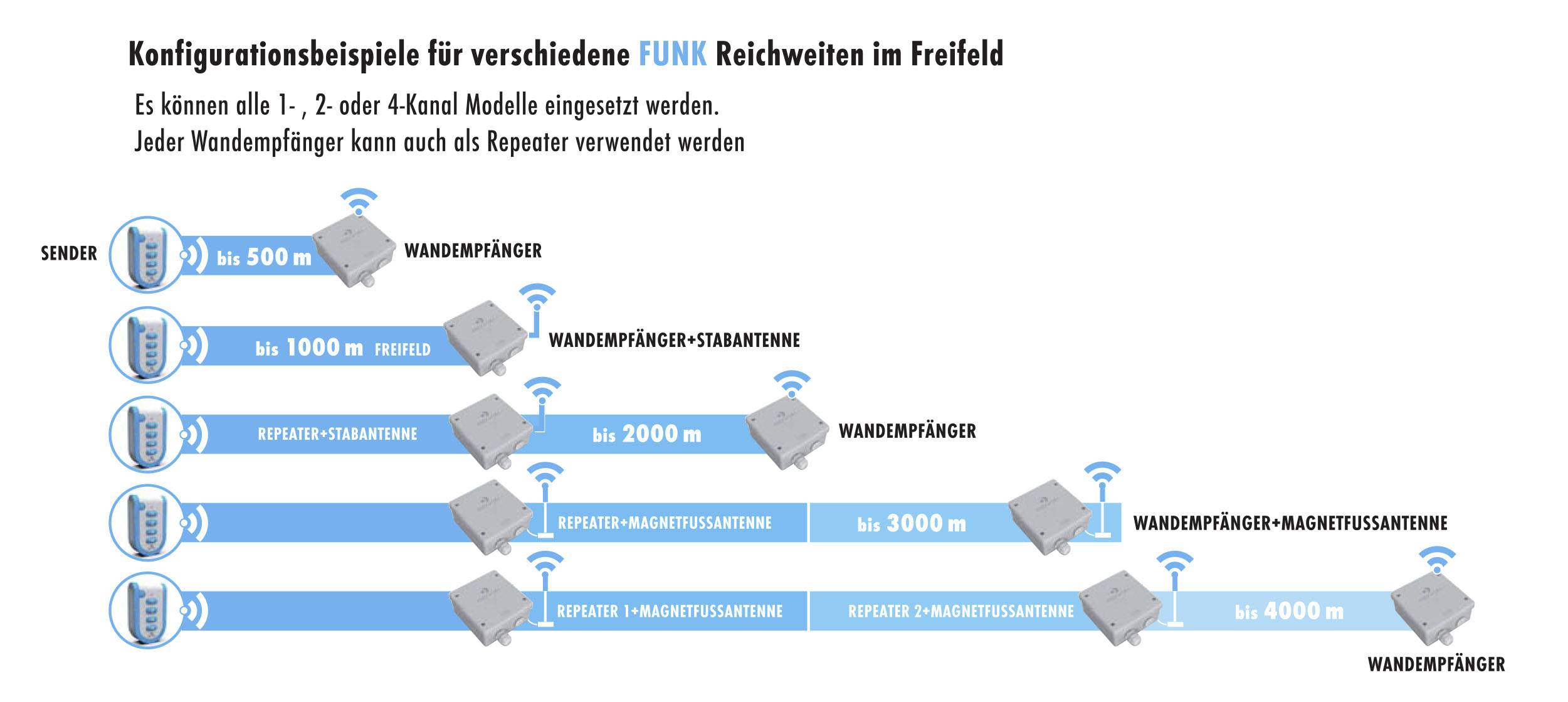

- Potential-free changeover contact (max. switching capacity AC 230 V / 5 A; DC 30 V / 5 A)Time-delayed switching can be selected from 0 to 60 secondsResponse time adjustable from 0 to 60 secondsWireless range up to 4000 m (depending on the environment, antenna type on wall receiver and integration of repeaters)Built-in repeater increases the range of other Odyon PRO devicesSelector switch for 3 switching modes: Switching / toggle / buttonBi-directional receiver – transmitter and receiver in one device (transceiver)Transmission and reception checkCompatible with all devices from the Odyon PRO series (869.5 MHz).
Scope of delivery
- 1 x wireless wall receiver
- Cable screw glands.
System requirements
- You require at least one radio transmitter or another radio wall receiver from the Odyon PRO series of m-e.
