m-e modern-electronics VD ALU 6109 A/W Video door intercom Corded Complete kit White (glossy), Anthracite
EAN:
Part number:
Item no:
Highlights & Details
m-e modern-electronics VD ALU 6109 A/W Video door intercom Corded Complete kit White (glossy), Anthracite

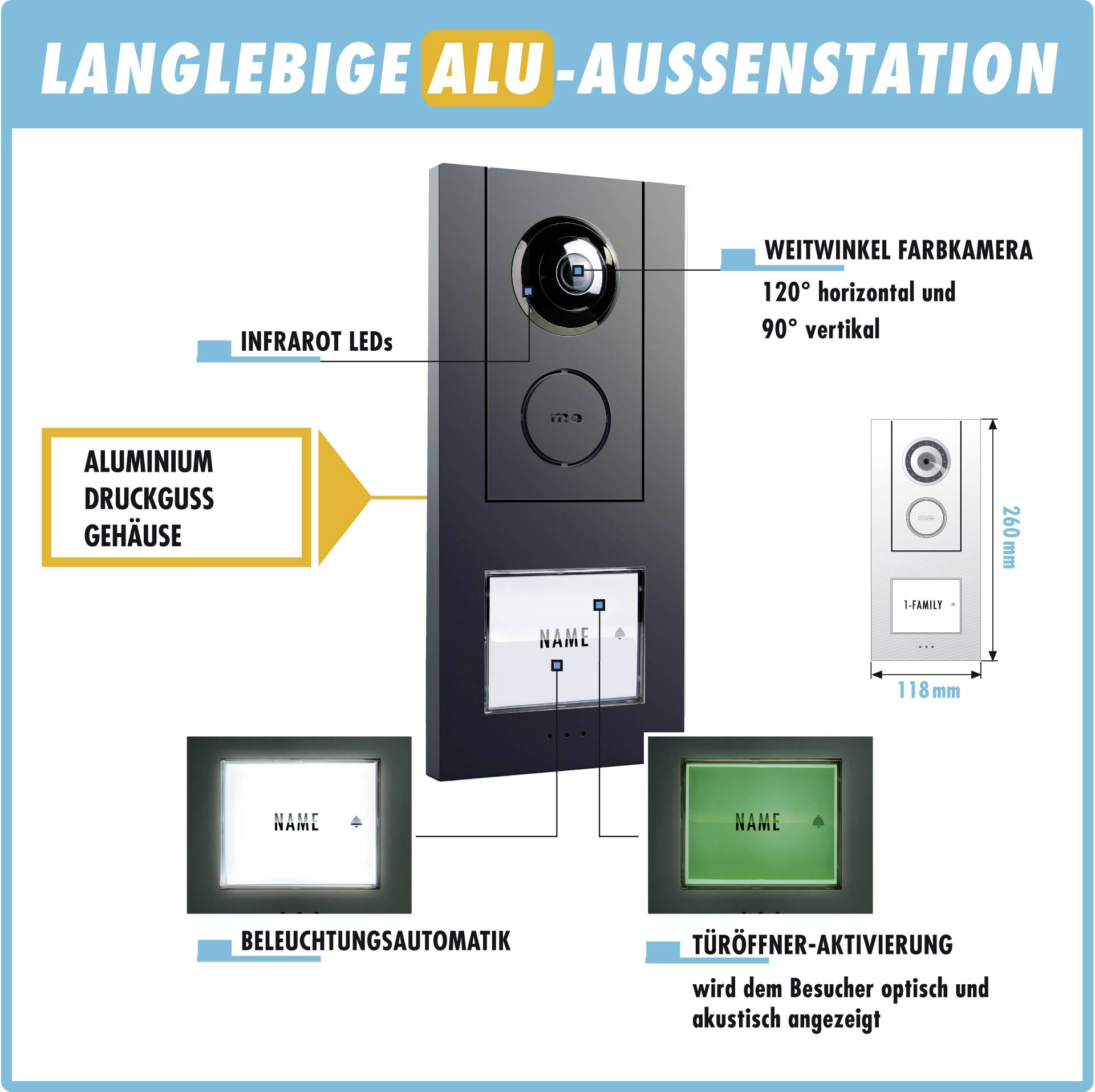

- External station in high-quality ALUMINUM DIE-CAST CASING with protective finish in anthracite
- Bell button lighting automatically switches "ON" with darkness and "OFF" with brightness
- Internal unit in white plastic housing with 2mm real glass front panel and touch function for all control elements

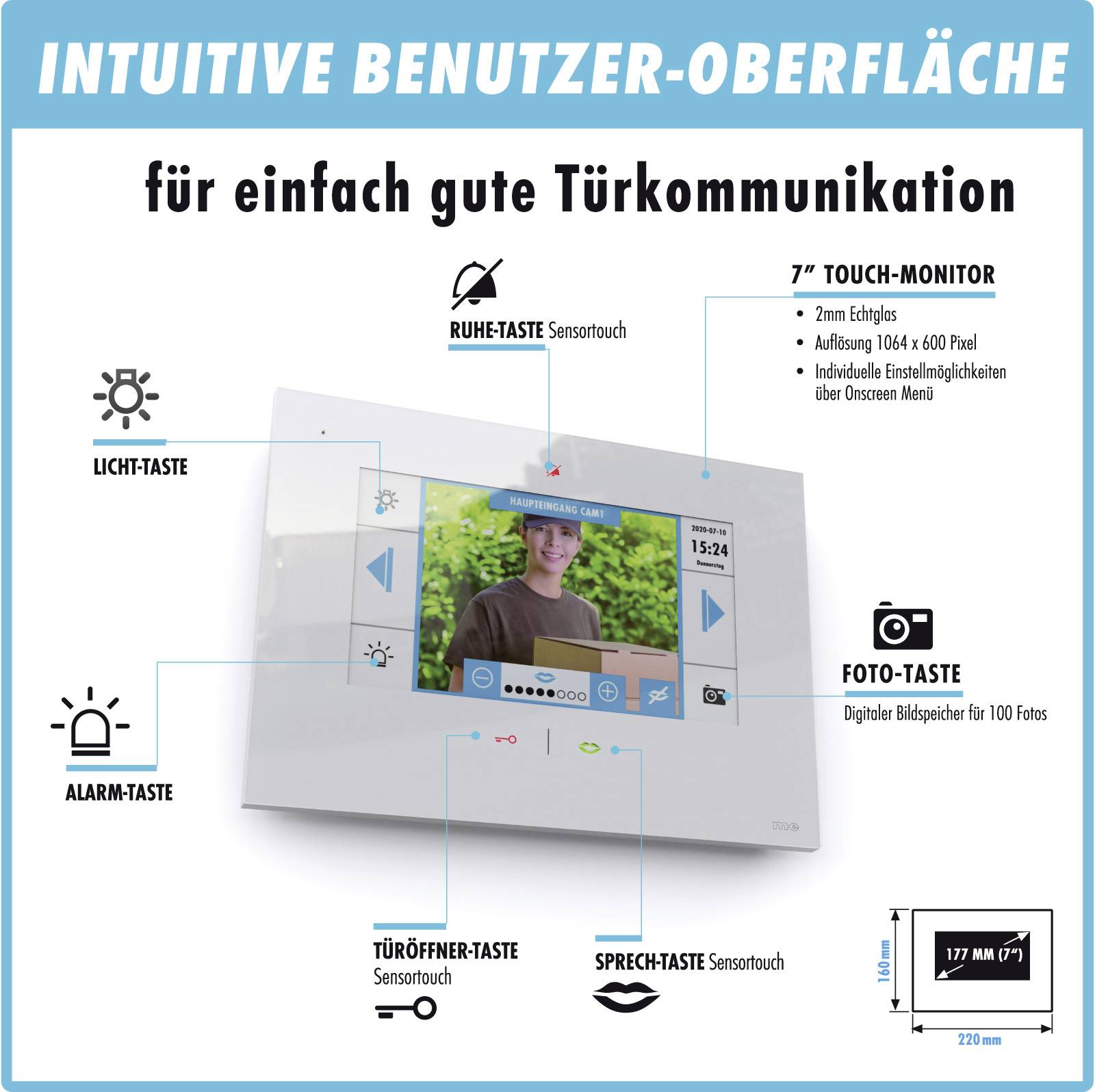

- 177mm (7") capacitive touch-monitor with digital picture memory for up to 100 photos with date and time
- IP & APP for iOS and Android: Just connect your smartphone so you can see, talk to and even open the door from anywhere
Technical specifications
- Product type
Video door intercom
- Component
Complete kit
- Features
Backlit nameplate
- Transfer type
Corded
- Mounting type (interior)
Surface-mount
- Mounting type (outdoor)
Surface-mount
- Material (external)
Aluminium (die-cast)
- Upgradable with
External extension
Internal extension
- Factory colour
White (glossy)
Anthracite
- Display type
Touch display
- Screen size diagonal (cm)
17.7 cm
- Screen size diagonal (inches)
7 inch
- Max. viewing angle hor.
120°
- Vertical viewing angle
90°
- Tunes
16
- Dimensions (built-in device)
220 x 160 x 28 mm
- External unit dims.
77 x 97 x 56 mm
- Hub
Not required
Manufacturer-specific
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3451054 m-e modern-electronics VD ALU 6109 A/W Video door intercom Corded Complete kit White (glossy), Anthracite
User & Safety Instructions 3451054 m-e modern-electronics VD ALU 6109 A/W Video door intercom Corded Complete kit White (glossy), Anthracite
Description
This system is expandable to 3 outdoor and 4 indoor units (per bell button). Regardless of the number of individual components you only need one power supply for powering the entire video door entry system (DIN rail power supply unit Mod. DT-2000 included in the kit). The system impresses through its sophisticated, ultra-thin design and excellent voice quality. The bell button of the outdoor unit is illuminated automatically when it is dark.
This text is machine translated.
This text is machine translated.
Features
- Wide-angle recording: 120° horizontal and 90° vertical
- 16 infrared LEDs for optimized night view
- New bell button generation with improved splash-protection and simple replacement of the name plates from outside
- Uniform white LED illumination of the bell button
- Connection for existing door-opening system
- Resolution of the monitor 1064 x 600 pixels
- 16 ringtones can be selected - alternatively individual ringtone in mp3 format via micro SD card (not included)

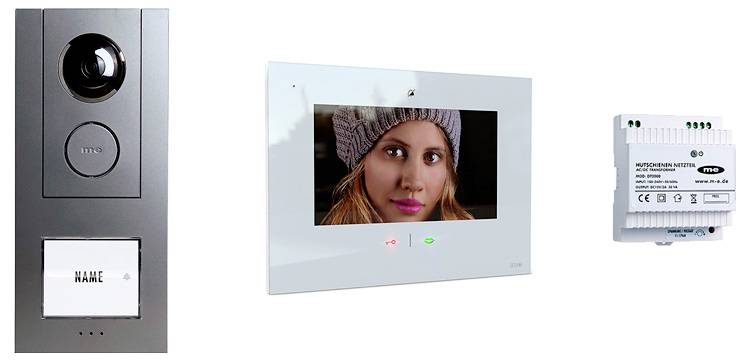

Scope of delivery
- 1x external station VD-ALU 610 A (anthracite)
- 1x internal unit VDV-907 IP in white
- 1x DT-2000 DIN rail power supply
Hints
Connection to router via WLAN
Power supply via DIN rail mains adapter 15 V DC / 2 A (included in delivery)
Dimensions (WxHxD): Outdoor station 118 x 260 x 25 mm
Internal station 220 x 160 x 28 mm
DIN rail power supply 77 x 97 x 56 mm
System requirements
- Apple iPhone iOS vers 9 onwards, Android phone vers 4.3 onwards
- Internet: Minimum 1 Mbit up/down control via VISTSMART APP for iOS, Android
