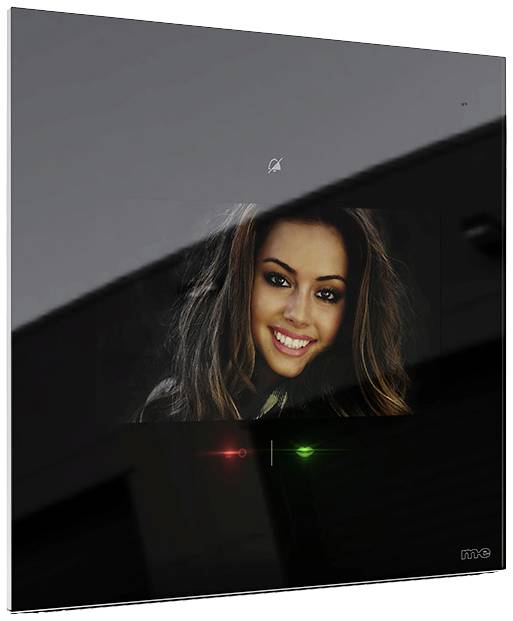

A digital display showing a smiling woman with two illuminated LEDs beneath it, one green and one red.

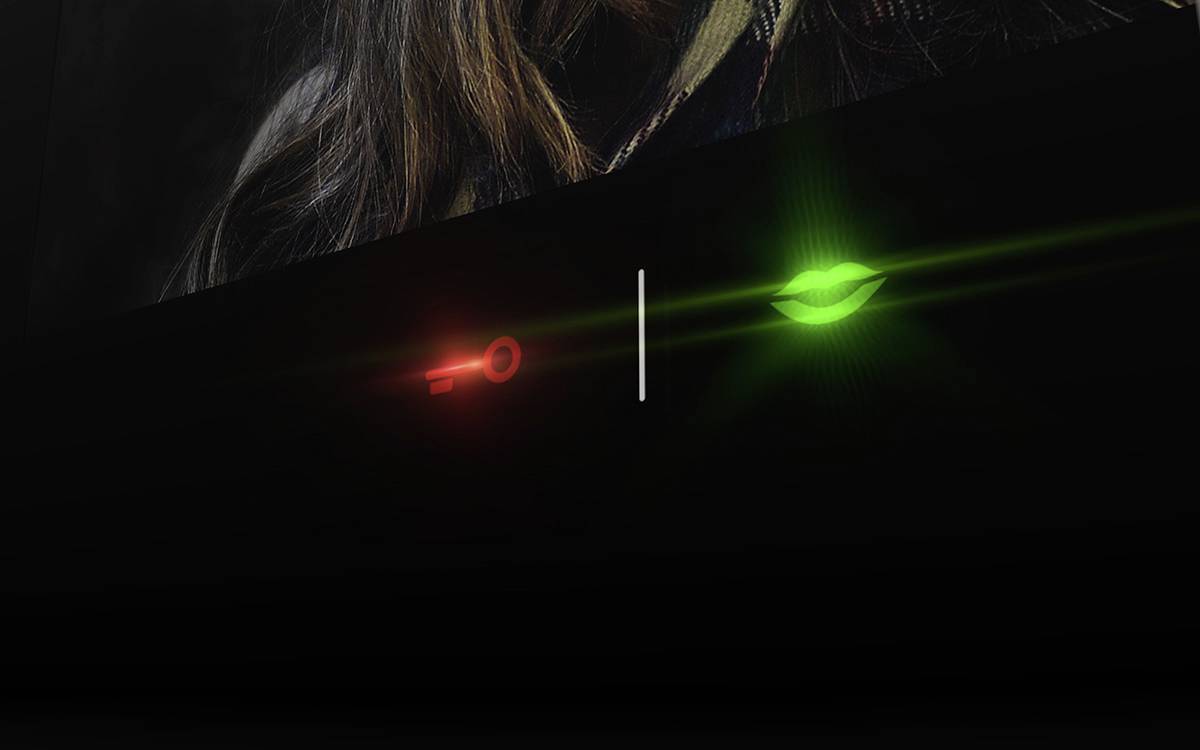

'Image of a red key and a green leaf on a black background. The key glows red, the leaf glows green.'

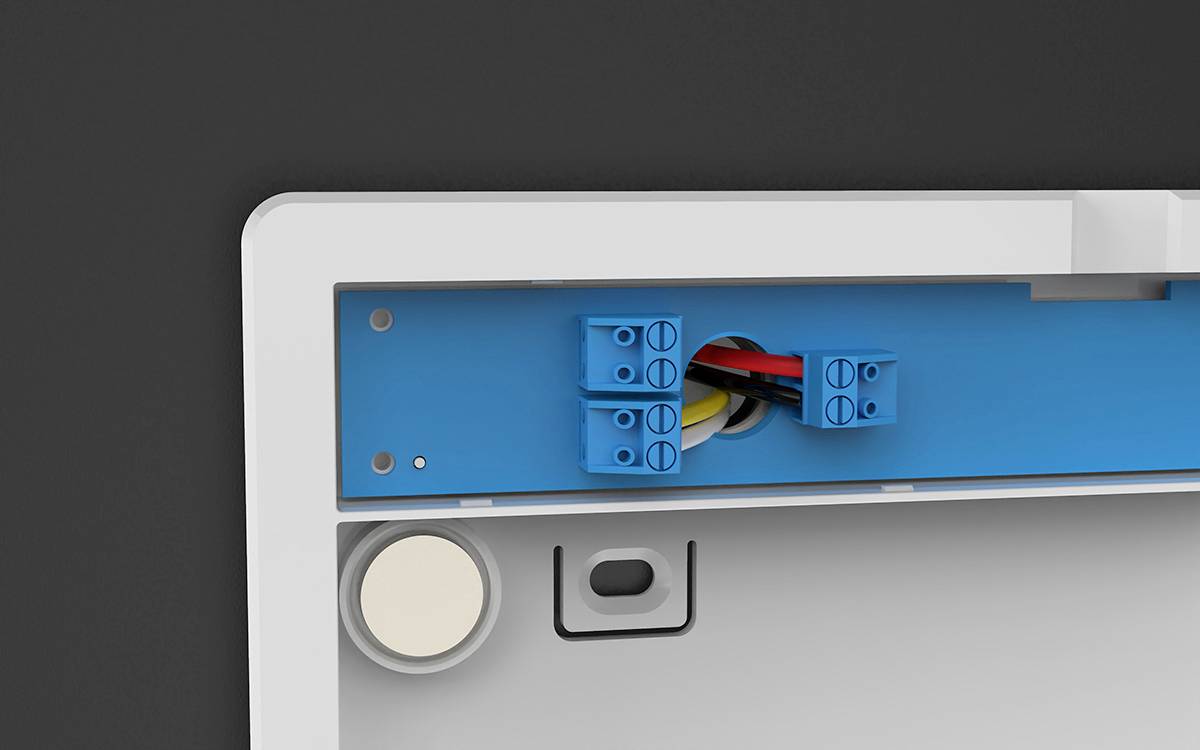

Close-up of a wall-mounting bracket with visible blue cable connections and a round magnet in the bottom left.

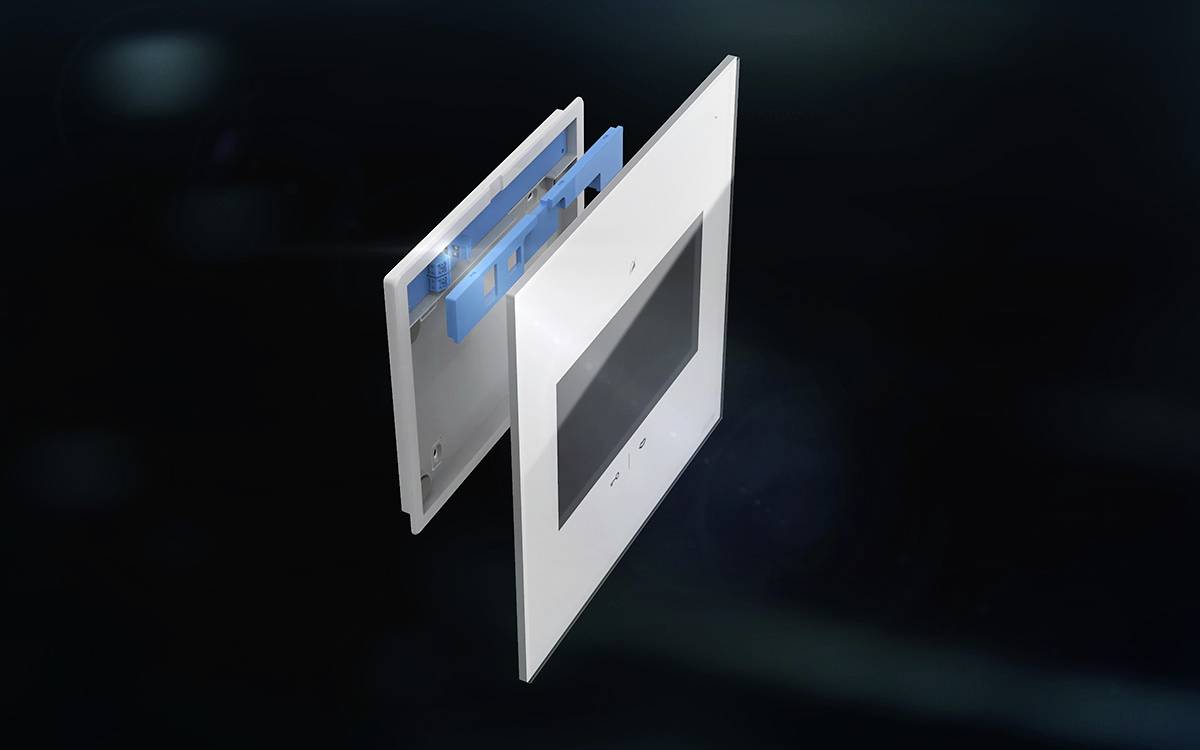

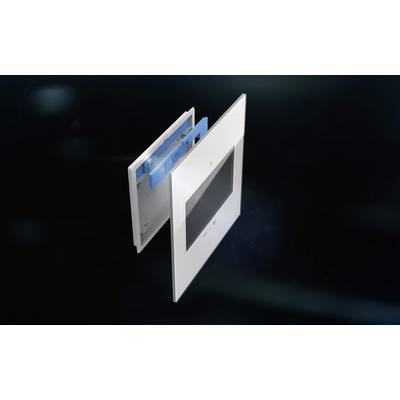

Illustration of a mountable wall switch with an outer plastic plate, a blue intermediate frame, and an internal mounting bracket.

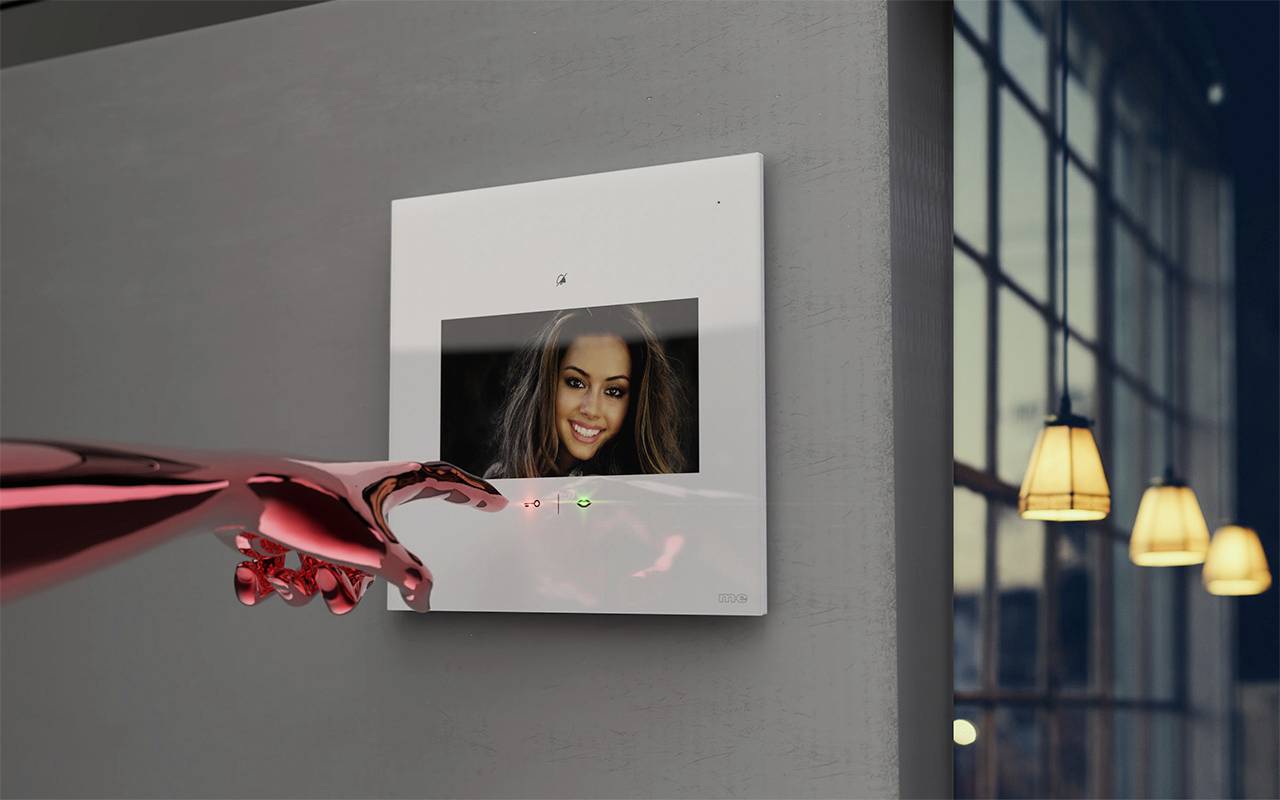

A red robotic arm touches a screen on the wall, displaying an image of a smiling woman. Lamps are visible in the background.

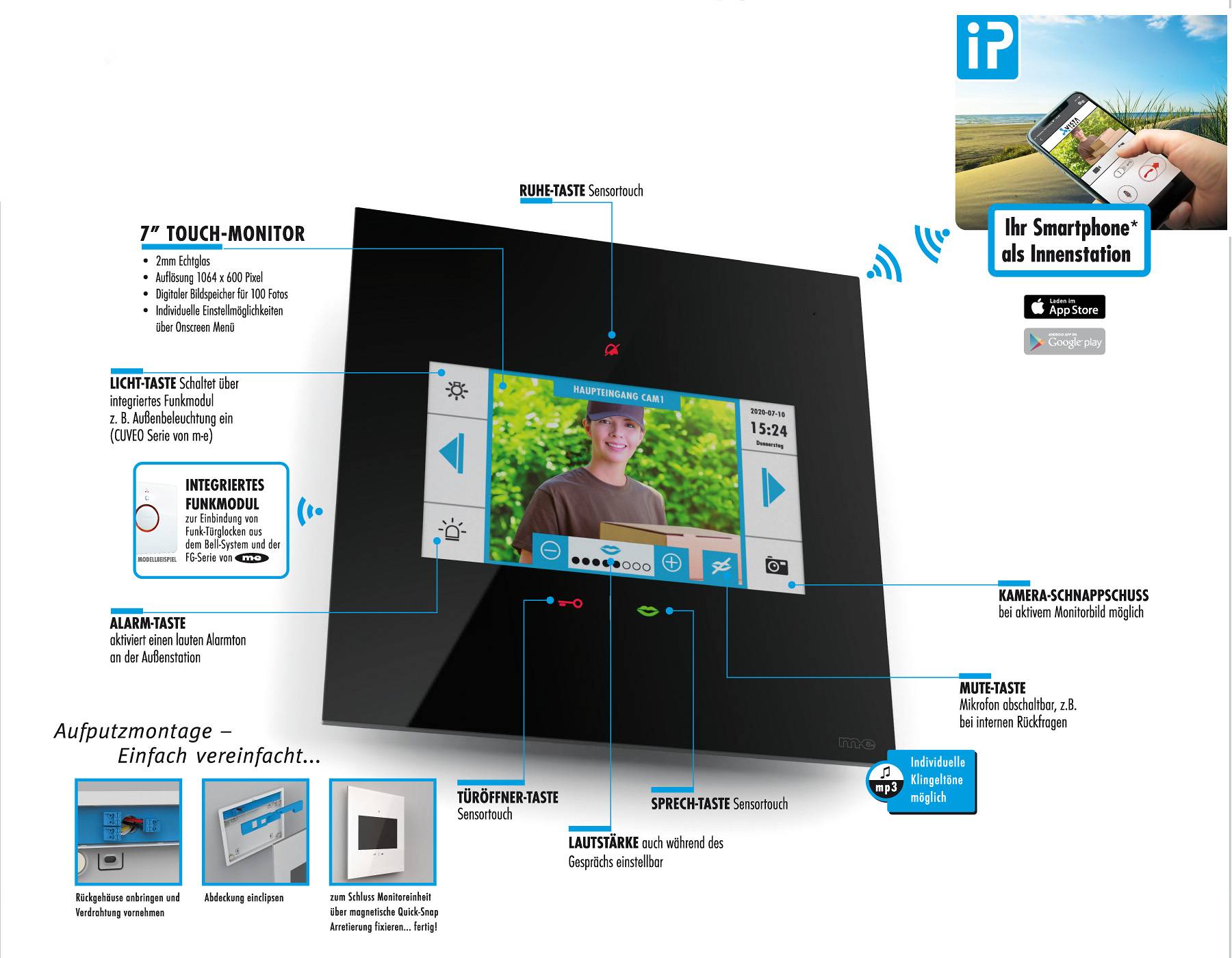

'Video Door Entry System with 7" Touch Monitor. Shows Person at the Door. Functions: Light, Alarm, Camera, Volume, Microphone.'

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

7" Video indoor unit VDV-1107 IP black

17.7 cm (7 ") capacitive touch-monitor
With digital picture storage for up to 100 photos with date & time
Image storage for VistaDoor & Vistus door intercoms

Technical specifications

Product type: IP video door intercom

Component: Indoor panel

Features: incl. image memory

Transfer type: Radio
Wi-Fi

Frequency: 2.4 GHz
434 MHz

Upgradable with: External extension
Internal extension

Factory colour: Black

Resolution: 1064 x 600 p

Power supply (LOV): mains-powered

Display type: Touch colour display

Screen size diagonal (cm): 17.7 cm

Screen size diagonal (inches): 7 inch

Tunes: 16

Max. bell volume: einstellbar

Width: 220 mm

Height: 220 mm

Depth: 19.5 mm

Documents & Downloads

Datasheet

Datasheet 2886918 m-e modern-electronics VDV-1107 S IP video door intercom Radio, Wi-Fi Indoor panel Black

User & Safety Instructions

User & Safety Instructions 2886918 m-e modern-electronics VDV-1107 S IP video door intercom Radio, Wi-Fi Indoor panel Black

Description

Can be extended individually with VIDEO and AUDIO components from the series Vistadoor & Vistus of m-e. Up to 3 outdoor stations can be used as well as up to 4 indoor units per unit.

This text is machine translated.

Features

Connection to router via WLAN
Intercom function: Communication from indoor unit to indoor unit within a unit
Optical display for intercom and DOOR-OPENING sensor buttons
Plastic housing with 2 mm real glass front panel with touch function for all control elements
IP & APP for iOS and Android: Linking your Smartphone allows you to see, talk to and even open the door from anywhere (with an existing door opener)
Integrated radio module for linking wireless-door bells from the Bell- or FG-series, as well as for controlling a CUVEO-receiver (e.g. Wireless light switch) from m-e
16 ring tones can be selected (volume can be set)
Alternatively, individual MP3-format ringtones via micro SD-card (not included)
STOP button turns off the ring tone (e.g. when you are at night) - the bell icon flashes red as a reminder
Door opener function (with available door opener)
Simple surface mounting - installation height only 19.5 mm or flush mounting possible - installation height then only 11 mm

Scope of delivery

1 x video indoor unit

Hints

Available in white or black. Compatible with all components of the Vistadoor & Vistus series.

System requirements

System requirements: Mobile devices Apple iPhone from iOS 7 onwards, Smartphone Android from 4.3
Internet: Minimum 1 Mbit up/down
Control via VISTSMART APP for iOS, Android
