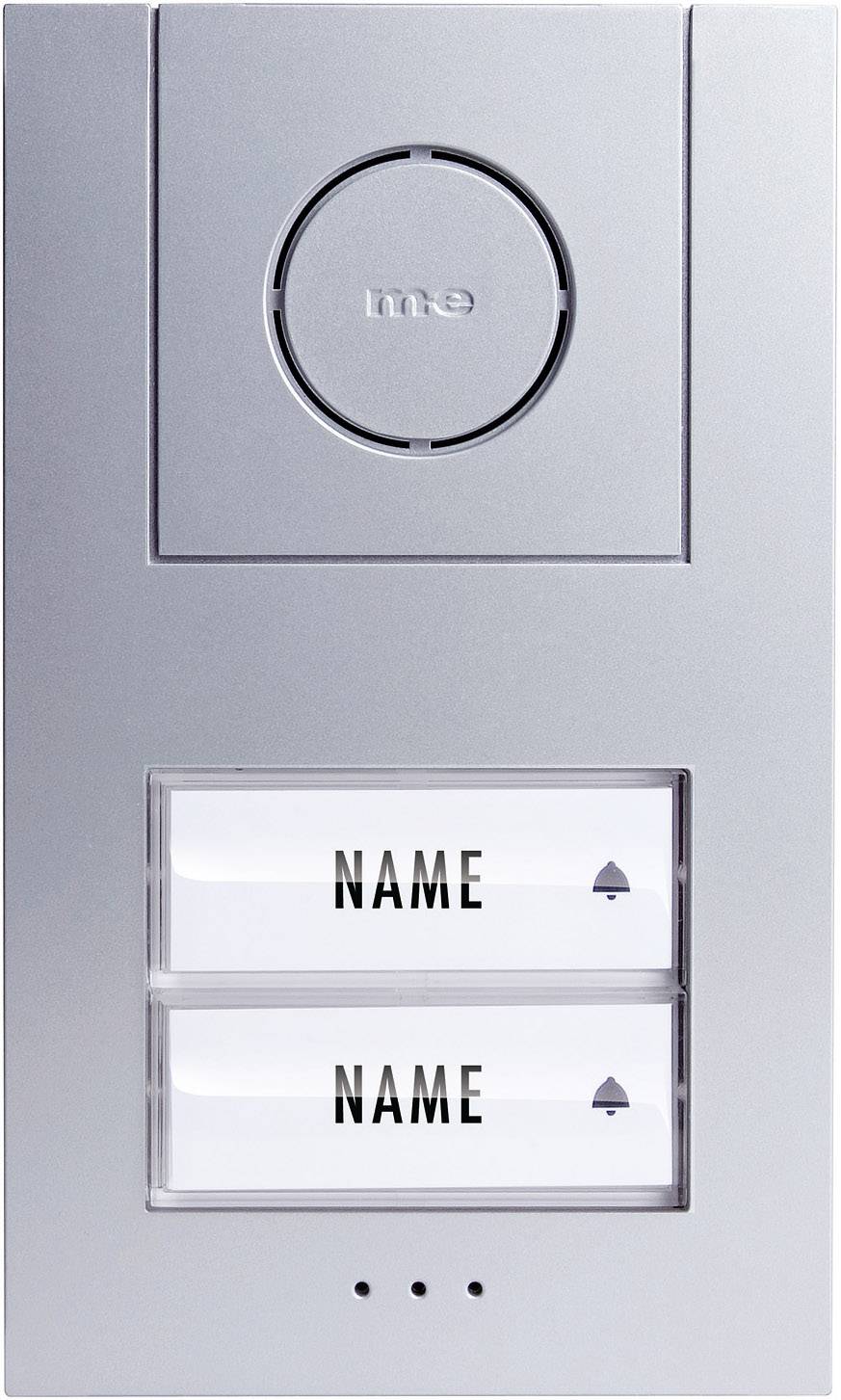

m-e modern-electronics VISTUS AD ALU 420 Vistus Door intercom Corded Outdoor panel Semi-detached Silver, White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Door intercom
- Component
Outdoor panel
- Units
2
- Features
Backlit nameplate
- Transfer type
Corded
- Leads
3 (+2 door openers)
- Mounting type (outdoor)
Surface-mount
- Material (external)
Aluminium (die-cast)
- Upgradable with
Internal extension
- Factory colour
Silver
White
- Type
Two-family home
- External unit dims.
118 x 195 x 25 mm
- Height
25 mm
- Series
Vistus
- Operating voltage
15 V/DC / 1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1384855 m-e modern-electronics VISTUS AD ALU 420 Vistus Door intercom Corded Outdoor panel Semi-detached Silver, White
Warranty Terms
Warranty Terms 1384855 m-e modern-electronics VISTUS AD ALU 420 Vistus Door intercom Corded Outdoor panel Semi-detached Silver, White
Description
For the expansion of the sets or to put together an audio door entry system. Compatible with all vistus and vistadoor components (audio and video).
Outdoor station:
High-quality die-cast aluminum housing with Schutzlakierung. Surface-mounting: height of only 25 mm. Uniform white LED of the doorbell button. Bell button lighting automatically switches "ON" and "OFF" for the brightness in the dark. Splash-proof according to IP44. Connection for existing door-opening system. Opening time of the door opener can be set (1 or 5 sec). Door opening is visually and acoustically.
This text is machine translated.
Outdoor station:
High-quality die-cast aluminum housing with Schutzlakierung. Surface-mounting: height of only 25 mm. Uniform white LED of the doorbell button. Bell button lighting automatically switches "ON" and "OFF" for the brightness in the dark. Splash-proof according to IP44. Connection for existing door-opening system. Opening time of the door opener can be set (1 or 5 sec). Door opening is visually and acoustically.
This text is machine translated.
Scope of delivery
- Exterior module
- User manual.
Hints
Delivery without cable material, 3-wire 0.75 mm² cable is needed. Max. Cable length 100 m.
