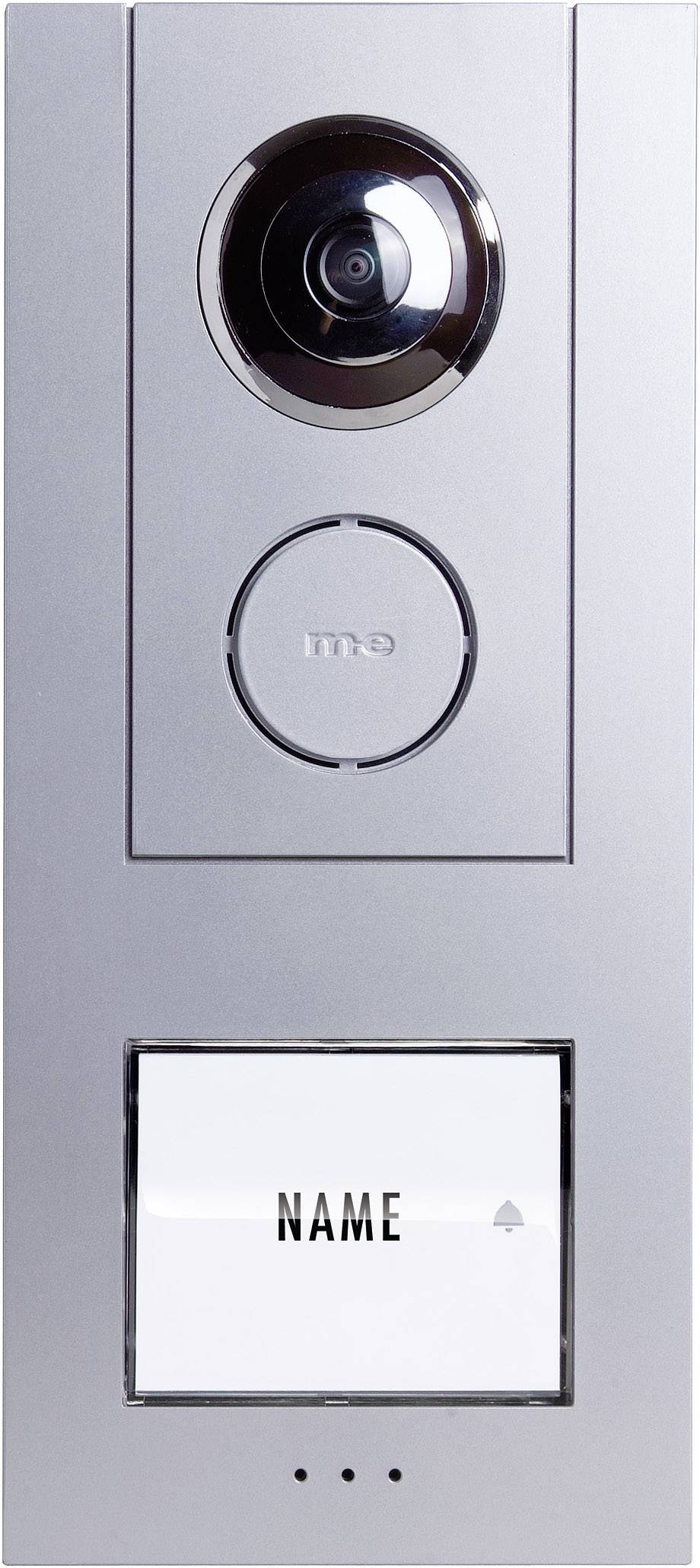

m-e modern-electronics VISTUS VD ALU 610 Vistus Video door intercom Corded Outdoor panel Detached Silver
EAN:
Part number:
Item no:
Technical specifications
- Product type
Video door intercom
- Component
Outdoor panel
- Units
1
- Features
Backlit nameplate
- Transfer type
Corded
- Mounting type (outdoor)
Surface-mount
- Material (external)
Aluminium
- Factory colour
Silver
- Max. viewing angle hor.
125°
- Vertical viewing angle
90°
- External unit dims.
118 x 260 x 25 mm (W x H x D)
- Depth
25 mm
- Series
Vistus
- Operating voltage
15 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1384850 m-e modern-electronics VISTUS VD ALU 610 Vistus Video door intercom Corded Outdoor panel Detached Silver
Warranty Terms
Warranty Terms 1384850 m-e modern-electronics VISTUS VD ALU 610 Vistus Video door intercom Corded Outdoor panel Detached Silver
Description
The camera of the Aluminum Video-Au external station is equipped with a 135° wide-angle detection, as well as optimized with infrared LEDs for night vision. Color camera with image and sound transmission. Wide-angle detection: 135° horizontal and 100° vertical. 16 Infrared LEDS for optimum night vision. Uniform white LED of the doorbell button. Bell button lighting automatically switches "ON" and "OFF" for the brightness in the dark. Surface-mounting: only 25 mm flat + lens. High-quality die-cast aluminum housing with Schutzlakierung. Splash-proof according to IP44. Connection for existing door-opening system: opening time of the door opener can be set (1 or 5 sec). Door opening is visually and acoustically.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Outer station
- User manual.
