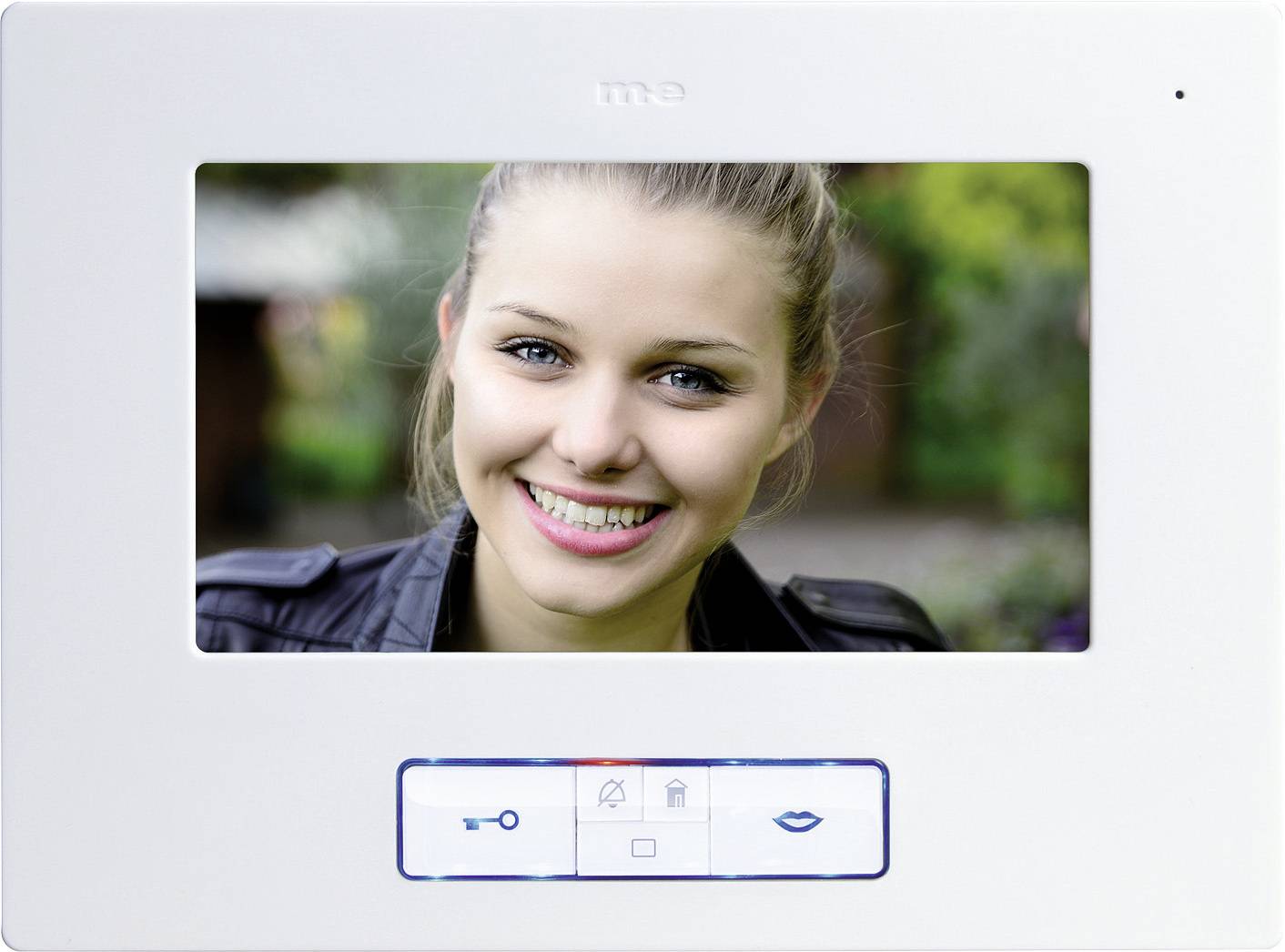

A video doorbell displays the image of a smiling woman on the monitor. The system consists of a camera and a screen.

A young woman with a smiling face on a digital display.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 284.87 / piece)

€ 284.87

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

m-e modern-electronics VISTUS VD ALU-6710 A Video door intercom Corded Anthracite

With 17.8 cm (7'') indoor unit,
Door opener signal and intercom function
Outdoor unit in high-quality die-cast aluminum housing

Technical specifications

Product type: Video door intercom

Units: 1

Features: Backlit nameplate

Transfer type: Corded

Mounting type (interior): Surface-mount

Mounting type (outdoor): Surface-mount

Material (external): Aluminium (die-cast)

Upgradable with: External extension
Internal extension

Factory colour: Anthracite

Power supply (LOV): mains-powered

Max. cable length: 100 m

Display type: Colour TFT/LCD

Screen size diagonal (cm): 17.8 cm

Screen size diagonal (inches): 7 inch

Max. viewing angle hor.: 120°

Vertical viewing angle: 90°

Tunes: 16

Dimensions (built-in device): 220 x 164 x 22

External unit dims.: 250 x 290 x 135 mm

Documents & Downloads

Datasheet

Datasheet 2256791 m-e modern-electronics VISTUS VD ALU-6710 A Video door intercom Corded Anthracite

User & Safety Instructions

User & Safety Instructions 2256791 m-e modern-electronics VISTUS VD ALU-6710 A Video door intercom Corded Anthracite

Warranty Terms

Warranty Terms 2256791 m-e modern-electronics VISTUS VD ALU-6710 A Video door intercom Corded Anthracite

Description

Video door intercom with 17.8 cm (7") indoor unit, door opener signal and intercom function. Outdoor unit in high-quality die-cast aluminum housing with protective coating in silver. The VISTUS set can be extended to up to 3 outdoor units as well as up to 4 indoor units per unit. All VISTUS and VISTADOOR components are compatible.

This text is machine translated.

Features

Low power consumption under 1 watt (standby mode)
High-performance electronic plug power supply (1000 mA) with energy-saving technology for power supply
Connection of the mains adapter optionally at the outdoor or indoor station
External station:
Color camera with wide-angle recording: 120° horizontal and 90° vertical
Improved splash-water protection IP44
Bell button lighting automatically switches "ON" in darkness and "OFF" in brightness
Connection for available door opener system: Opening time of the door opener can be set (1 or 5 seconds), door opening is indicated visually and acoustically
Internal station:
17.8 cm (7") color TFT display
Optical bell display: Blue light frame around talk and door opener button
16 ring tones: Improved sound, higher volume can be set, alternatively individual ring tones in mp3 format via microSD card (not included in delivery)
Ring volume can be set continuously
Adjustable speech volume
RESTING button switches off ring tone (e.g. at night)
MONITOR button (silent monitoring): Switches camera ON or OFF at the outdoor station
Intercom function: Talk from indoor unit to indoor unit within a living unit
Connection for floor bell button with own ring tone for distinguishing the house and apartment door.

Scope of delivery

Aluminum outdoor station with camera
Indoor unit with 17.8 cm (7") monitor
Power supply unit
User manual.

Related products can be found here

Multimeters Wireless doorbells, wireless door chimes SD Cards Button Cells Earphones Power Strips Bell Transformers Motion Detectors Weather stations Unassembled Network Cables Low-Energy Light Bulbs DIN Rail PSUs Electromagnetic Door Locks LED Light Bulbs Halogen Lamps Outdoor Wear & Accessories

System requirements

You need a minimum 4-wire cable (0.75 mm²), max. cable length 100 meters.
