m-e modern-electronics Wireless discharged air control ASK 6030 White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Remote control of exhaust air with battery-less Kinetic-window transmitter and Thermo-transmitter | Window contact switches | Mounting version

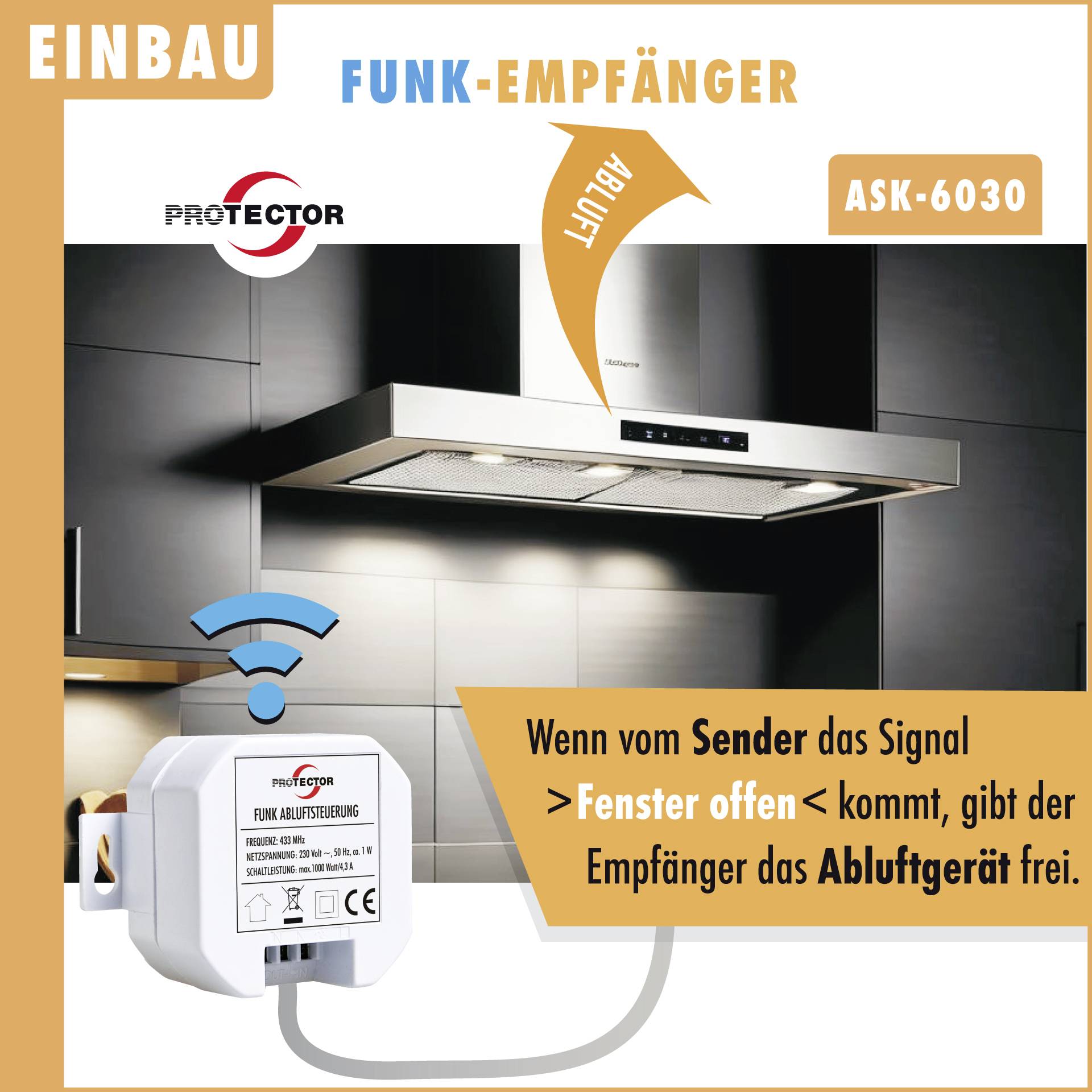

- Switches your exhaust hood depending on the oven temperature and window opening

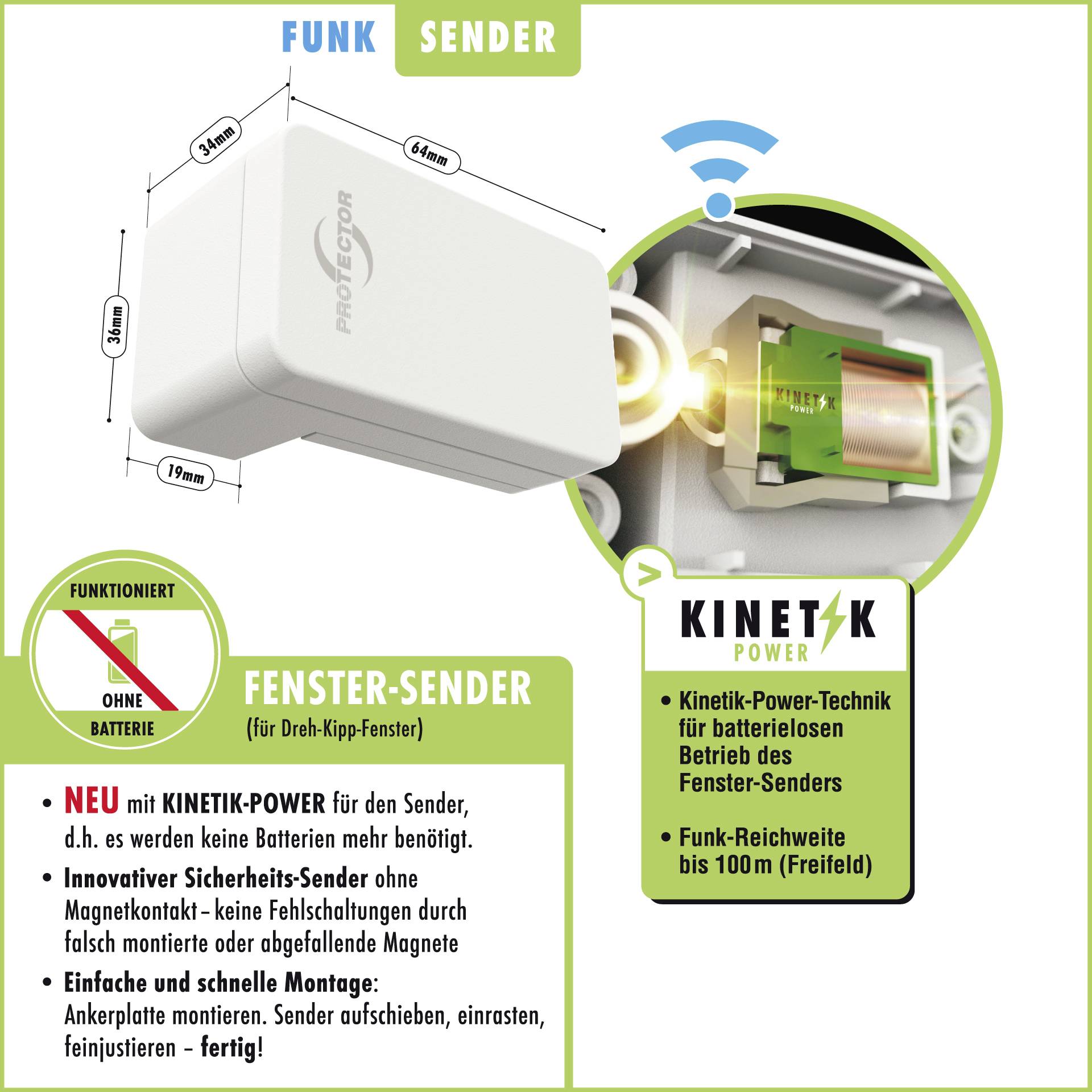

- KINETICS-Power in the window-transmitter: No batteries are needed any longer – this saves money and protects the environment
- Innovative safety transmitter without magnetic contact: No switching errors due to incorrectly installed or dropped magnets
- Lighting of the hood also works when the window is closed if only the motor cable is switched
- Simple and fast mounting: Anchor plate mounting, slide on transmitter, lock in place, fine adjustment - done!
Technical specifications
- Power supply: Receiver 230V/50Hz
- Product type
Wireless discharged air control
- Operating voltage
230 V / AC
- Safety switch (W x H x D)
68×52×32 mm
- Transmitter dimensions
48×120×22 mm
- Factory colour
White
Documents & Downloads
Datasheet
Datasheet 3451062 m-e modern-electronics Wireless discharged air control ASK 6030 White
User & Safety Instructions
User & Safety Instructions 3451062 m-e modern-electronics Wireless discharged air control ASK 6030 White
Description

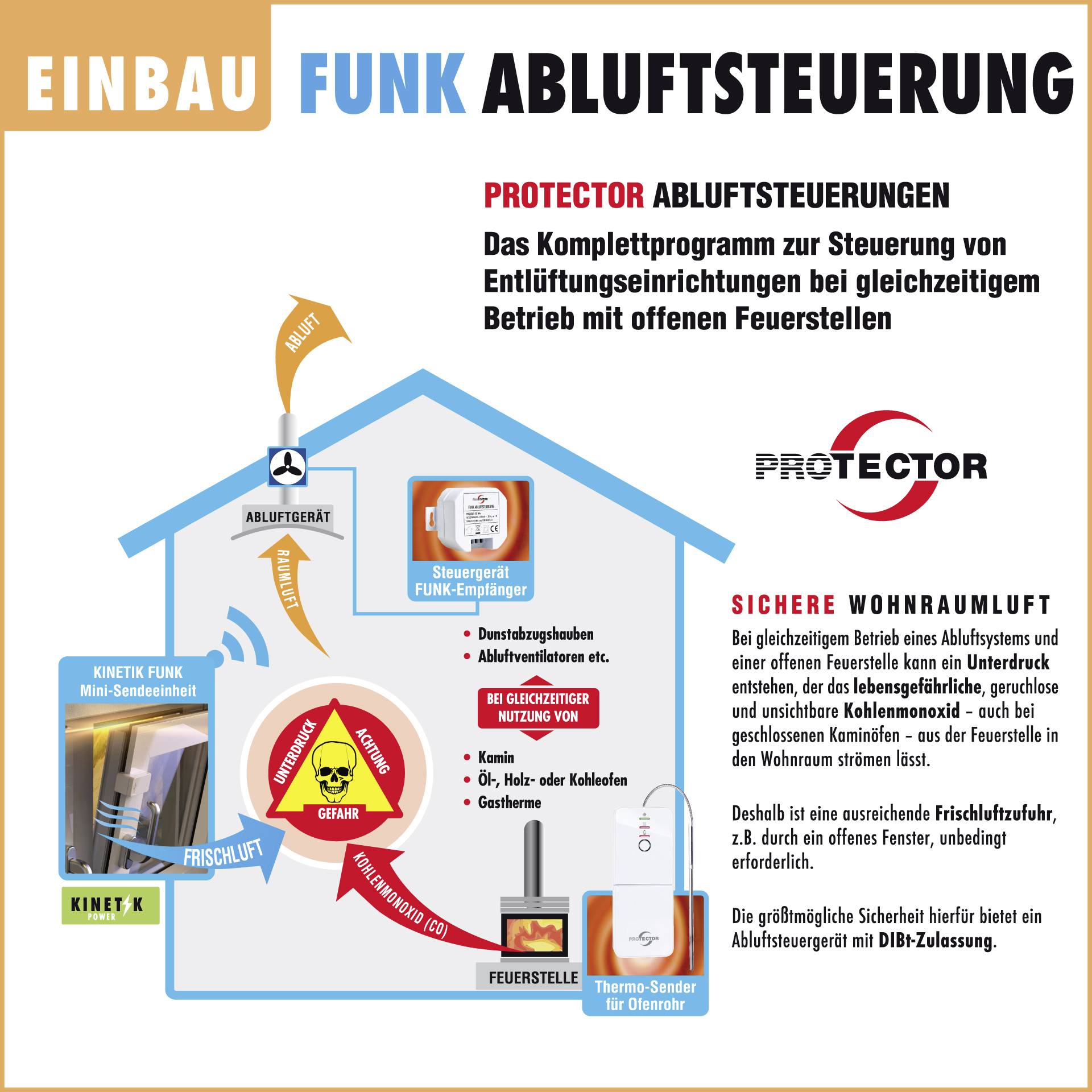

The exhaust fan unit (cooker, exhaust fan, etc.) can be released by both the wireless window transmitter (when the window is opened) and the radio-controlled thermostat (when the fireplace is not operated). The exhaust gas temperature is measured in the oven pipe. If the temperature rises above approx. 37°C, the connected exhaust fan unit is turned off, the temperature sinks back below 37°C, it is turned on again.
This text is machine translated.
This text is machine translated.
Features
- Switching capacity max. 1000 W (4.3 A)
- Power supply: Receiver 230V/50Hz
- Kinetics mini-transmitter (window): Mechanical Kinetics-generator
- Thermal transmitter (oven): 2x 1.5V AA alkaline batteries (not included)
- Dimensions (WxHxD): Receiver: 68 x 52 x 32mm; Kinetic-Mini-transmitter (window): 64 x 36 x 34mm; Thermo-transmitter (oven pipe): 48 x 120 x 22mm
- Frequency:434 MHz (factory coded)
- Switching capacity max. 1000 W (4.3 A)
- Kinetics mini-transmitter (window): Mechanical Kinetics-generator
- Thermal transmitter (oven): 2x 1.5V AA alkaline batteries (not included)
- Dimensions (WxHxD): Receiver: 68 x 52 x 32mm; Kinetic-Mini-transmitter (window): 64 x 36 x 34mm; Thermo-transmitter (oven pipe): 48 x 120 x 22mm
- Frequency:434 MHz (factory coded)

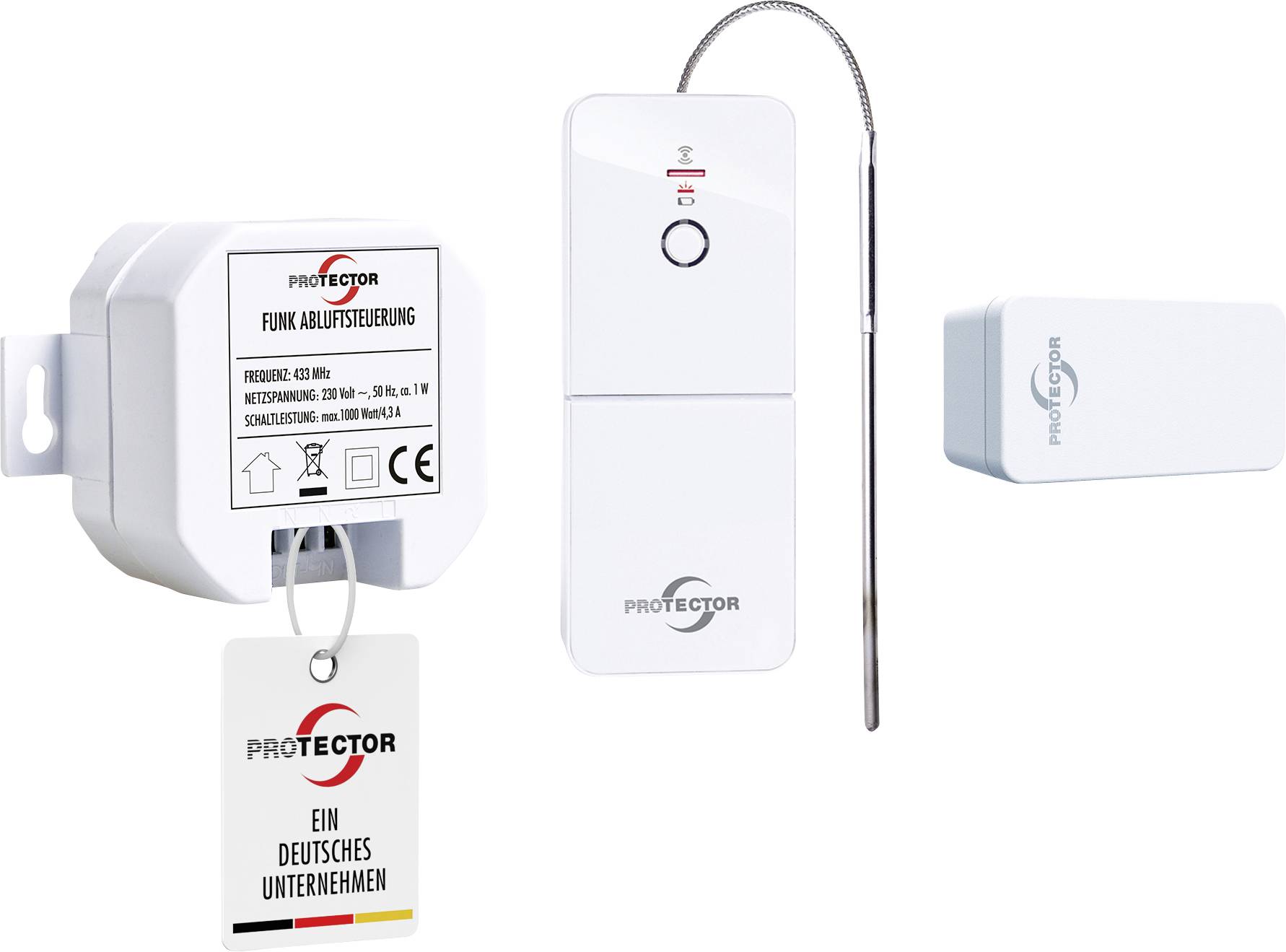

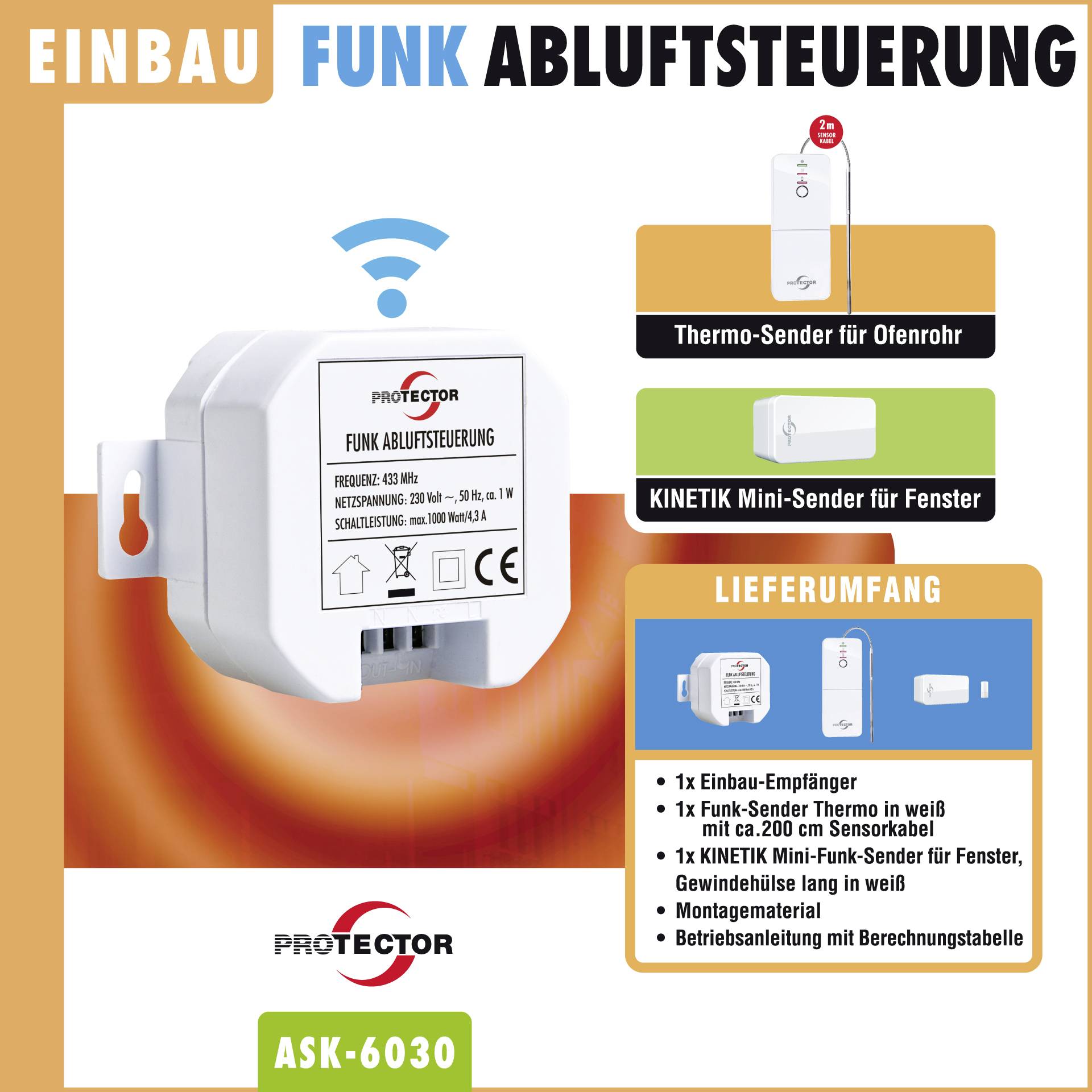

Scope of delivery

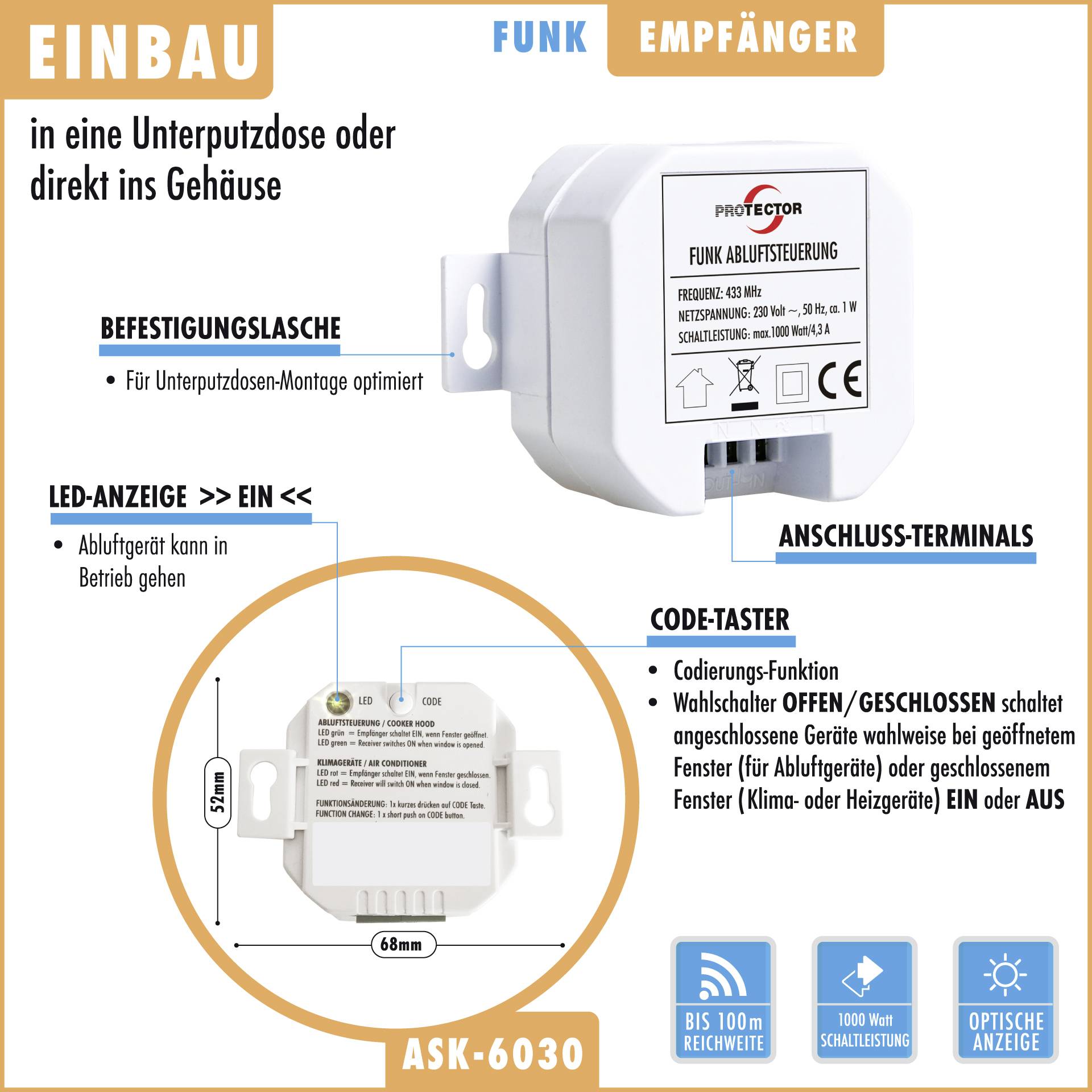

- 1 x built-in switching device (receiver)

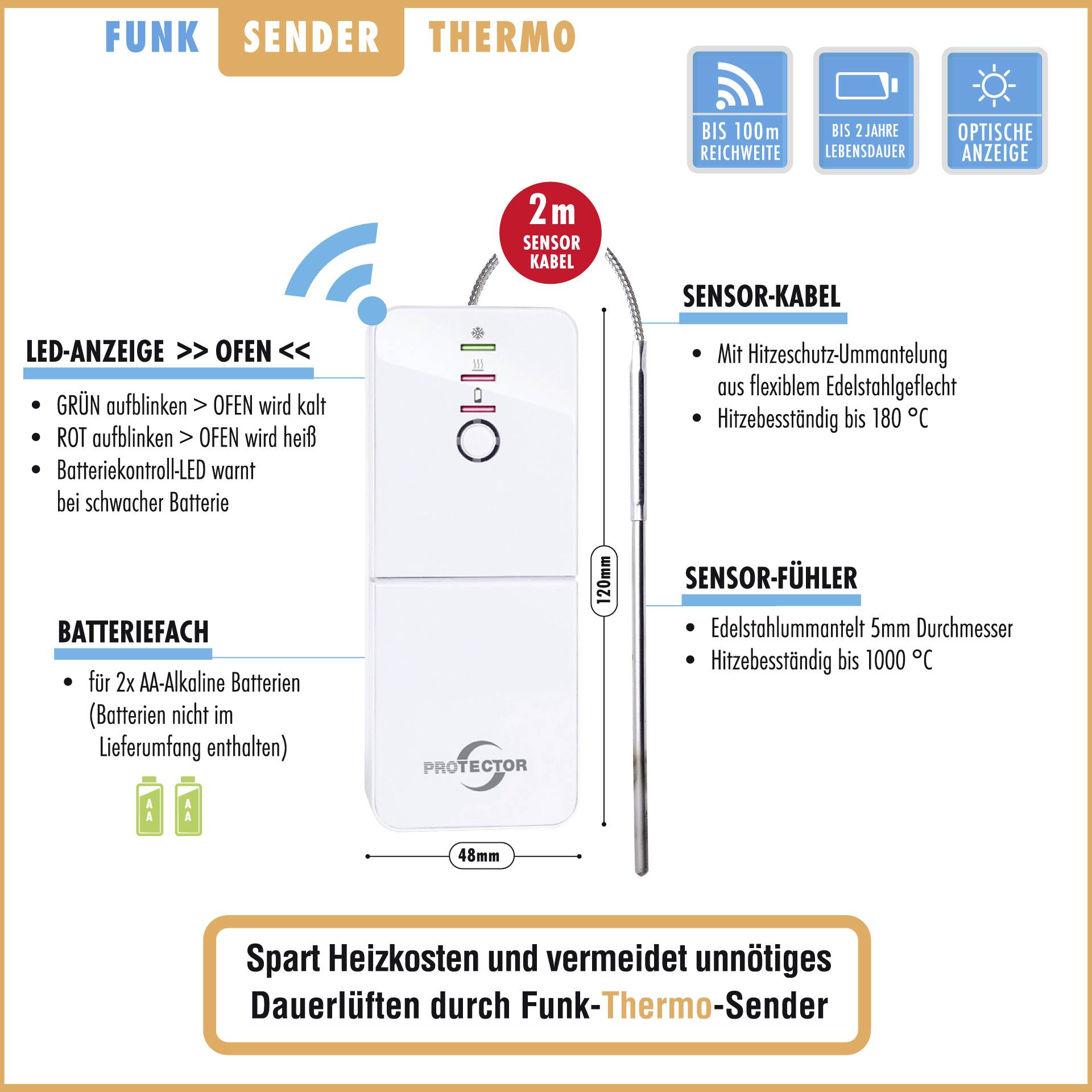

- 1 x wireless thermo-transmitter (for oven pipe) in white with 200cm sensor cable and mounting material

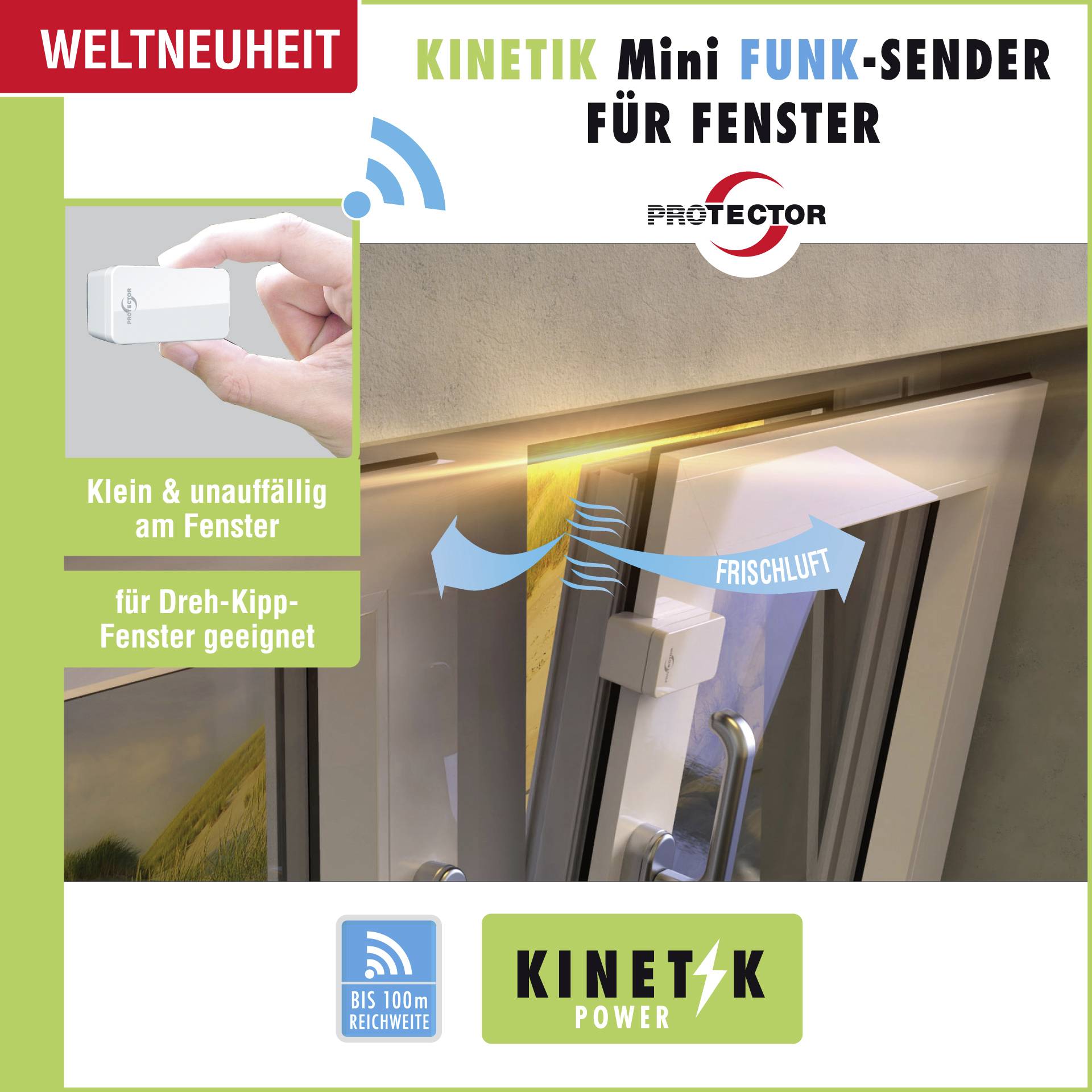

- 1 x Kinetics-Mini-transmitter (for window)
- 1 x User manual
Hints
Expandable with up to 6 additional transmitters (window and/or thermo)
System requirements
- Suitable for rotary tilting windows
