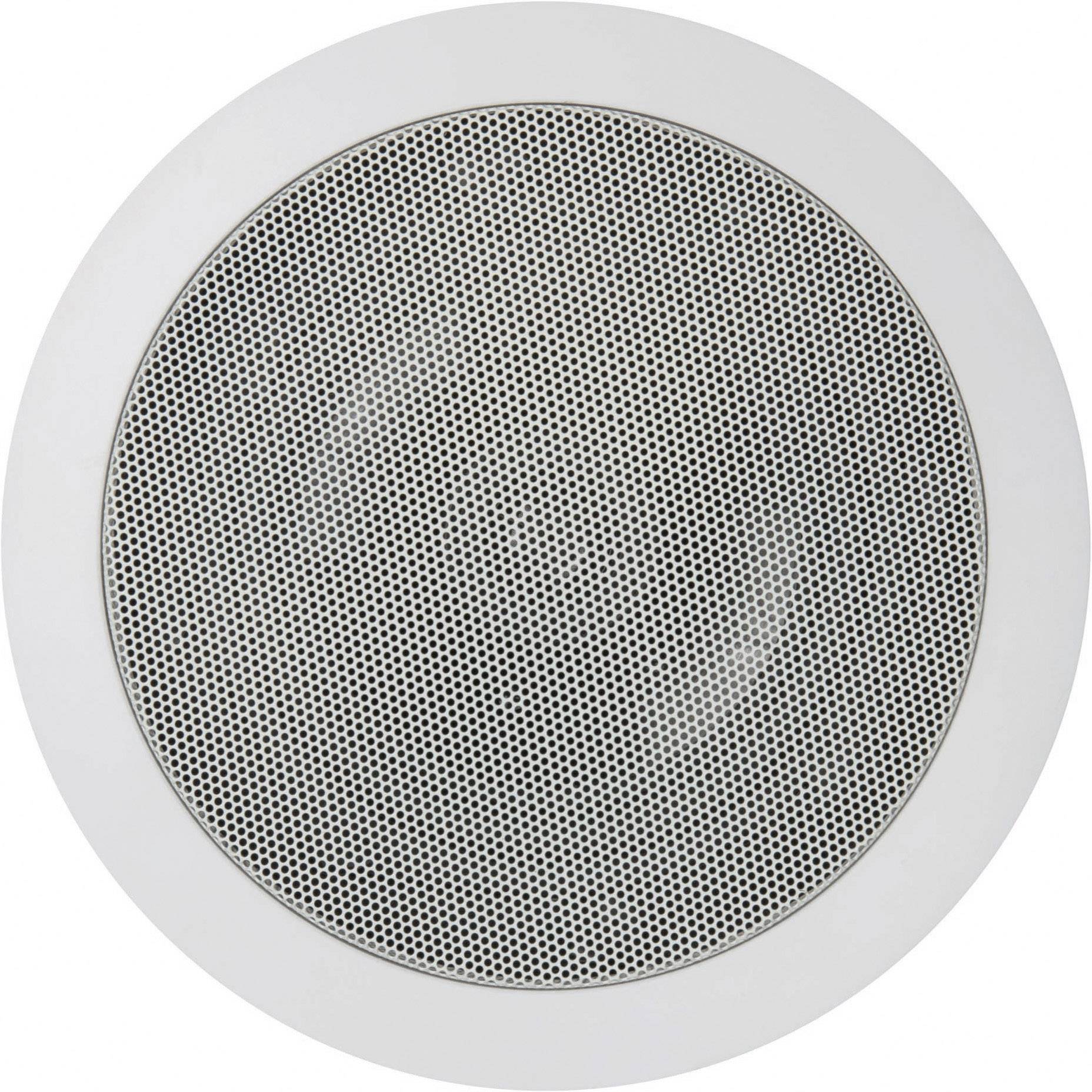

Magnat ICP 52 Flush mount speaker 100 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
MAGNAT ICP 52 recessed loudspeaker 1 piece
Highlights & Details
- 2-way
- This text is machine translated.
Technical specifications
- Equipment: 130 mm woofer, 19 mm tweeter
- Crossover frequency: 4000 Hz
- Recommended Verstarkerleisung: 20 - 120 W.
- Product type
Flush mount speaker
- RMS capacity
60 W
- Max. load
100 W
- Impedance
8 Ω
- Max. sound pressure
89 dB
- Features
2-way
IP6K9K
- Frequency range
38 - 24 000 Hz
- Type
Round
- Factory colour
White
- Material
Plastic
- Mounting depth
81 mm
- Recess diameter
168 mm
- Depth
81 mm
- (Ø)
202 mm
- Weight
1 kg
- Dim
(Ø x D) 202 mm x 81 mm
- Outside Ø
202 mm
Documents & Downloads
Datasheet
Datasheet 312321 Magnat ICP 52 Flush mount speaker 100 W 8 Ω White 1 pc(s)
Description
Features
- Wand-Decken -in speaker
- Easy installation by Klemmmechanismus
- Feuchtigkeitsgeschutztes loudspeaker system, also suitable for humid rooms (bathroom)
- Hairline-Polypropylene -Tieftonmembrane
- PET fleece Dome-Hochtoner
- In order to 35 degree rotatable tweeter thanks to "Swievel" -technology
- High quality Frequenzabweichenbestuckung with 3-fold Pegelverstellung for the tweeter
- Langhub-Gummisicke for maximum deflection
- Sturdy protective grille
- Gold plated Push-Anschlussterminals .
