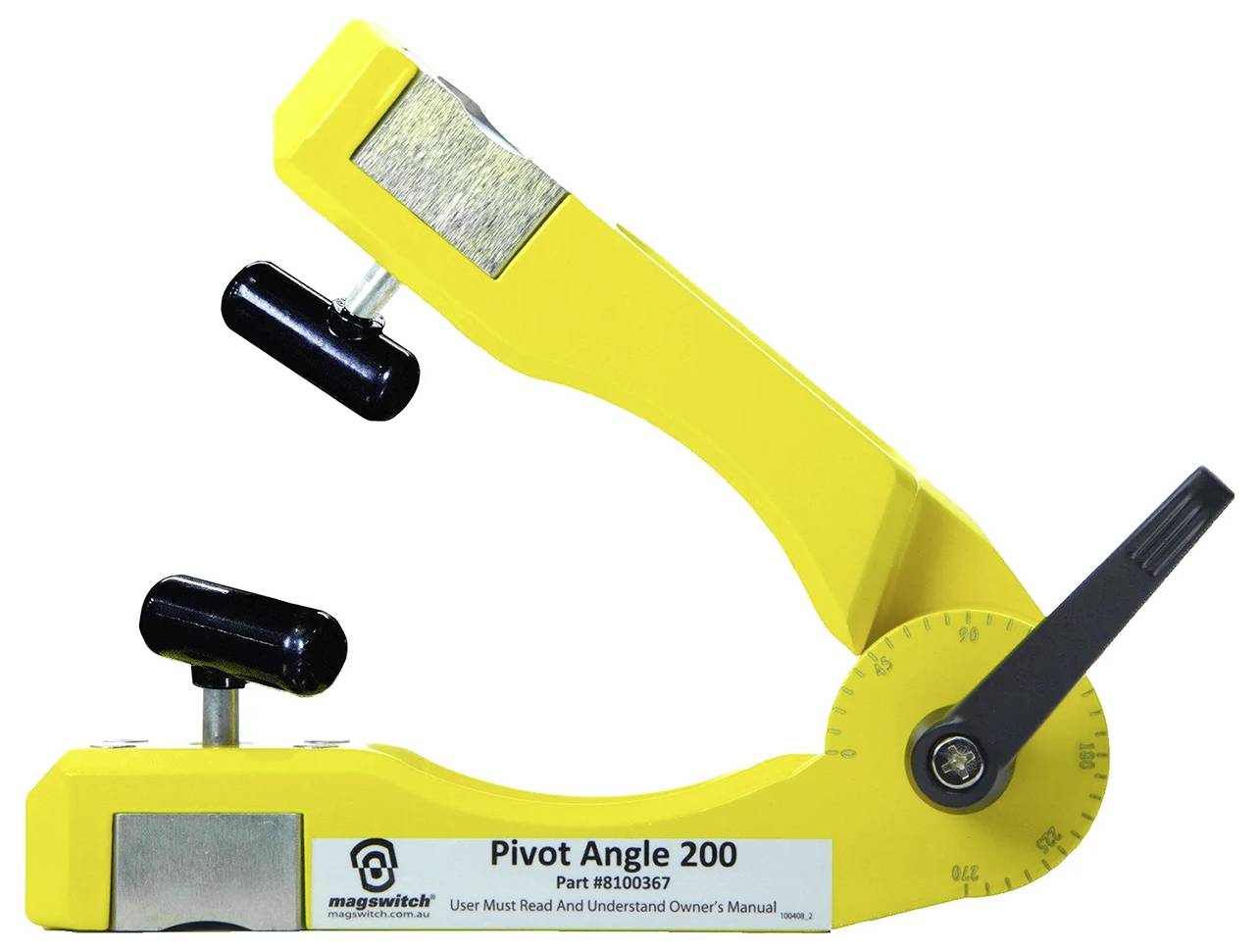

A yellow pivot angle tool labeled 'Pivot Angle 200' with adjustable arms and a black handle for setting angles in metalworking tasks.

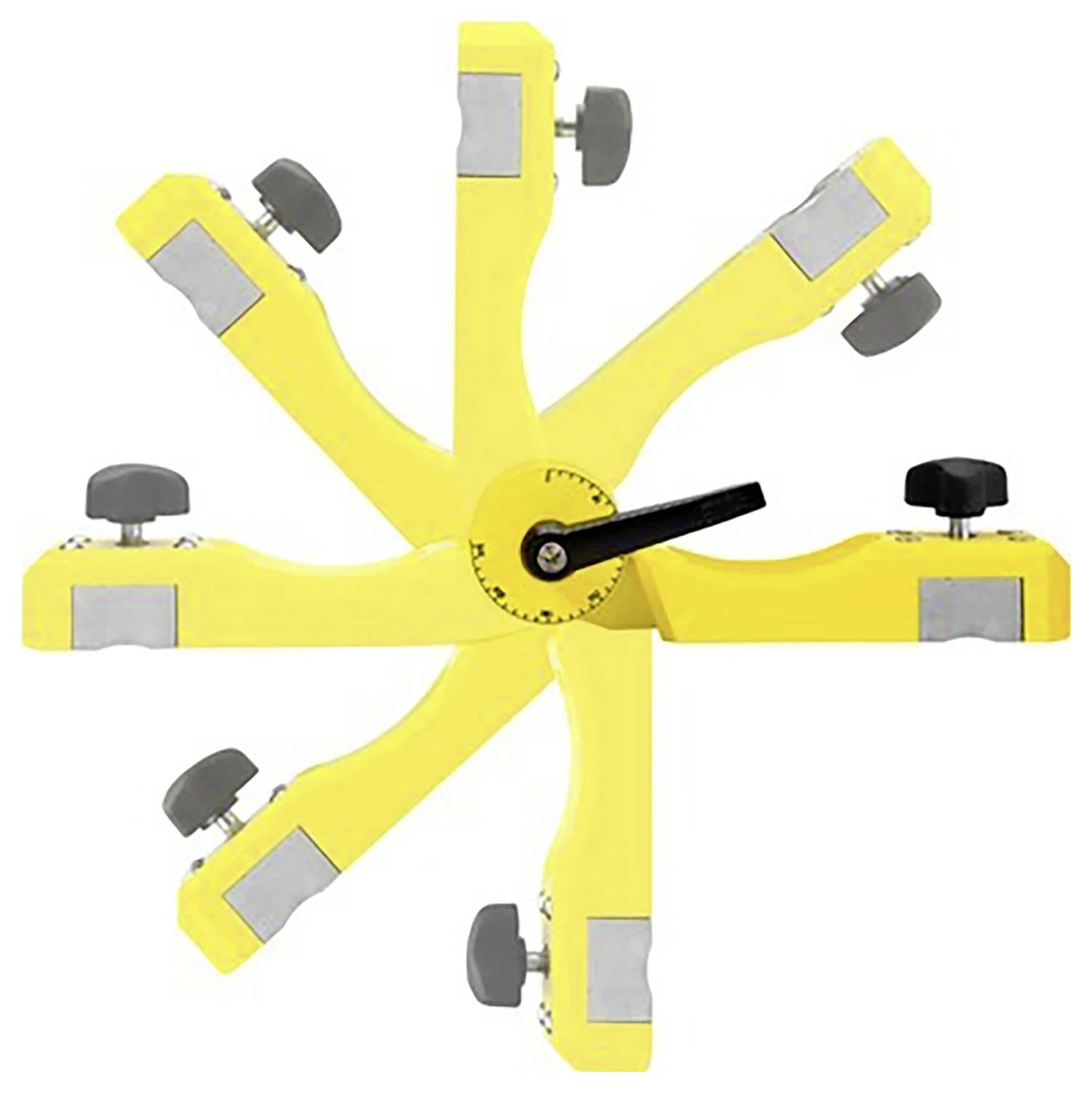

A yellow adjustable tool with six rotating arms, each ending in a clamp with a black knob, used for securing or positioning objects.

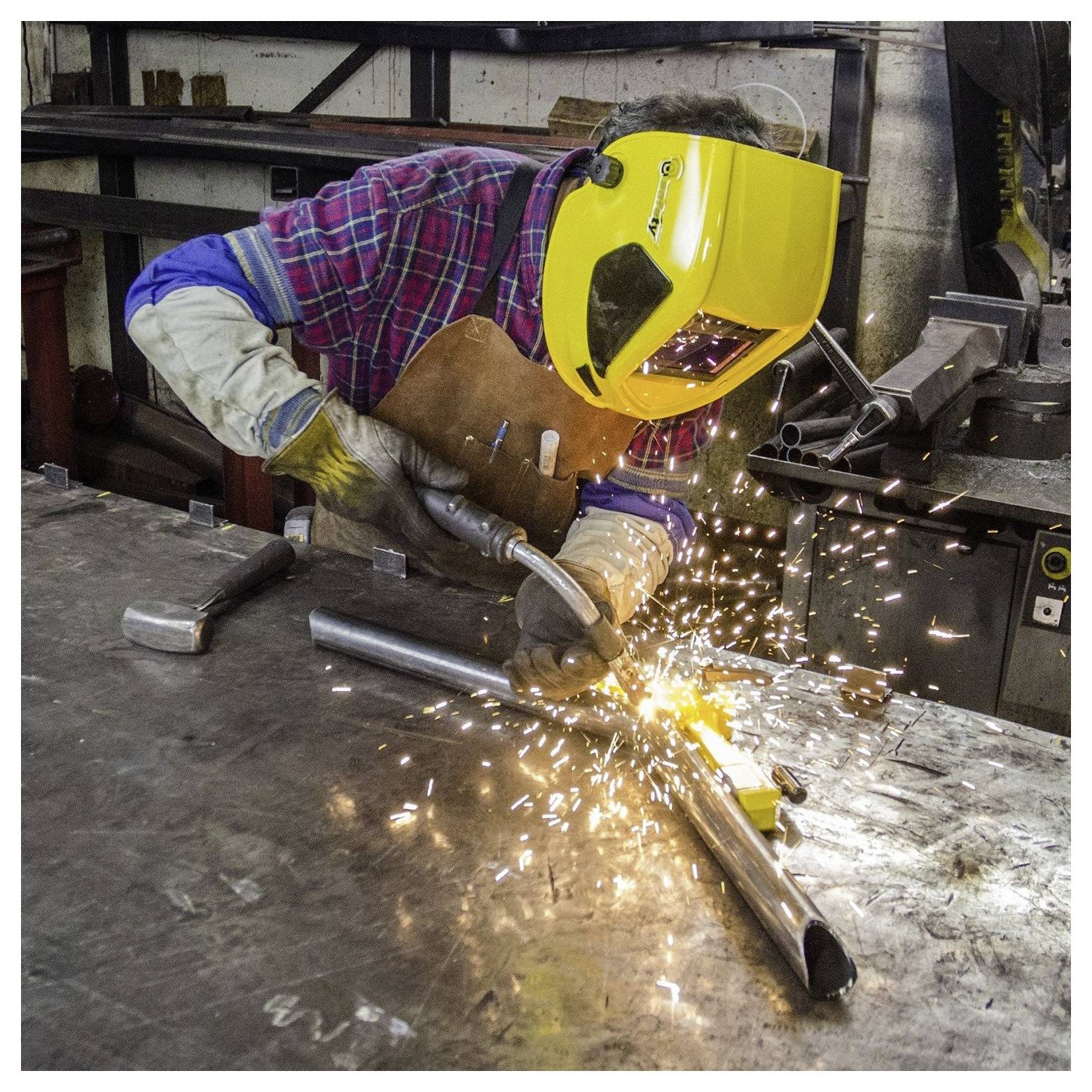

A person in a welding mask and protective gear is welding metal pieces on a workbench, creating bright sparks in an industrial setting.

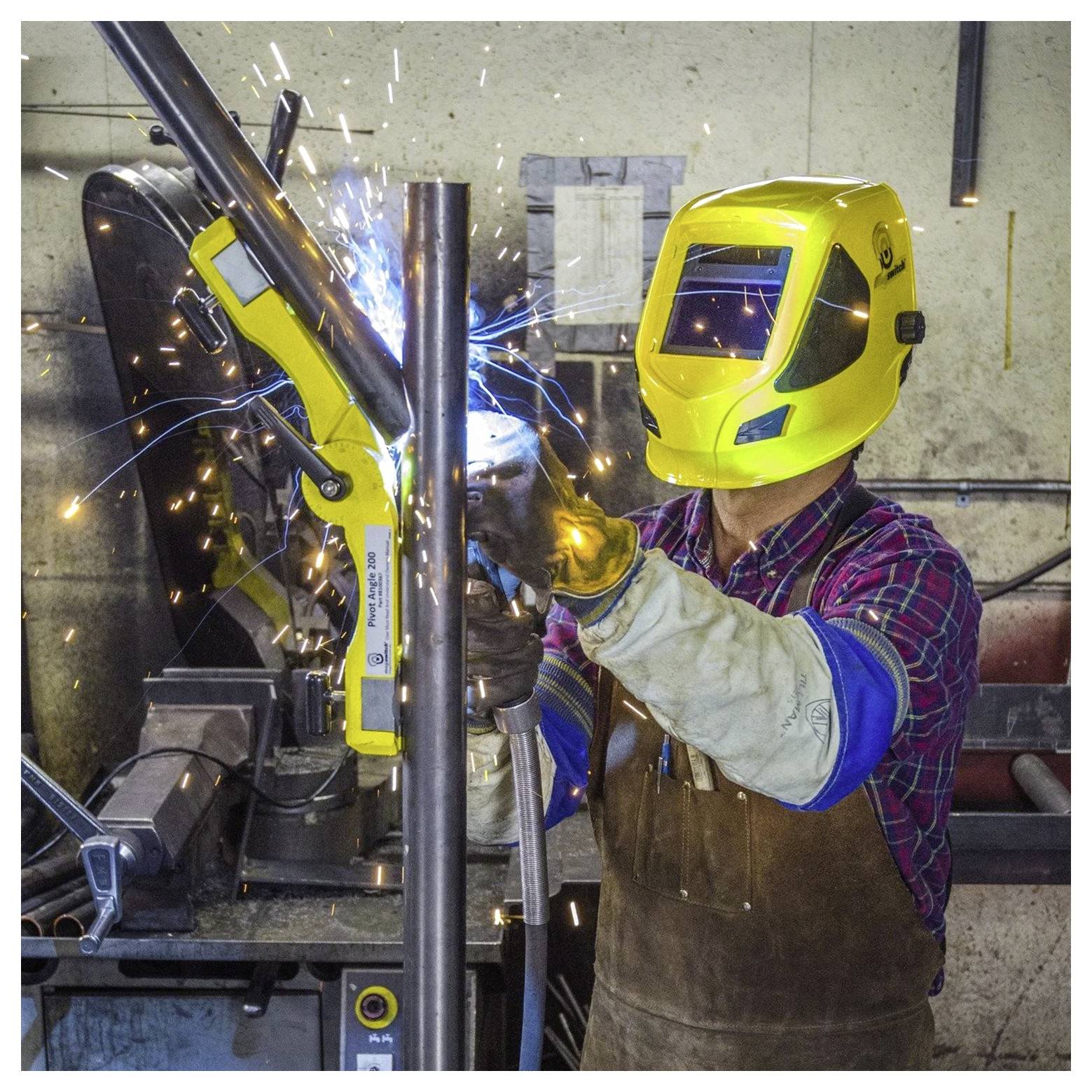

A person wearing a yellow welding helmet and protective gear welds a metal pipe, with sparks visible in a workshop setting.

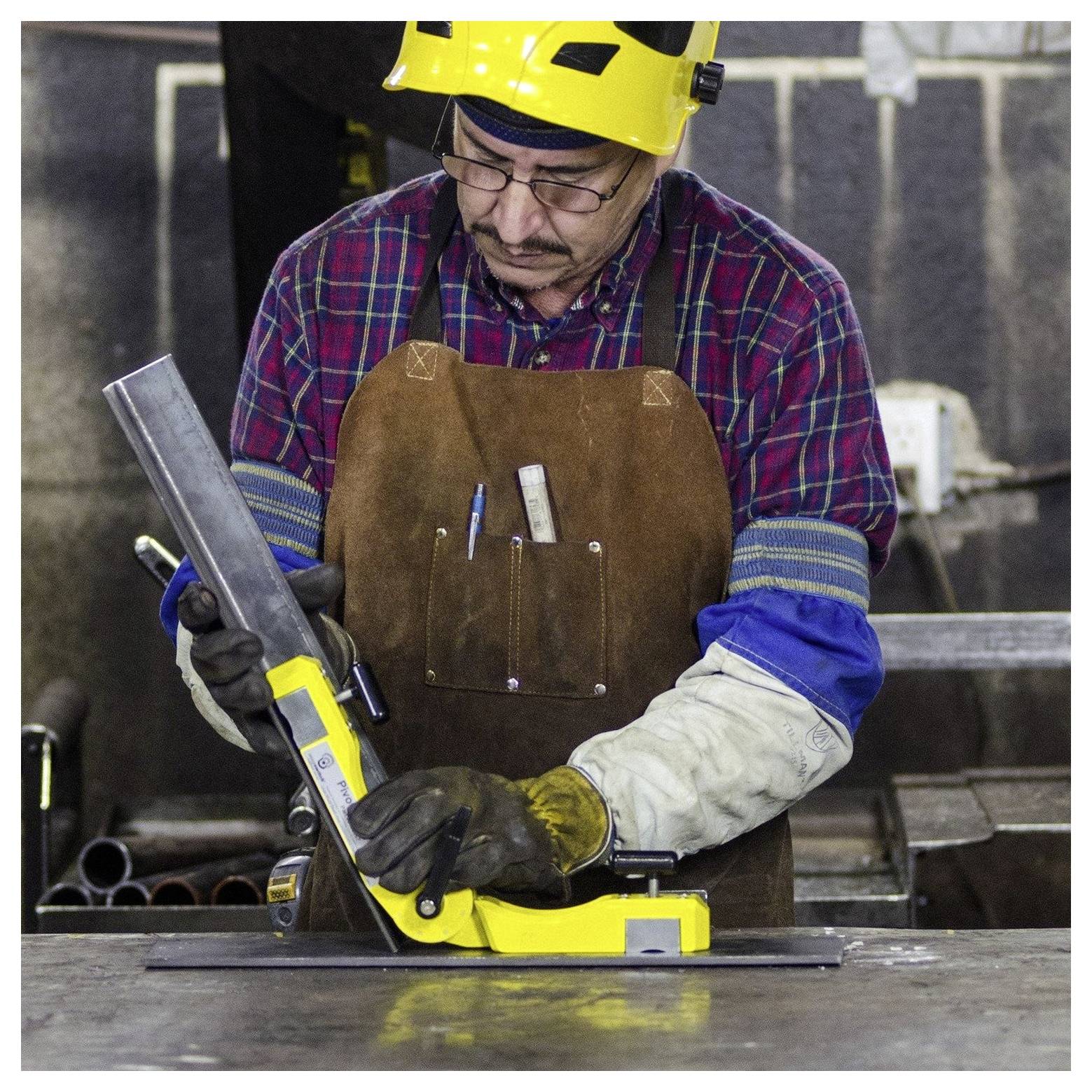

A person in safety gear, including a yellow helmet and brown apron, uses a measuring tool to check alignment on a metal piece in a workshop.

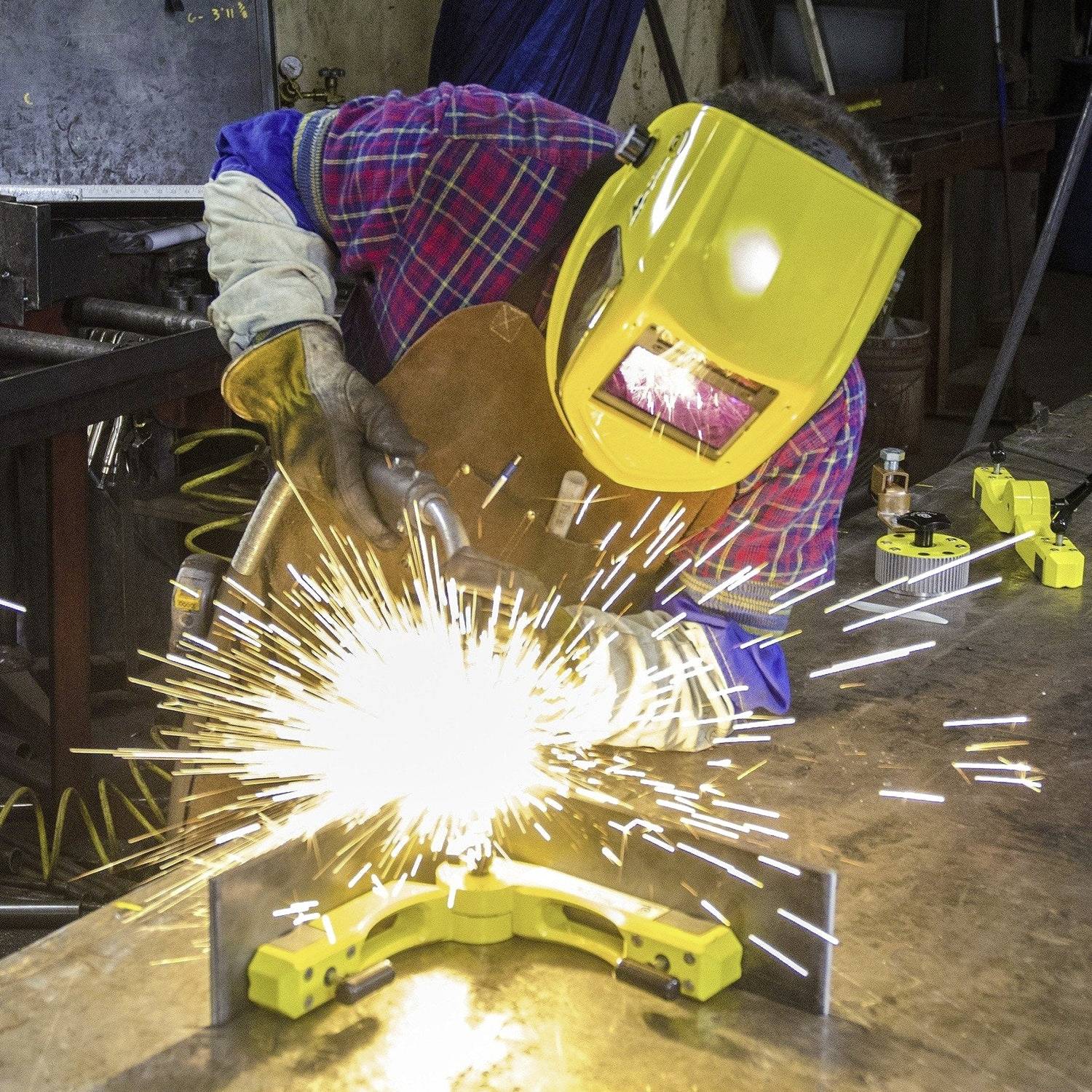

A person is welding metal pieces together in a workshop, wearing a protective helmet and gloves. Bright sparks are visible.

1/6

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch pivot angle 200 - 8100367

Angle range 28-270°, 975 N holding force, locking, mechanical can be switched on/off

Technical specifications

Product weight: 1.8 lbs / 0.8 kg
Dimensions 9.1 x 3.9 x 6.4 mm (231.1 x 99 x 162.5 in)
Maximum breakthrough: 215 kg to 97.5/3 in sheet steel thickness
2: 1 shear load: 48 kg
Full saturation thickness 3 mm
Magnetic base area 41.25 x 56 mm

Product type: #####Magnetwinkel

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476886 Magswitch 8100367 MagSwitch pivot angle 200 - 8100367 #####Magnetwinkel

Description

The tilt-able magnetic welding angle MagSwitch offers an angle range of 28 to 270 degrees. The 97.5kg strong magnetic holding force can be switched on and off by turning the black knobs. Two sides of the tool are magnetized when switched on and can be mounted to the table or wall for fixing a device. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. It does not need any power source. The magnets remain clean. Holds flat and round steel surfaces. A lock on the elbow secures the angle. The adjustment wheel at the angle piece has a display every 5 degrees. Quick adjustment to unusual angles. SPECIFICATIONS Max. Breaking load: 215 lbs / 97.5 kg at 3/16 inches Steel plate thickness 6.4 shear workload: 231.1 lbs / 99 kg Full saturation thickness: 3/16 inches / 4.7 mm Product weight: 1.8 lbs / 0.8 kg Dimensions: 9.1 x 3.9 x 2:1 inches / 48 x 21.7 x 162.5 mm Magnetic pole base: 41.25 mm x 56 mm.
