Buy Magswitch 8100453 Welder's square MagSwitch BoomerAngle 400 - 8100453

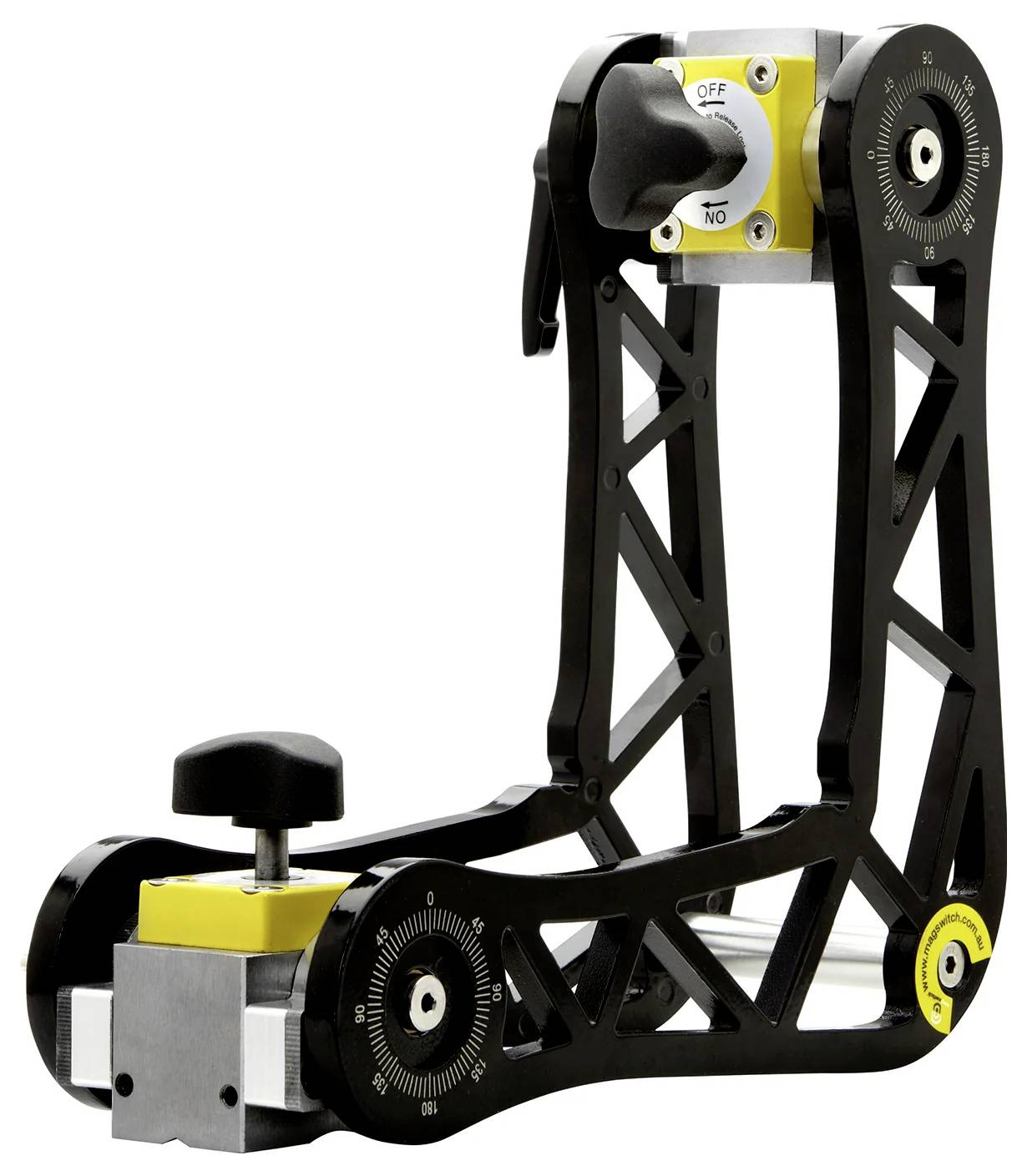

A black and yellow adjustable mechanical device with a handle, dials, and a 'YES/NO' switch, used for precise alignment tasks.

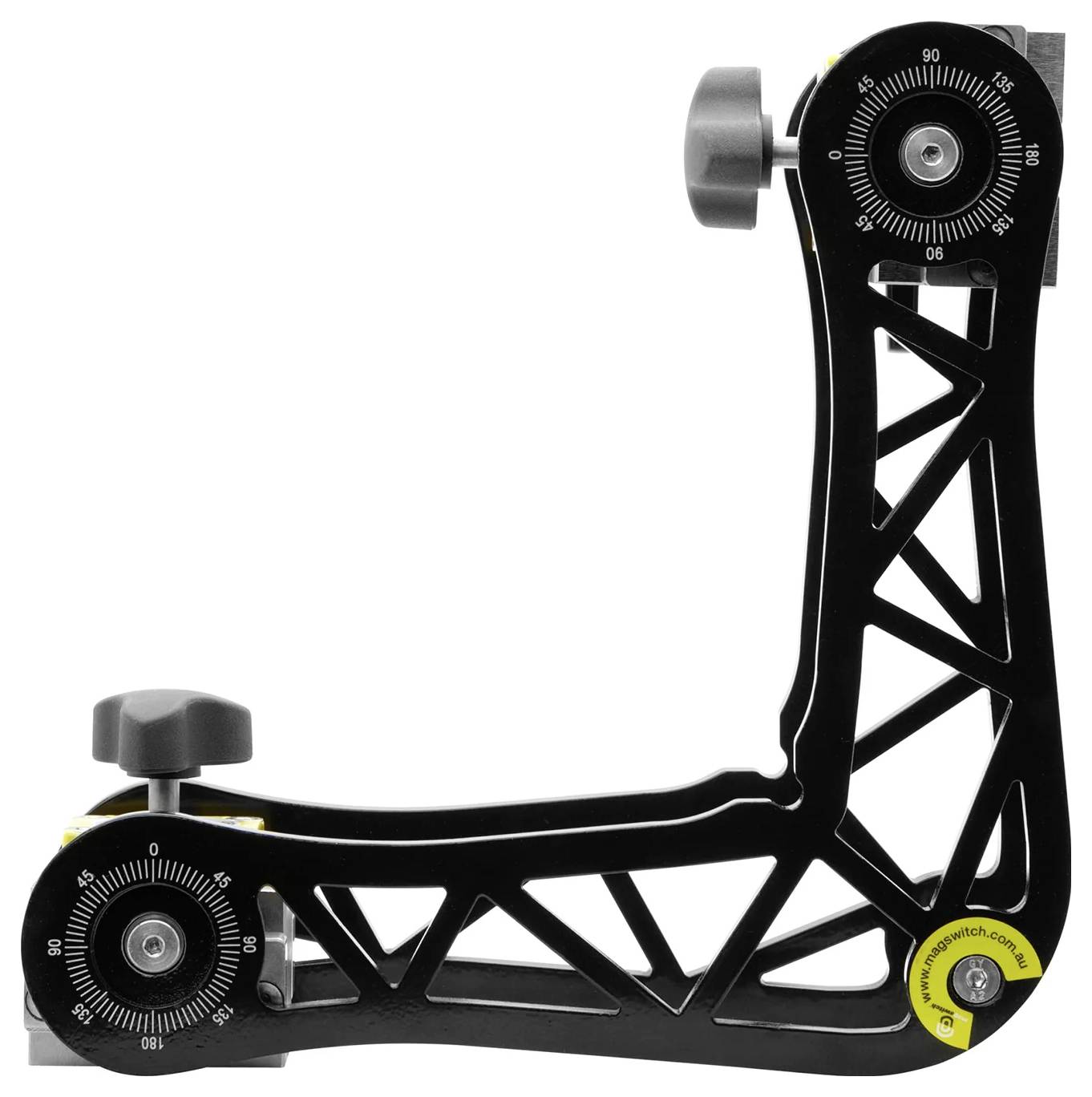

A black, L-shaped camera mount with adjustment knobs and angle measurements, designed for precise positioning, often used in photography.

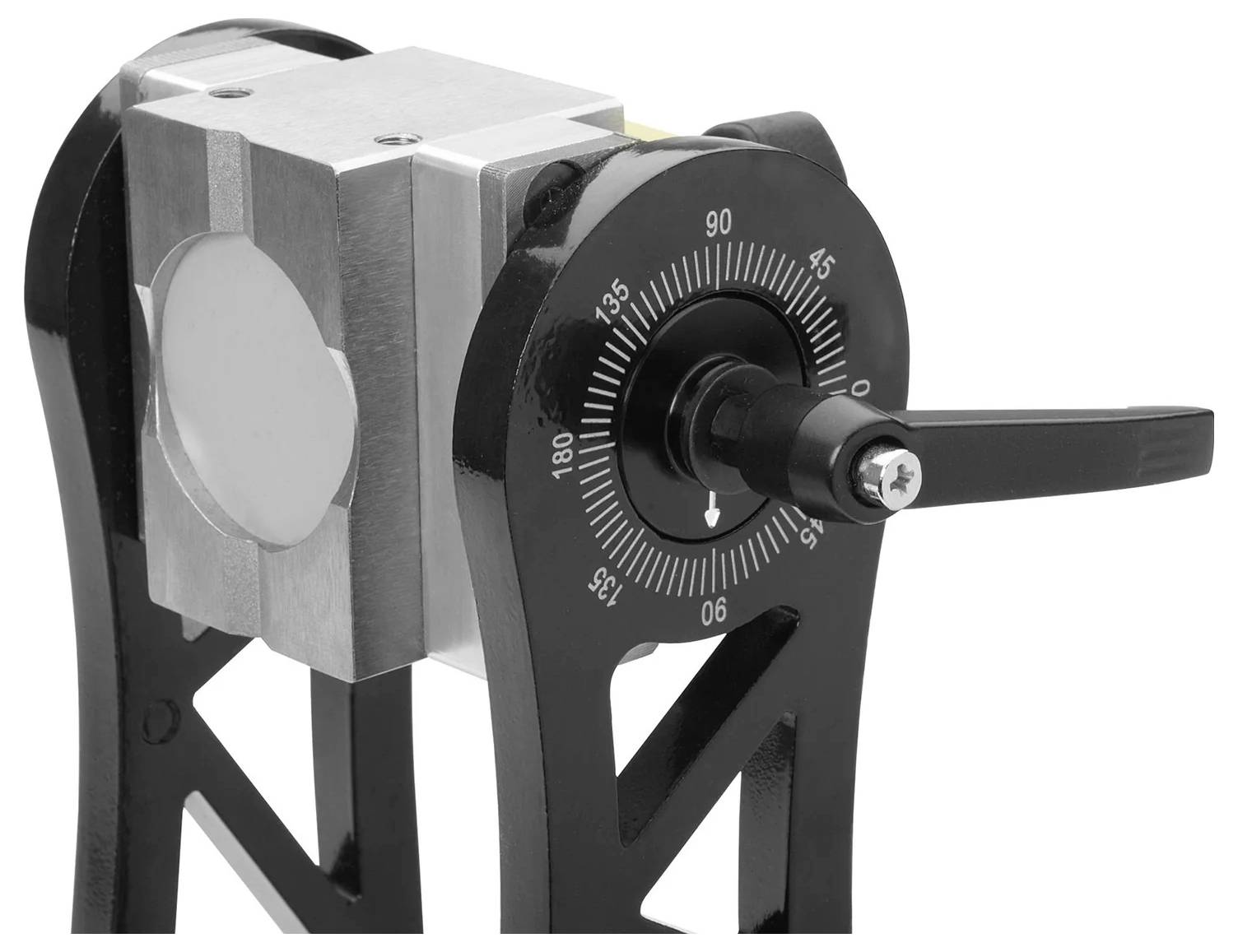

A mechanical device with a rotating handle and a marked dial displaying angles from 0 to 180 degrees, used for precise adjustments.

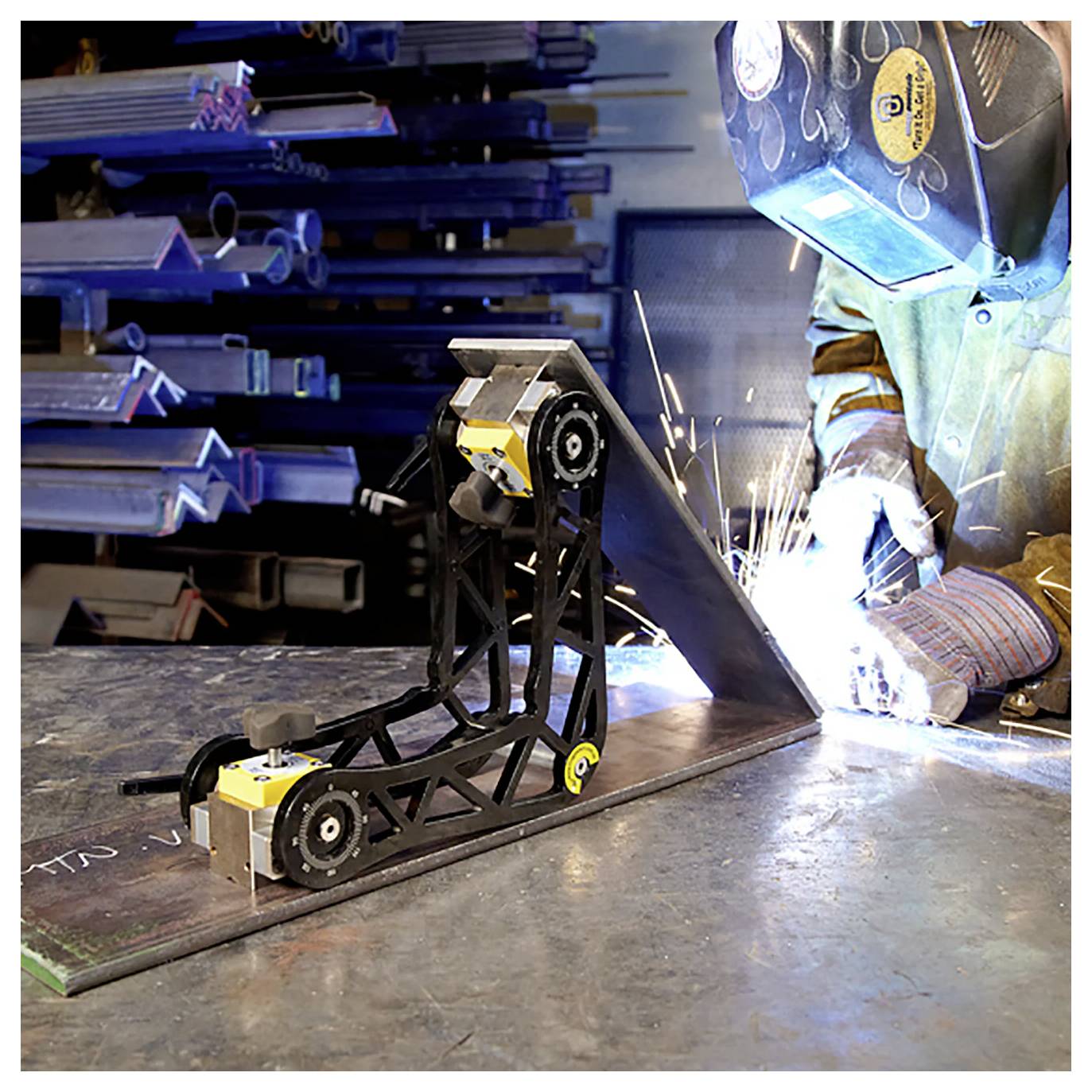

A person in welding gear welds a metal frame using a support jig. Shelves with metal beams are visible in the background.

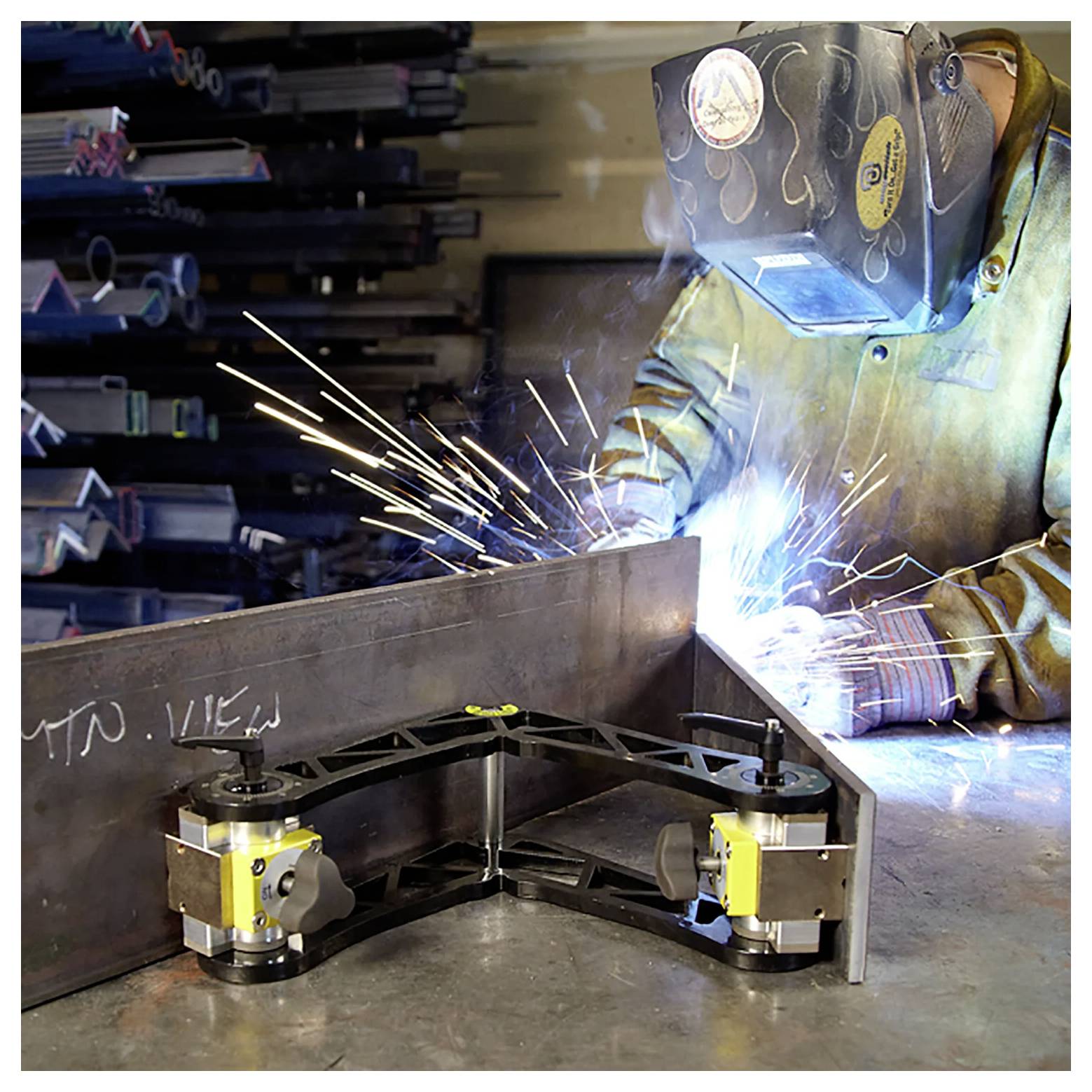

A person wearing a welding helmet and protective gear welds a metal piece on a workbench, surrounded by equipment and sparks flying.

A person wearing protective gear is welding a metal pipe attached to a black frame. Sparks and bright light are visible from the welding process.

A robotic welding arm in action, sparks flying, fabricating a metal structure in an industrial workshop setting.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch BoomerAngle 400 - 8100453

Adjustable 90-degree welding angle, rotatable MagSquares, mechanical on/off switching, 0.92 kN holding force

Technical specifications

Product weight: 6.6 lbs / 3 kg
Dimensions 10.1 x 5.2 x 10.1 mm (256.5 x 132 x 256.5 in)
2: 1 shear load: 20 kg
Magnetic base area 64 x 41.26 mm
Max Breakaway: 205 kg (on 93' steel)
Full saturation 0.1345 mm

Product type: Welder's square

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476847 Magswitch 8100453 Welder's square MagSwitch BoomerAngle 400 - 8100453

Description

A tool with a rotating MagSquare on each axis offers almost unlimited angles, including a 90-degree hold preset. 93 kg magnetic holding force can be switched on and off by turning the black buttons. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. Requires no power supply. Turn off for removing metal chips. Magnets remain clean. Holds flat and round steel surfaces. Adjustable angle brackets. Position for unusual angles in seconds. No damaging grip. SPECIFICATIONS Max. Breakaway force: 256.5 lbs / 93 kg (on 2' steel) Full Saturation Thickness: 0.1345 in / 3.43 mm 2:1 shear workload: 20 lbs / 9 kg Product weight: 6.6 lbs / 3 kg Dimensions: 10.1 x 5.2 x 10.1 in / 256.5 x 132 x 205 mm Magnet pole base area: 64 mm x 41.26 mm

This text is machine translated.
