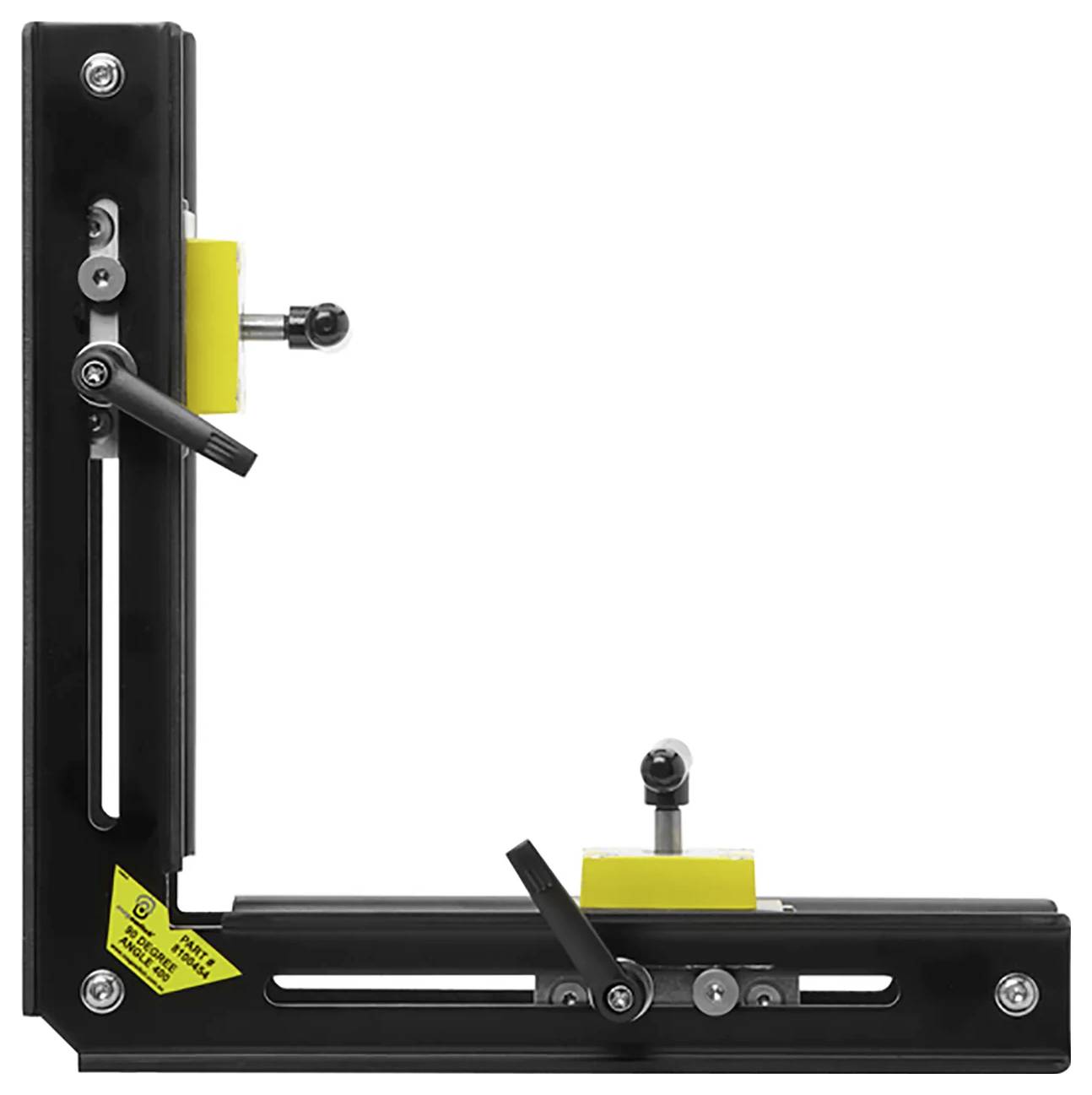

An L-shaped black metal bracket with yellow adjustment knobs, featuring slots and screws for mounting. Suitable for industrial applications.

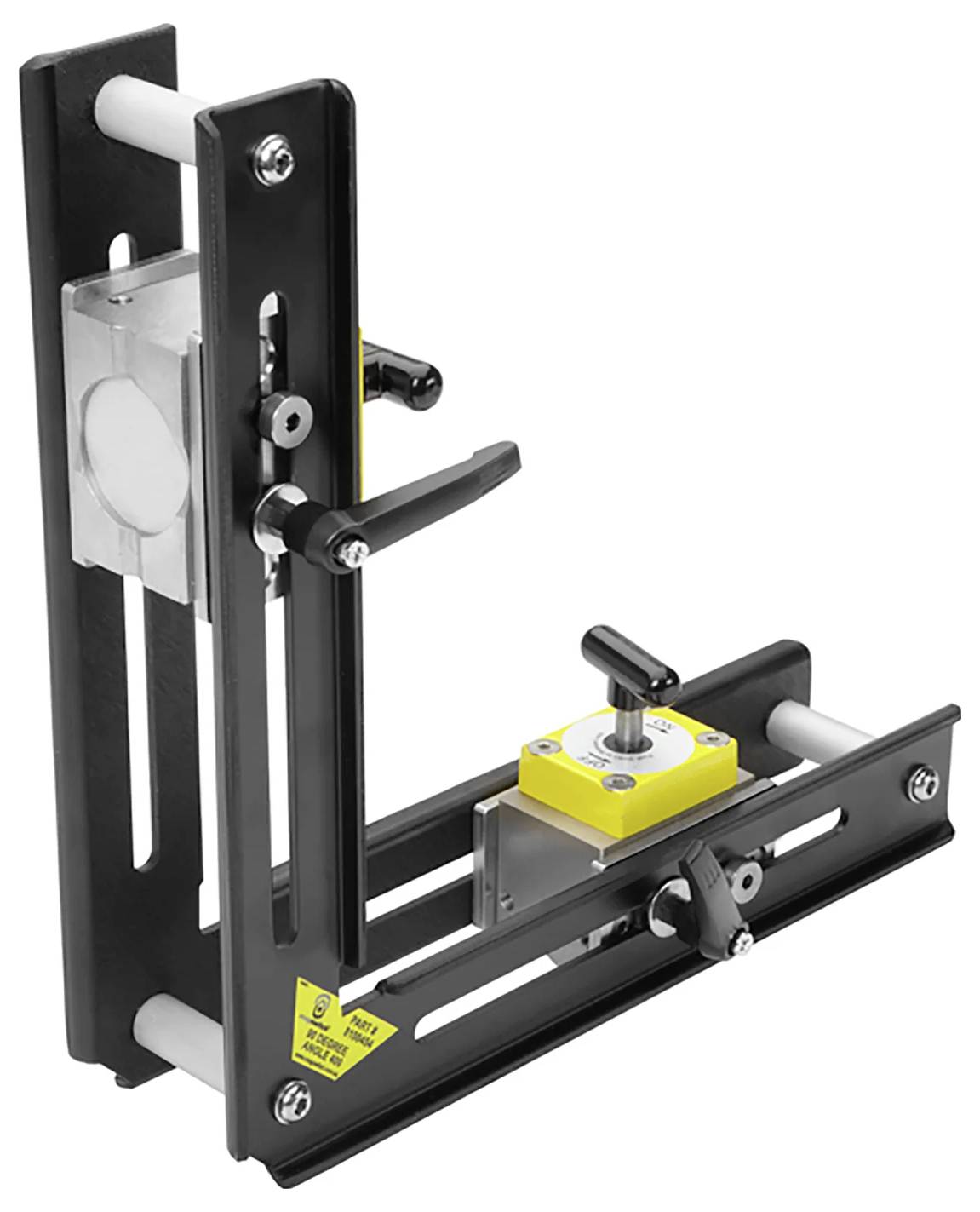

A black and silver adjustable bracket with a yellow locking mechanism, used for precise positioning and securing of components.

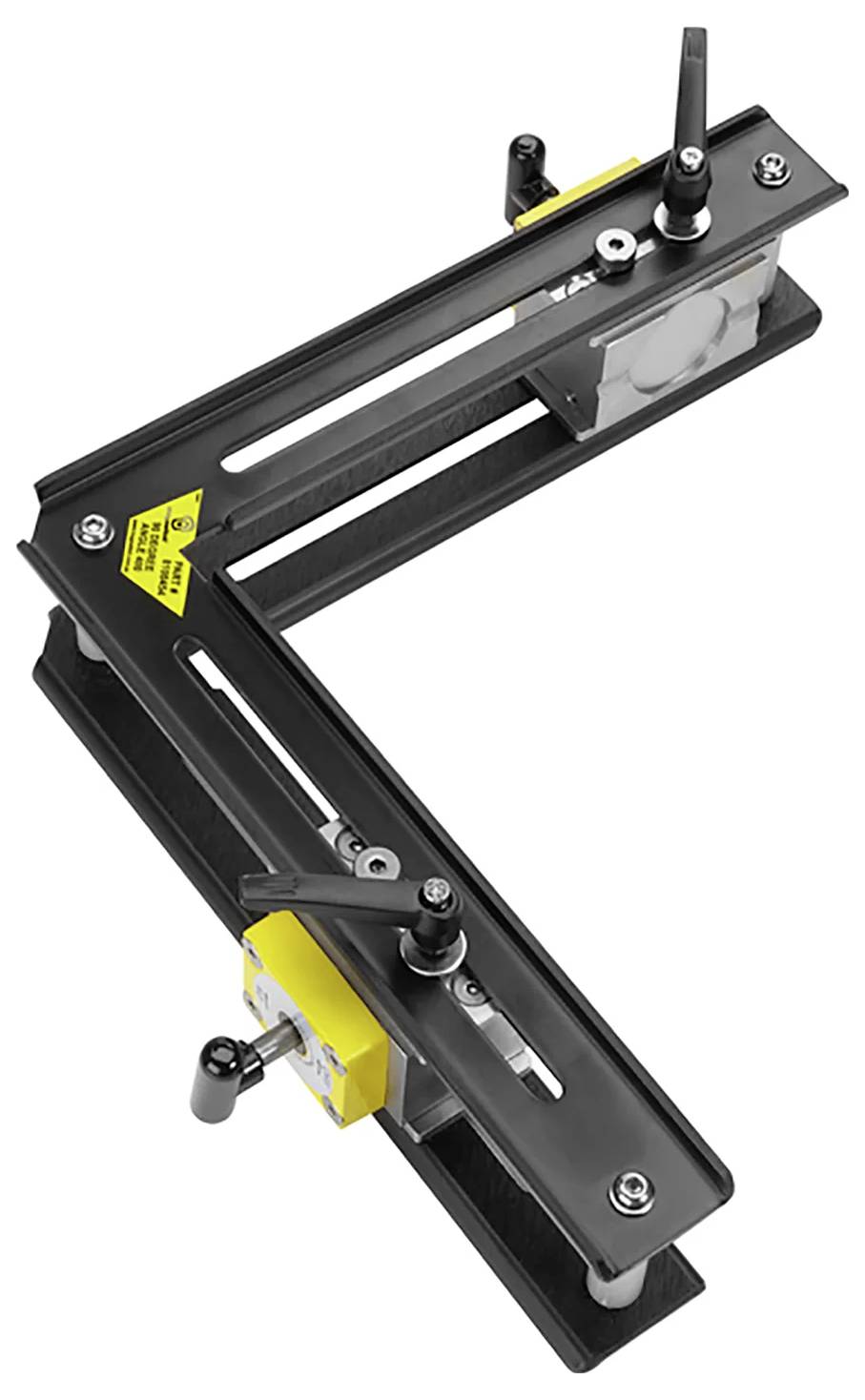

An angled black metal frame with adjustable components and yellow labeled parts, likely a tool or equipment for precise alignment or measurement tasks.

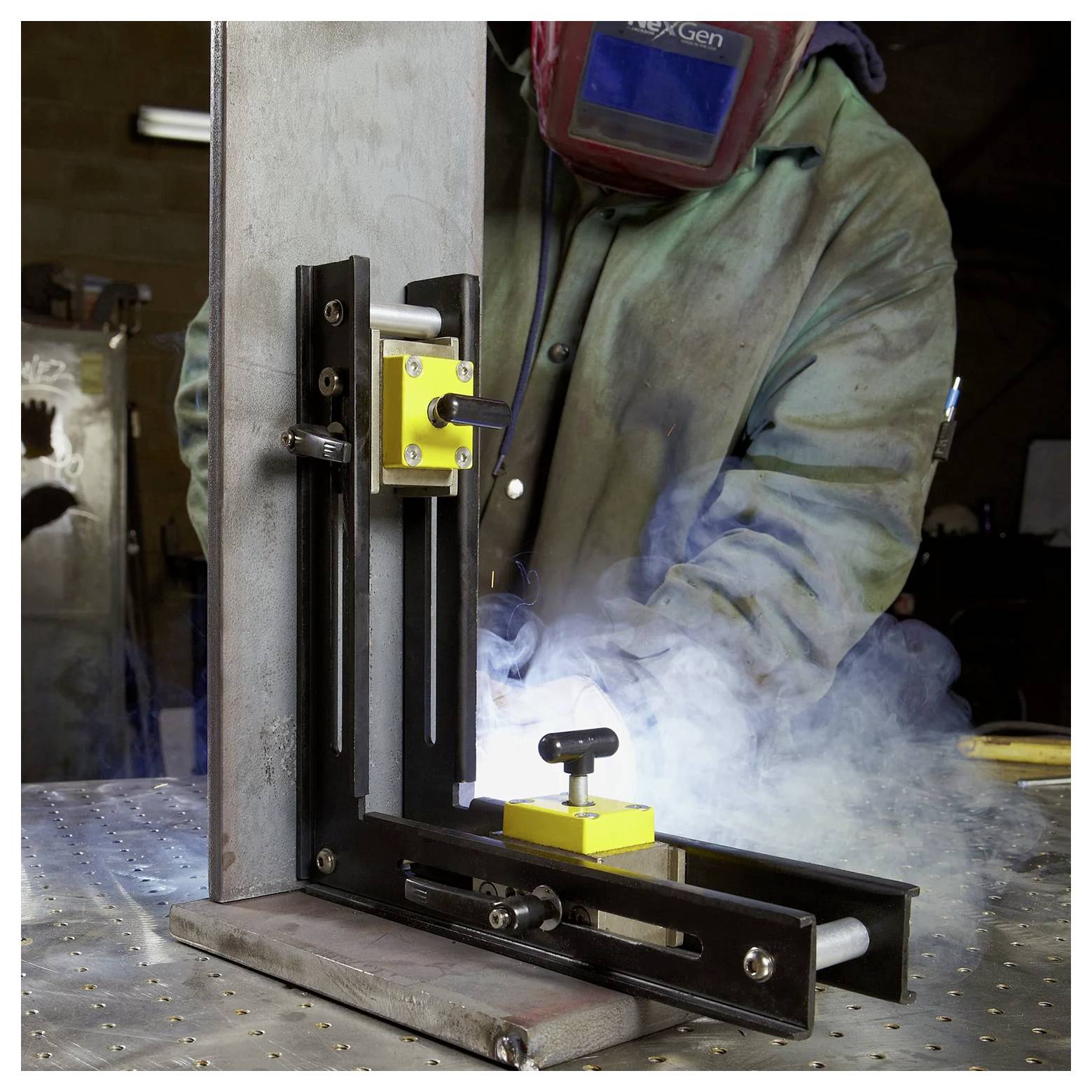

A welder wearing protective gear works on a metal structure, using a welding tool with visible sparks and smoke, in an industrial setting.

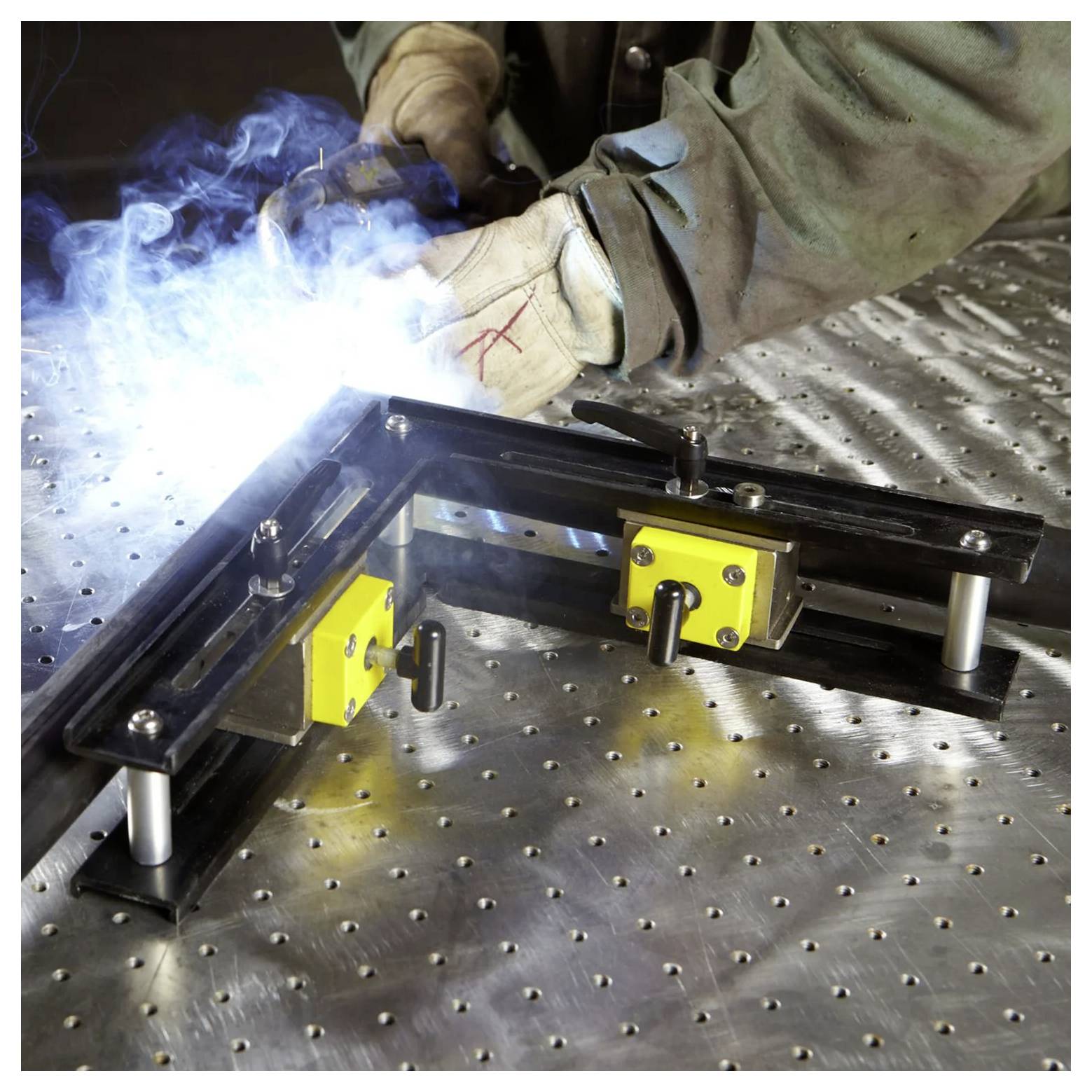

A person, wearing gloves and protective clothing, is welding metal pieces on a dotted workbench, with bright sparks and smoke visible.

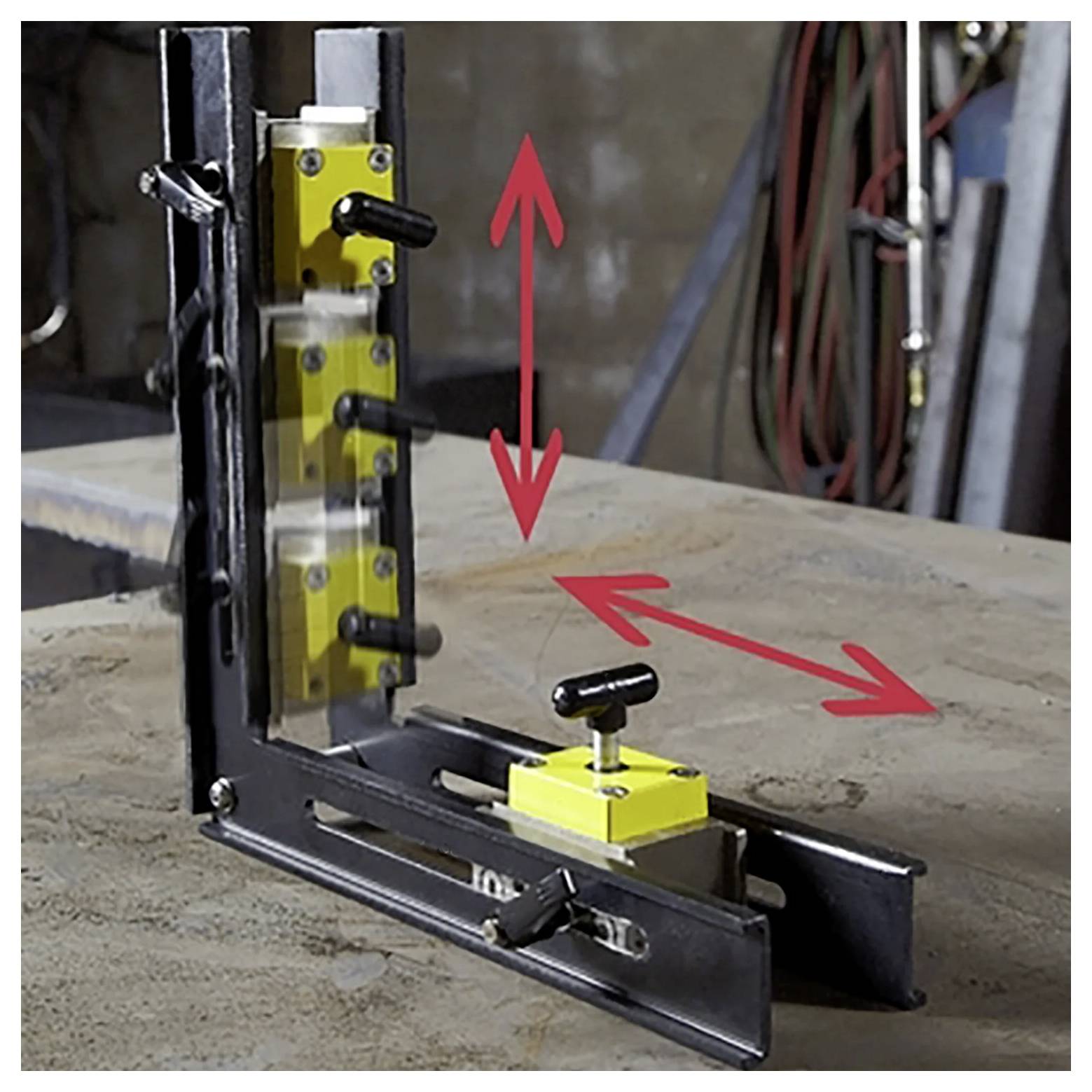

A metal tool with adjustable parts on a workbench, featuring vertical and horizontal red arrows indicating movement or adjustment capability.

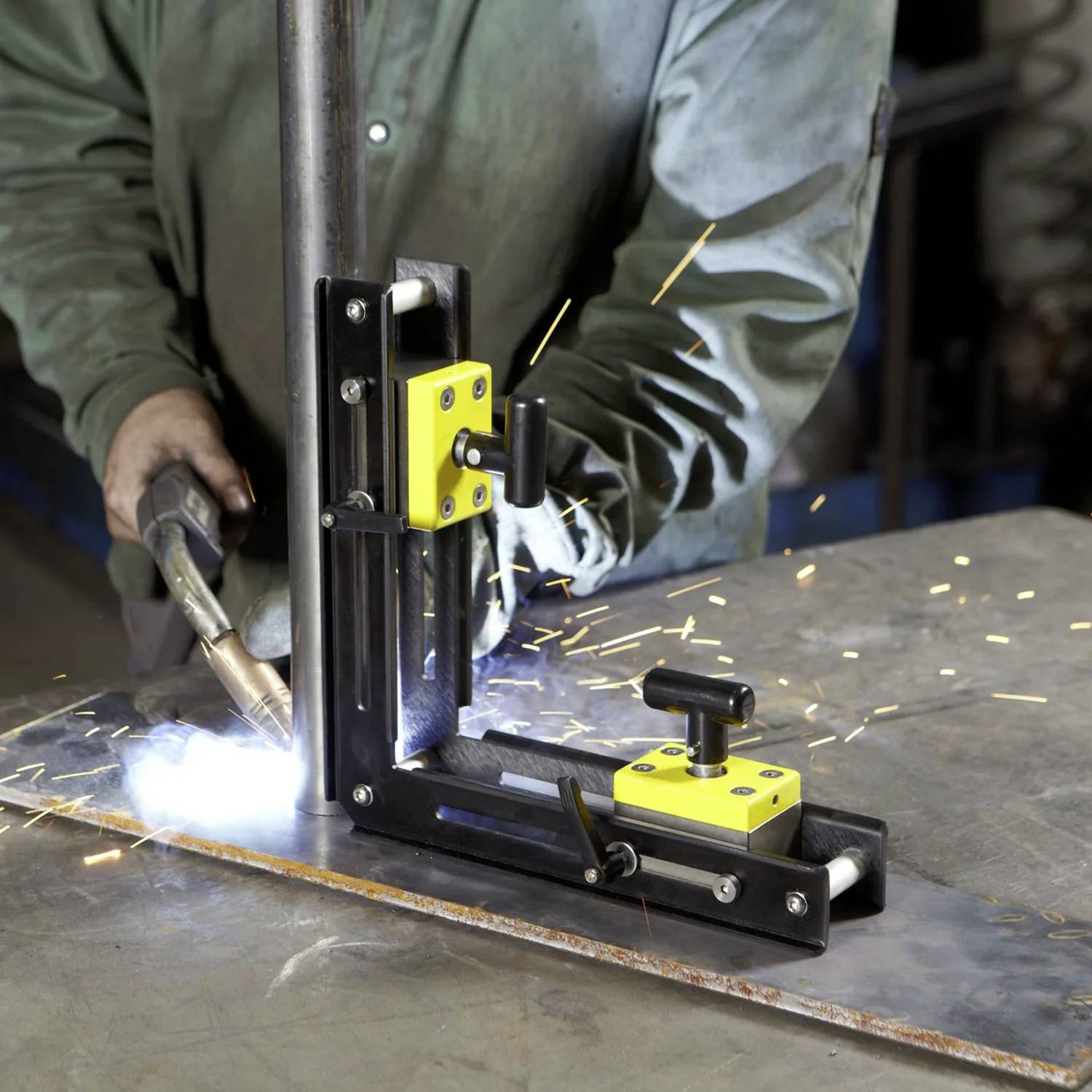

A person is welding a metal sheet using clamps to hold it in place. Sparks are visible, indicating active welding work.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch 90 Degree Angle 400 - 8100454

90-degree welding angle, adjustable, mechanical on/off switching, 1.77 kN holding force

Technical specifications

Product weight: 6.2 lbs / 2.8 kg
Full saturation thickness 1 mm
Magnetic base area 64 x 41.26 mm
Maximum breakaway force: 400 lbs / 181 kg (on 1/4' steel)
Maximum shearing: 20 lbs / 9 kg
Overall dimensions: 11.3 x 3.5 x 11.3 mm (287 x 90 x 287 in)

Product type: Welder's square

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476844 Magswitch 8100454 Welder's square MagSwitch 90 Degree Angle 400 - 8100454

Description

Achieve the highest precision with our fixed 90-degree welding angle. Adjust the MagSquares by sliding it up or down on each axis for unmatched flexibility. Turn the black knobs to switch the 180 kg magnetic holding force on and off. Supplied ready to use with two MagSquares as shown. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. Requires no power supply. Turn off for removing metal chips. Magnets remain clean. Adheres to flat and round steel surfaces. Lightweight with incredible strength. Precise positioning. MagSquares can be reversed on each axis. SPECIFICATIONS Maximum breaking force: 400 lbs / 181 kg (on 1/11.3' steel) Maximum shear force: 20 lbs / 9 kg thickness at full saturation: 1/4 in / 6.35 mm Product weight: 6.2 lbs / 2.8 kg Total dimensions: 11.3 x 3.5 x 4 in / 287 x 90 x 287 mm Magnet pole base area: 64 mm x 41.26 mm

This text is machine translated.

Scope of delivery

Includes 2 MagSquares
