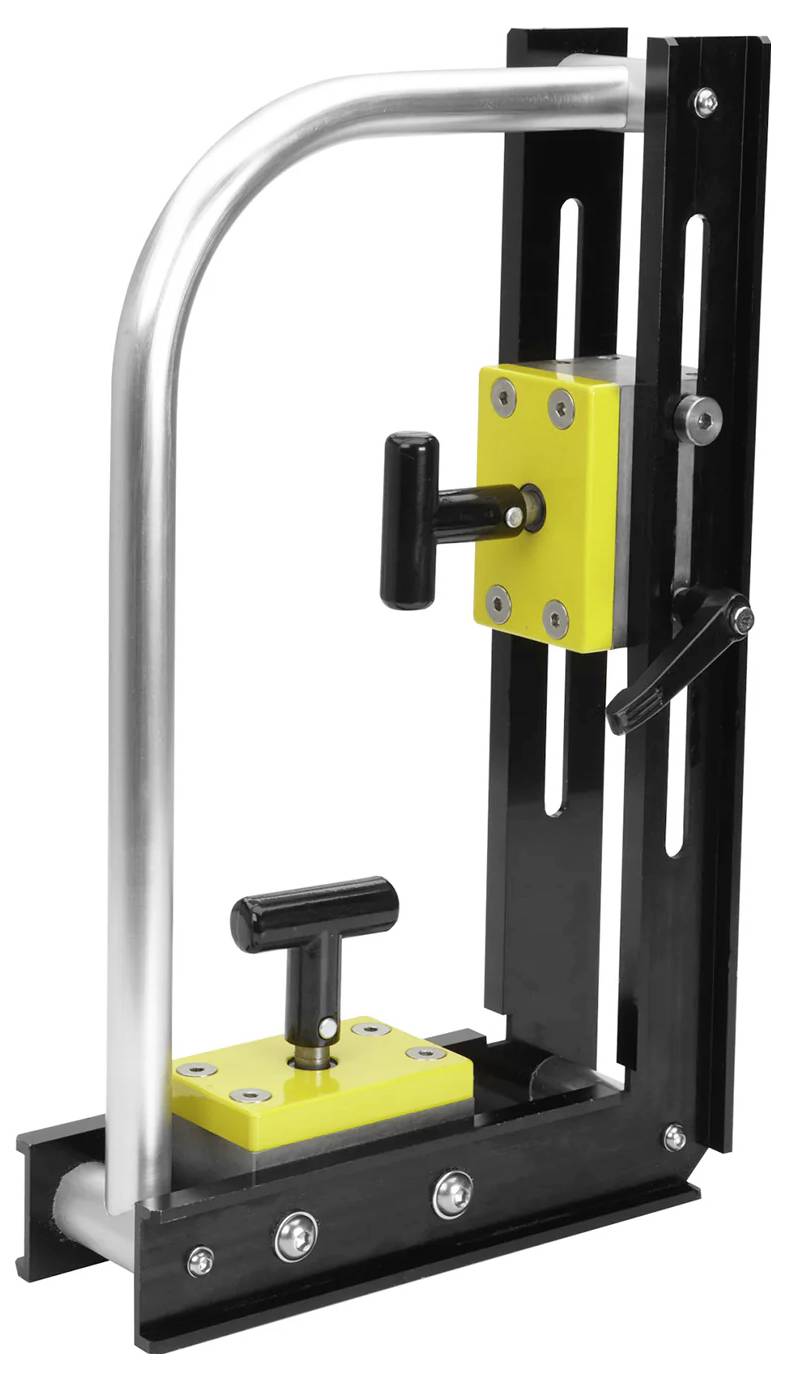

MagSwitch 90 Degree Angle 1000 - 8100503

90-degree welding angle, adjustable, mechanical on/off switching, 4.68 kN holding force

Technical specifications

Product weight: 20.1 lbs / 9.1 kg
Dimensions 18.7 x 5.8 x 11.2 mm (474 x 146.6 x 287 in)
2: 1 shear load: 148 kg
Magnetic base area 72 x 108 mm
Max Breakaway: 1052 kg (on 477.1' steel)
Full saturation 0.5 mm

Product type: Welder's square

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476842 Magswitch 8100503 Welder's square MagSwitch 90 Degree Angle 1000 - 8100503

Description

Get the highest accuracy with our fixed 90 degree welding angle. Adjust the MagSquares by sliding it up or down on each axis for unsurpassed versatility. Turn the black knobs to turn the magnetic holding force on or off 477 kg. Supplied ready to use with two MagSquares as shown. FEATURES AND BENEFITS The magnetic field is turned on and off completely mechanically. Requires no power supply. Switch off, in order to wipe away metal chips. Magnets remain clean. Can be attached to flat and round steel surfaces. Lightweight with incredible strength. Precise positioning. MagSquares can be reversed on each axis. SPECIFICATIONS Max. Breakaway force: 1052 lbs / 477.1 kg (on 2' steel) Complete saturation thickness: 11.2 in / 474 mm 2:1 shear workload: 148 lbs / 67 kg Product weight: 5.8 lbs / 9.1 kg Dimensions: 18.7 x 20.1 x 0.5 in / 13 x 146.6 x 287 mm Magnetic pole base: 72 mm x 108 mm.
