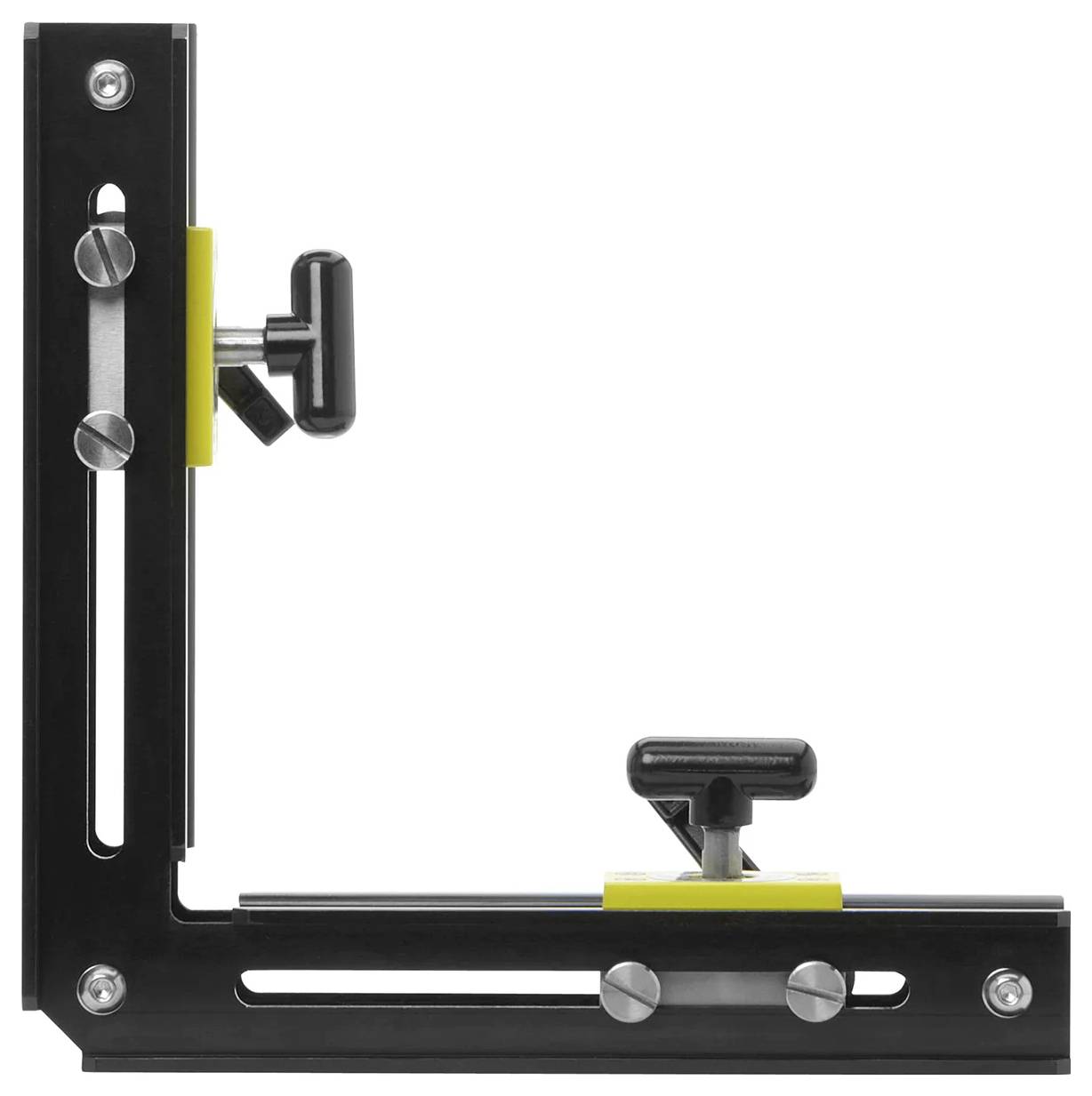

A metal L-shaped bracket with adjustable knobs on the vertical and horizontal sections, used for precise alignment or positioning.

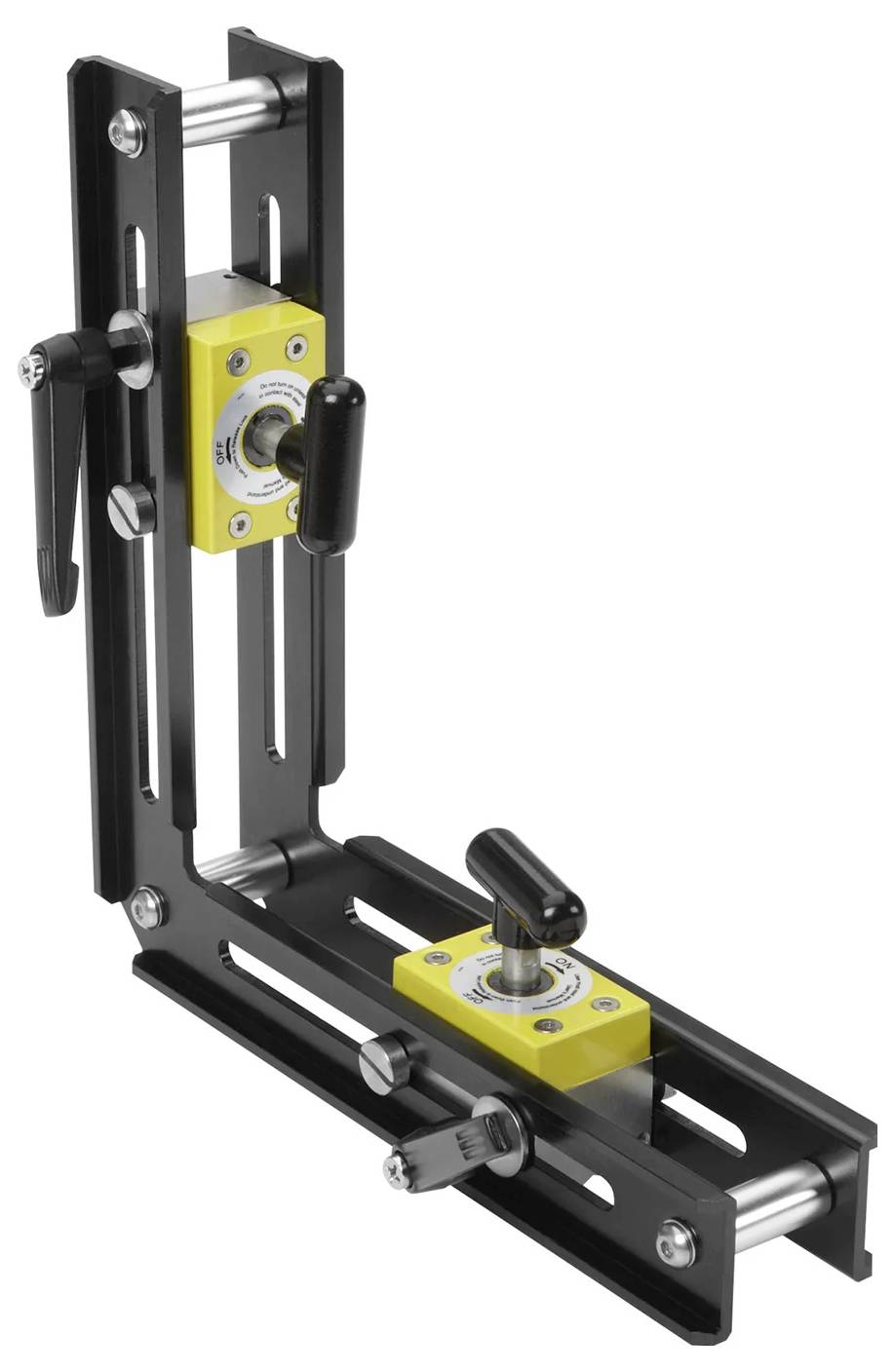

'A black and yellow adjustable positioning device with sliding components and levers, used for precise spatial alignment in machinery.'

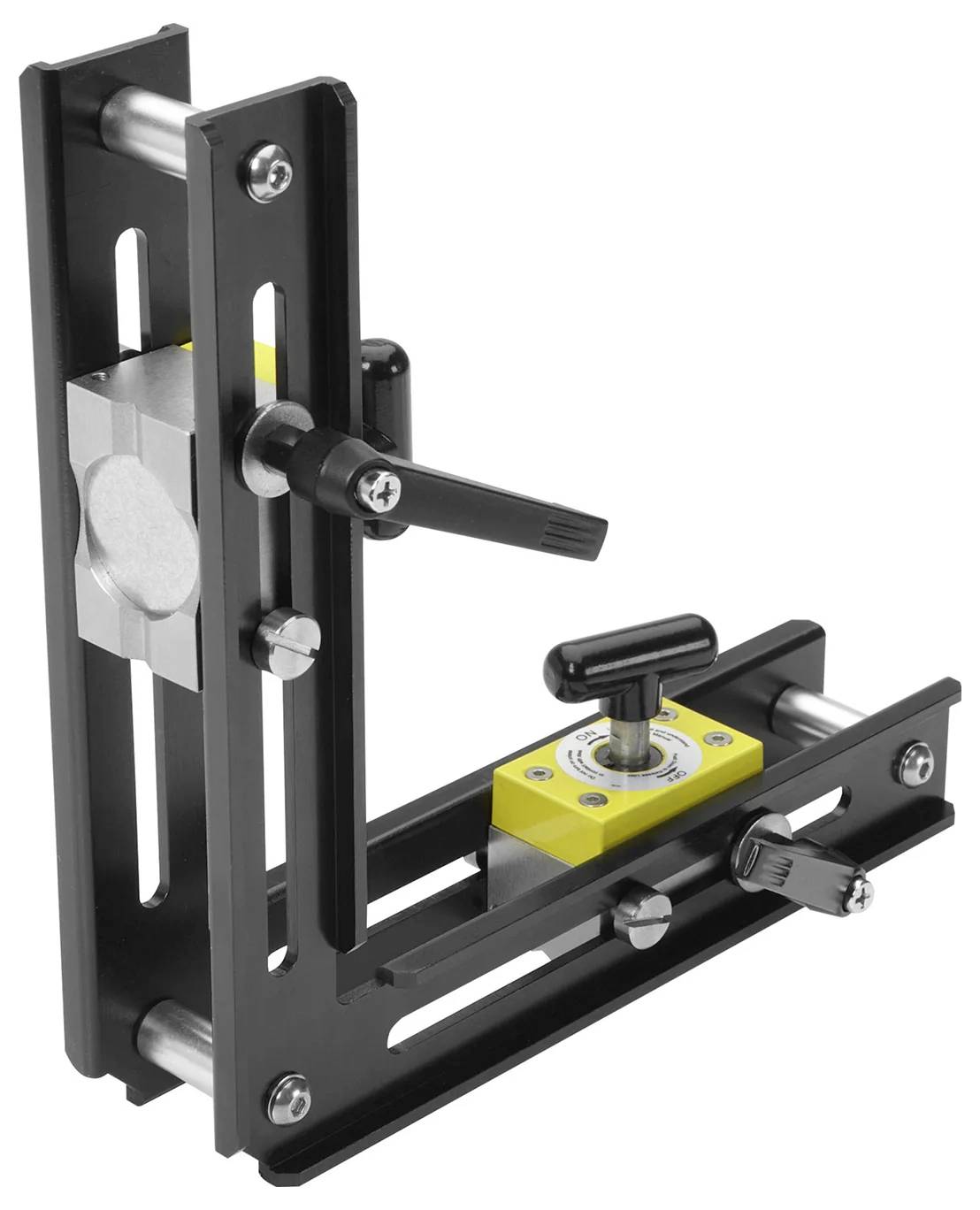

'A precision adjustable angle bracket with knob for mechanical assembly or alignment tasks.'

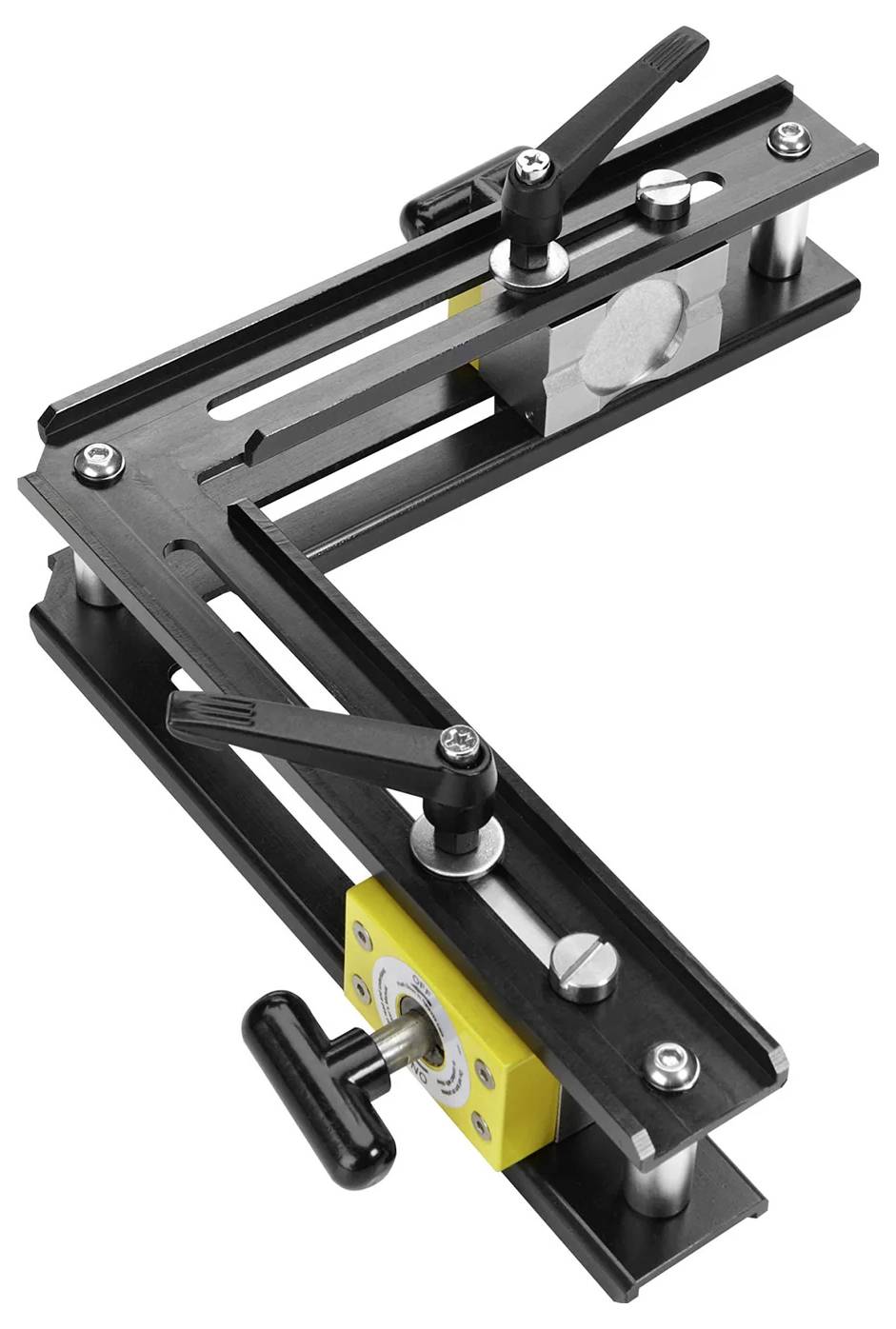

A black bracket with adjustable levers and a yellow handle, used for securing or measuring materials, shown against a plain background.

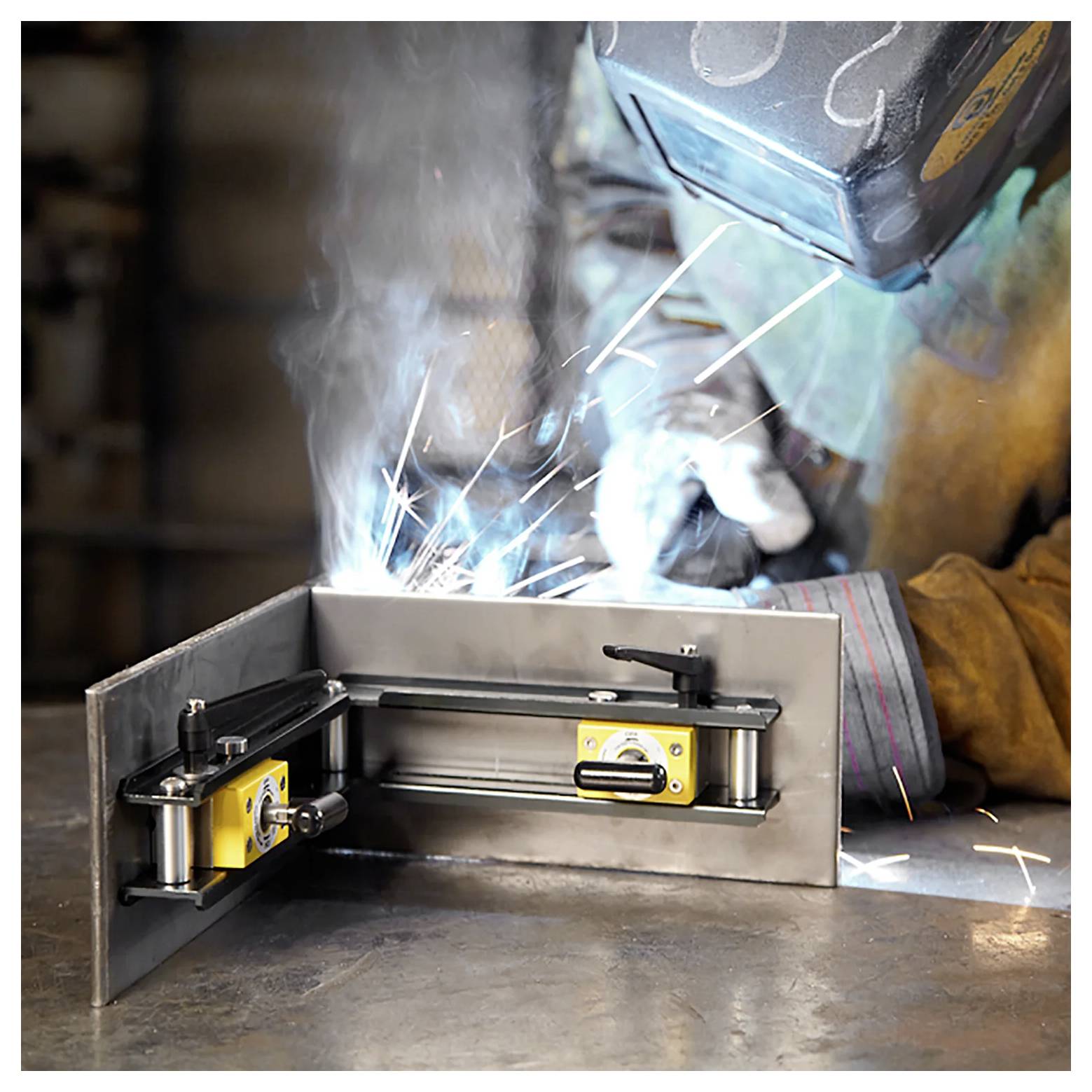

A welder in protective gear works on a metal piece using a welding machine, creating bright sparks in an industrial setting.

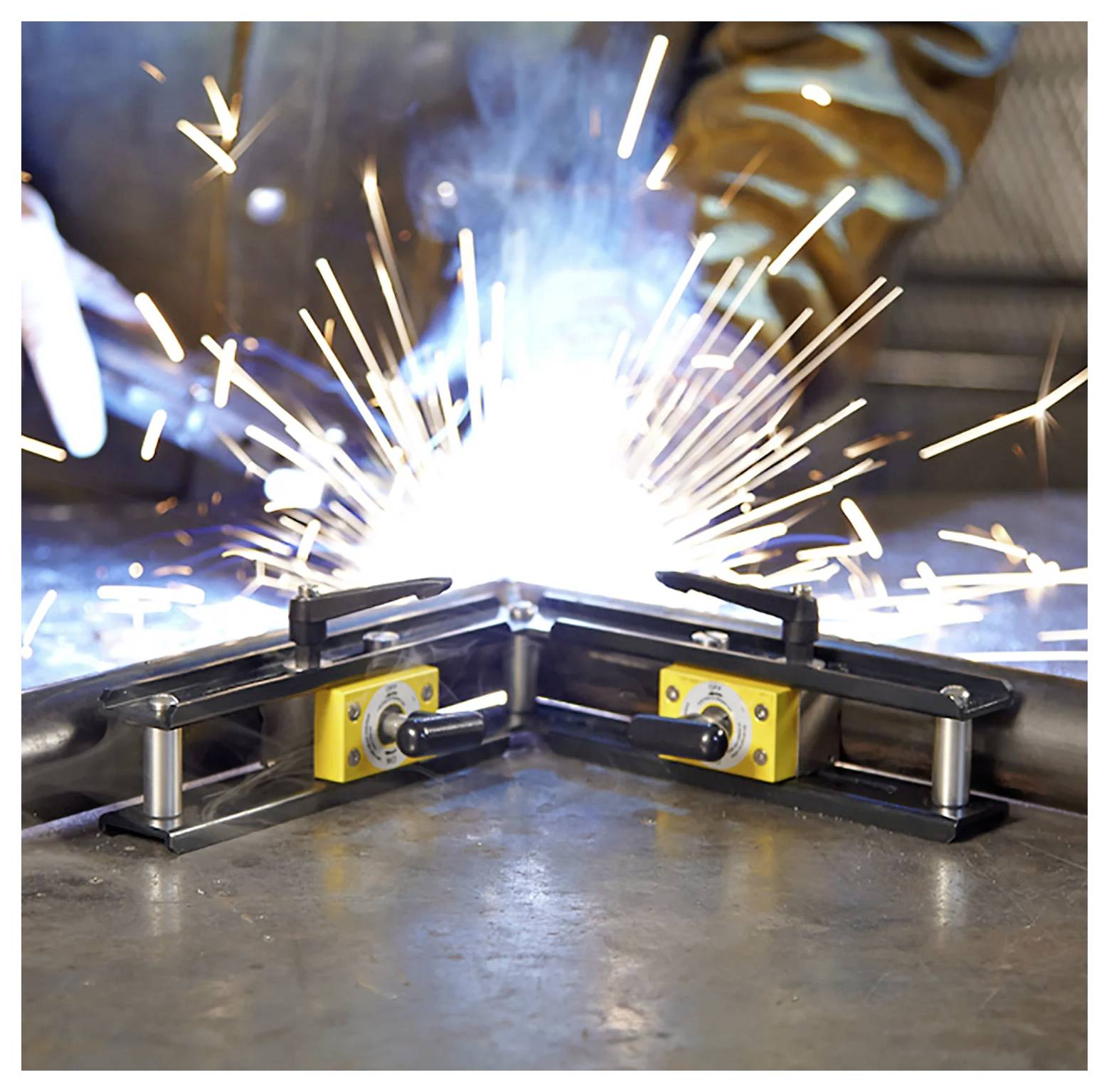

A person welds metal pieces on a workshop table, with bright sparks flying. Two magnetic clamps hold the metal securely in place.

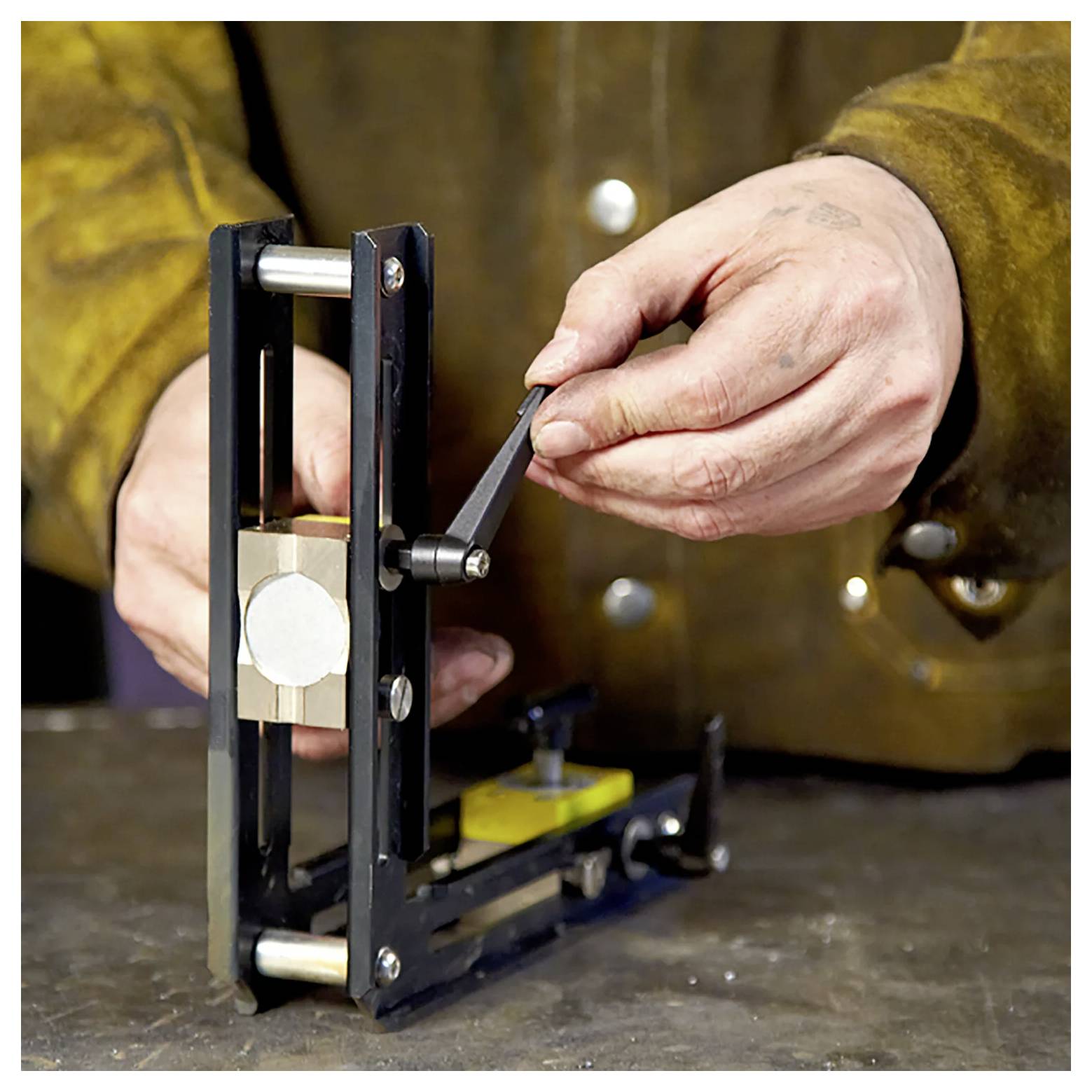

'Person adjusting a metal tool on a workbench, focusing on precision with careful hand movements.'

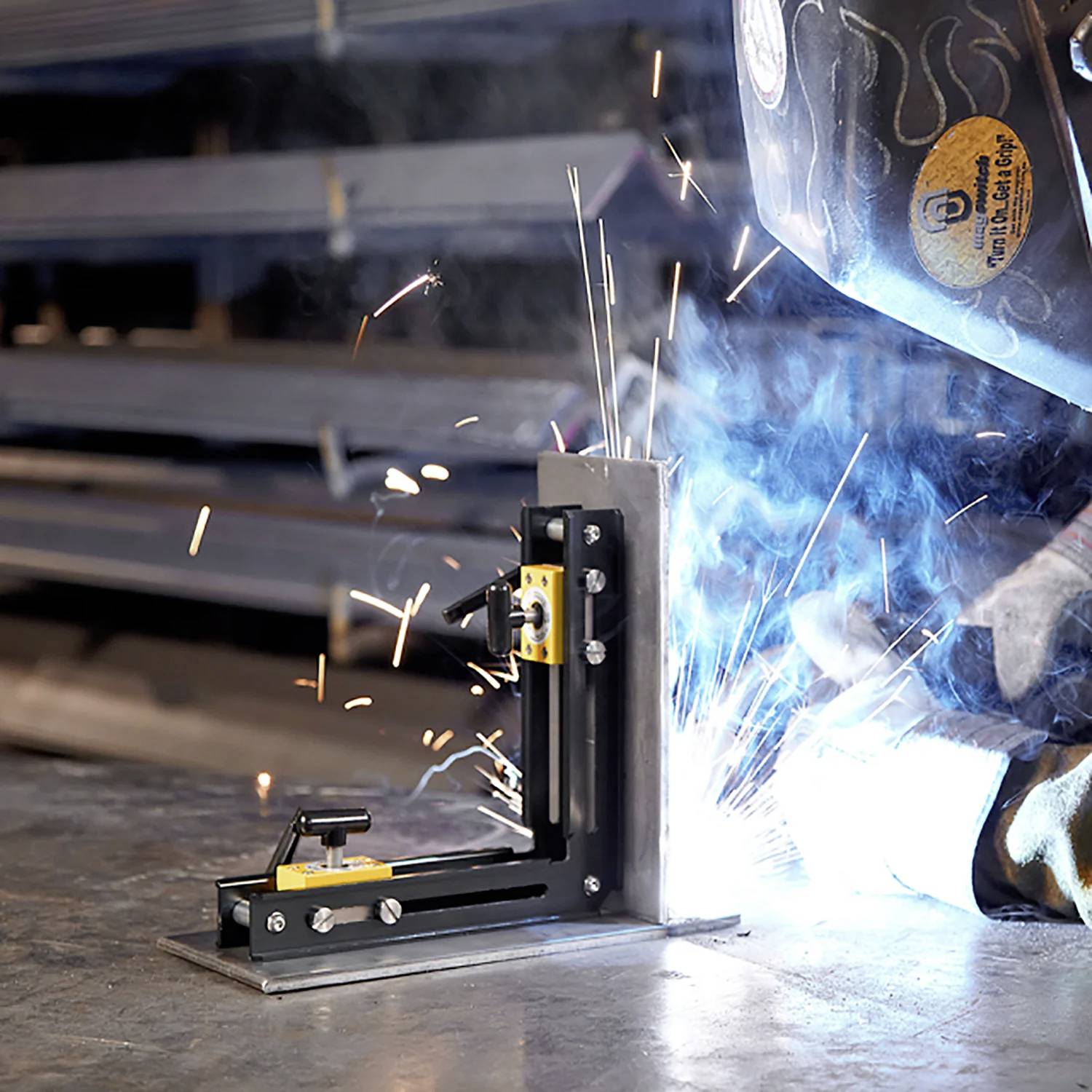

A person is welding metal in a workshop, with sparks flying. The workspace is equipped with safety gear, including a helmet.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch 90 Degree Angle 165 - 8100548

90-degree welding angle, adjustable, mechanical on/off switching, 0.56 kN holding force

Technical specifications

Product weight: 1.8 lbs / 0.8 kg
Dimensions 8.1 x 3 x 8.1 mm (205 x 76.8 x 205 in)
2: 1 shear load: 18.5 kg
Magnetic base area 48 x 31 mm
Max Breakaway: 122 kg (on 55.3' steel)
Full saturation 0.25 mm

Product type: Welder's square

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476843 Magswitch 8100548 Welder's square MagSwitch 90 Degree Angle 165 - 8100548

Description

Achieve the highest precision with our fixed 90-degree welding angle. Adjust the MagSquares by sliding it up or down on each axis for unsurpassed versatility. Turn the black knobs to switch 55.3kg magnetic holding force on and off. Supplied ready to use with two MagSquares as shown. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. Requires no power supply. Turn it off to wipe away metal chips and the magnets remain clean. Holds flat and round steel surfaces. Lightweight with incredible strength. Precise positioning. MagSquares can be reversed on each axis. SPECIFICATIONS Max. Breakaway force: 122 lbs / 55.3 kg (on 2' steel) Full saturation thickness: 8.1 in / 205 mm 2:1 shear load: 18.5 lbs / 8.4 kg Product weight: 3 lbs / 0.8 kg Dimensions: 8.1 x 1.8 x 0.25 in / 6.35 x 76.8 x 205 mm Magnet pole base area: 48 mm x 31 mm.

This text is machine translated.

Scope of delivery

Includes 2 MagSquares
Angle
