Magswitch 8110004 MagSwitch MagJig 95 - 8110004 #####Magnetische Spannvorrichtung
EAN:
Part number:
Item no:
Highlights & Details

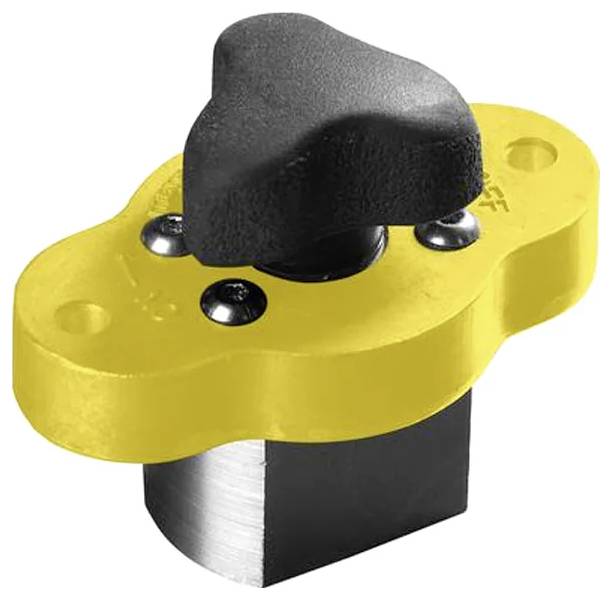

MagSwitch MagJig 95 - 8110004
- Magnetic clamping device, 43 kg holding force, mechanical switching, screw holes
Technical specifications
- Product weight: 0.2 kg
- Dimensions 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)
- 2: 1 shear load: 9 kg
- Max Breakaway - 95 kg
- Magnetic Pole Printing:30 mm x 21 mm (1.18 in x 0.82 in)
- Product type
#####Magnetische Spannvorrichtung
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3476862 Magswitch 8110004 MagSwitch MagJig 95 - 8110004 #####Magnetische Spannvorrichtung
Description

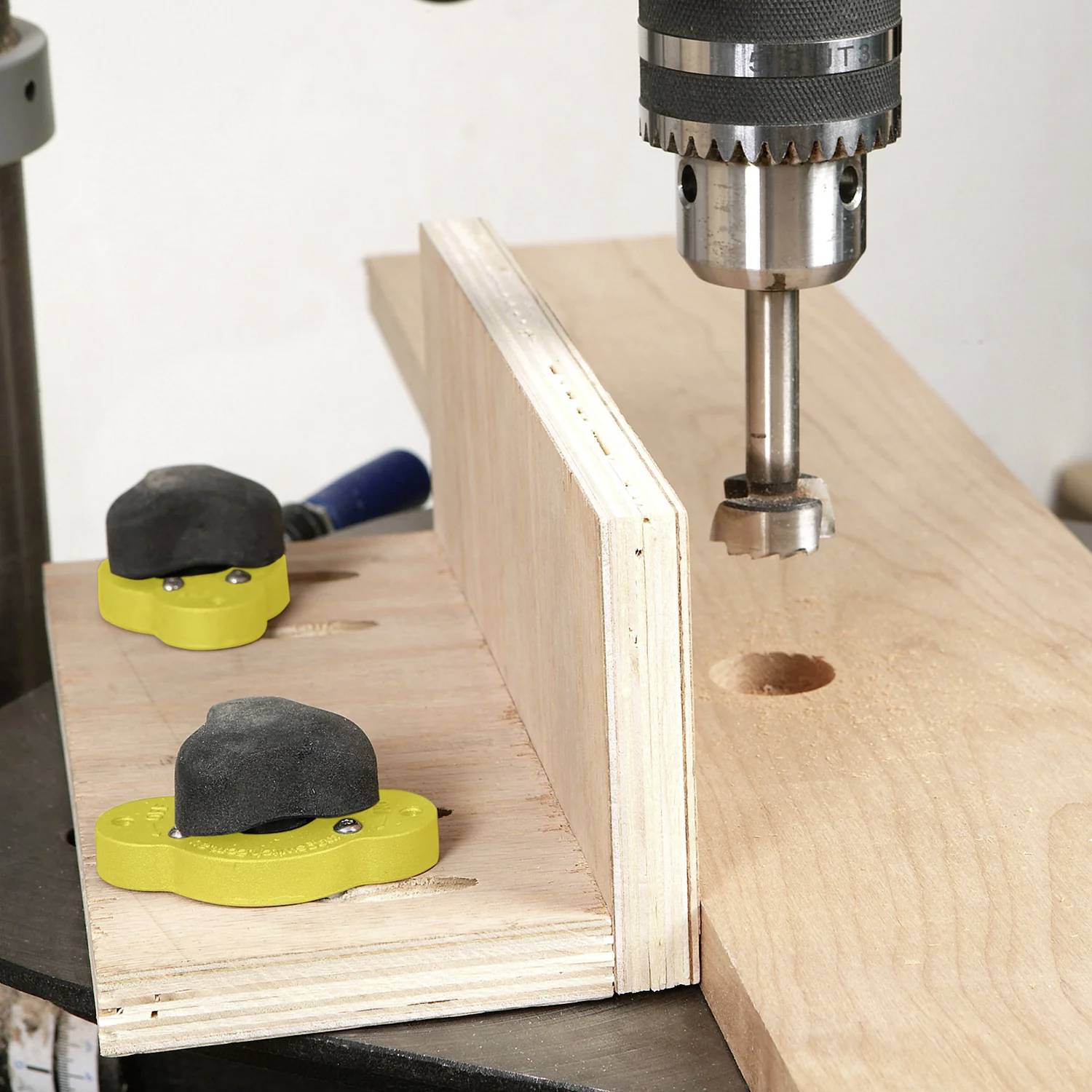

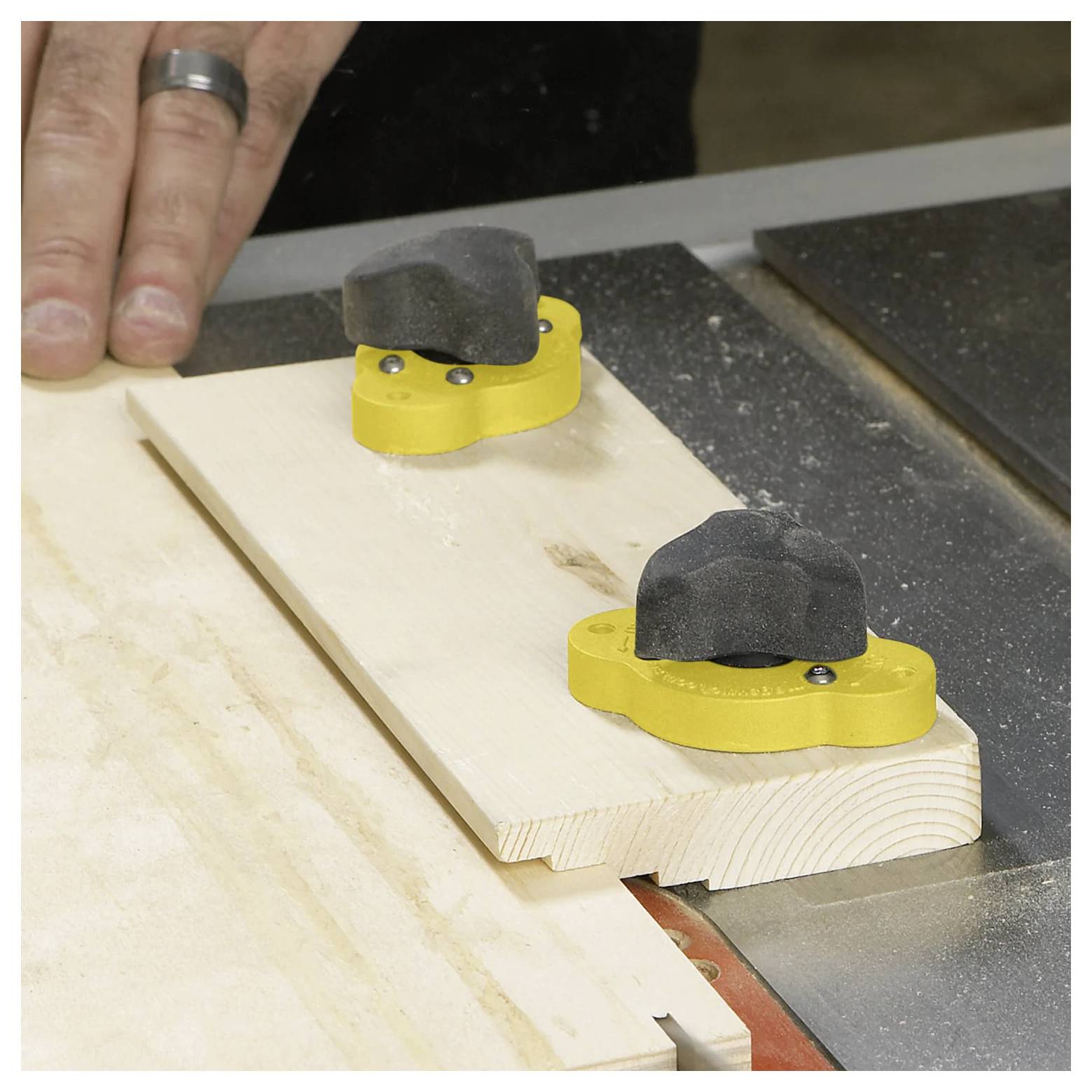

The magnetic MagSwitch MagJig 95 clamping device secures your device. Turn the knob to switch the 43 kg magnetic holding force on and off. Simply drill a hole in the fixture and insert the MagJig to clamp it down with pressure. FEATURES & BENEFITS: The magnetic field is turned on and off completely mechanically. It does not need any power source. The magnet remains clean. Holds flat and round steel surfaces. 3/4" Bracket for flush mounting. With screw holes for more safety in a device. Ideally suited for wood working, welding and manufacturing. SPECIFICATIONS Max. Breakaway force: 95 lbs (43 kg) 2:1 shear load: 45.7 lbs (4 kg) Product weight: 0.2 lbs (0.1 kg) Dimensions: 55.8 x 1.3 x 1.8 in (2.2 x 33 x 9 mm) Magnetic pole base: 30 mm x 21 mm (1.18 in x 0.82 in).
