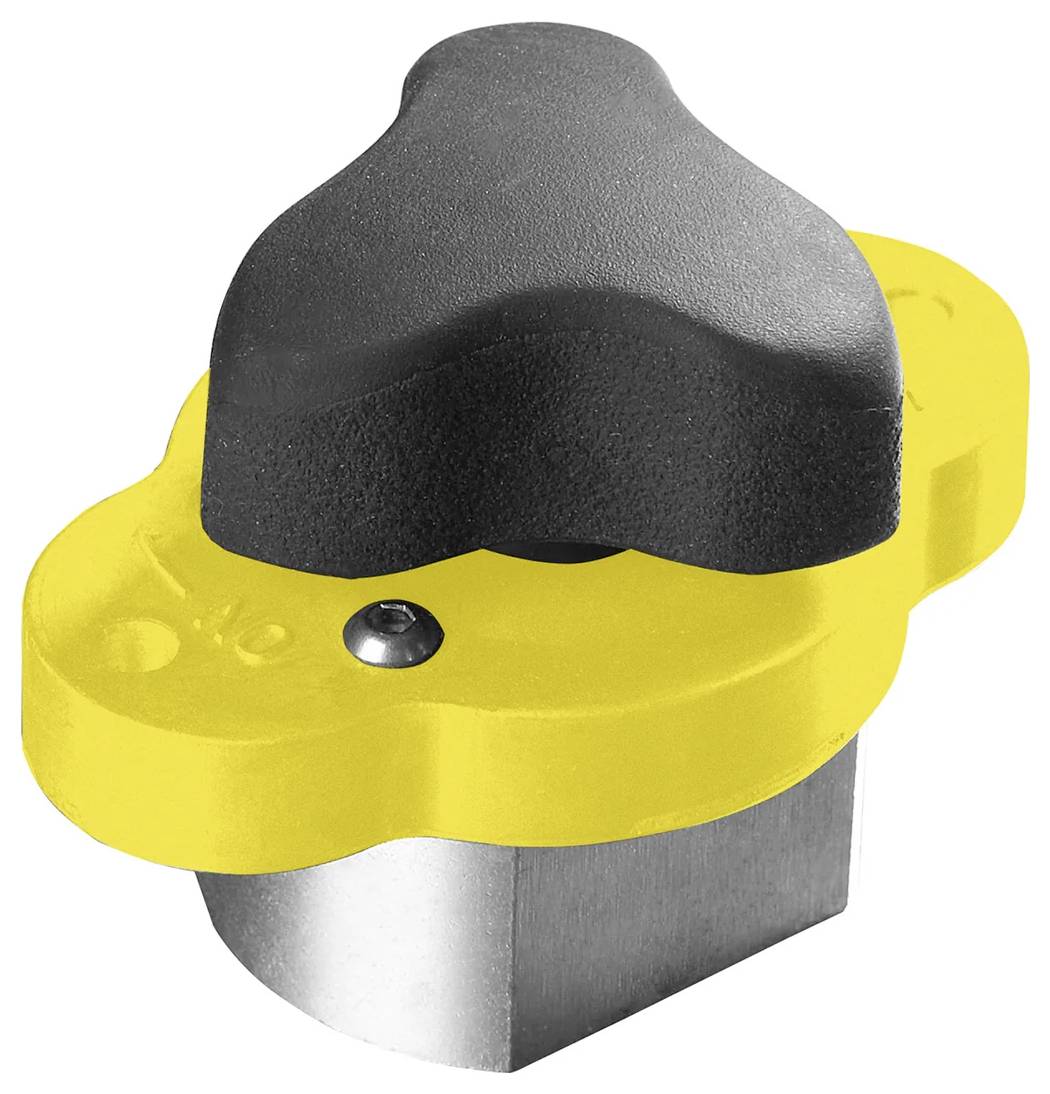

A yellow and black wrench head tool with a metallic base, designed for tightening or loosening bolts, isolated on a white background.

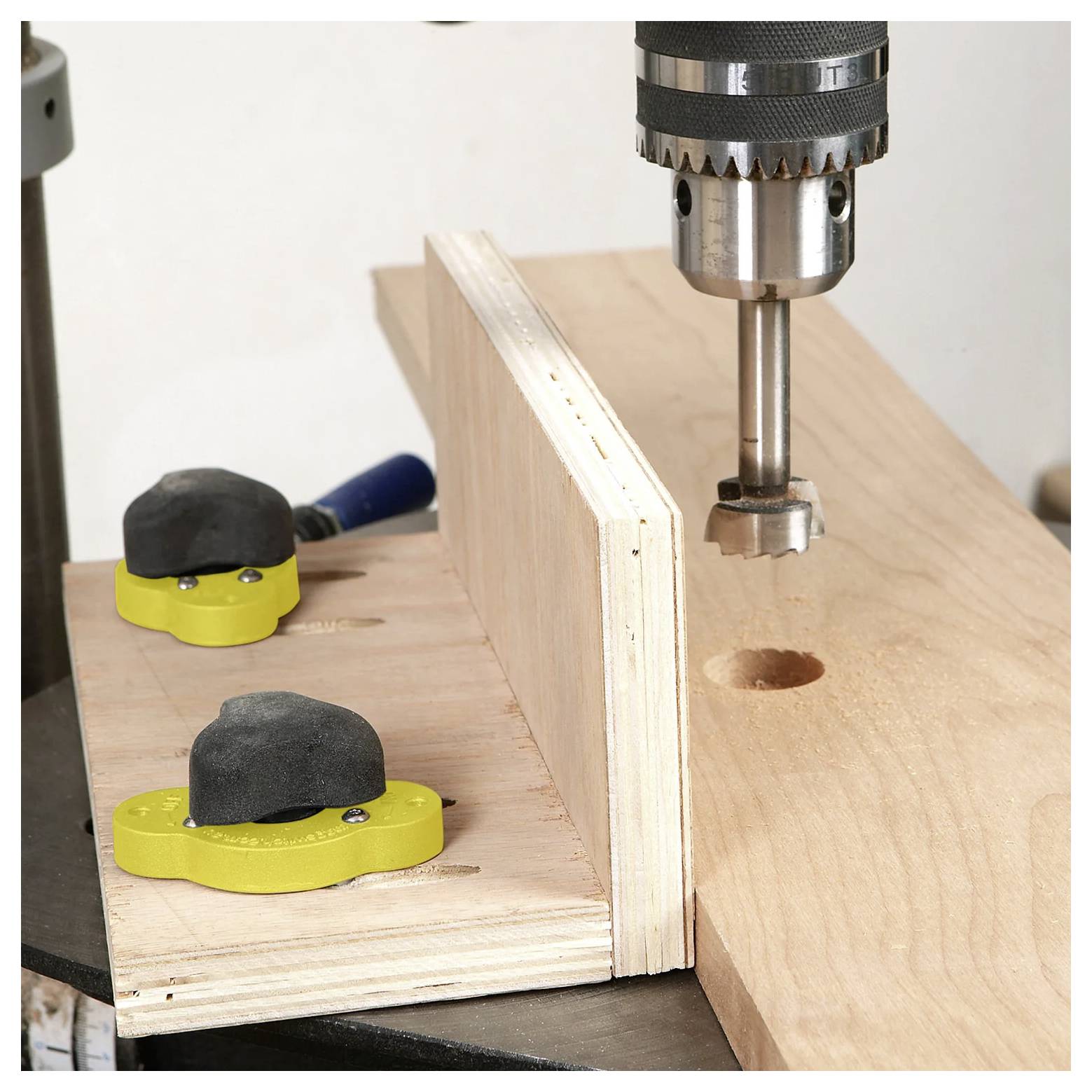

A drill press making a hole in a wooden board clamped securely on a workbench using two yellow clamps for stability.

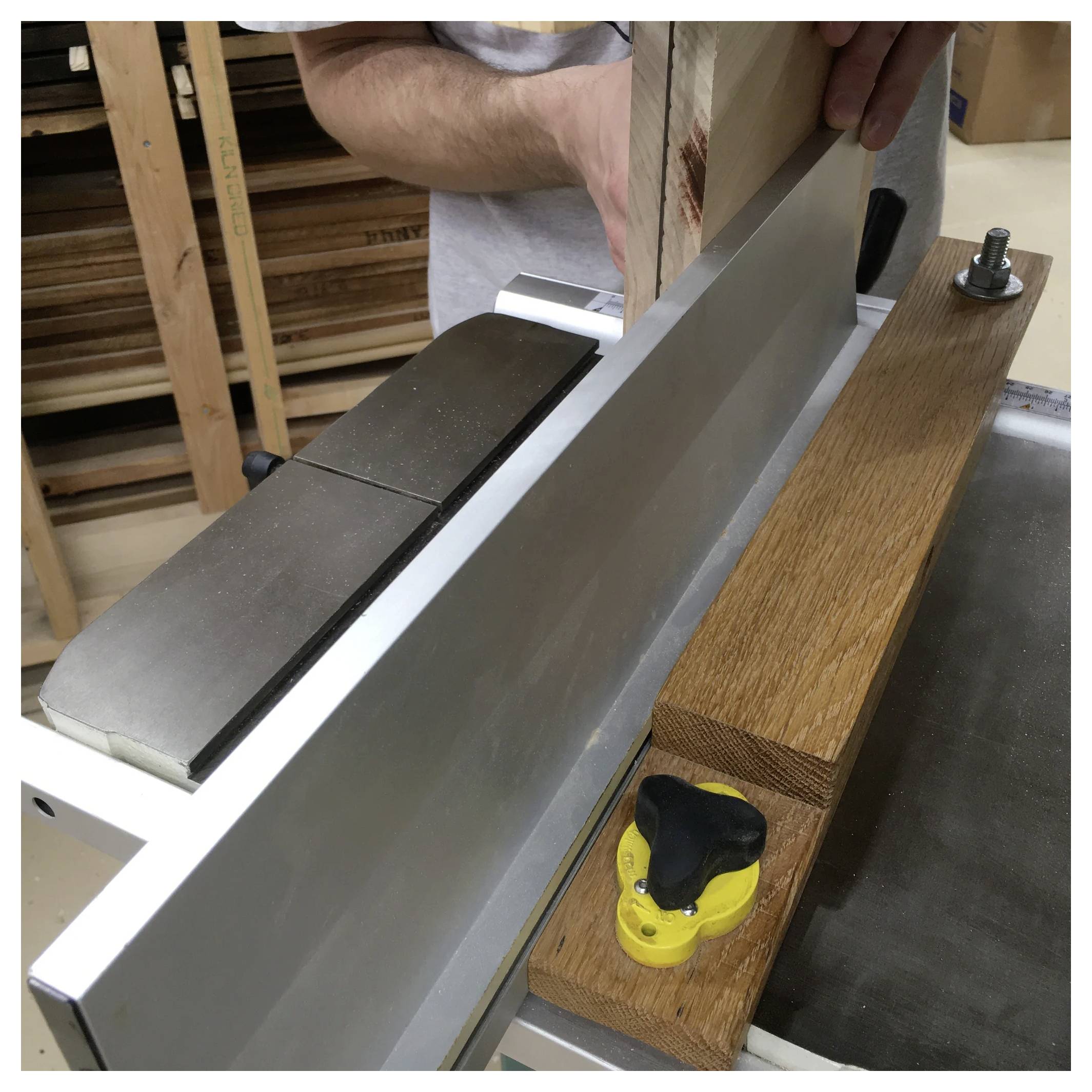

A person uses a jointer to smooth and straighten a wooden plank. The machine's fence and cutting blade are visible, with wood shavings around.

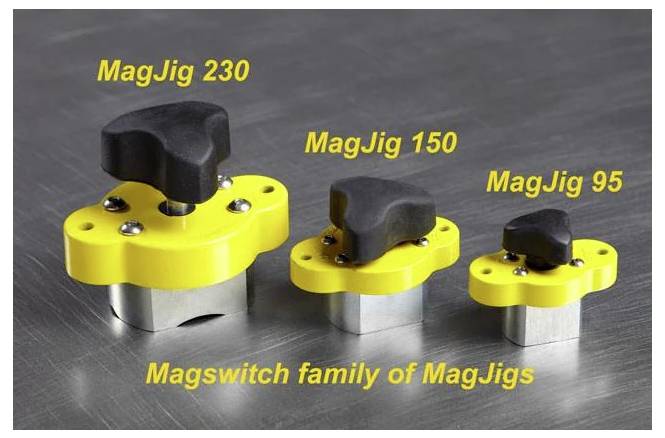

Three yellow MagJigs of different sizes (230, 150, 95) on a metallic surface. Text reads 'Magswitch family of MagJigs'.

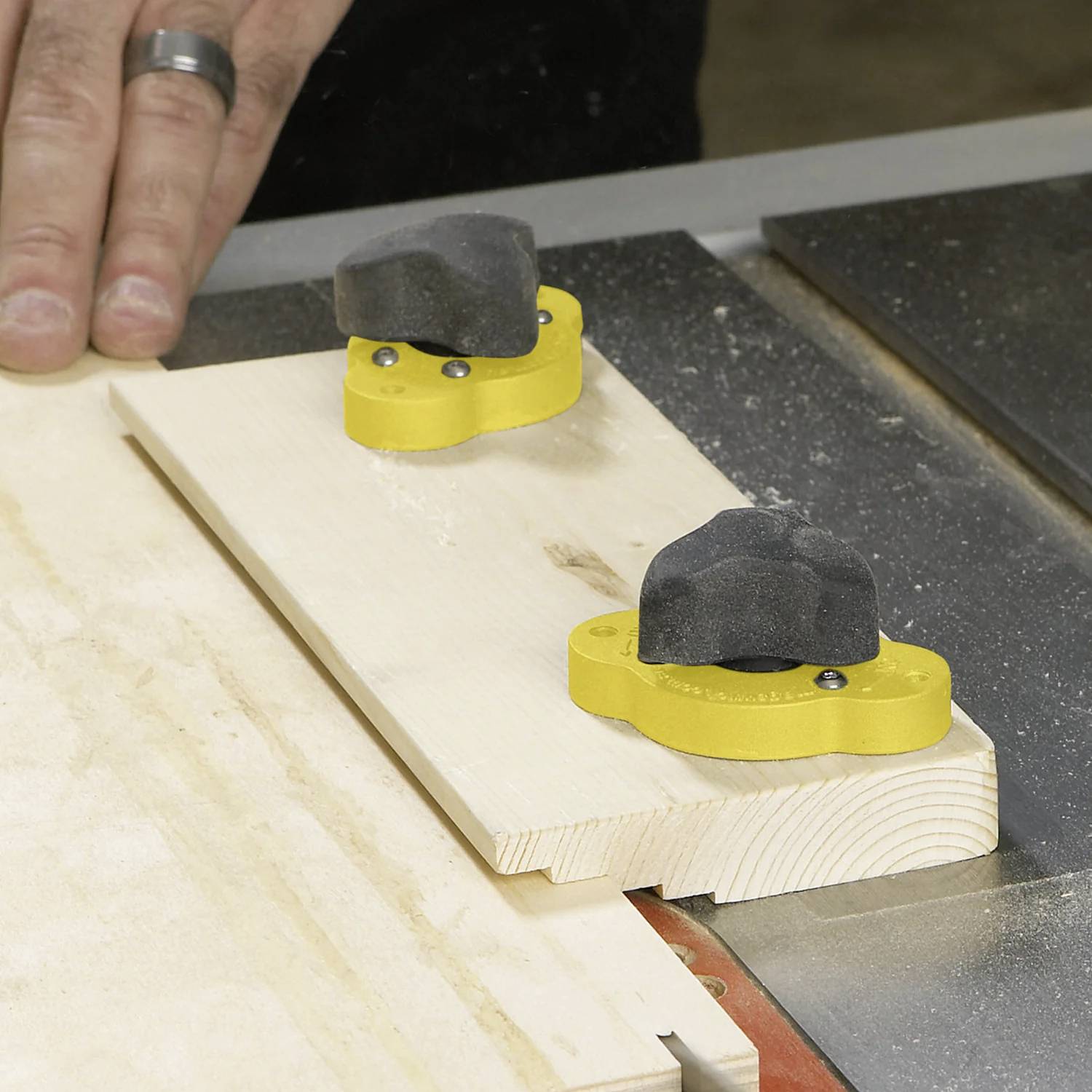

'A person uses a table saw with a featherboard attached to guide wood for precise and safe cutting.'

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch MagJig 150 - 8110005

Magnetic clamping device, 60 kg holding force, mechanical switching, screw holes

Technical specifications

Product weight: 0.2 kg
Dimensions 2.6 x 1.7 x 2.1 in (66 x 43.1 x 53.3 mm)
2: 1 shear load: 15 kg
Magnetic base area 40 x 31 mm
Max Breakaway: 133 lbs (60.3 kg) on 1' steel

Product type: #####Magnetische Spannvorrichtung

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476859 Magswitch 8110005 MagSwitch MagJig 150 - 8110005 #####Magnetische Spannvorrichtung

Description

The magnetic clamp secures your device. Turn the knob to switch the 60 kg magnetic holding force on and off. Simply drill a hole in the fixture and insert the MagJig to clamp it with downward pressure. FEATURES & BENEFITS: The magnetic field is turned on and off completely mechanically. No power source required. The magnet remains clean. Holds flat and round steel surfaces. 3/4" Bracket for flush mounting. With screw holes for more safety in a device. Ideally suited for wood working, welding and manufacturing. SPECIFICATIONS Max. Breakaway force: 133 lbs (60.3 kg) to 1" Steel 2:1 shear load: 15 lbs (6.8 kg) Product weight: 1.7 lbs (0.1 kg) Dimensions: 2.6 x 0.2 x 2.1 inches (66 x 43.1 x 53.3 mm) Magnetic pole base: 40 mm x 31 mm.
