Magswitch Extenda-Lift 600 Solenoid
EAN:
Part number:
Item no:
Product type
Solenoid
Type
Extenda-Lift 600
Weight
5.3 kg
Highlights & Details

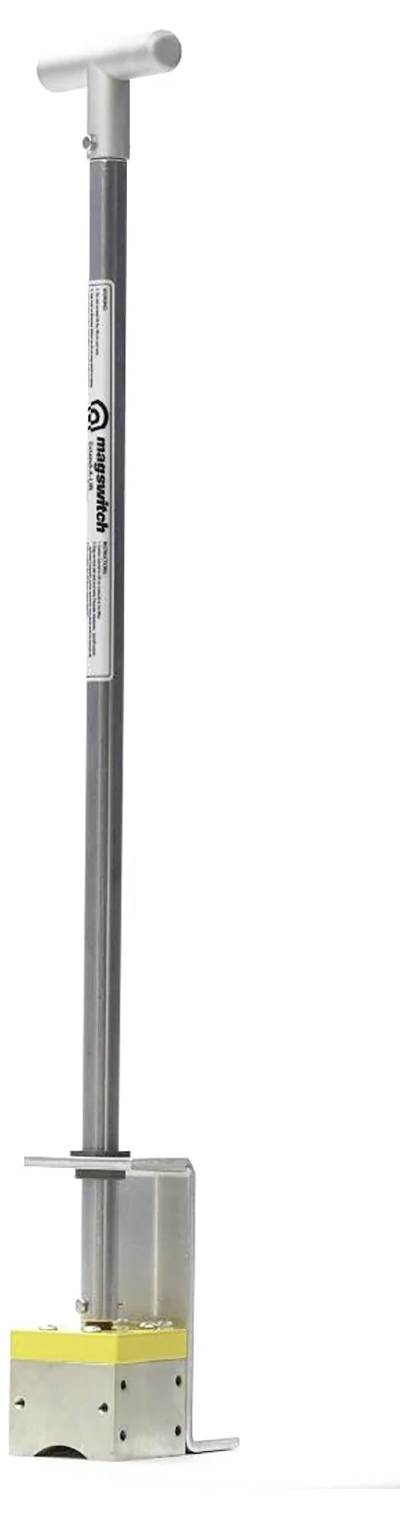

MagSwitch Extenda-Lift 600 - 8100025
- Magnetic lifting, MagSwitch, valve box, 600 lbs holding force, Mechanical on/off
Technical specifications
- Product weight: 5.3 kg
- Dimensions 4 x 3.9 x 28.2 in (101.6 x 99 x 716.2 mm)
- 2: 1 shear load: 45 kg
- Full saturation thickness 2 mm
- Magnetic base area 116.8 x 66 mm
- Max Breakaway: 478 kg (216.8 lbs) to 2'' steel
- Product type
Solenoid
- Type
Extenda-Lift 600
- Weight
5.3 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3476849 Magswitch Extenda-Lift 600 Solenoid
Description

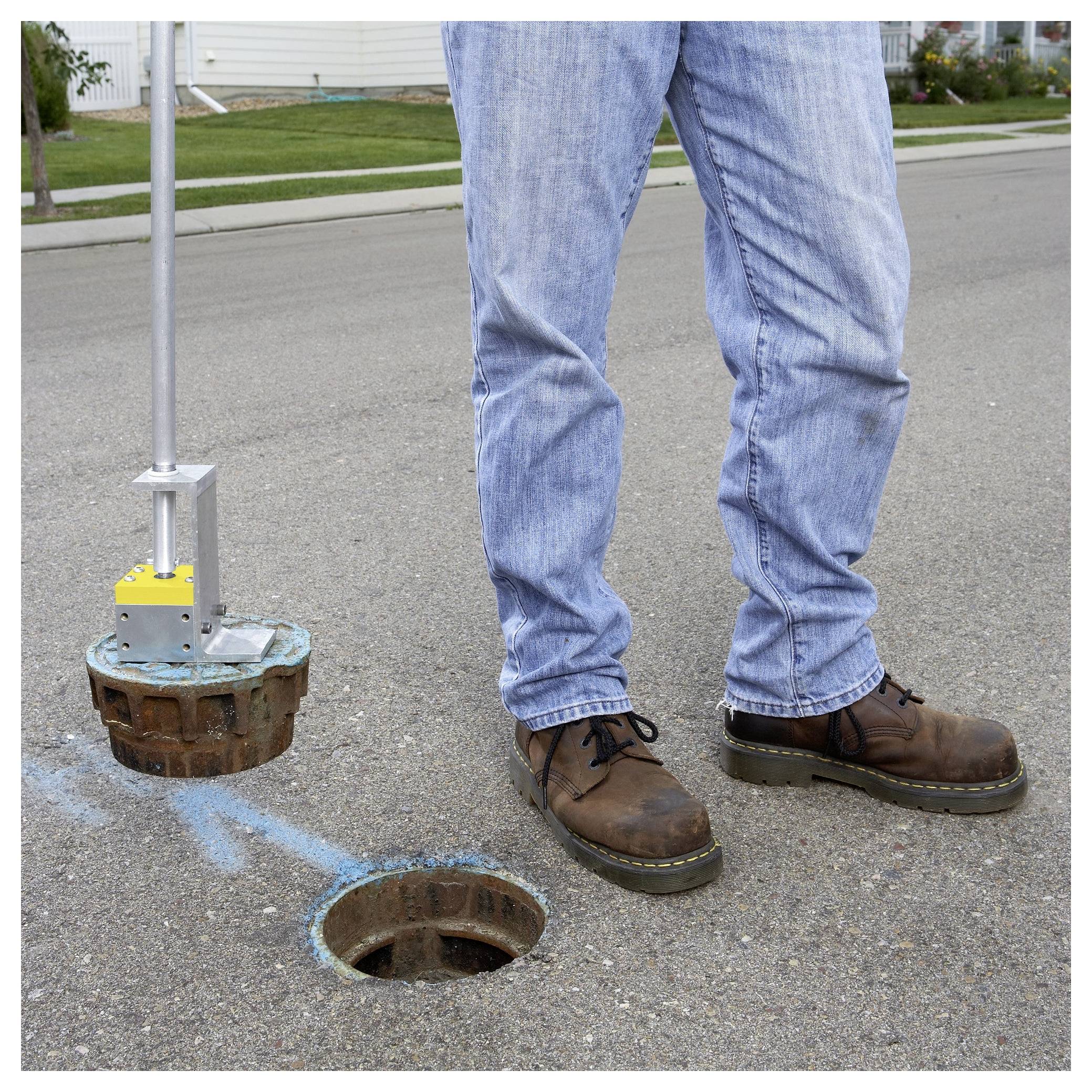

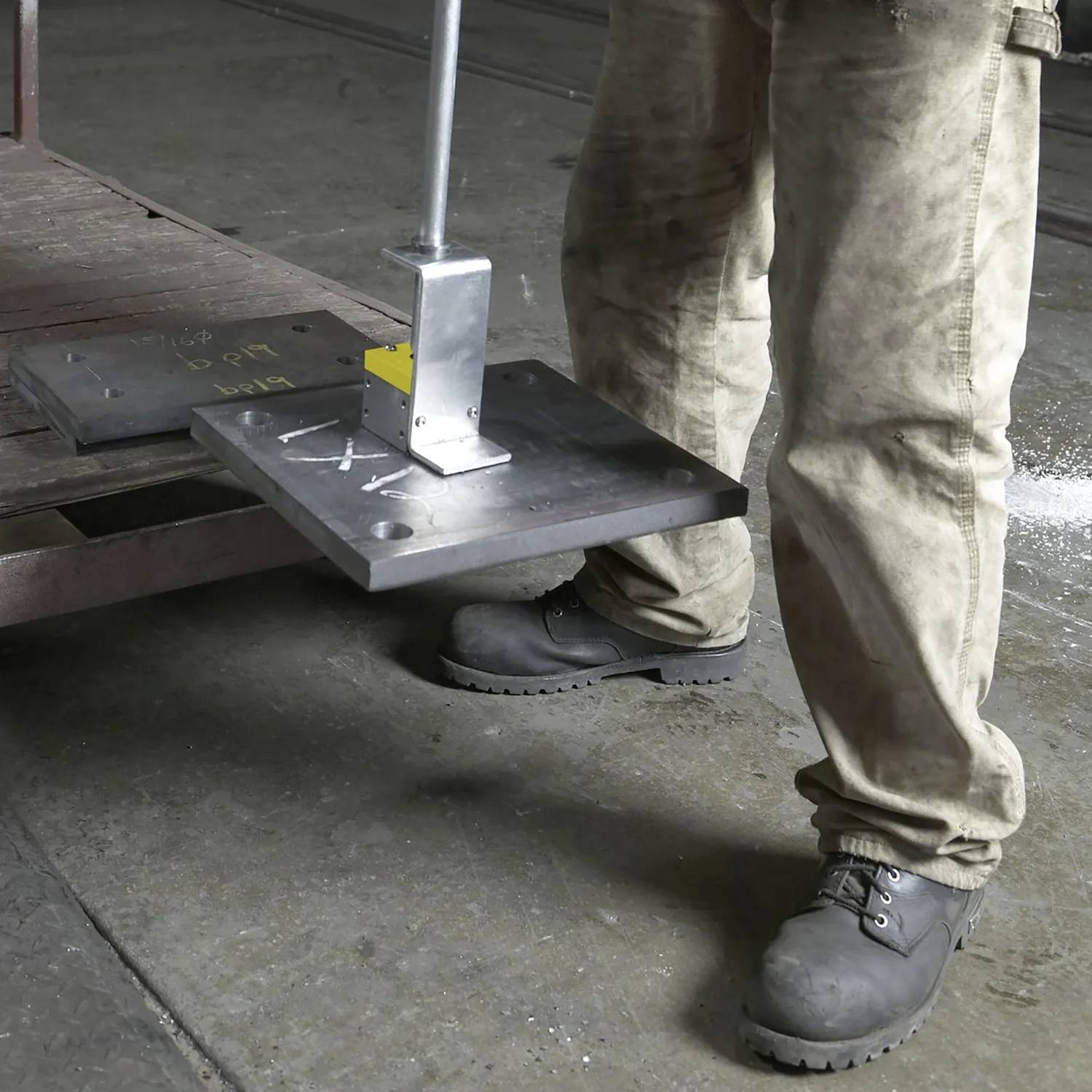

Lift a valve box and hot, sharp or dirty steel safely and easily without touching it. With the MagSwitch ExtendaLift 600 you can lift and move steel from the floor without bending and using your hands. Turn the handle to switch the 216kg magnetic holding force on/off. Lift a valve box and hot, sharp or dirty steel safely and easily without touching it. Ideal for cities and service providers, for removing valve boxes and small covers. FUNCTIONS AND ADVANTAGES 600 lbs (272 kg) holding force. You don't have to bend and pick up materials. The magnetic field is turned on and off completely mechanically. Requires no electrical power source. Can be installed and removed immediately on valve box covers. Our safety lock keeps the magnets on until they are turned off. Simple on/off control for precise positioning. Light, robust and compact. SPECIFICATIONS Max. Breakaway Power: 478 lbs (216.8 kg) to 2'' Steel Full Saturation Thickness: 2' (50.8 mm) 2:1 shear workload: 2.4 lbs (4 kg) Product weight: 3.9 lbs (45 kg) Dimensions: 20.4 x 5.3 x 28.2 in (101.6 x 99 x 716.2 mm) Magnetic pole base: 116.8 mm x 66 mm.
