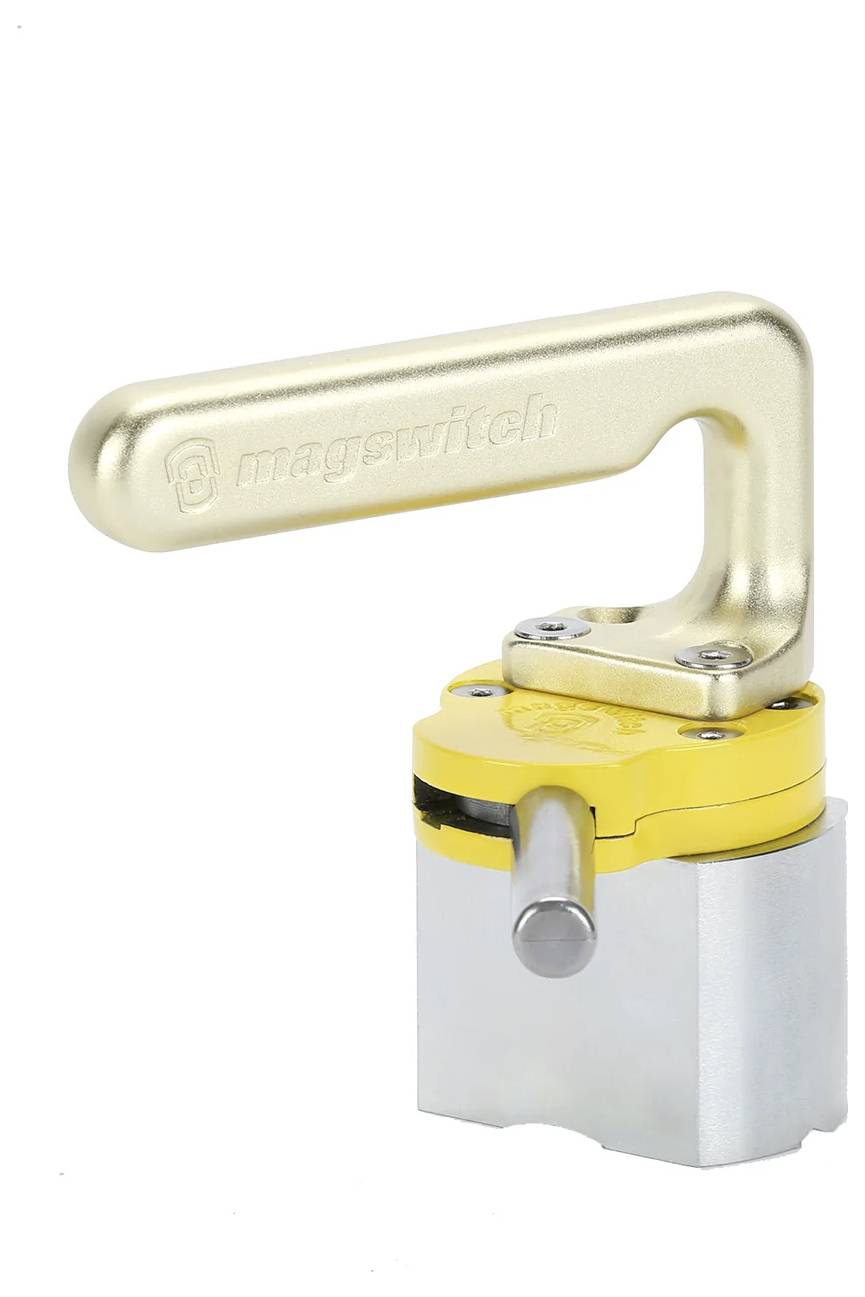

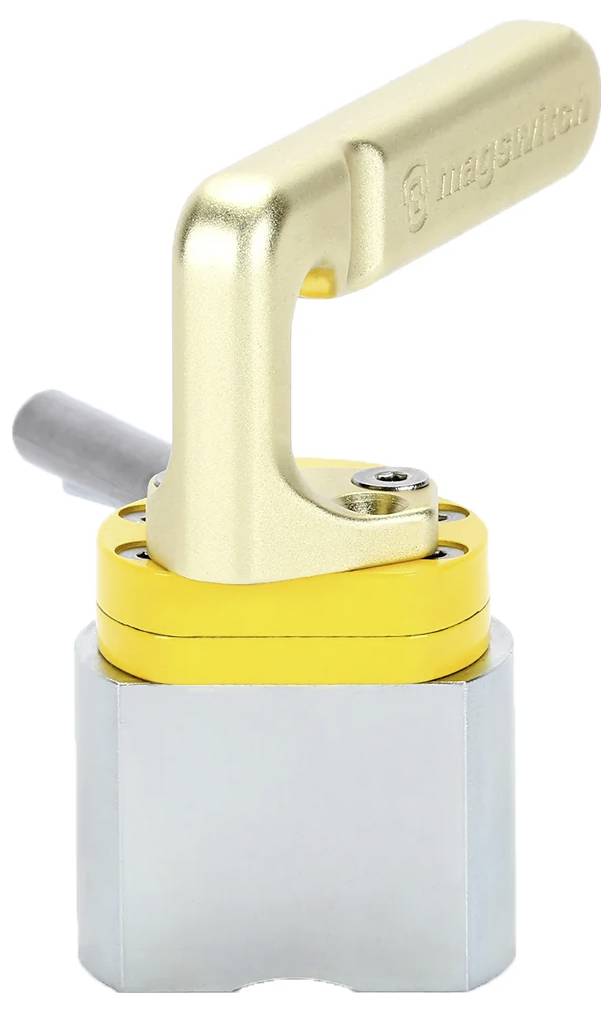

Magswitch Hand Lifter 400 Fixed Solenoid
EAN:
Part number:
Item no:
Product type
Solenoid
Type
Hand Lifter 400 Fixed
Weight
2.4 kg
Highlights & Details
MagSwitch Fixed Hand Lifter 400 - 8100810
- One-handed operation, locking mechanism, flat-field magnet, 170 kg holding force
Technical specifications
- Product weight: 2.4 kg
- Dimensions 6.9 x 4.9 x 5 in (175.2 x 124.4 x 127 mm)
- 2: 1 shaving load: 3 mm (8/9.5'')
- Magnetic base area 67 x 42 mm
- Max Breakaway: 375 lbs (170 kg) on 1' steel plate
- Product type
Solenoid
- Type
Hand Lifter 400 Fixed
- Weight
2.4 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3476854 Magswitch Hand Lifter 400 Fixed Solenoid
Description

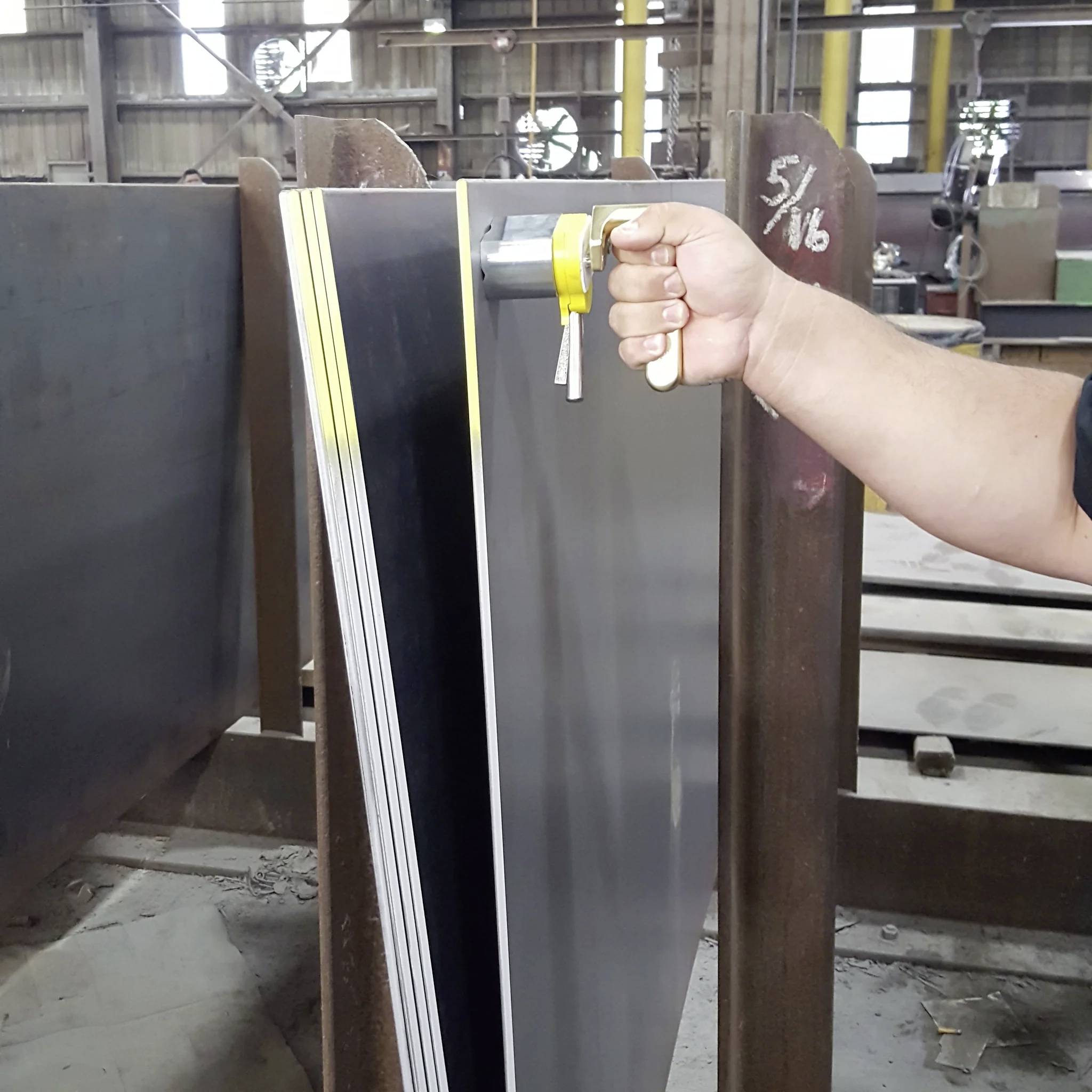

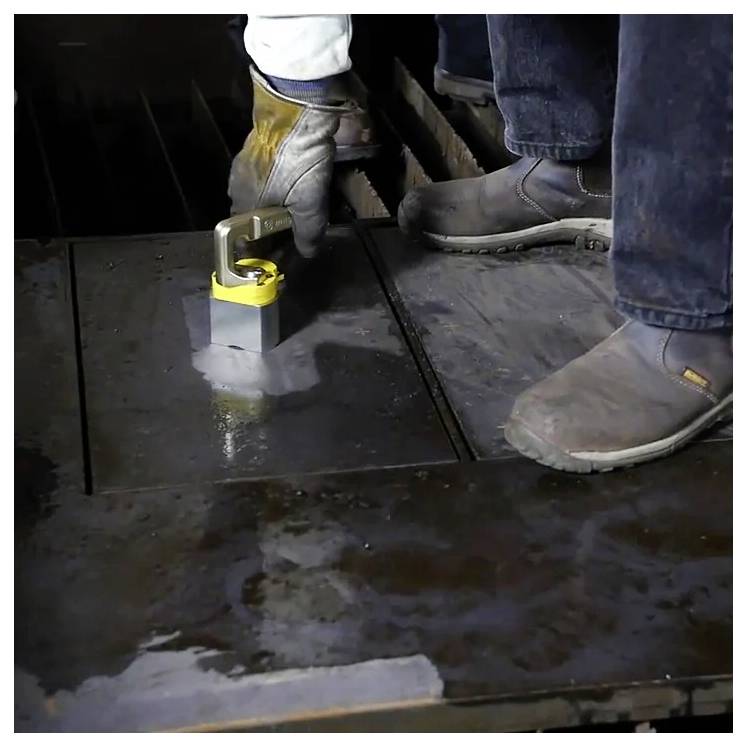

Simple one-hand operation for a secure pick-up and transport of hot, sharp or dirty steel without touching it. Our fixed hand lever has a locking mechanism that prevents accidental release. You can easily lift small steel plates with 170 kg magnetic holding force. FEATURES & BENEFITS: The magnetic field is turned on and off completely mechanically. The magnet remains clean. Requires no power supply. Holds flat and round steel surfaces. Easy and simple to operate. Flat-field magnets allow the destacking of thin materials. Ideal for small parts from the cutting table. SPECIFICATIONS Max. Breakaway force: 67 kg (375 lbs) on 1" steel plate 2:1 shear load: 9.5 mm (3/8") Product weight: 124.4 kg (2.4 lbs) Dimensions: 175.2 x 1 x 127 mm (6.9 x 4.9 x 5 inch) magnetic pole base area: 170 mm x 42 mm.
