Buy Magswitch Hand Lifter 60 CE Solenoid

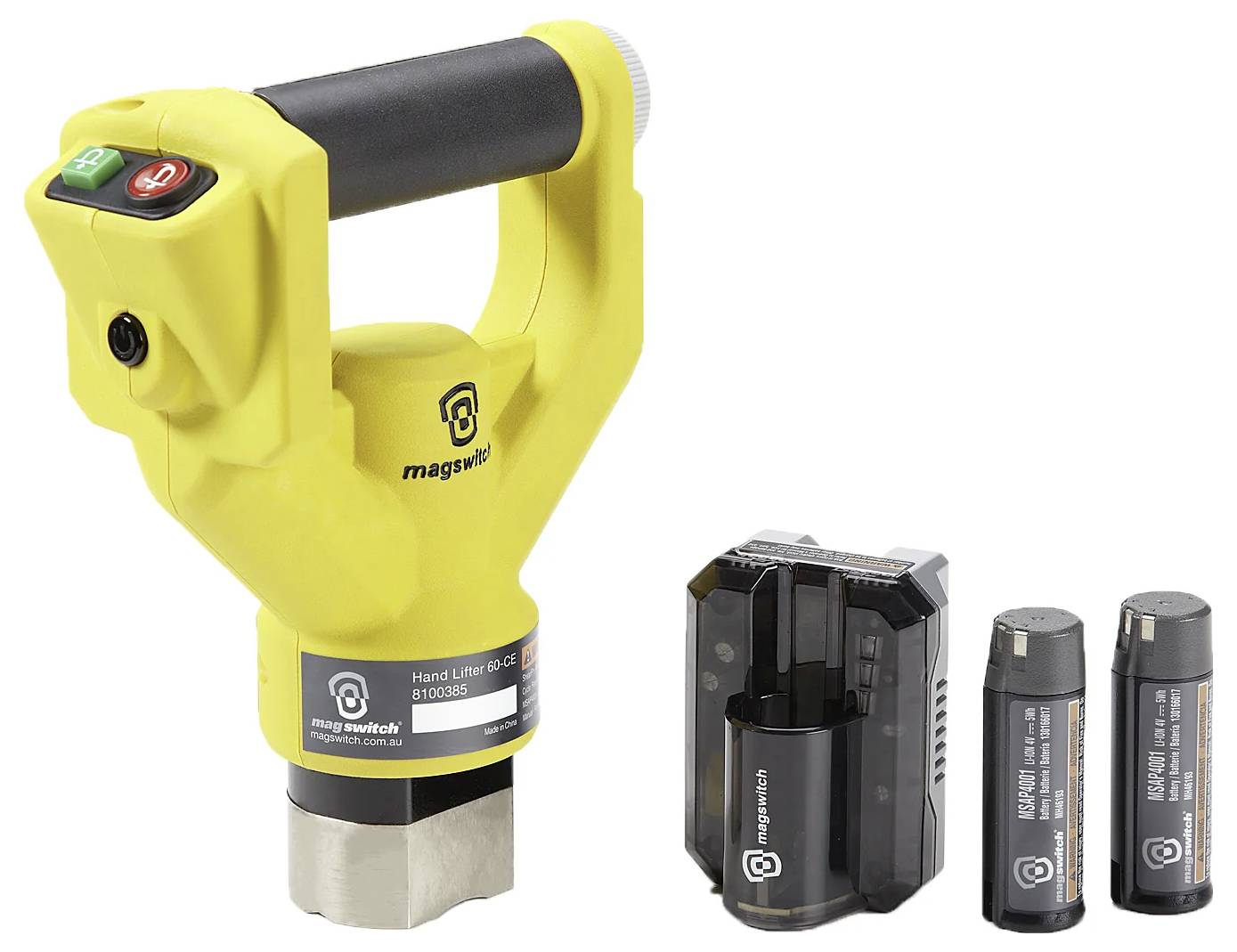

'Magnetech' hand lifter in yellow with a black handle, accompanied by two battery packs and a charger.

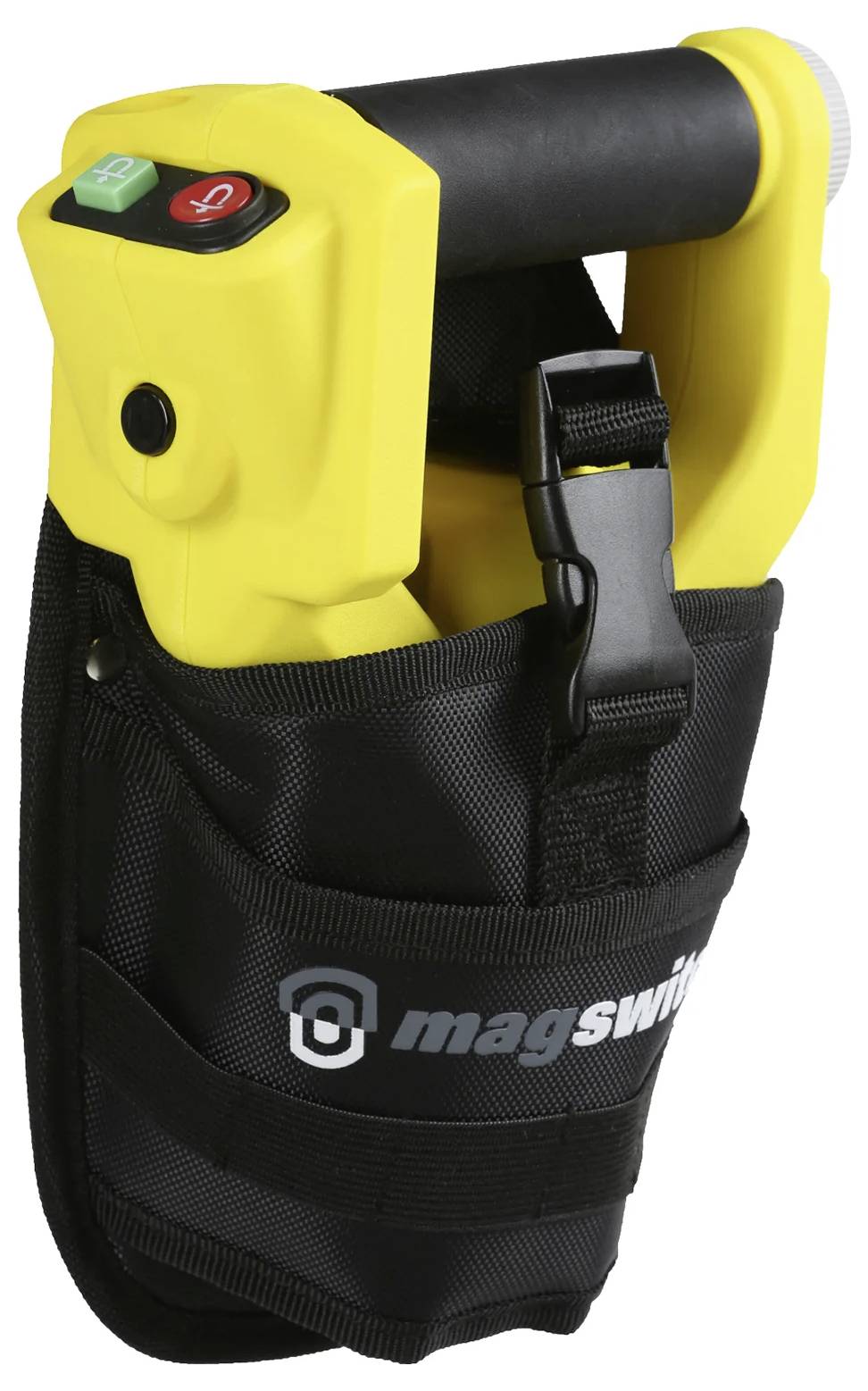

A yellow MagSwitch tool with a carrying case, featuring a red on/off switch on the handle, designed for convenient portability and safety.

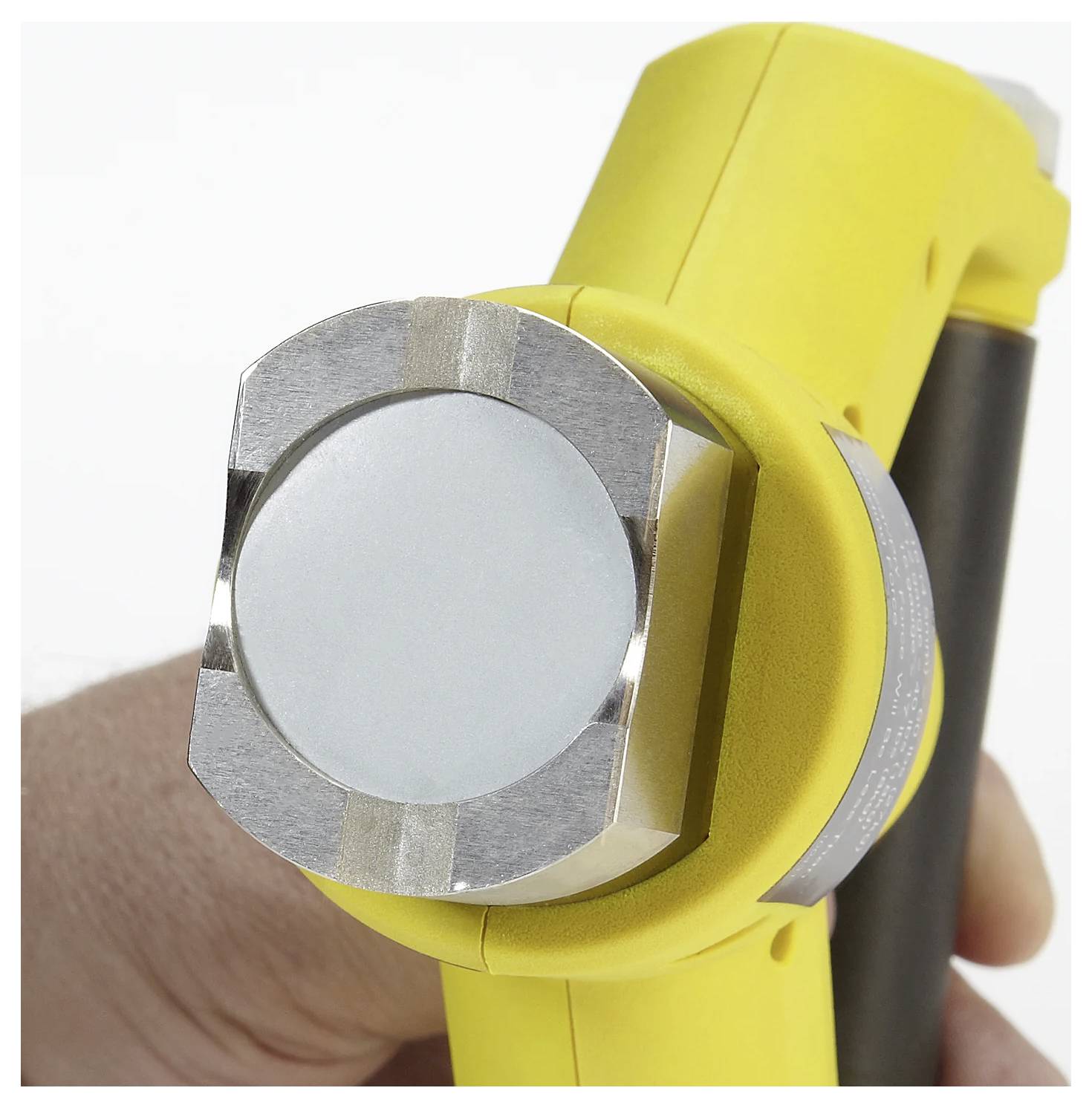

'A close-up of a hand holding a compact, yellow handheld tool with a circular metallic component on the end, likely a sensor or a magnet.'

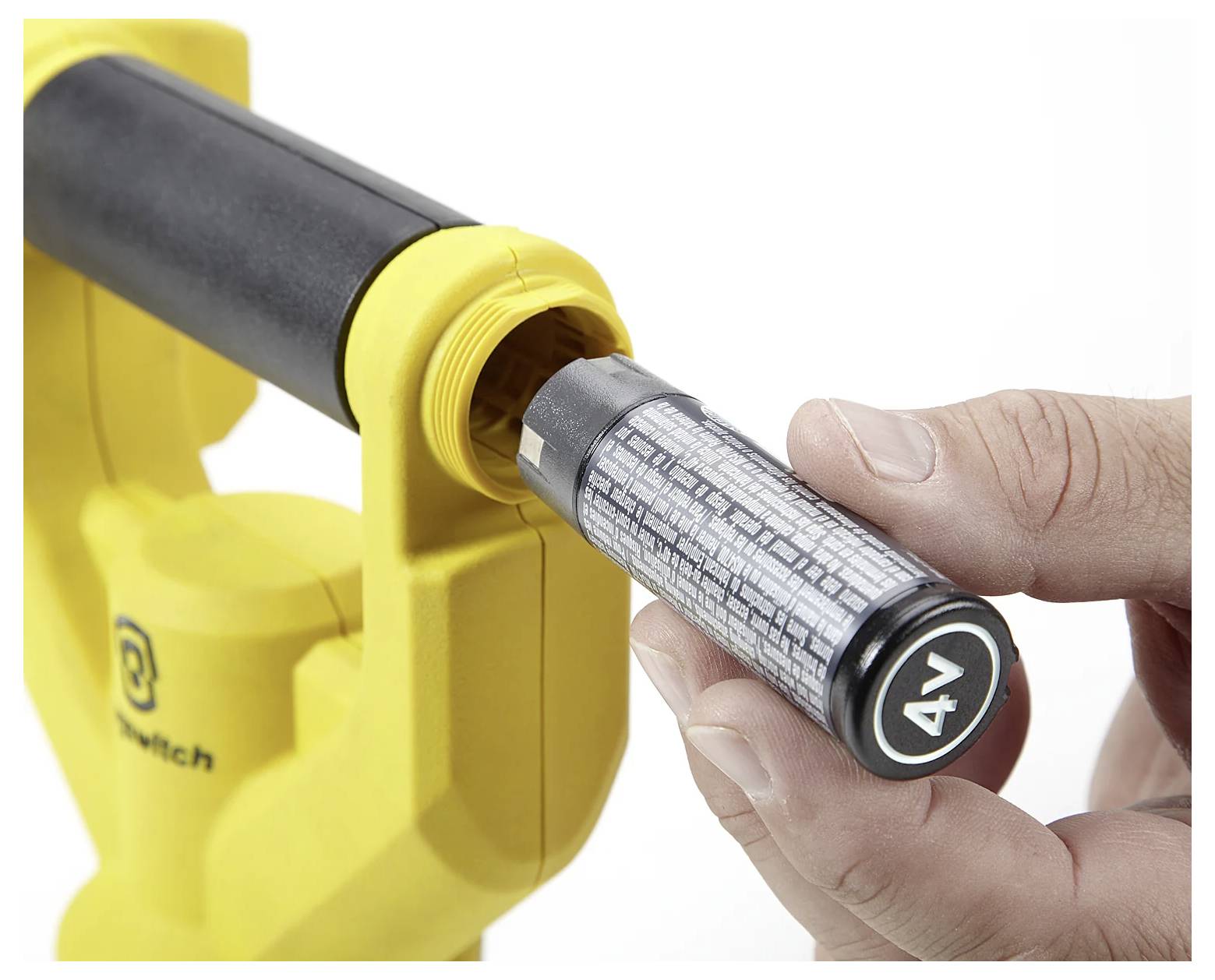

'4V battery' being inserted into a yellow and black tool, close-up on hands handling the battery, focus on alignment and fit.

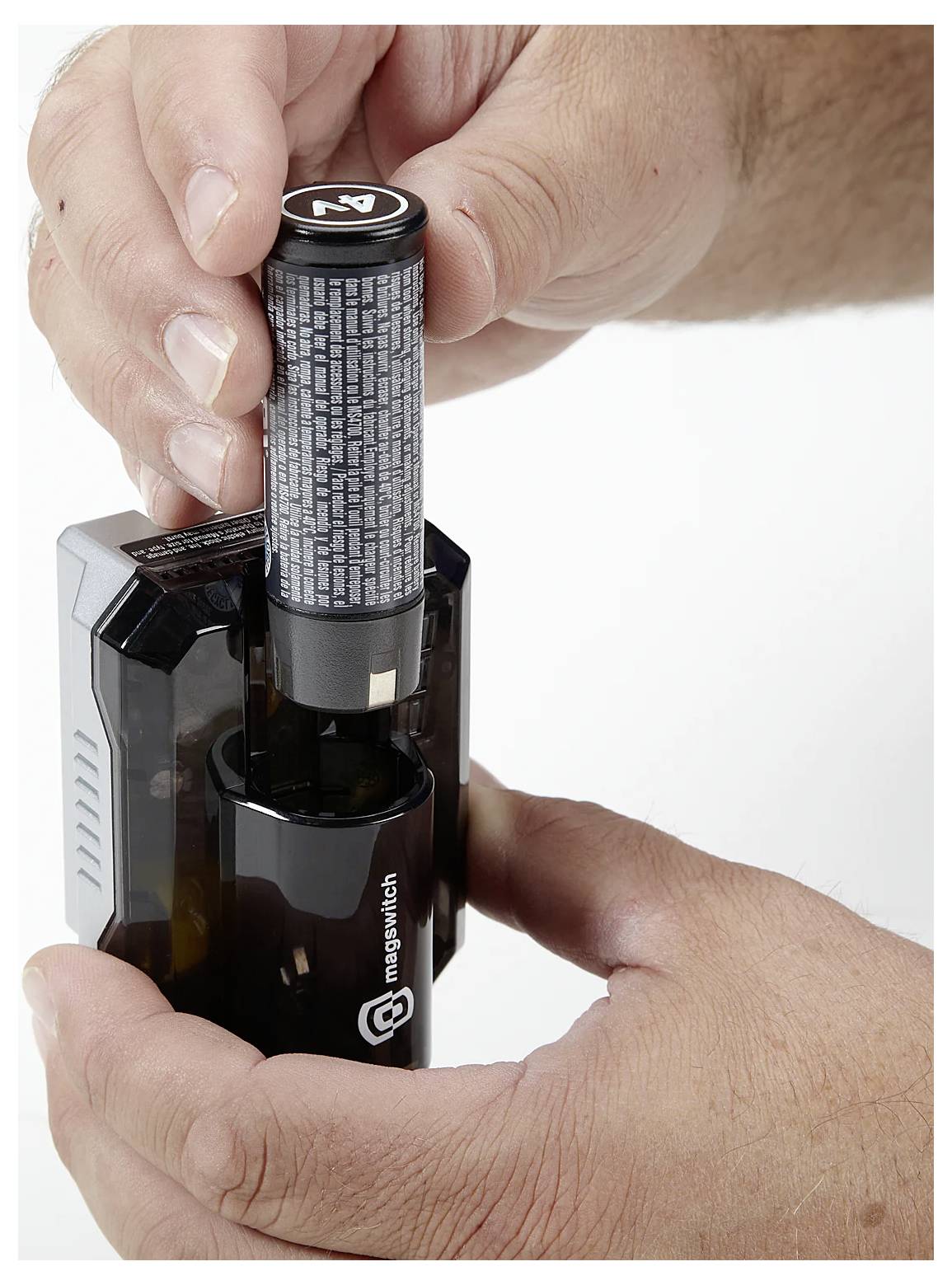

A person inserts a battery into a black battery charger, holding the charger securely with both hands.

A person in a workshop uses a measuring tool to check dimensions on a piece of material, surrounded by tools and equipment.

Worker in green shirt cuts metal sheet using a power tool in a workshop, surrounded by tools and equipment.

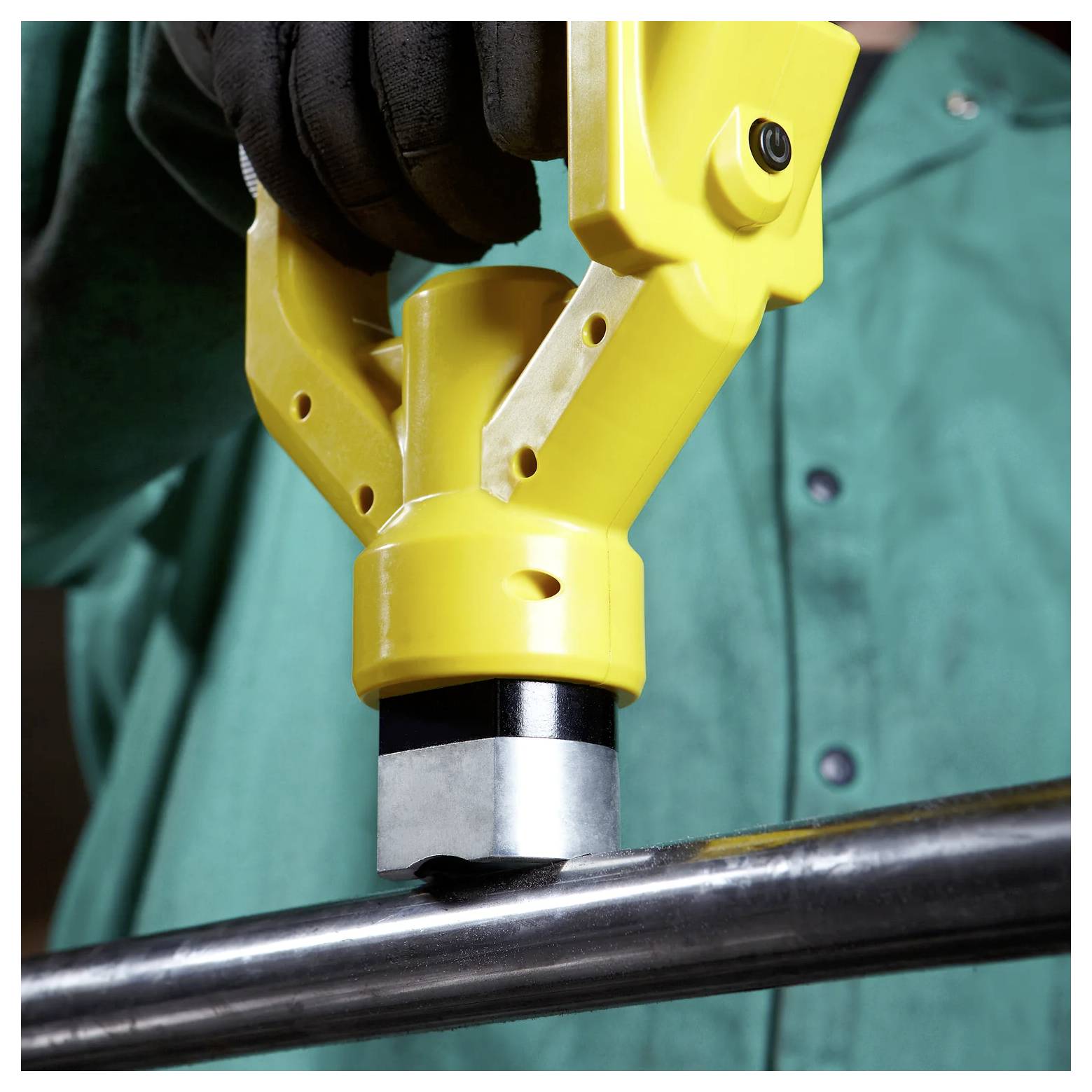

A worker in a green uniform uses a yellow magnetic drill to secure a metal pipe, demonstrating industrial equipment in use.

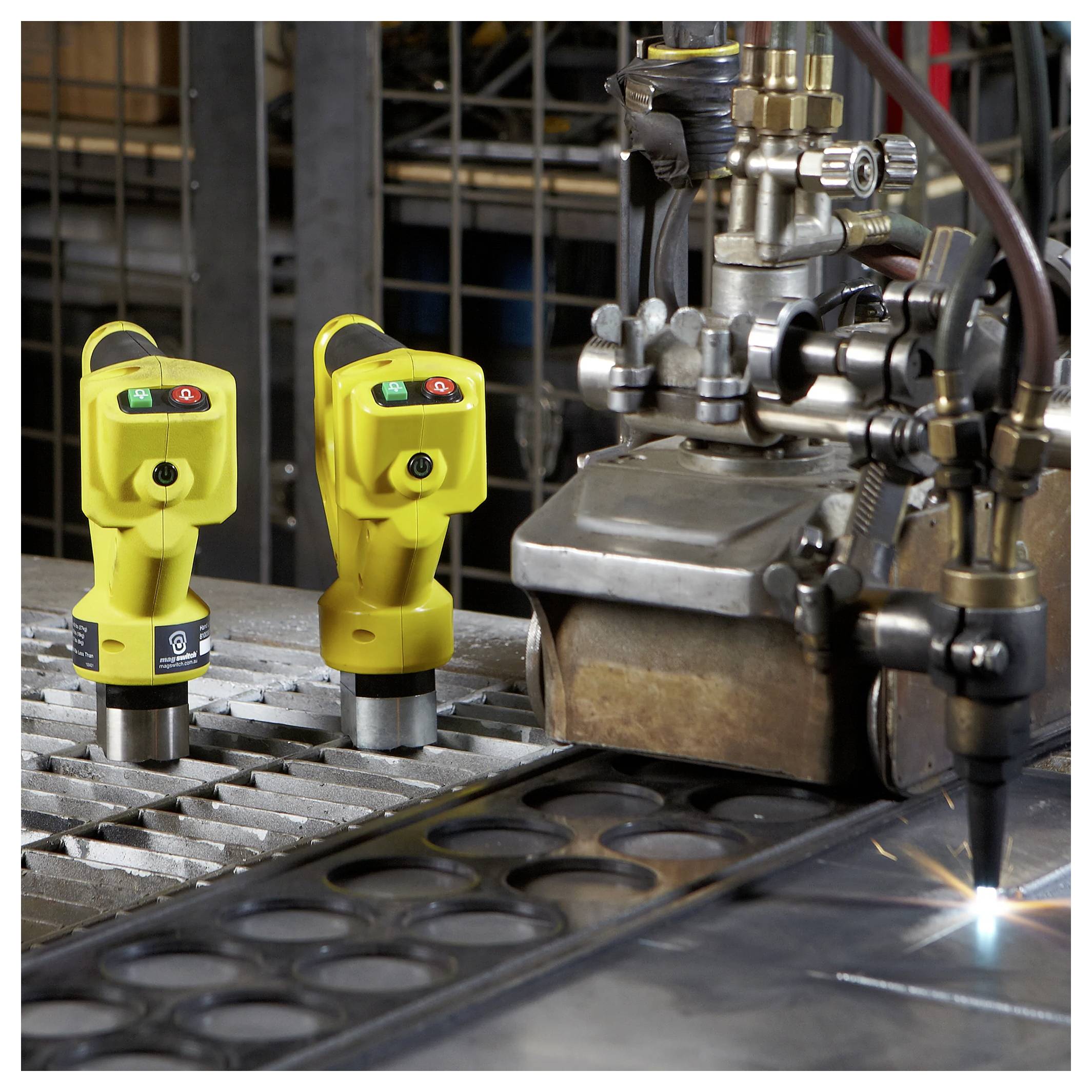

'Industrial cutting machine actively working on metal sheets, with two yellow safety sensors nearby for monitoring operations.'

'Image of a CNC machine workspace with two yellow magnetic lifters in the background. A play button overlay suggests video content.'

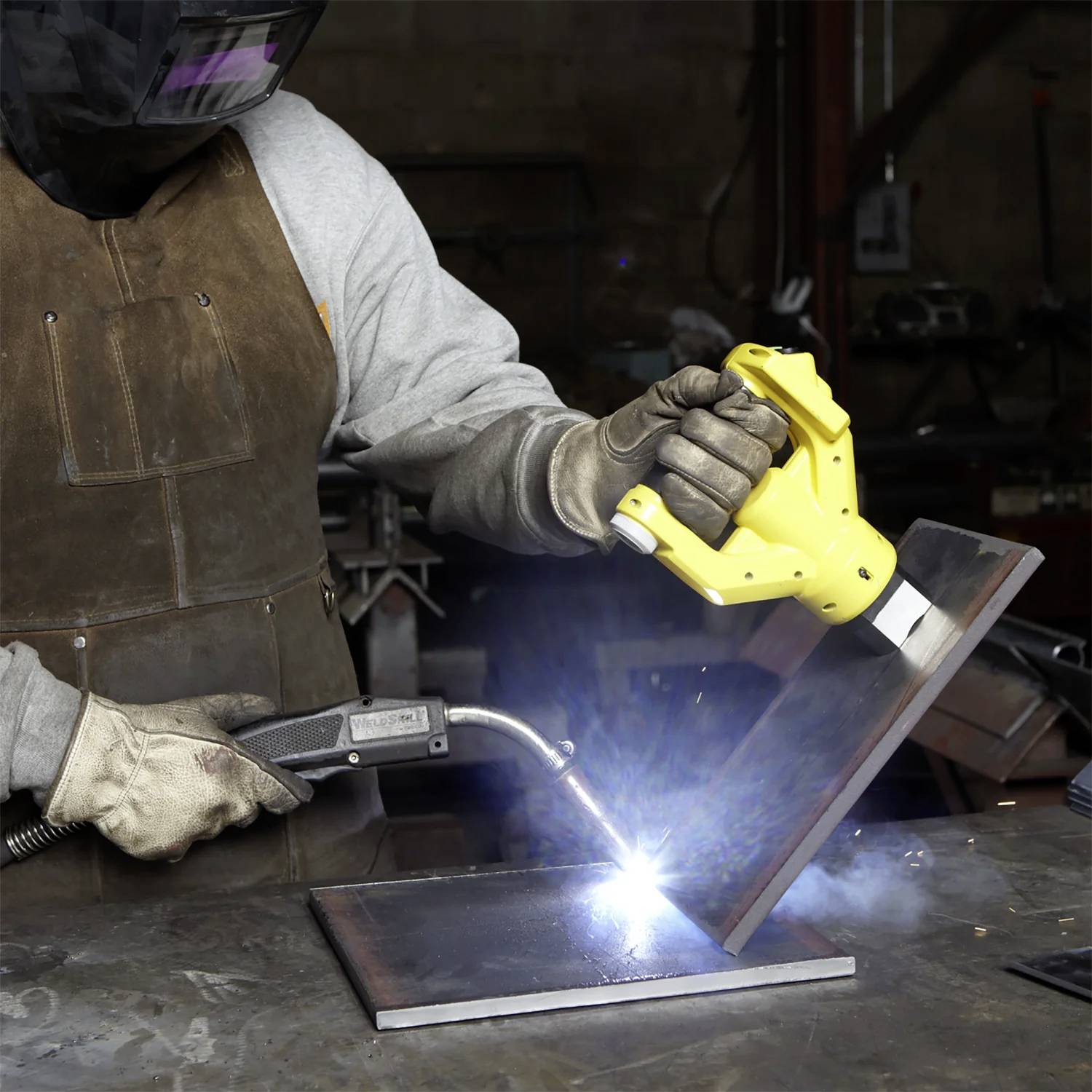

A welder wearing protective gear uses a welding torch on metal pieces, creating bright sparks in a workshop environment.

1/11

Product type

Solenoid

Type

Hand Lifter 60 CE

Weight

2.4 kg

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MagSwitch Hand Lifter 60-CE - 8800487

One-handed magnetic lifter, lithium-ion battery, 2000 operations, 198 lbs holding force

Technical specifications

Product weight: 2.4 kg
Dimensions 6.8 x 3 x 8.2 in (172.72 x 76.2 x 208.28 mm)
Full saturation thickness 1 mm (4/6.35')
Magnetic base area 56 x 42 mm
Max Breakaway - 198 kg
3:1 Safe working load: 65.91 kg (29.9 lbs) on 3.5 mm steel
Max. Secure lubrication 45 kg

Product type: Solenoid

Type: Hand Lifter 60 CE

Weight: 2.4 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476856 Magswitch Hand Lifter 60 CE Solenoid

Description

The single-handed, battery-powered magnetic lifter offers more control when using only one hand. To switch the steel on and off, press a button to lift and release the steel. We have built a fail-safe into our technology so that the magnet remains switched on when the power runs out and the device is under load and the steel does not fall off! Supplied with two rechargeable 4 V lithium ion batteries, charger and holster. FEATURES AND BENEFITS: The magnetic field can be fully switched on and off at the touch of a button. The magnet remains clean. Holds flat and round steel surfaces. 100% on-time - the magnet can remain switched on forever. Battery level indicator. Charge in 20 minutes. The rechargeable batteries have 2000 activities per charge. SPECIFICATIONS Max. Breakaway force: 89.81 kg (198 lbs) 3:1 Safe workload: 29.9 kg (65.91 lbs) to 3.5 mm steel Full saturation thickness: 6.35 mm (1/4 inches) Max. Secure shear force: 20.41 kg (45 lbs) Product weight: 1.08 kg (2.4 lbs) Dimensions: 172.72 x 76.2 x 208.28 mm (6.8 x 3 x 8.2 inches) Magnetic pole base: 56 mm x 42 mm.

This text is machine translated.

Scope of delivery

Includes two rechargeable 4 V lithium ion batteries, charger and holster
