Magswitch Hand Lifter 60-M Solenoid
EAN:
Part number:
Item no:
Product type
Solenoid
Type
Hand Lifter 60-M
Weight
1.3 kg
Highlights & Details
MagSwitch Hand Lifter 60-M - 8100359

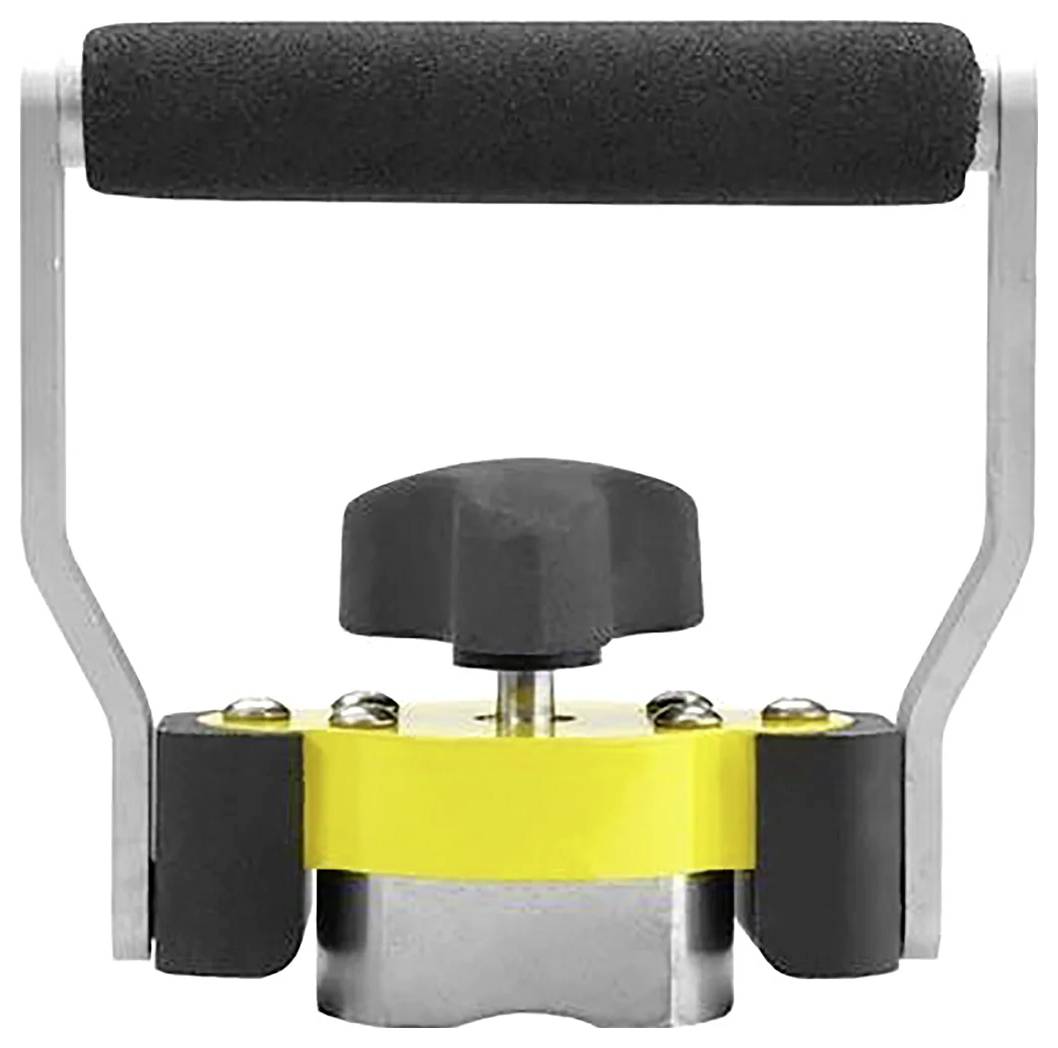

- Magnetic hand grip, swivel handle, pipe groove, 91.7 kg holding force
Technical specifications
- Product weight: 1.3 kg
- Dimensions 5.3 x 2.4 x 5.5 in (134.6 x 60.9 x 139.7 mm)
- Full saturation thickness 1 mm (2/12.7')
- Magnetic base area 119 x 71.12 mm
- Max Breakaway: 216 kg to 98 mm steel
- Minimum destacking thickness: 1/2 in. (12.7 mm)
- Product type
Solenoid
- Type
Hand Lifter 60-M
- Weight
1.3 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3476855 Magswitch Hand Lifter 60-M Solenoid
Description

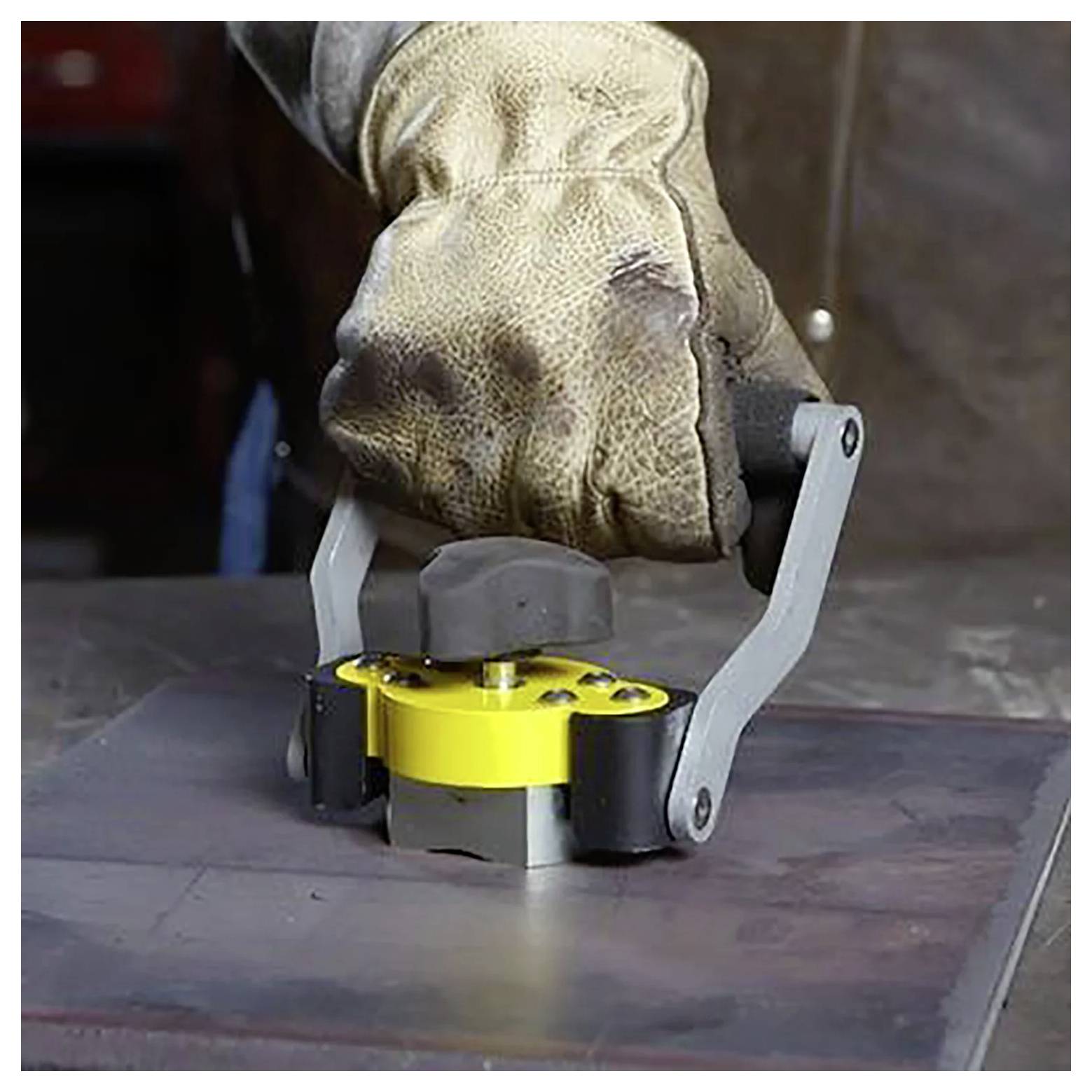

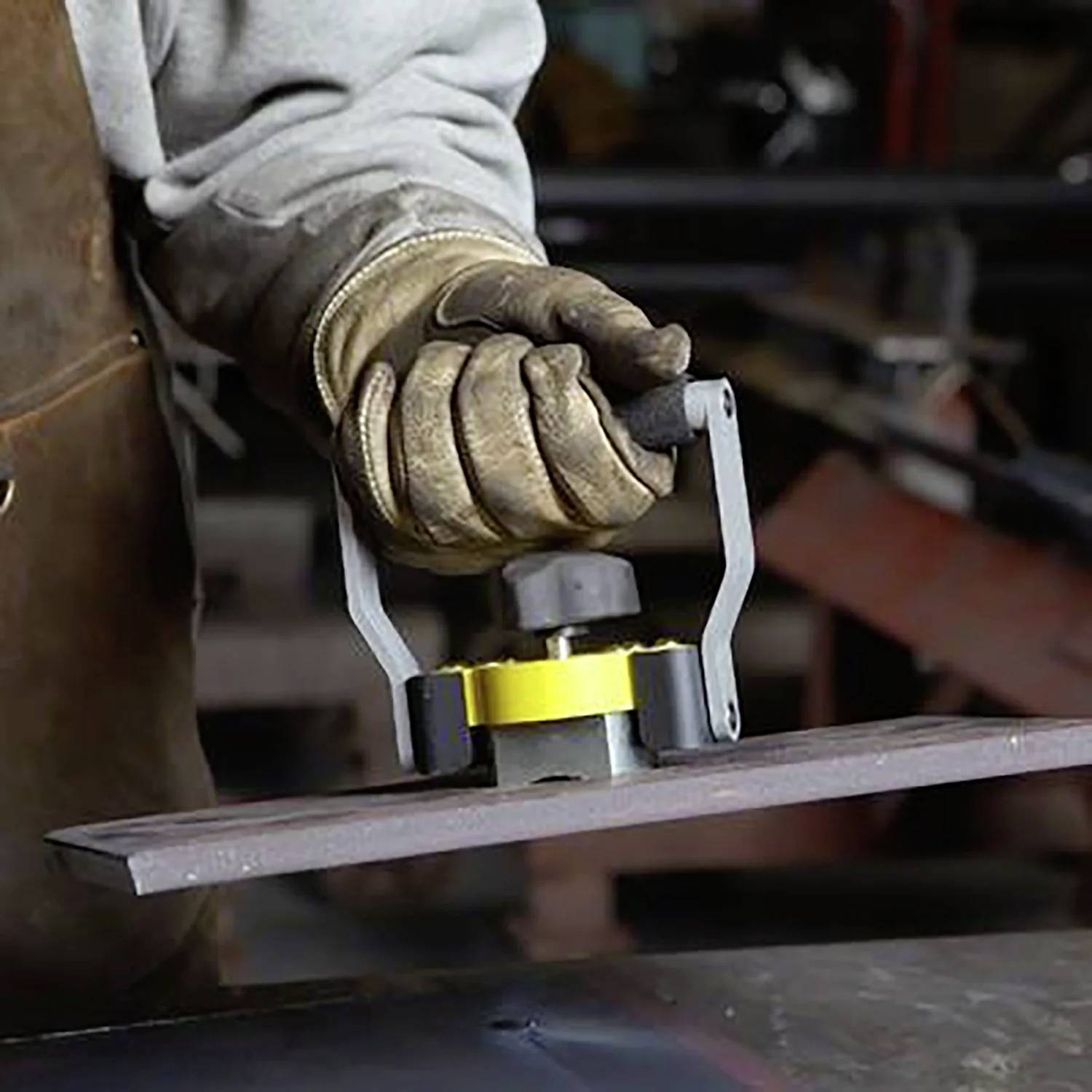

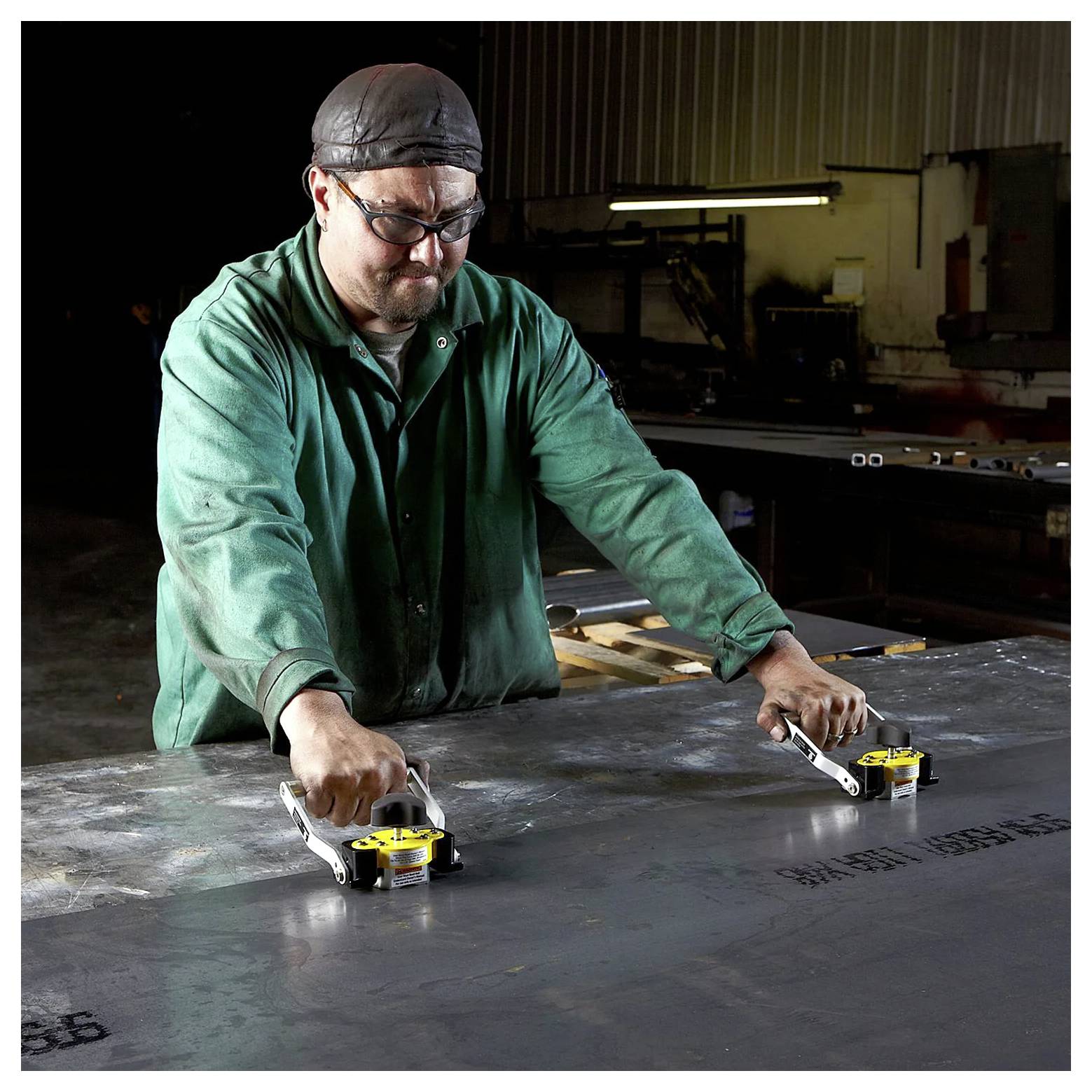

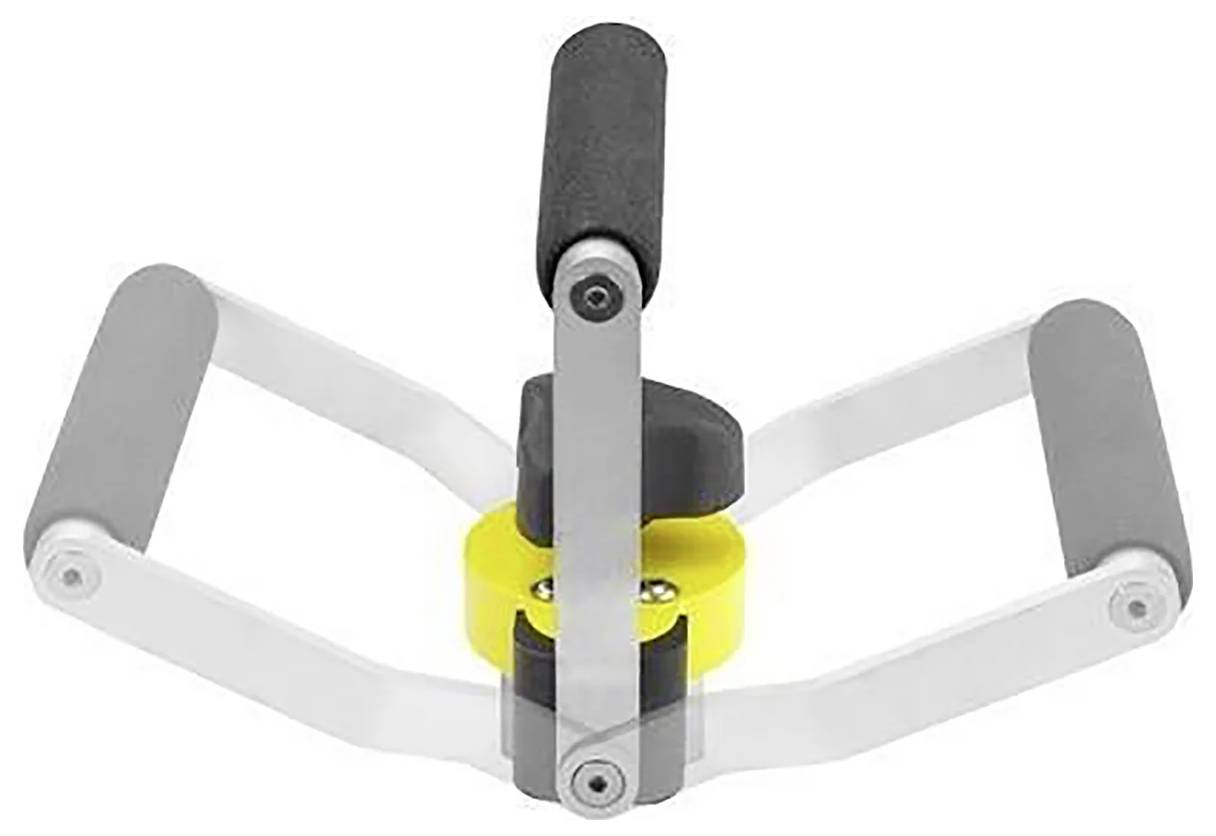

Lift hot, sharp or dirty steel securely and easily with the magnetic hand-held lifter. Place the magnet on a steel plate, turn the magnet on by turning the black button 180 degrees, pull the plate and turn the knob to turn it off. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. Super-strong magnet with a gripping force of up to 91.7 kg. Almost three times as high as the recommended maximum load capacity of 27 kg. Pipe groove for transportation of tubes of different sizes. Swivel handle can be locked vertically for use as a hand lever. SPECIFICATIONS Max. Breakaway force: 98 kg (216 lbs) to 3.5 mm Steel Thickness with full saturation: 12.7 mm (1/2 in.) Minimum destacking thickness: 12.7 mm (134.6 in.) Product weight: 60.9 kg (1.3 lbs) Dimensions: 1/2 x 0.58 x 5.5 mm (5.3 x 2.4 x 139.7 in.) Magnetic pole footprint: 119 mm x 71.12 mm.
