Magswitch MLAY1000 Solenoid
EAN:
Part number:
Item no:
Product type
Solenoid
Type
MLAY1000
Highlights & Details

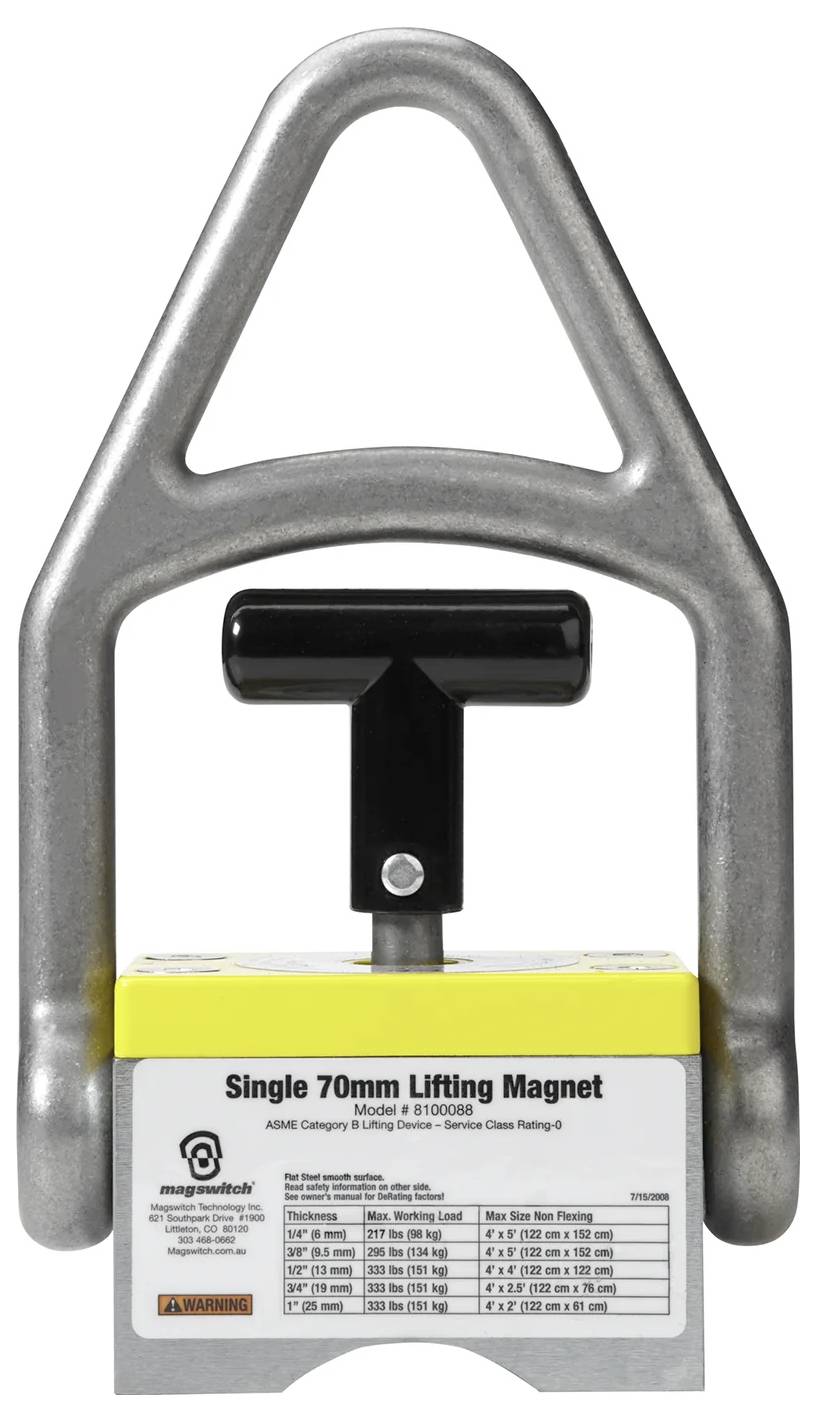

MagSwitch MLAY 1000 lifting magnet - 8100088
- Powerful, secure locking, swivel lifting hook, no power source required.
Technical specifications
- Dimensions 5.8 x 2.8 x 10 mm (147.3 x 71.1 x 254 in)
- Net weight: 11.5 kg
- 2: 1 shear load: 50 kg
- Magnetic base area 108 x 72 mm
- Max Breakaway - 1000 kg
- Full saturation 0.75 mm
- 3:1 Safe work load: 333 lbs / 151 kg
- Minimum unstacking thickness: 0.75 in./19 mm
- Product type
Solenoid
- Type
MLAY1000
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3476882 Magswitch MLAY1000 Solenoid
Description

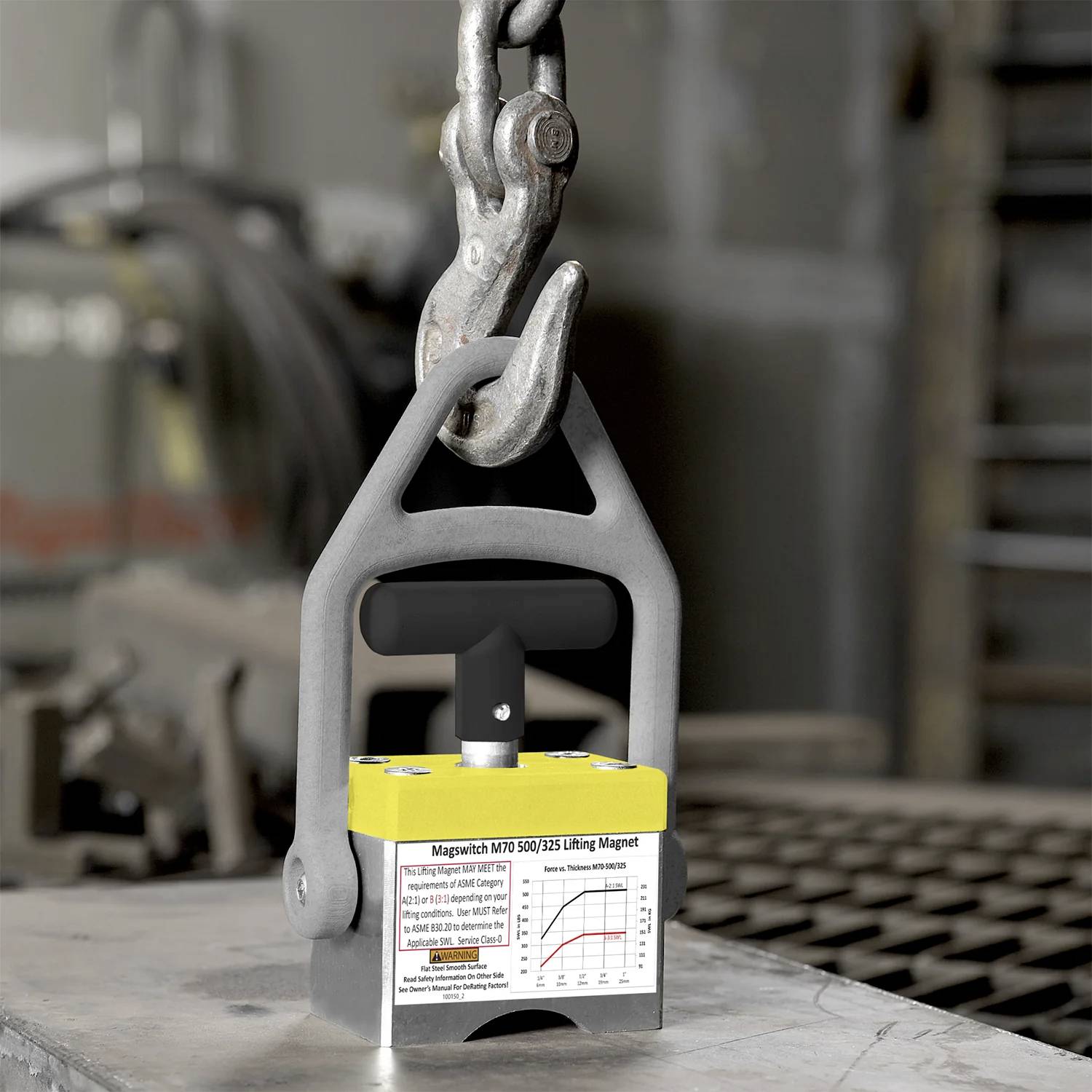

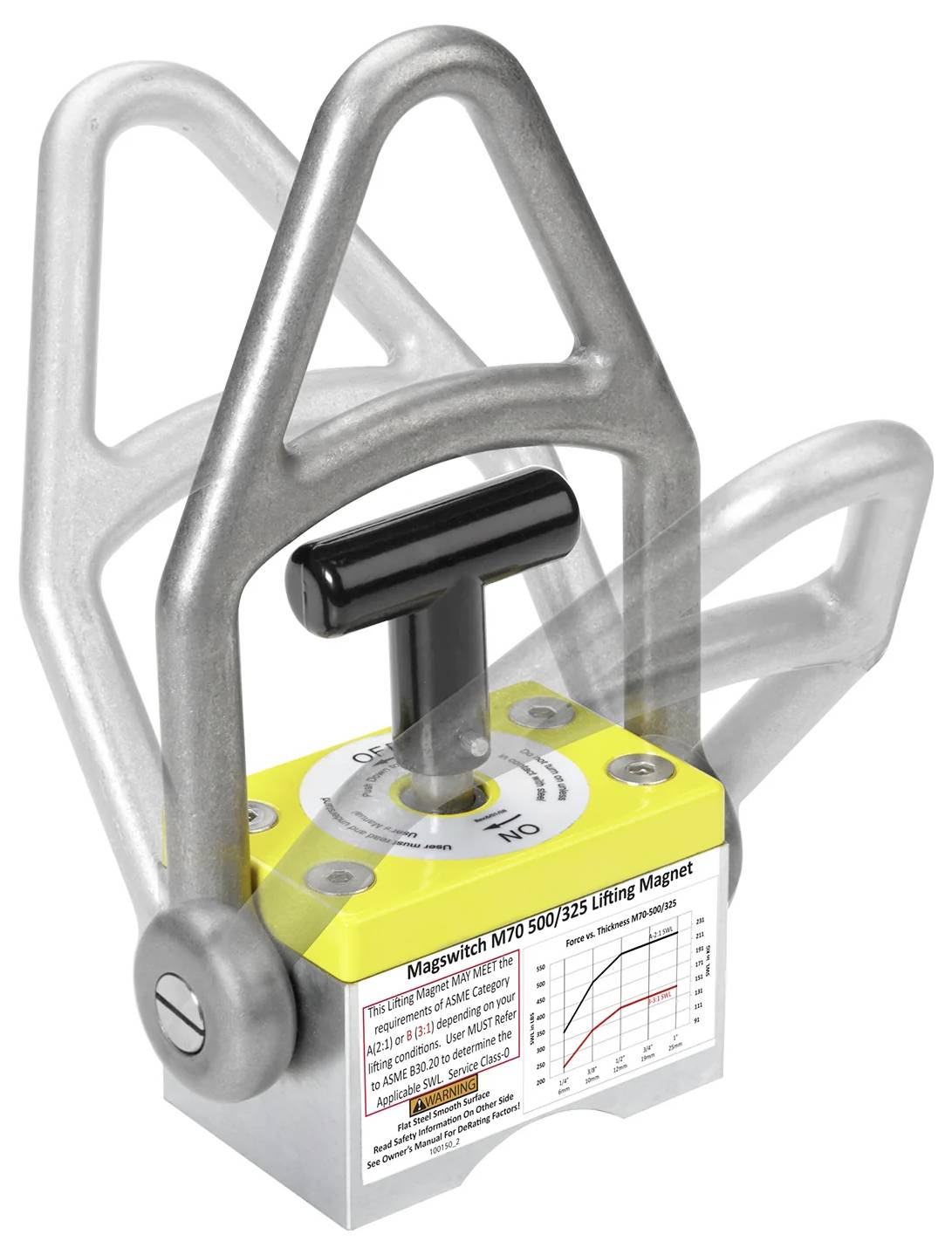

Our magnetic technology is designed for lifting heavy loads and is powerful without the need for a power source. Secure locking in the on and off position with a load capacity of 3:1 of 150 kg. The pivoting lifting hook provides stability when lifting from horizontal to vertical. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. Requires no power supply. The magnet remains clean. Holds flat and round steel surfaces. Safety latch handle. The fully pivoting hook allows for lifting from above or from the side. Strong grip on thin materials and uneven surfaces. SPECIFICATIONS Max. Breakaway force: 1000 lbs / 453.5 kg 3:1 Safe workload: 333 lbs / 151 kg 2:1 Shearing workload: 50 lbs / 22.6 kg Full Saturation thickness: 0.75 inches / 19 mm Minimum Unstacking thickness: 0.75 inches / 19 mm Net weight: 11.5 lbs / 5.2 kg Dimensions: 5.8 x 2.8 x 10 inches / 147.3 x 71.1 x 254 mm Magnetic pole base area: 108 mm x 72 mm.
