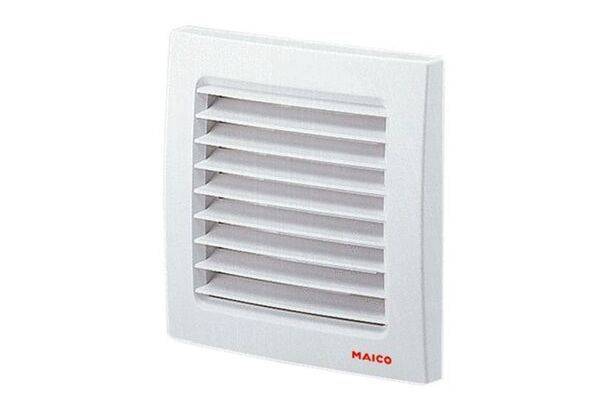

Maico Ventilatoren Maico Protective grid Multicolour

Outer grid for ventilation and exhaust. Outer wall connection when using the wall sleeve WH. With concealed screw holes. Sealing tape included in the delivery. Accessories: Fly screen FG can be used. SG 120: Air filter retrofittable SF 120.Item: SG 100, Air direction: Ventilation and ventilation, installation: Outside, installation location: Wall, type of installation: Surface mounting, material: Plastic, weather-, UV-resistant, color: traffic white, similar to RAL 9016, weight: 0.1 kg, Weight with packaging: 0.13 kg, suitable for nominal width: 100 mm, width: 150 mm, height: 150 mm, depth: 51.5 mm, width with packing: 151 mm, height with packing: 151 mm, depth with packing: 55 mm, ambient temperature: 60 °C, with wire mesh: no, with insect screen: no, with pressure flap, Sucking-in: no, with over-pressure flap, blowing-out: no, with counter-rotating flap valve: no, with same-rotating flap valve: no, with mounting frame: no, lockable: no, motor-controlled: no

This text is machine translated.
