Maico Ventilatoren Maico Window fitting set White

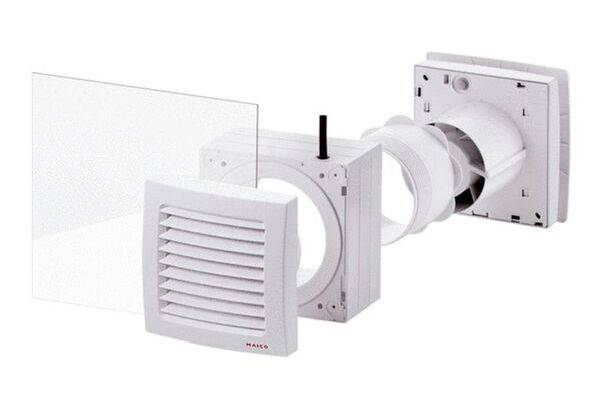

For installing ECA 100 iPro series small room fans in windows and thin walls. Colour traffic white similar to RAL 9016. Housing made of impact-resistant plastic Delivery: Outer flap AP or Outer grid SG, 3 x spacer frame, 2 x sealing rings, thread support, 3 x screws for ventilator mounting, strain relief clamp with 2 x screws, conductor point and mounting instructions. Mounting instructions: Easy mounting in the window opening through adapters and threaded sleeve that can be screwed into each other. Minimum disc thickness of 3 mm, disc distance of 75 mm. Glass section 115 to 120 mm. Not suitable for mounting in hinged double windows. Electrical connection: At the terminal strip in the housing of the ECA 100 iPro...Article: FE 100/1 SG, place of installation: Window / thin wall, mounting position: Horizontal, material: Plastic, impact resistant, color: Traffic white, Similar to RAL 9016, weight: 0.41 kg, weight with packaging: 0.49 kg, width: 150 mm, height: 150 mm, depth: 103 mm, width with packaging: 158 mm, height with packaging: 158 mm, depth with packaging: 123 mm

This text is machine translated.
