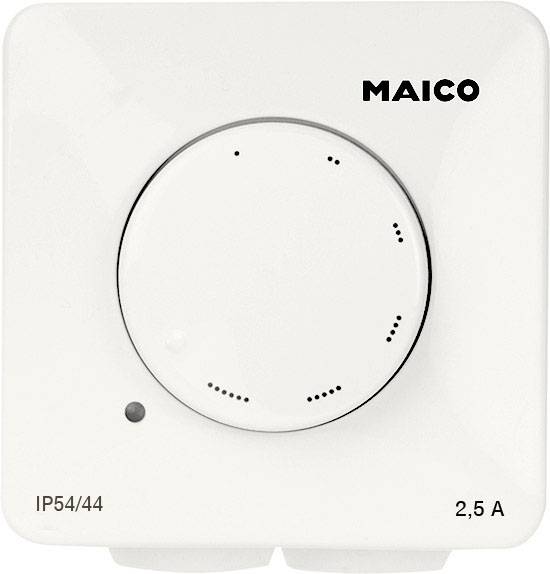

Maico Ventilatoren STX 2,5 AC speed controller 230 V

Speed controller for continuous control of fans. Minimum speed adjustable. Can be used for surface and flush mounting, exception: STX 4 only for surface mounting. Functional principle: Phase angle control. Recommended distance to radio and television: 3 m. Turn the control knob to turn the fans on to the maximum speed. Further turning reduces the speed. Splash-proof. Built-in temperature cut-off fuse. Orange LED power indicator. CE Label Including spare fuse. Additional switching contact (230 V), e.g. for controlling a flap. Due to the technology of the phase angle, a physically conditioned humming noise can occur in the lower speed range. Therefore, use 5-stage transformers TRE... for speed control in rooms with the requirement for low-noise fan operation. Can be mounted on walls, avoid on ceilings due to temperature development. STX 1.5, STX 2.5: Width x High x depth when used for surface mounting: 82 mm x 89 mm x 69 mm, width x High x depth when used for flush mounting: 50 mm x 50 mm x 33 mm, STX 4: Width x High x depth when used for surface mounting: 82 mm x 89 mm x 69 mm Item: STX 2.5, voltage type: Alternating current, rated voltage: 230 V, maximum load: 2.5 A, minimum load: 0.2 A, protection class: IP 44, installation type: Surface or flush-mounted, color: White?, common RAL 9010, weight: 0.16 kg, width: 82 mm, High: 89 mm, depth: 69 mm, packing unit: 1 piece
