MAKERFACTORY MF-6324810 Potentiometer 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

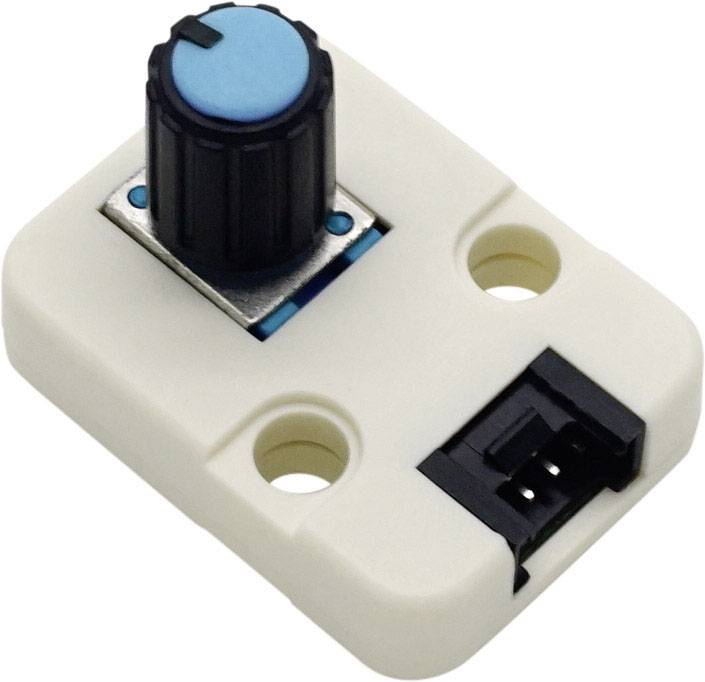

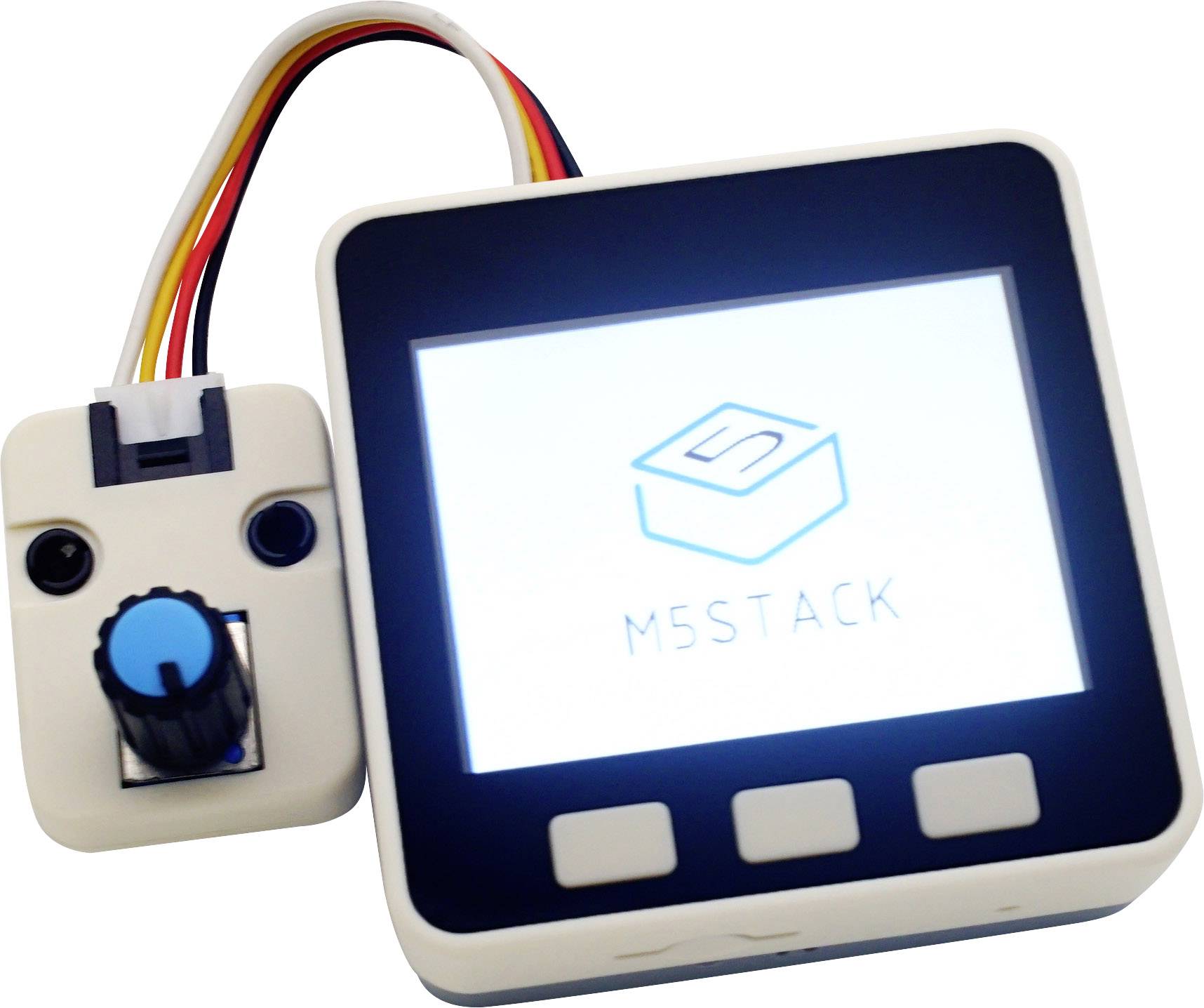

Maker FACTORY M5 Stack Potentiomenter
- Output voltage: 0 - 2500 mV
- Program Platform: Arduino, UIFlow (Ray), Python
- Two Lego-compatible holes
Technical specifications
- Unit ANGLE is a potentiometer sensor that can detect rotary angle
- Packaging type
Bulk
- Product type
Potentiometer
- Interfaces
Grove
- Suitable for
Arduino
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2108270 MAKERFACTORY MF-6324810 Potentiometer 1 pc(s)
Description
In this rotary switch unit is a 10 K potentiometer. This device can be used for the continuous control of signals such as volume, brightness or engine speed can be used.
A potentiometer is a manually adjustable, variable resistor with three connections. Two connections for the resistance element is connected to the third connection is equipped with an adjustable rotary switch. The position of the rotary switch determines the output voltage. The output voltage is of AD at the ESP 32 on Port B recorded and converted.
This text is machine translated.
A potentiometer is a manually adjustable, variable resistor with three connections. Two connections for the resistance element is connected to the third connection is equipped with an adjustable rotary switch. The position of the rotary switch determines the output voltage. The output voltage is of AD at the ESP 32 on Port B recorded and converted.
This text is machine translated.

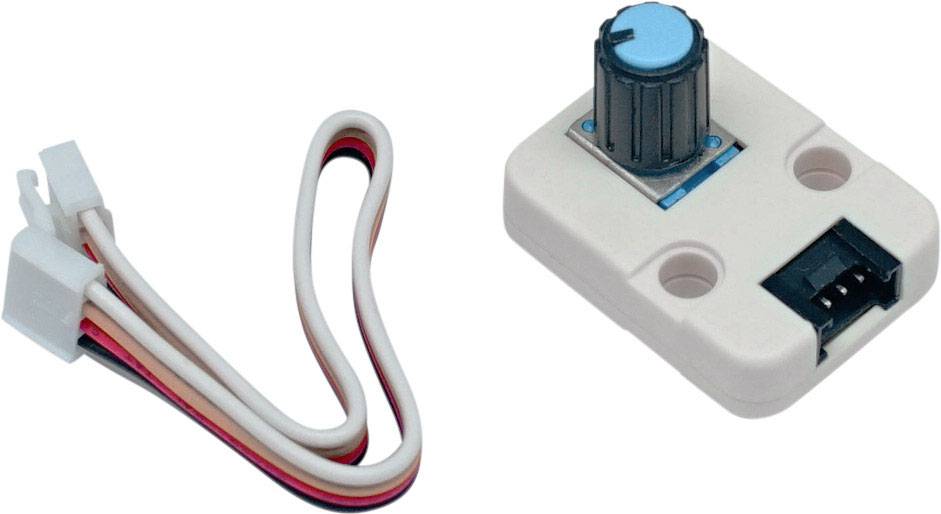

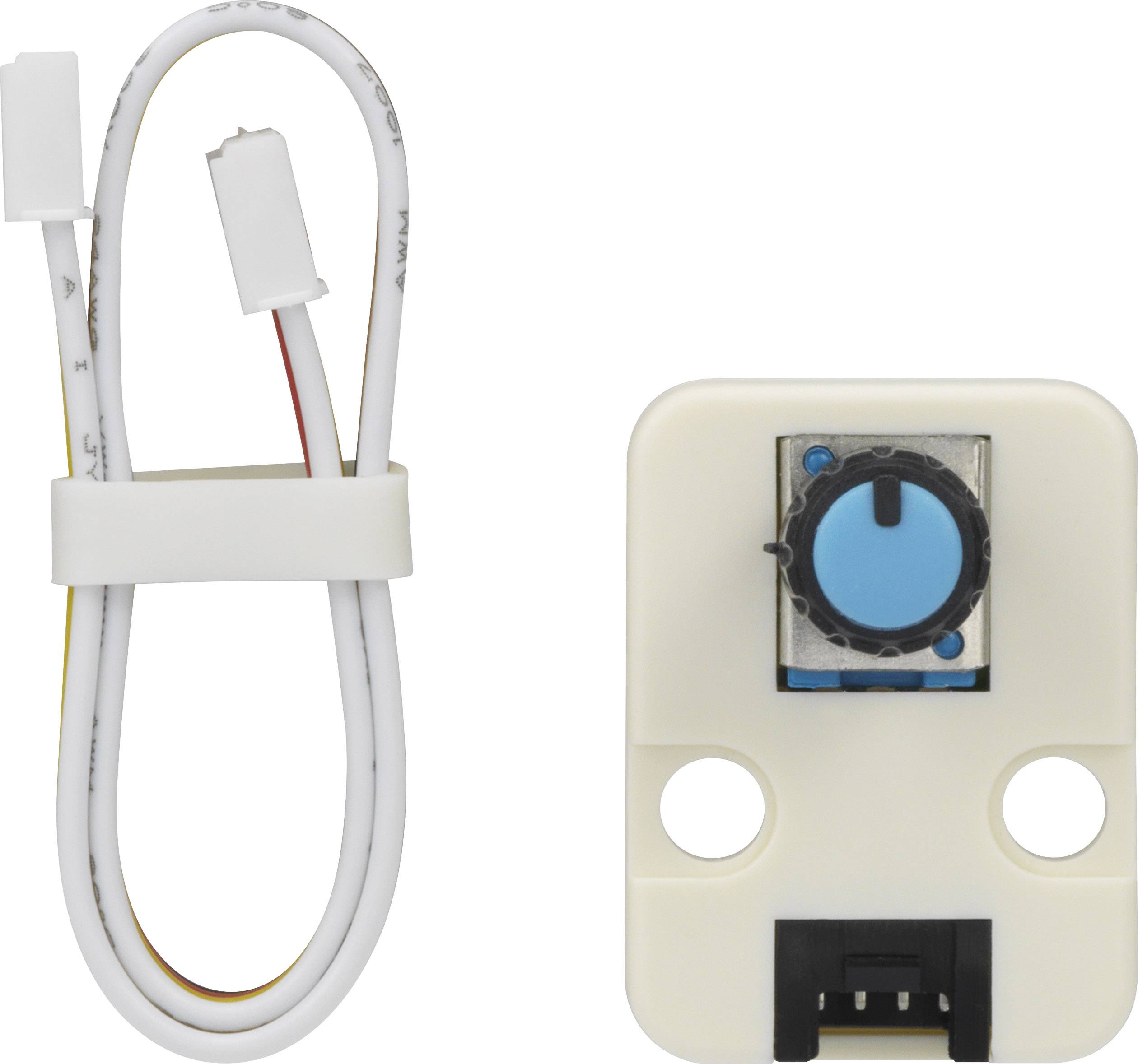

Scope of delivery
- Potentiometers
- Grove Cable
