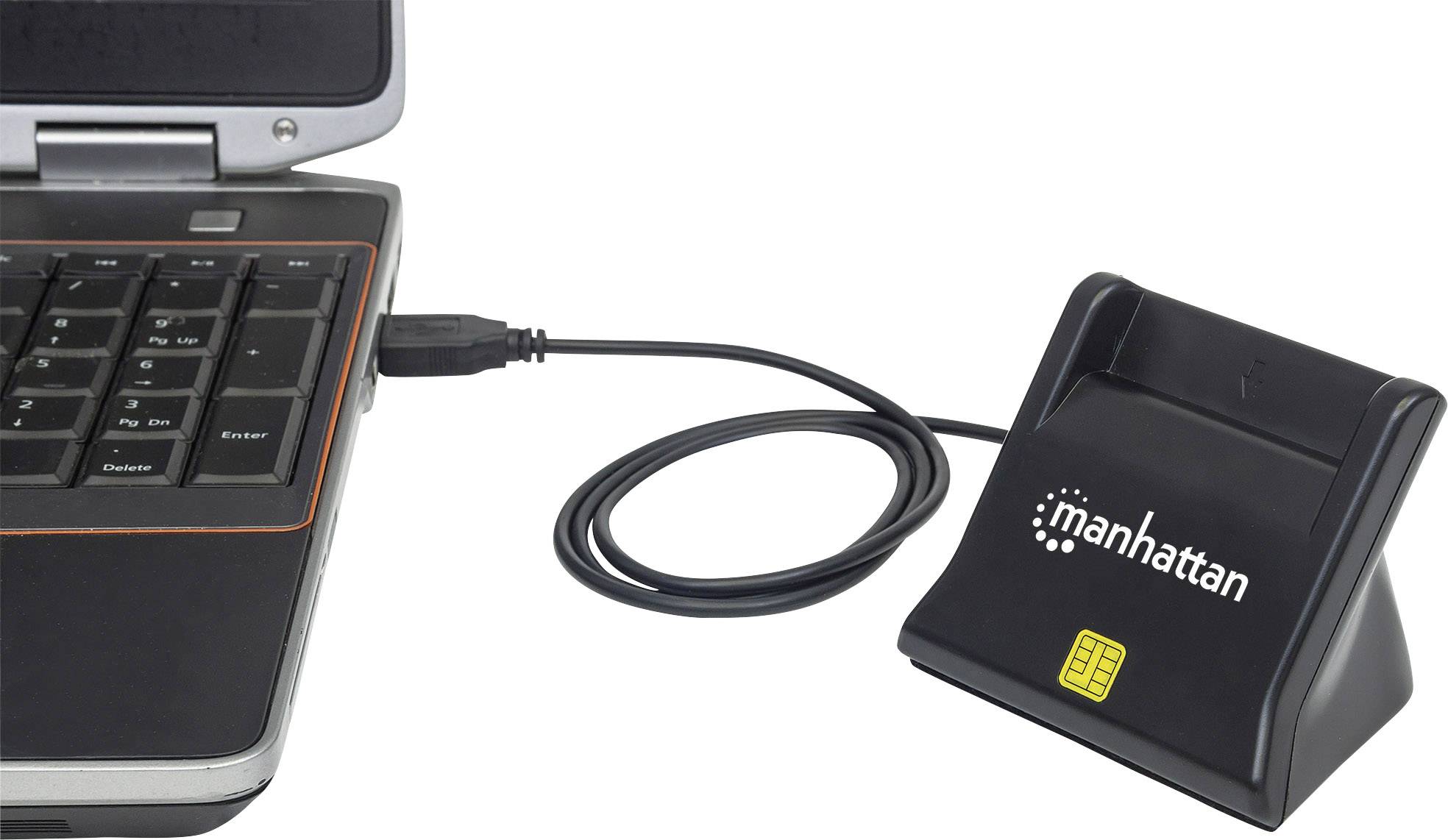

USB card reader from Manhattan connected to a laptop, ready for use.<br><br>Note: The translation is already in a natural British English form. There are no significant localisation changes needed in this technical context.

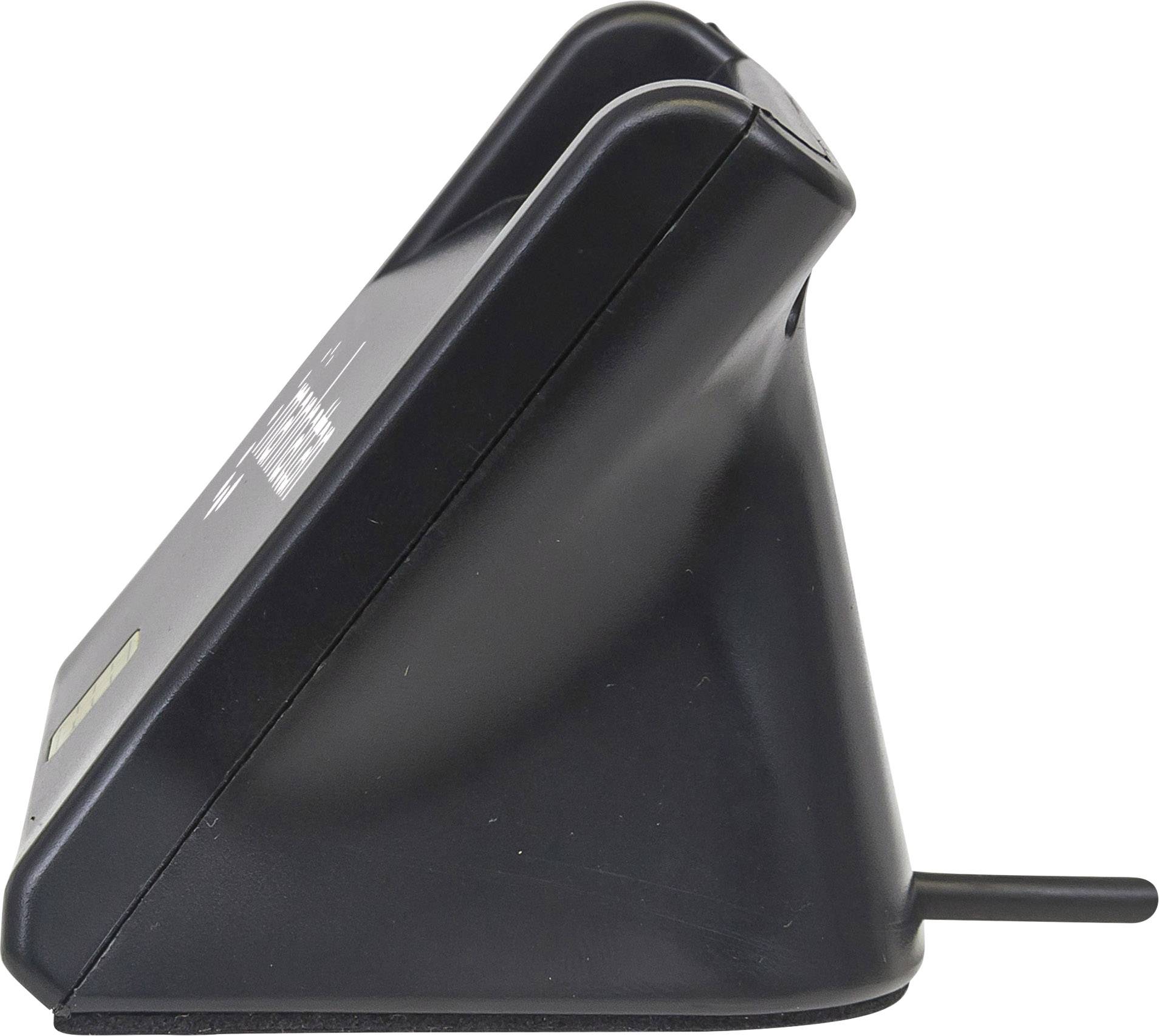

A black, angled device, presumably a charging stand with an antenna. Side view, no visible connections.

Black 'manhattan' card reader with chip symbol in the centre. Arrow at the top indicating the card insertion direction.

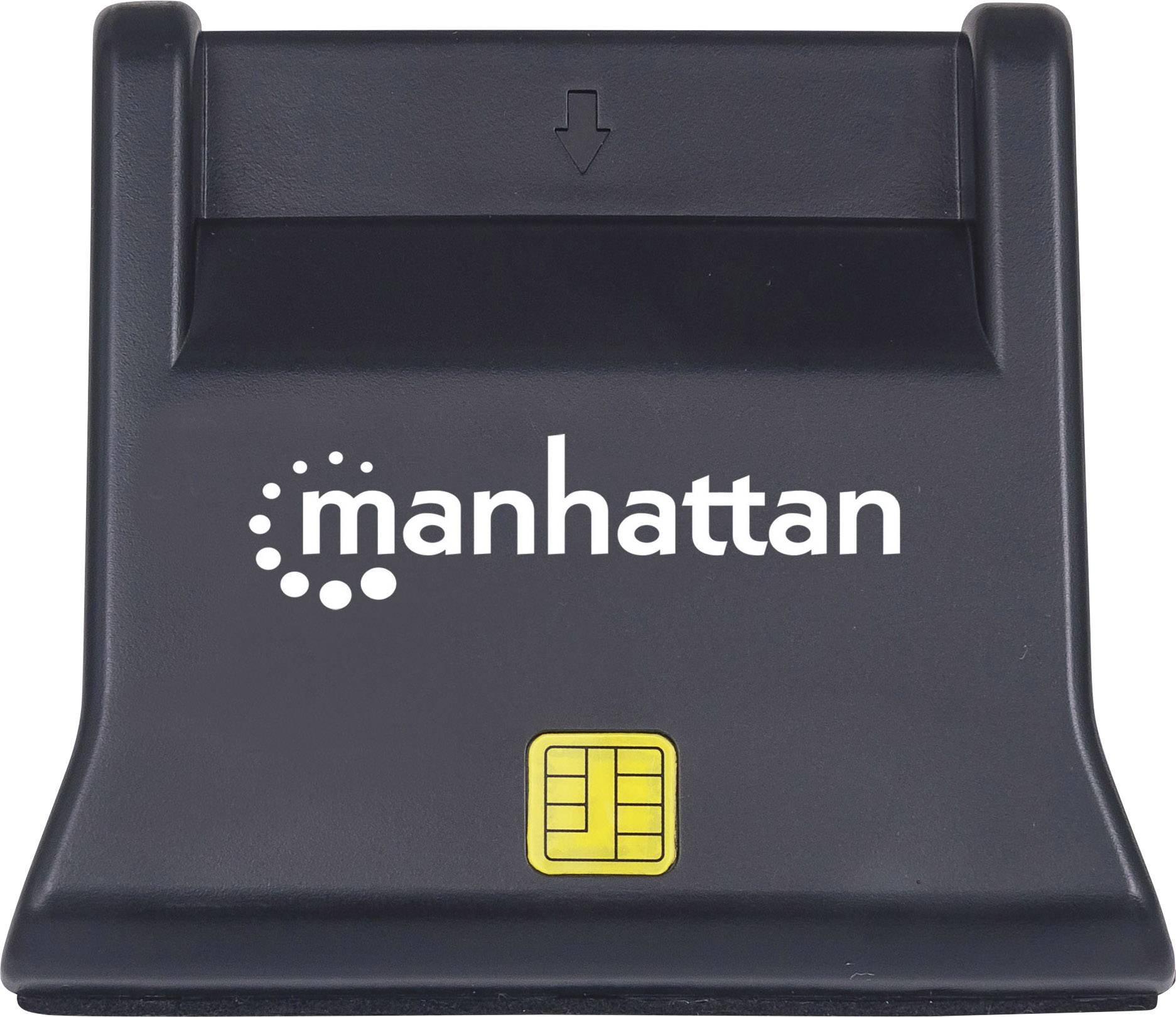

Black Manhattan chip card reader, with chip slot at the front.

Black wireless charger in side view, slightly tilted, with a small antenna on the right.

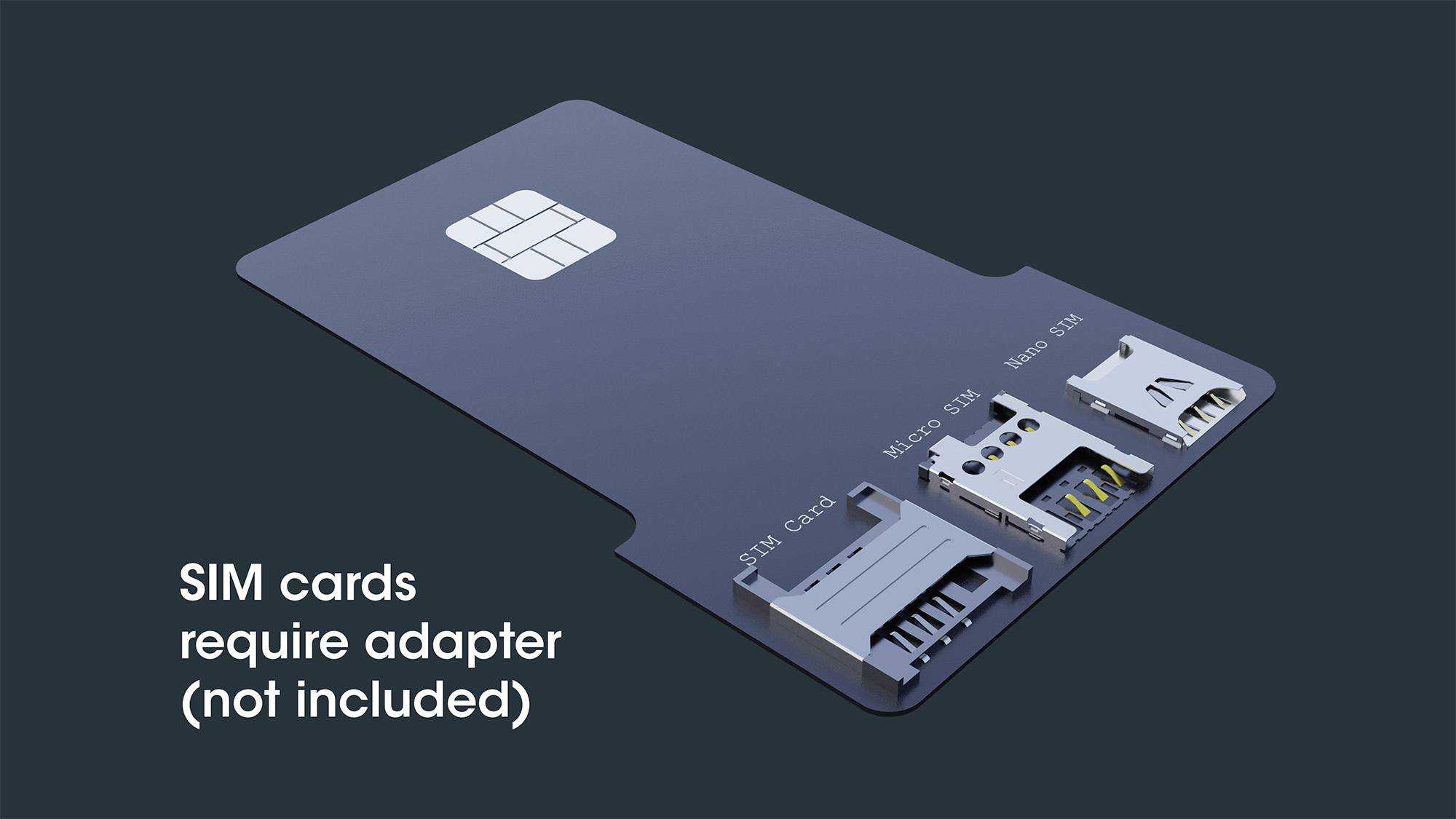

SIM Card Adapter Demonstrated; Supports Mini, Micro and Nano SIMs. Text: 'SIM cards require adapter (not included)'.

1/9

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

155 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

14-day return policy included

Report legal concerns

Manhattan USB Smart Card/SIM card reader with stand USB 2.0 type A Contact Reader Desktop external black

Highlights & Details

Compatible with smart cards/SIM cards with contact chip
Ideal for applications with safety-related transactions and transfers
For numerous application areas such as healthcare, online banking, entertainment and much more
Supports transfer rates in host communication with 480 Mbit/s
The robust design and the pedestal makes this device ideal for the desktop

Technical specifications

Product type: Chip card reader

Range of uses: Chip card reader
SIM card reader

Interfaces: USB A (USB 2.0)

Weight: 60 g

Cable length: 0.90 m

Software included: Yes

Length: 63 mm

Height: 63 mm

Width: 81 mm

Factory colour: Multicolour

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1888268 Manhattan 102025 USB-Smartcard/SIM Chip card reader

User & Safety Instructions

User & Safety Instructions 1888268 Manhattan 102025 USB-Smartcard/SIM Chip card reader

Description

Secure data transfer and access controlSmart card technology can be found in numerous applications today: In the security sector, in financial transactions, in medicine, in loyalty programs in the trade, at toll stations, in time recording and much more. Contact-bound chip cards can be simply inserted in the Manhattan smart card reader and the stored data can thus be reliably exchanged between the card and the host PC. This offers much more security and protection than cards with magnetic strips.Rapid and simple installationThe Manhattan smart card reader is easily installed via the USB port. All common operating systems from Windows to iOS up to Linux are supported. No additional cables or an external power supply are required.

This text is machine translated.

Features

Supported Cards: Smart card/SIM (with SIM-Clip)
Transfer rates up to 480 MBit/s Memory Cards:
CPU Card: conforms to ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC Version 1.0 /2.0 standard and EMC 4.0
Memory Card: Synchronous 2-line, 3-line, 4432, 4442, 4418, 4428, SLE AT88SC1608, 45 D041 and I2C interface
PC/SC compliant 1.0 /.0, CT-API Software Library (SDK)
LED: current display, activity display
Current: USB 5V + 5%; consumption, 60 mA max.
Contact Smart/SIM card slot.
Integrated USB type A cable: 0.9 m
Operating temperature: 0 - 40°C
Storage temperature: -20 to 60 °C
Air humidity (non-condensing) 0 - 96%
