Manhattan 153713 DisplayPort Adapter [1x HDMI socket - 1x DisplayPort plug] Black 15 cm
EAN:
Part number:
Item no:
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.

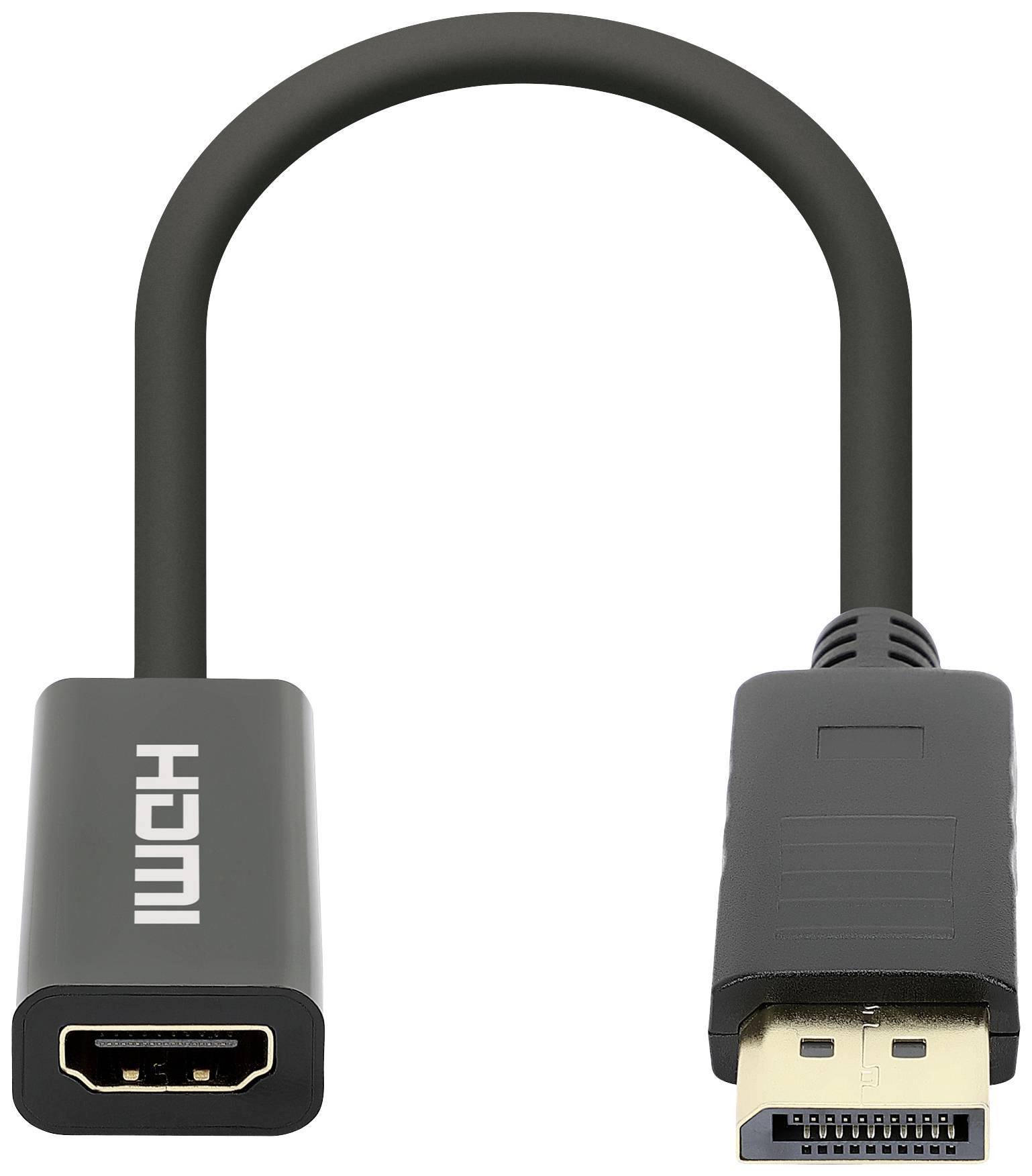

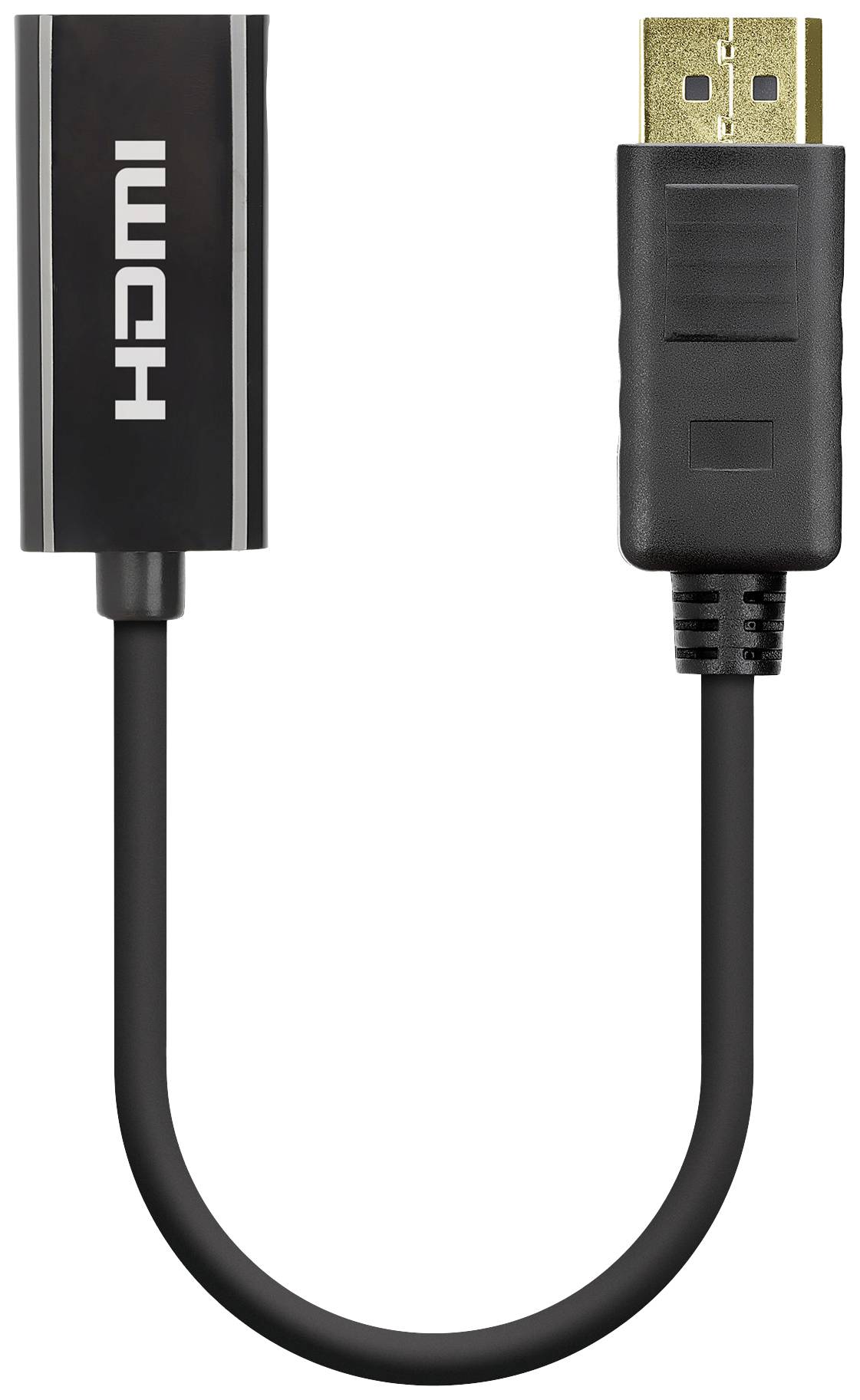

Manhattan 153713 DisplayPort Adapter [1x HDMI socket - 1x DisplayPort plug] Black 15 cm
Highlights & Details
- Converts a DisplayPort signal to an HDMI signalResolutions up to ultra high definition (UHD) 4K@60Hz (3840×2160)Active converter; supports graphics cards with DP and DP++ outputIdeal for connecting an HDMI display or projector to a DP player such as PC, laptop or docking stationAllows you to connect a second HDMI screen via an available DP port
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
HDMI socket
- No. of B connections
1 x
- Type B
DisplayPort plug
- Cable length
15 cm
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
28
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.2
- HDMI version
HDMI 1.4a
- Cable design
Round
- Signal flow direction
Bidirectional (bi)
- Cable specs
DisplayPort 1.2
HDMI 1.4a
Cable
- UKCA
not relevant
Description

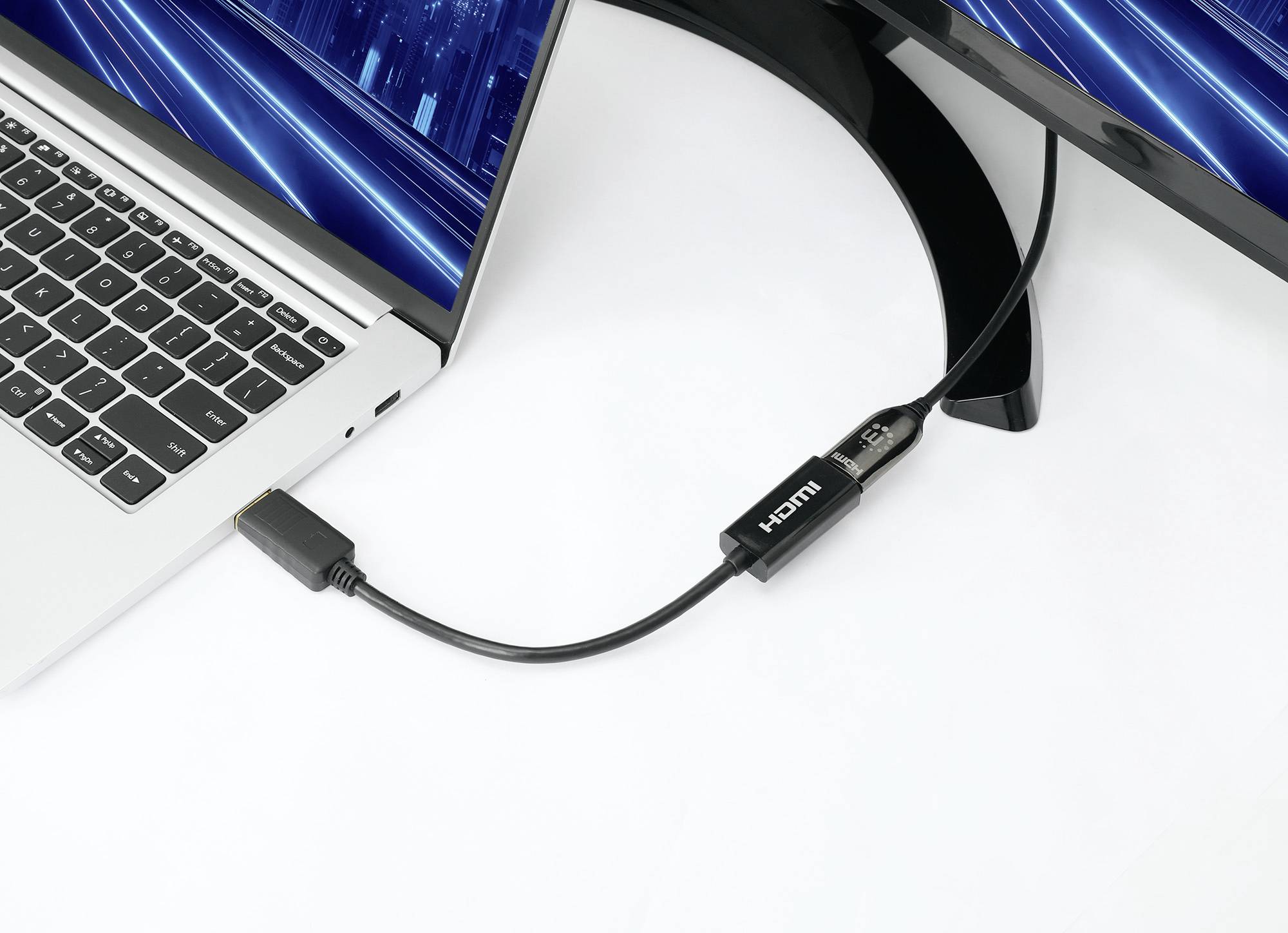

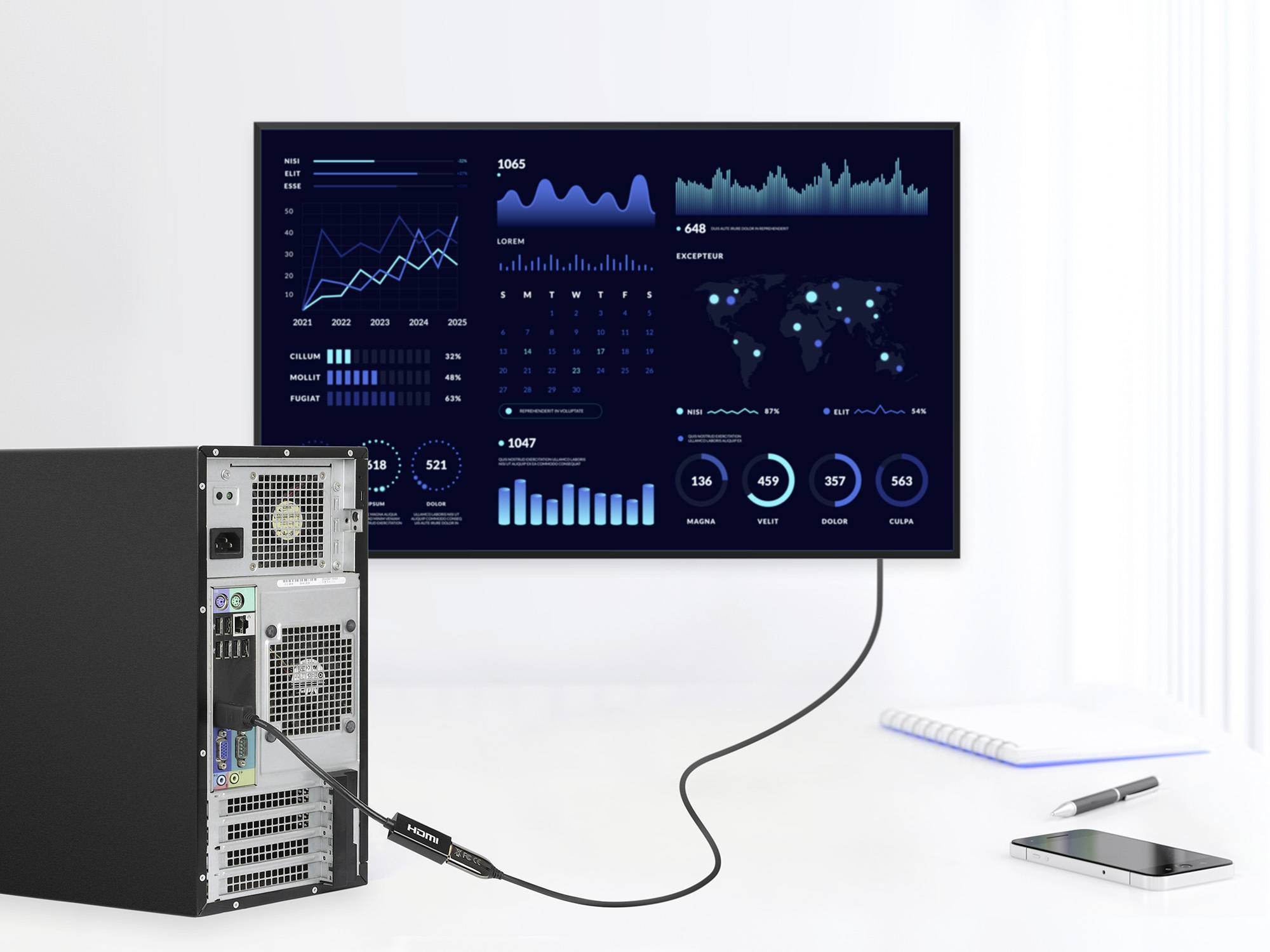

4K DisplayPort to HDMI adapter – easy to connect a DisplayPort PC to an HDMI monitorThe active Manhattan 4K@60Hz DisplayPort on HDMI adapter connects a desktop PC or laptop with DisplayPort interface to a screen with HDMI port. It supports DisplayPort 1.2 and HDMI 4K@60Hz for resolutions up to Ultra HD (4K) as well as digital audio up to 7.1 Surround Sound. In addition, it is downward compatible to DisplayPort 1.0/1.1 with supported resolutions up to 1080p. If you already use the HDMI port of your computer, you can connect a second monitor with this converter. This enables multi-tasking and more productivity.Active Adapter vs. Passive Adapter - these are the differences and benefitsTo guarantee compatibility with any DisplayPort player, this DP adapter uses an active signal conversion. This is necessary when converting DisplayPort to HDMI to get 4K resolutions. With the 1080p video output, graphics cards are also supported that do not control the output of multi-mode DP++ signals (e. B. AMD Eyefinity)Plug & PlayThe Plug & Play installation does not require any additional software or drivers. Through the compact format and low weight this converter can be stowed away easily.
This text is machine translated.
This text is machine translated.
Features
- Standards and certificatesDisplay port 1.2HDCP 2.3CEFCCRoHSREACHUKCAConnectivity1 x 20-pin DisplayPort-plug with latch1 x 19-pin HDMI socketPhysical detailsDimensions (L x W x H) 238 x 45 x 11 mmNet weight: 30 gGross weight 35 gCable length: 15 cmCable diameter AWG 28Plastic housingAmbient conditionsOperating ambient temperature 0 - 40°C.Ambient temperature during storage -10 - 85°C.Humidity (non-condensing): 10 - 90% RH
System requirements
- Windows 7/8.1/10/11Linux
