Manhattan 180962 Laptop PSU 65 W 15 V, 18.5 V, 19 V, 19.5 V, 20 V 4 A
EAN:
Part number:
Item no:

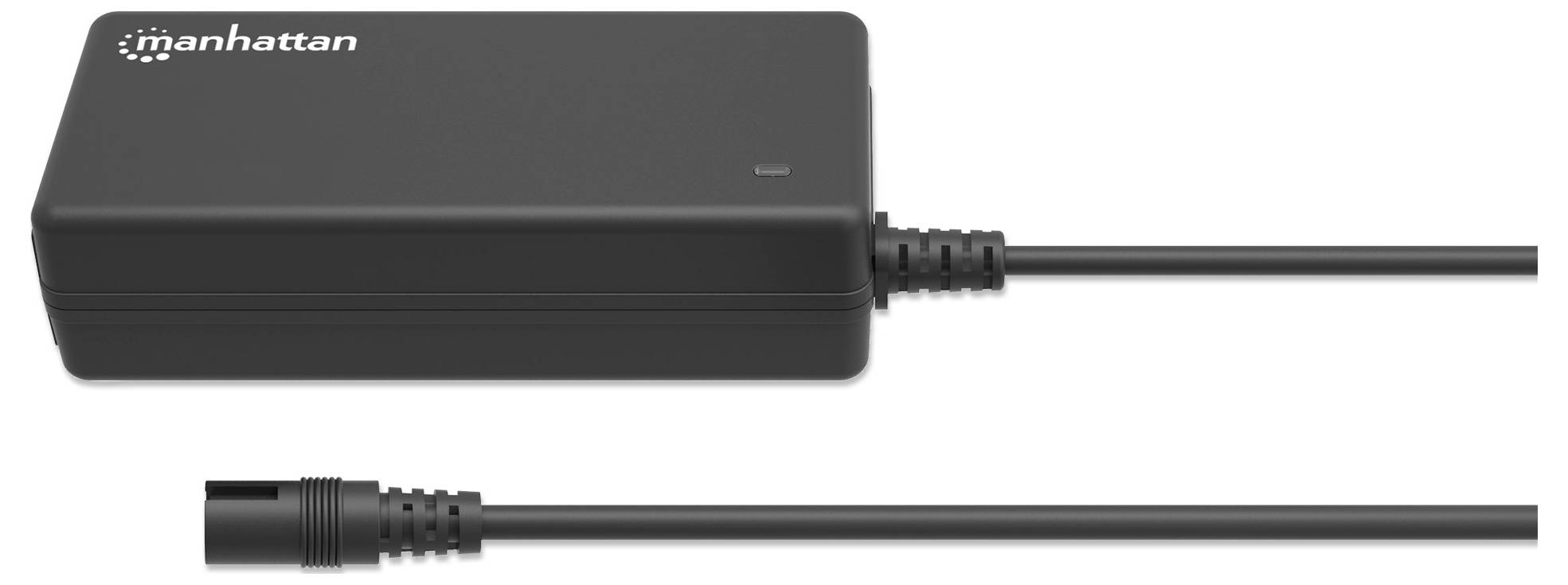

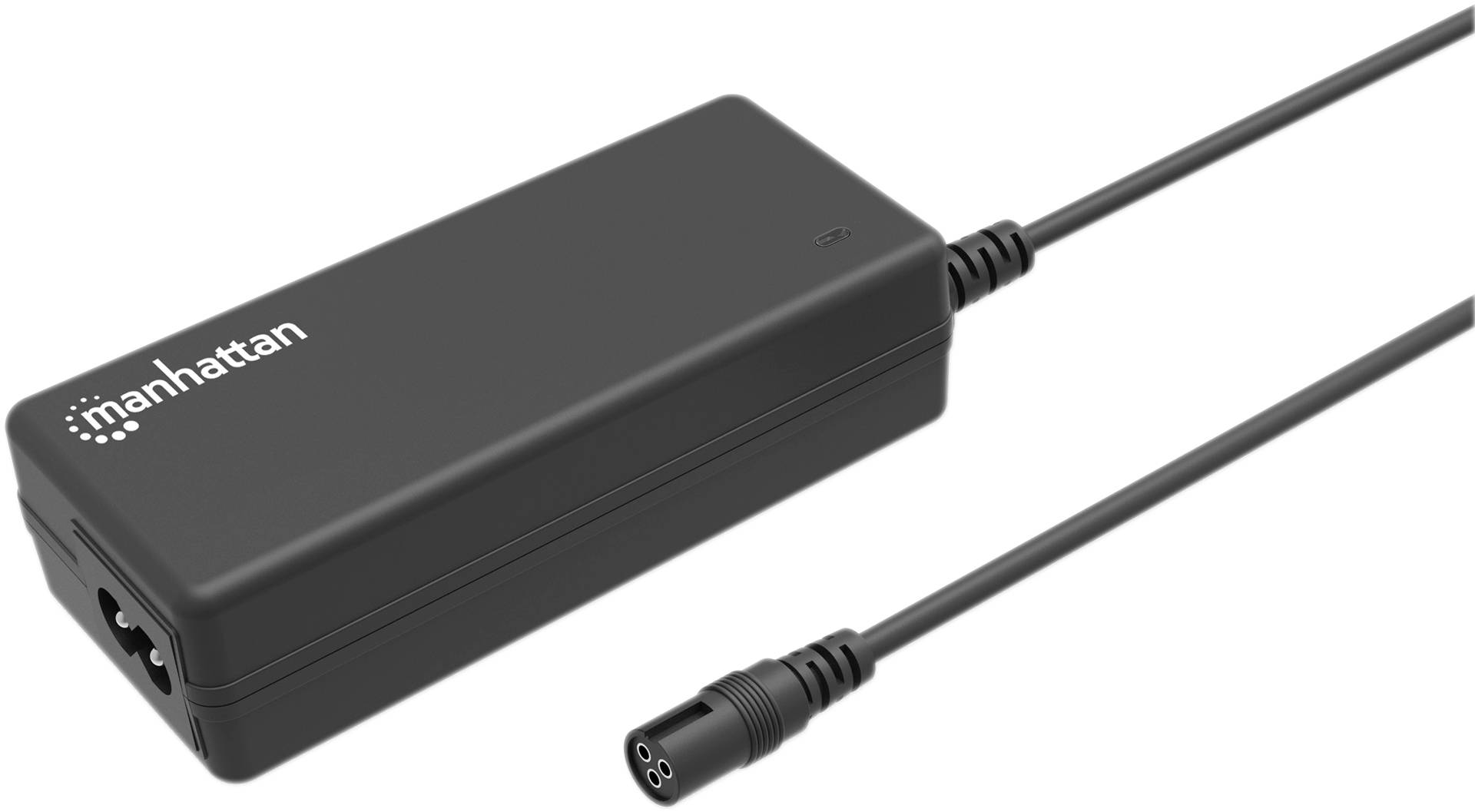

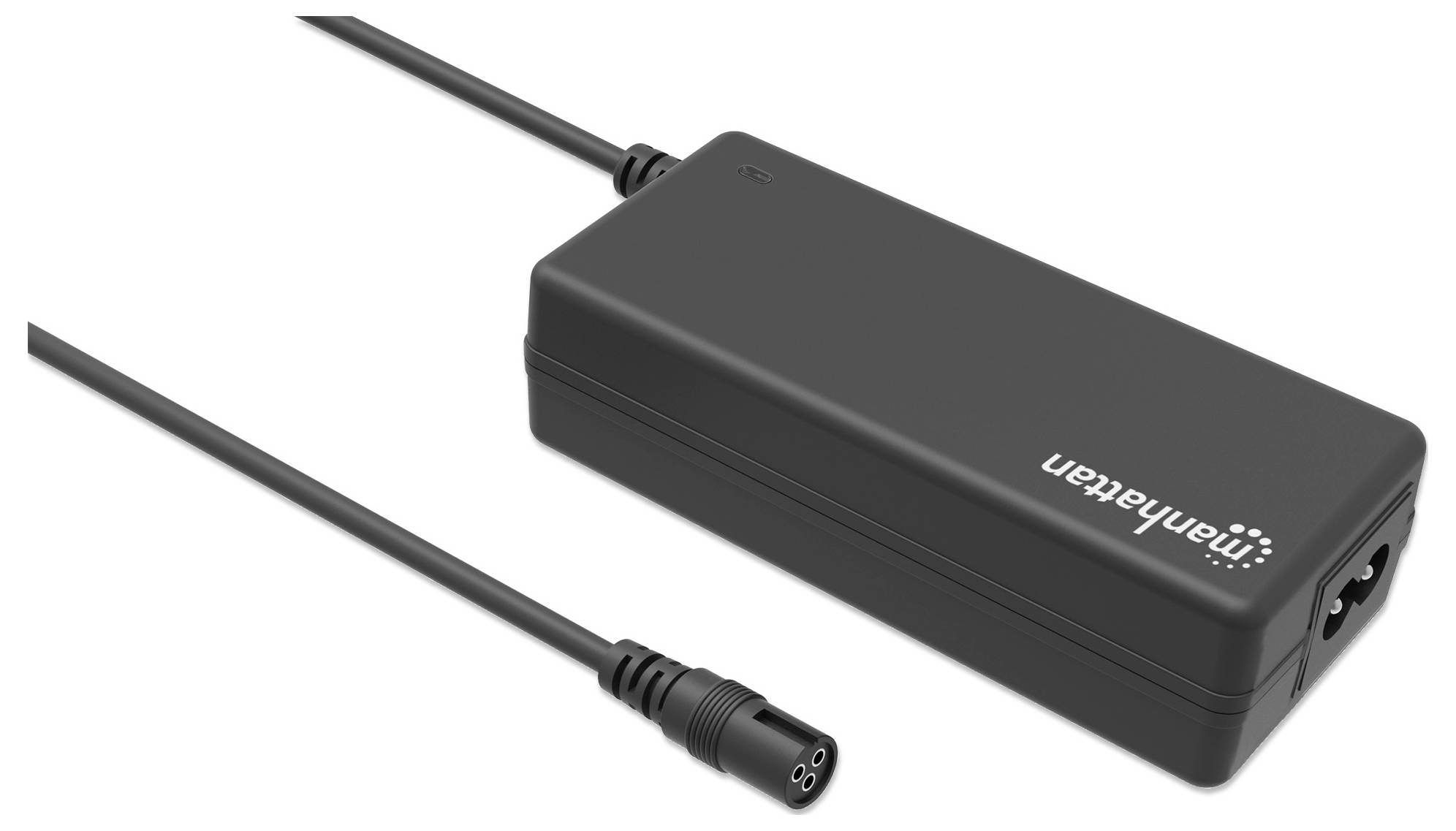

Manhattan universal laptop power supply 65 W charger with nine adapter plugs and universal voltage
Highlights & Details
- / 4 A
- 65 W Power
- Used at: Indoors, Fixed, Mains socket
- Input voltage range V/50 Hz
- Suited for notebooks from Acer, Asus, Compaq, Dell, Fujitsu, HP, Lenovo, Medion, Samsung, Sony, Toshiba
Technical specifications
- Product type
Laptop PSU
- Type
180962
- for brands
Acer
Asus
Compaq
Dell
Fujitsu
HP
Lenovo
Medion
Samsung
Sony
Show more
65 W
- Inputs
1.5 A
- Input voltage
230 V AC
- Input voltage
V/50 Hz
- No. of outputs
1 x
- Output voltage
15 V
18.5 V
19 V
19.5 V
20 V
- Output current (max.) - rounded
4 A
- Max. output current
4 A
- Output current (low)
3,25 A
- Dim
(L x W x H) 100 x 48 x 30 mm
- Length
100 mm
- Width
48 mm
- Height
30 mm
- Weight
340 g
- Factory colour
Black
- Used at
Indoors
Fixed
Mains socket
- Cable length
1.5 m
1.2 m
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338813 Manhattan 180962 Laptop PSU 65 W 15 V, 18.5 V, 19 V, 19.5 V, 20 V 4 A
Description
Notebook power supply as your reliable replacement for on the go, at home and in the office
Now you no longer need to carry the original power supply of your laptop from the office to the home-office and back. This Manhattan laptop charger is the ideal second power supply, which you can use on the spot, but can also carry conveniently in your travel/commuting bag when needed. It is also suitable as economical replacement for lost or defective power supplies. With a reliable performance of up to 65 W, your notebook is always charged and ready to use.
Maximum compatibility
Thanks to its intelligent technology this power supply is automatically adjusted to five different voltage levels (15, 18.5, 19, 19.5 and 20 V). It offers a comprehensive mobile power solution for laptops, Chromebooks™ and Ultrabooks™ from leading manufacturers such as Acer®, Asus®, Dell®, HP®, Lenovo®, Sony® and many more.
Maximum flexibility

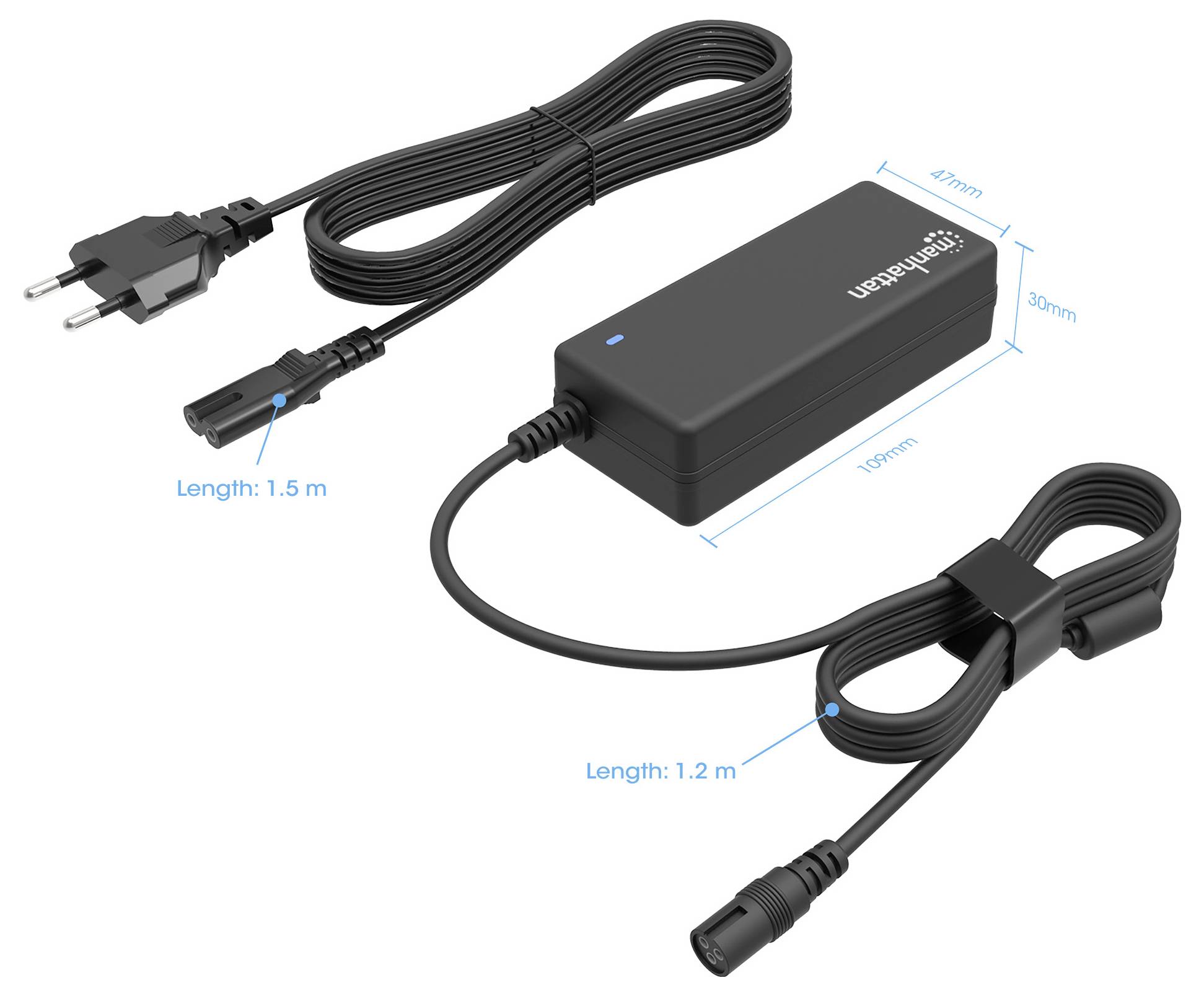

The charger has a detachable, 1.5 m long power cable with a C7 power plug and an integrated 1.2 m long power cable with nine adapter plugs, which guarantee the correct orientation and fit. It is also suitable as a travel adapter due to the removable power cable. For this purpose, simply replace the supplied C7-to-EU cable (C7, is also known as a Euro plug for shavers, etc.) for a suitable cable with US or UK plug.
Uncompromising security
Over-charging, over-voltage and over-heating protection guarantees maximum safety for your expensive equipment.
This text is machine translated.
Now you no longer need to carry the original power supply of your laptop from the office to the home-office and back. This Manhattan laptop charger is the ideal second power supply, which you can use on the spot, but can also carry conveniently in your travel/commuting bag when needed. It is also suitable as economical replacement for lost or defective power supplies. With a reliable performance of up to 65 W, your notebook is always charged and ready to use.
Maximum compatibility
Thanks to its intelligent technology this power supply is automatically adjusted to five different voltage levels (15, 18.5, 19, 19.5 and 20 V). It offers a comprehensive mobile power solution for laptops, Chromebooks™ and Ultrabooks™ from leading manufacturers such as Acer®, Asus®, Dell®, HP®, Lenovo®, Sony® and many more.
Maximum flexibility
The charger has a detachable, 1.5 m long power cable with a C7 power plug and an integrated 1.2 m long power cable with nine adapter plugs, which guarantee the correct orientation and fit. It is also suitable as a travel adapter due to the removable power cable. For this purpose, simply replace the supplied C7-to-EU cable (C7, is also known as a Euro plug for shavers, etc.) for a suitable cable with US or UK plug.
Uncompromising security
Over-charging, over-voltage and over-heating protection guarantees maximum safety for your expensive equipment.
This text is machine translated.
Features
- Electrical details
- AC input 110.0 - 240.0 V, 50 - 60 Hz, 1.5 A (max.)
- Voltage/amperage settings (max.):
- - 65.0 W Output:
- - 15.0 V/4.0 A
- - 18.5 V/3.51 A
- - 19.0 V/3.42 A
- - 19.5 V/3.33 A
- - 20.0 V/3.25 A
- Overshooting: ≤5%
- Ripple and noise: ≤200.0 mV

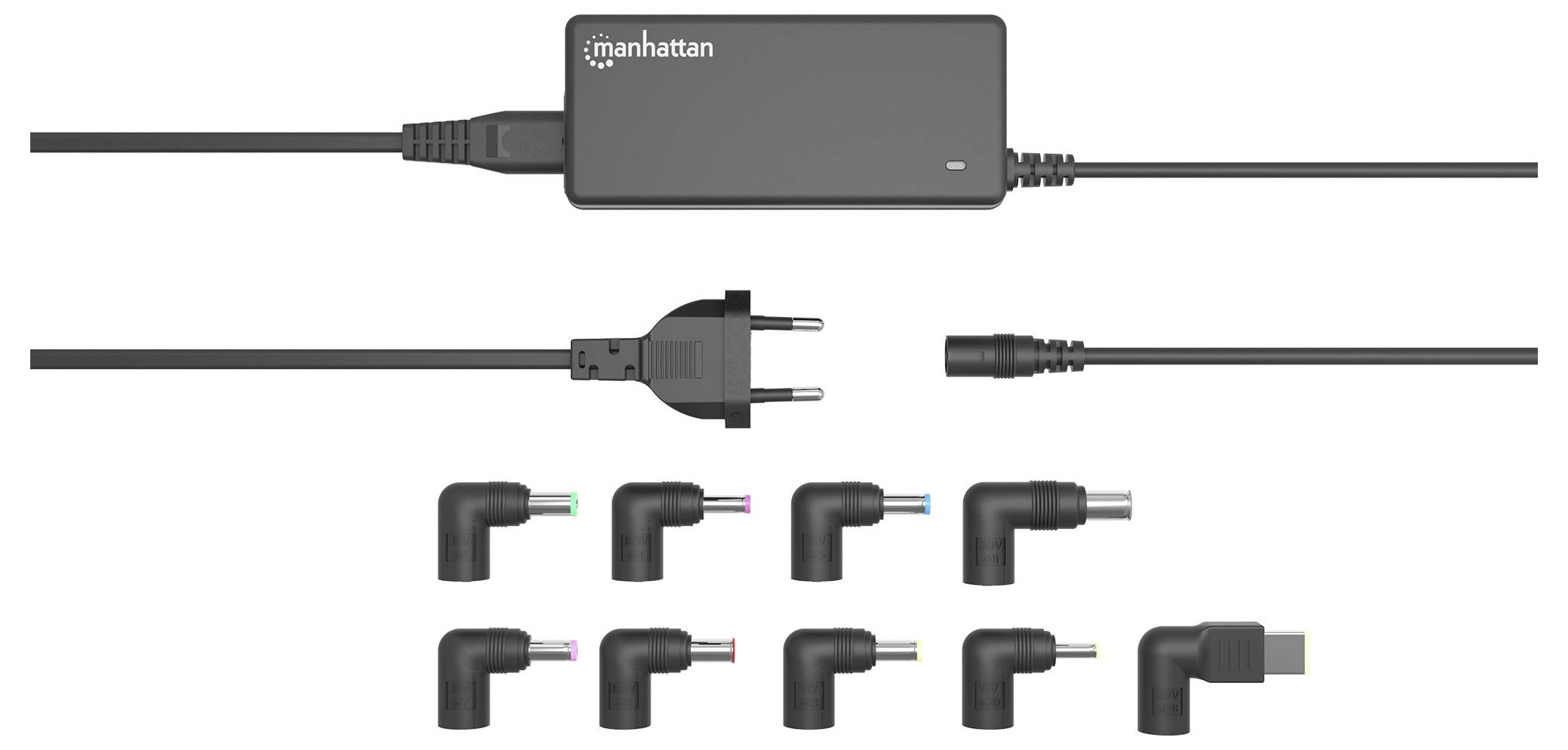

- Adapter plug included in delivery - formats
- M1: Ø 6.0 x 3.0 x 10.7 mm (15.0 V)
- M4: Ø 4.8 x 1.7 x 10.7 mm (18.5 V)
- M5: Ø 5.5 x 2.5 x 10.7 mm (19.0 V)
- M7: Ø 5.5 x 2.1 x 10.7 mm (19.0 V)
- M8: Ø 6.0 x 4.5 x 10.7 mm (19.5 V)
- M11: Ø 7.9 x 5.5 x 12.5 mm (20 V)
- M13: Ø 5.5 x 1.7 x 10.7 mm (19.0 V)
- M20: Ø 4.0 x 1.7 x 10.7 mm (19.0 V)
- M28: 11.0 x 4.6 x 12.0 mm (20.0 V)
- Protective measures
- Short Circuit Protection (SCP) with Auto Recovery Mode
- Overvoltage protection (OVP) with auto recovery mode
- Over current Protection (OCP) — Voltage limit: 150% (max)
- Over-temperature protection (OTP)
- Physical details
- Dimensions (L x W x H) 110 x 48 x 30 mm
- Net weight: 340 g
- Gross weight 400 g
- Housing: Plastic
- Ambient conditions
- Ambient temperature during operation: 0 - 30ºC
- Ambient temperature during storage -20 - 65°C.
- Operating humidity (non-condensing): 20 - 80%
- Storage humidity (non-condensing): 10 - 90%
Scope of delivery
- Universal laptop power supply 65 W - EU
- Detachable power cable with C7 on mains plug, 1.5 m
- Integrated power cable, 1.2 m, for adapter plugs
- 9 changeable adapter plugs
- User manual.
