Manhattan 207652 2 ports HDMI splitter 1920 x 1080 p Black
EAN:
Part number:
Item no:
Datasheet (PDF)

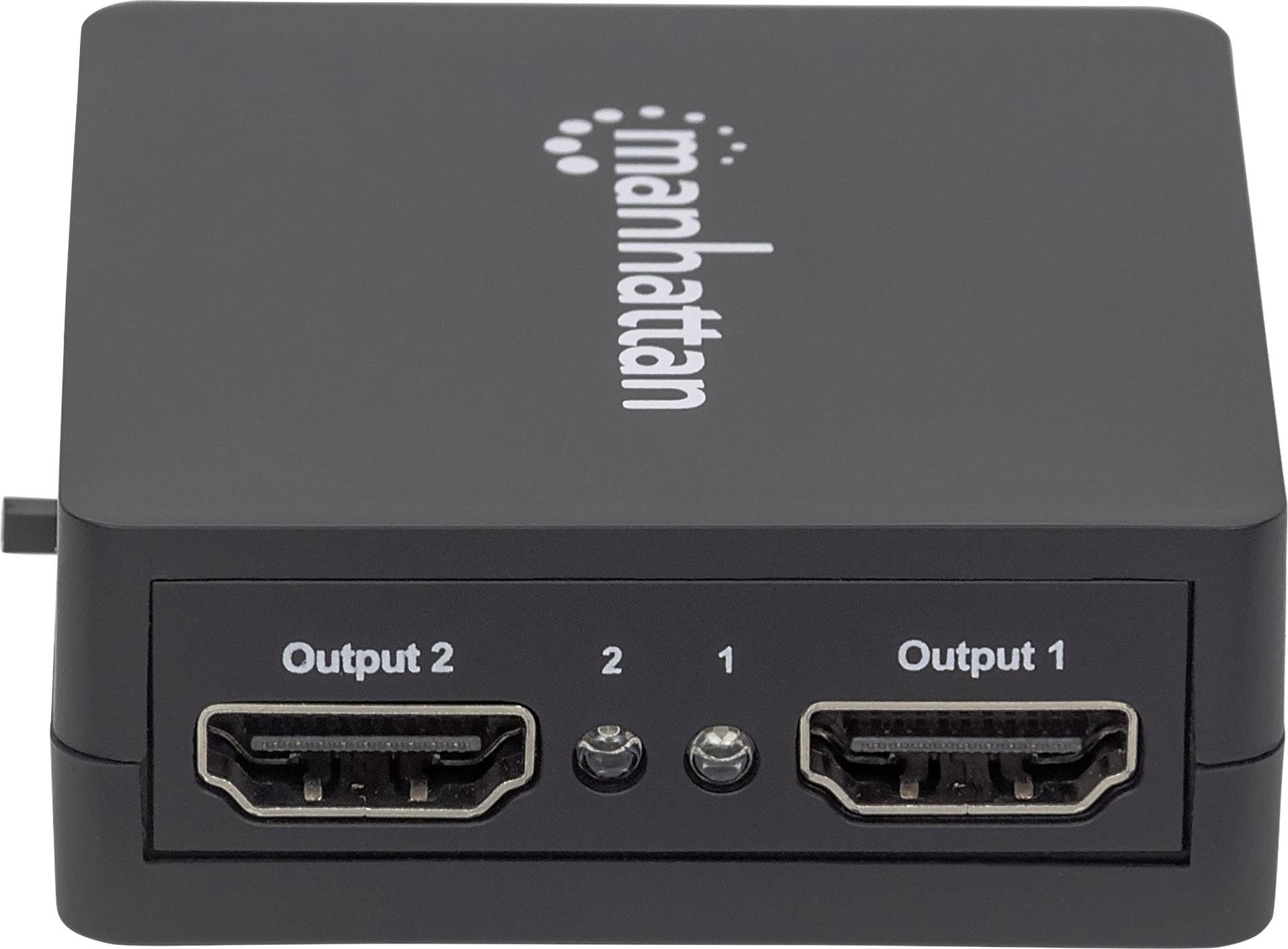

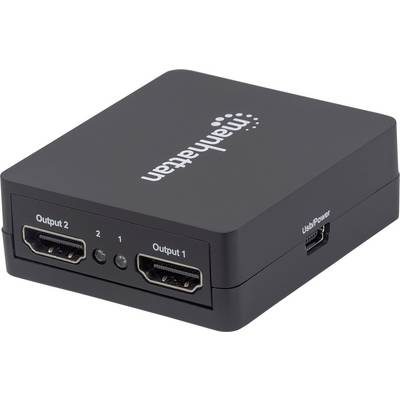

Manhattan 1080p 2-Port HDMI Splitter Power supply via USB black
Highlights & Details
- Distributes the image from one HDMI-source to two HD displays
- Provides a sharp and clear signal from games consoles such as playstation and Xbox as well as Blu-ray players, satellite receivers or other sources
- Can be cascaded up to three times for the connection of other displays
- HDCP-compliant
- Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD au
Technical specifications
- Dolby TrueHD
- Product type
HDMI splitter
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
2 x
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Power supply (LOV)
via USB
- Factory colour
Black
- Weight
40 g
- Width
54 mm
- Height
20 mm
- Depth
60 mm
- Dim
(W x H x D) 54 x 20 x 60 mm
- Port
2 ports
- Supported audio file formats
DTS
LPCM 7.1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1888294 Manhattan 207652 2 ports HDMI splitter 1920 x 1080 p Black
User & Safety Instructions
User & Safety Instructions 1888294 Manhattan 207652 2 ports HDMI splitter 1920 x 1080 p Black
Description

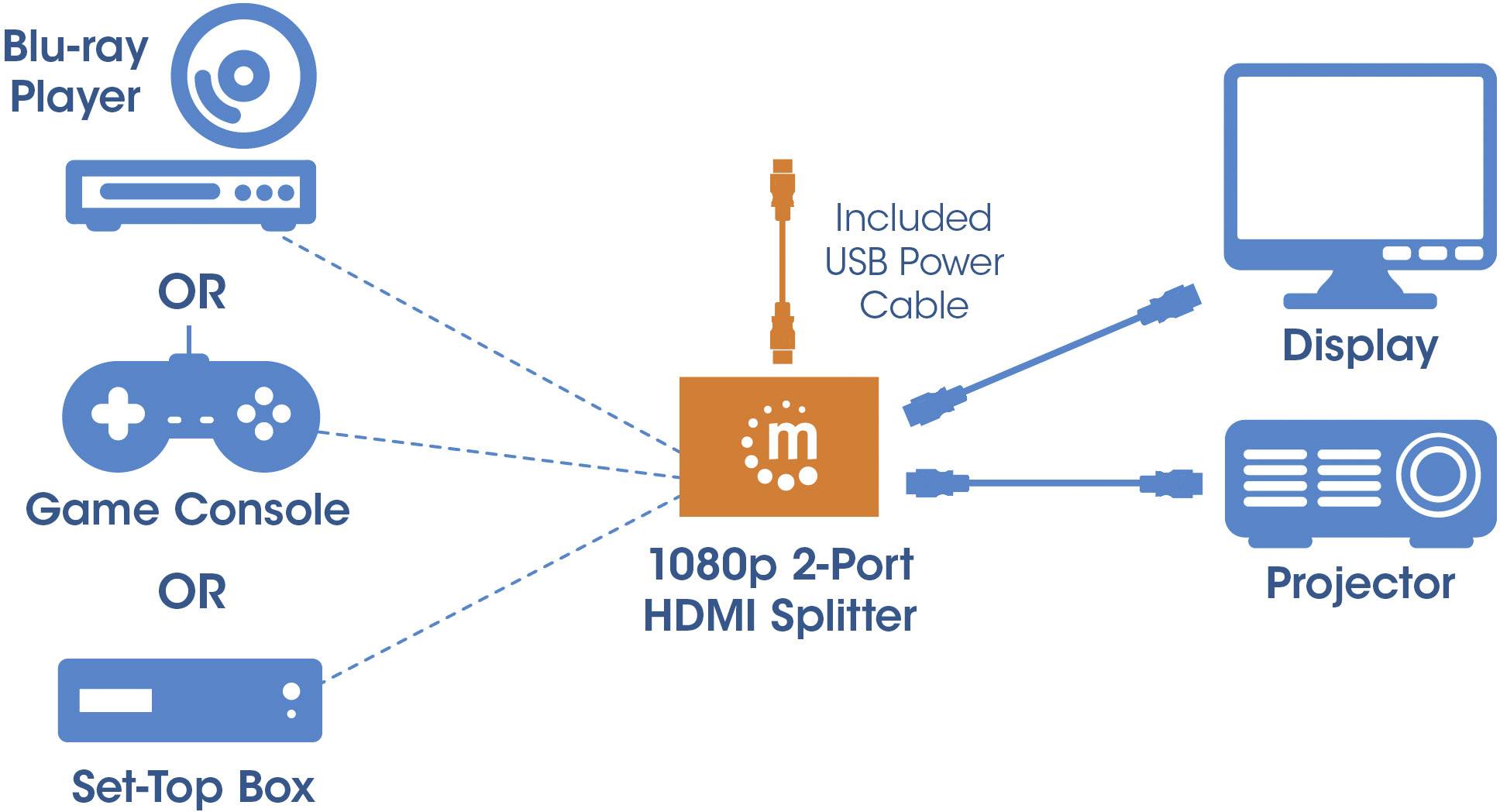

Distributes a HDMI signal to multiple displays
The Manhattan 1080p 2-Port HDMI Splitter distributes HD signals from one HDMI-source of current, example: Blu-ray player, Satellite Receiver, digital video recorders, set-top boxes or game consoles, on more than one HDMI-compatible display.
Flexible solution for many A/V-applications
Ideal for exhibitions, video conferences, presentations and retail applications, this splitter has a built-in signal amplifier for maximum range-well suited for devices which are in a separate room or cabinet. If you want even more display, you can connect up to three splitter in series.
Quality materials and simple installation
This Splitter is fully compliant with the standards HDMI, HDCP 1.0, 1.1 and 1.2, as well as DVI 1.0 and offers reliable performance and high service life. The installation is very easy: Simply connect the HDMI cable (not included), USB power cable, done driver or hardware configuration are not necessary.
This text is machine translated.
The Manhattan 1080p 2-Port HDMI Splitter distributes HD signals from one HDMI-source of current, example: Blu-ray player, Satellite Receiver, digital video recorders, set-top boxes or game consoles, on more than one HDMI-compatible display.
Flexible solution for many A/V-applications
Ideal for exhibitions, video conferences, presentations and retail applications, this splitter has a built-in signal amplifier for maximum range-well suited for devices which are in a separate room or cabinet. If you want even more display, you can connect up to three splitter in series.
Quality materials and simple installation
This Splitter is fully compliant with the standards HDMI, HDCP 1.0, 1.1 and 1.2, as well as DVI 1.0 and offers reliable performance and high service life. The installation is very easy: Simply connect the HDMI cable (not included), USB power cable, done driver or hardware configuration are not necessary.
This text is machine translated.
Features
- Distance between the source and the Splitter: up to 15 m
- Distance between the splitter and the display: up to 15 m
- Power supply: 5W, USB cable, 0.7 m

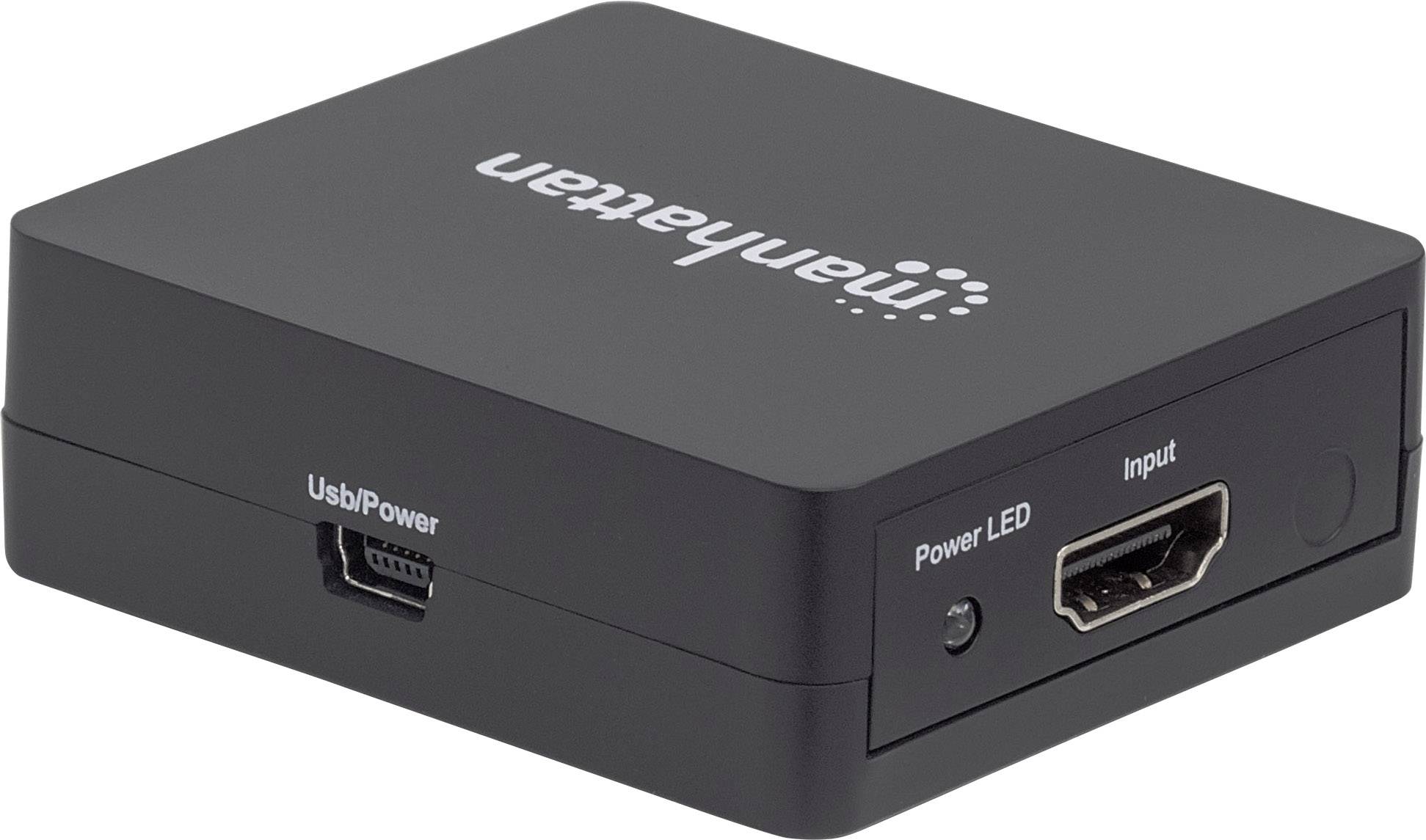

- 1 x HDMI socket, 19-pin. (Input)
- 2 x HDMI socket, 19-pin. (Output)
- 1 x mini USB type B socket, 5-pin for power (input)
- Input/Output Signal
- Video input signal: 0.5 - 1.0 V p-p
- DCC input signal: 5 V p-p (TTL)
- Maximum single-link range: 2.25 Gbit/s, 1920×1200, 1080p
- Video output, HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0
- Frequency: 2.25 Gbit/s/225 MHz
- Video resolutions
- DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
- LED indicators: power supply and port connection
- On/Off switch
- Operating temperature 0 - 70 °C
- Storage temperature: -10 °C - 80 °C
- Operating humidity (non-condensing): 10 - 85%
- Storage humidity (non-condensing): 5 - 90%
Scope of delivery
- 1080p 2-Port HDMI Splitter
- USB power cable
- Quick guide
