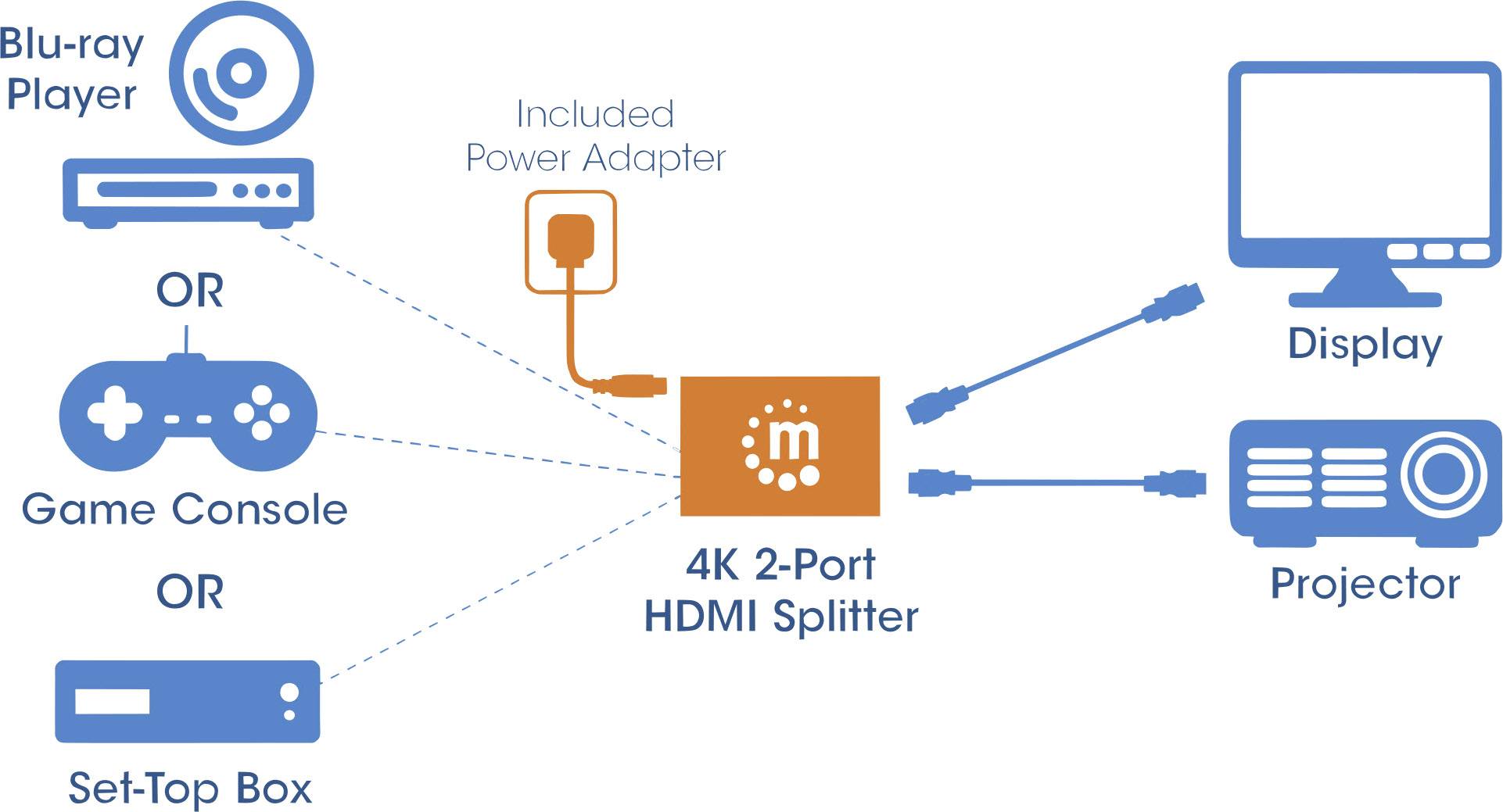

Diagram shows how a 4K 2-Port HDMI Splitter connects between a Blu-ray player, games console or set-top box and a display or projector.

1/3

Datasheet (PDF)

Unavailable

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Manhattan 4-K2-Port HDMI Splitter 4K@30Hz power supply via power supply black

Highlights & Details

Distributes a digital audio/video signal in 4K / UHD quality on two UHD HDMI displays
Hz-Auflosung 4K@30, 3D video and Deep Color
Supports Video Amplifier bandwidth up to 340 MHz and 3.4 Gbit/s per channel (10.2 Gbit/s in total) for 4K x 2K-Displays
Supports compressed DTS-HD Master Audio and 7.1 Surround Sound, as well as Dolby TrueHD and uncompressed LPCM 8 channel audio
Supports 48-bit Deep Color (12 bits per channel) and vColor xvYCC (x.)

Technical specifications

7.1 Surround sound
Dolby TrueHD

Product type: HDMI splitter

Supported monitors: 2

No. of inputs: 1 x

Interfaces (input): HDMI™

No. of outputs: 2 x

Interfaces (output): HDMI™

Resolution (max.): 4096 x 2160 p

Power supply (LOV): mains-powered

Factory colour: Black

Weight: 150 g

Width: 49 mm

Height: 16 mm

Depth: 75 mm

Dim: (W x H x D) 49 x 16 x 75 mm

Port: 2 ports

Supported audio file formats: DTS
LPCM 7.1

Version: Cable

Type A: HDMI plug

Type B: HDMI plug

Cable use: TV/monitor

Connection type: HDMI

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1888251 Manhattan 207669 2 ports HDMI splitter 4096 x 2160 p Black

User & Safety Instructions

User & Safety Instructions 1888251 Manhattan 207669 2 ports HDMI splitter 4096 x 2160 p Black

Description

Distributes a 4K/UHD signal to multiple displays
The Manhattan 4K 2-Port HDMI Splitter with built-in signal amplifier distributes a 4K HDMI signal from a single UHD source to two UHD displays.
Flexible solution for many A/V-applications
Ideal for exhibitions, video conferences, presentations and retail applications, this splitter has a built-in signal amplifier for maximum range-well suited for devices which are in a separate room or cabinet. If you want even more display, you can connect up to three splitter in series.
Quality materials and simple installation
This Splitter is fully compliant with the standards HDMI and DVI, HDCP 1.4 1.0 and offers reliable performance and high service life. In addition to cinematic 4K resolution 3D video, Deep Color and Dolby TrueHD audio is supported. The installation is very easy: Simply connect the HDMI cable (not included), power supply, done driver or hardware configuration are not necessary.

This text is machine translated.

Features

Distance between the source and the Splitter: up to 15 m
Distance between the splitter and the display: up to 15 m
Power supply: 5V;Power supply, power cable 0.9 m
1 x HDMI socket, 19-pin. (Input)
2 x HDMI socket, 19-pin. (Output)
1x power socket, outside diameter 3.5 mm / Internal diameter 1.3 mm (input)
Video input signal: 0.5 - 1.0 V p-p
DCC input signal: 5 V p-p (TTL)
Maximum resolution of 3840×2160 Single-link Range: at 30 Hz and 4096 x 2160 at 24 Hz
Video output: HDCP 1.4, DVI 1.0
Frequency: 3.4 Gbit/s/340 MHz
Video resolutions
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
LED indicators: power supply and port connection
Power supply: 5 V/1 A; power cable 0.9 m
Housing: plastic
Environments
Operating temperature: 0 - 40°C
Storage temperature: -20 to 60 °C
