Manhattan 207768 2 ports DisplayPort splitter 3810 x 2160 p
EAN:
Part number:
Item no:
Datasheet (PDF)

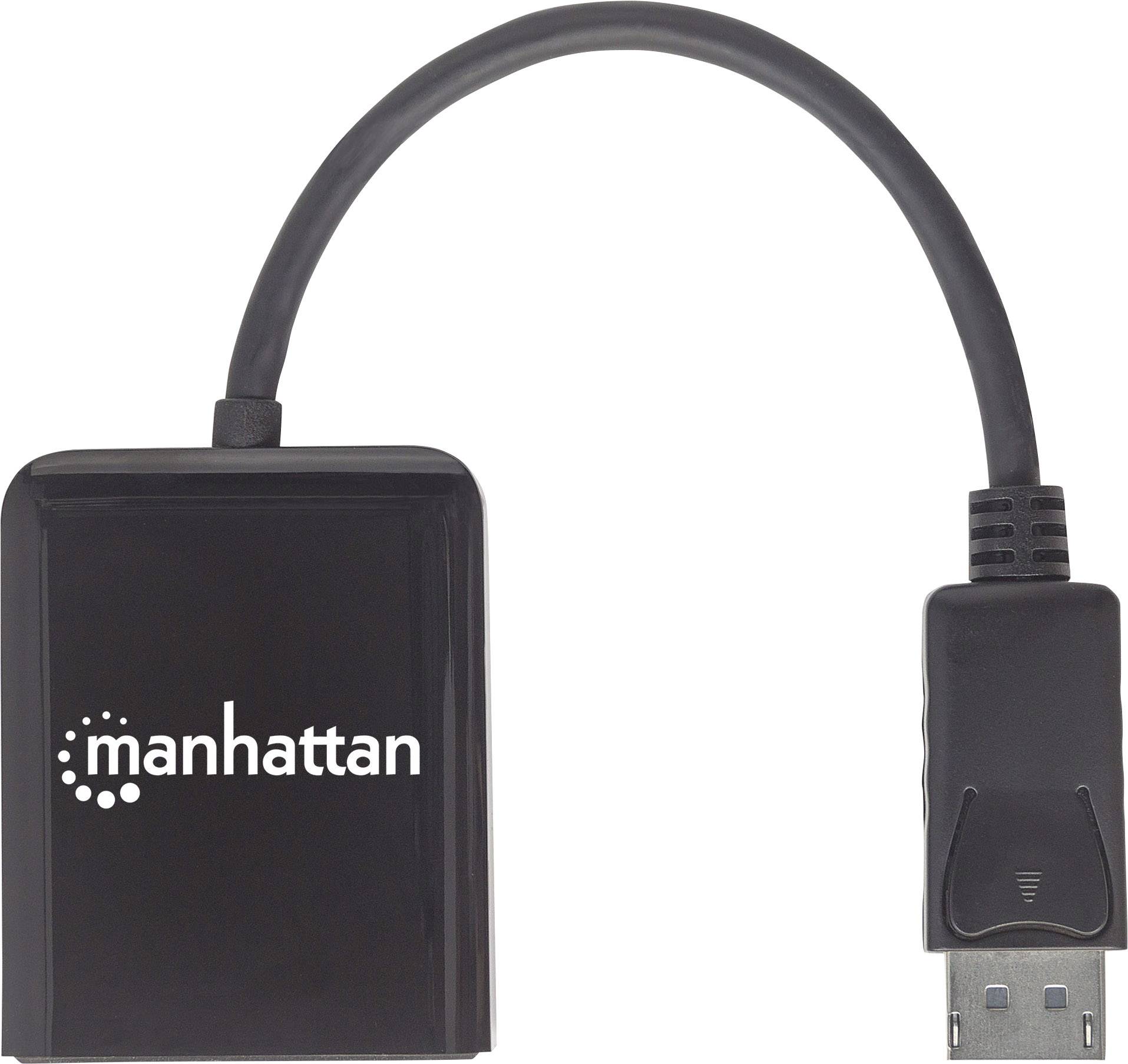

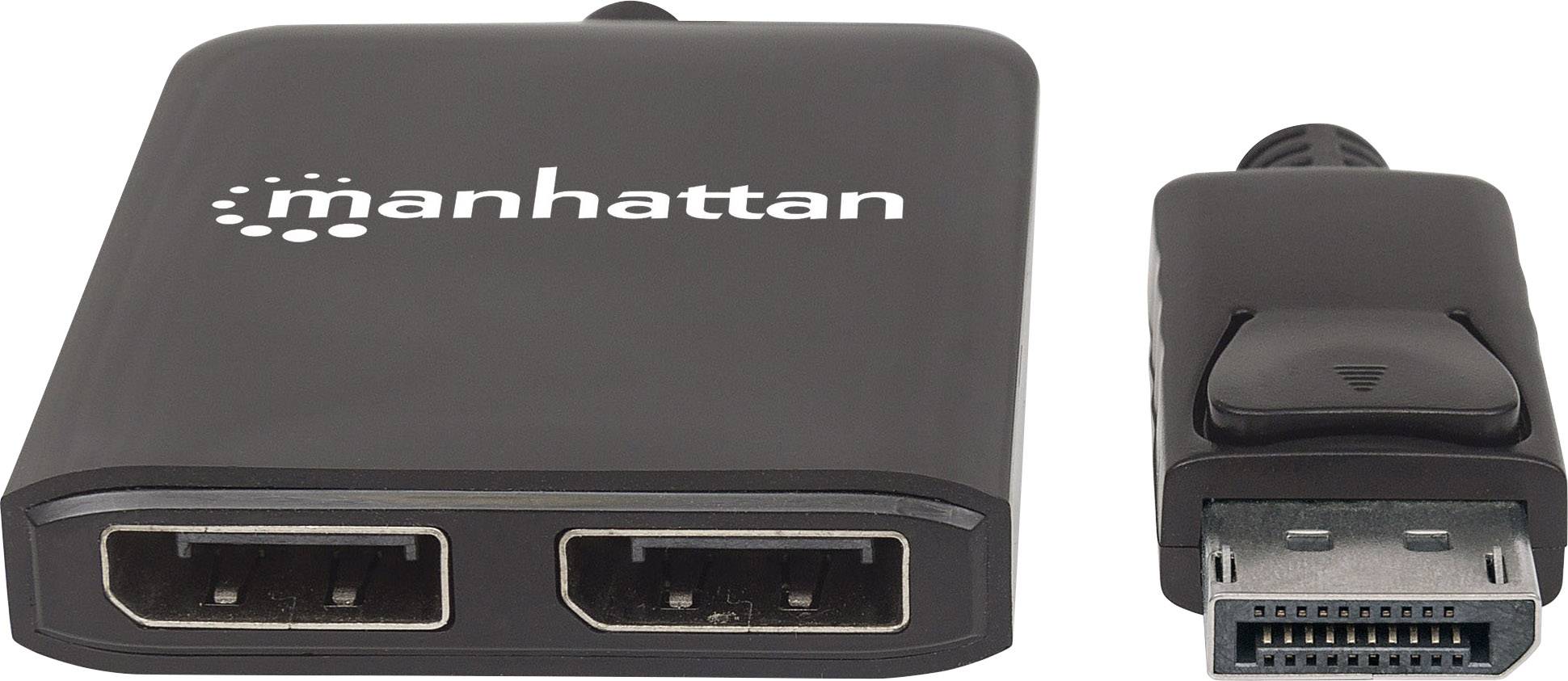

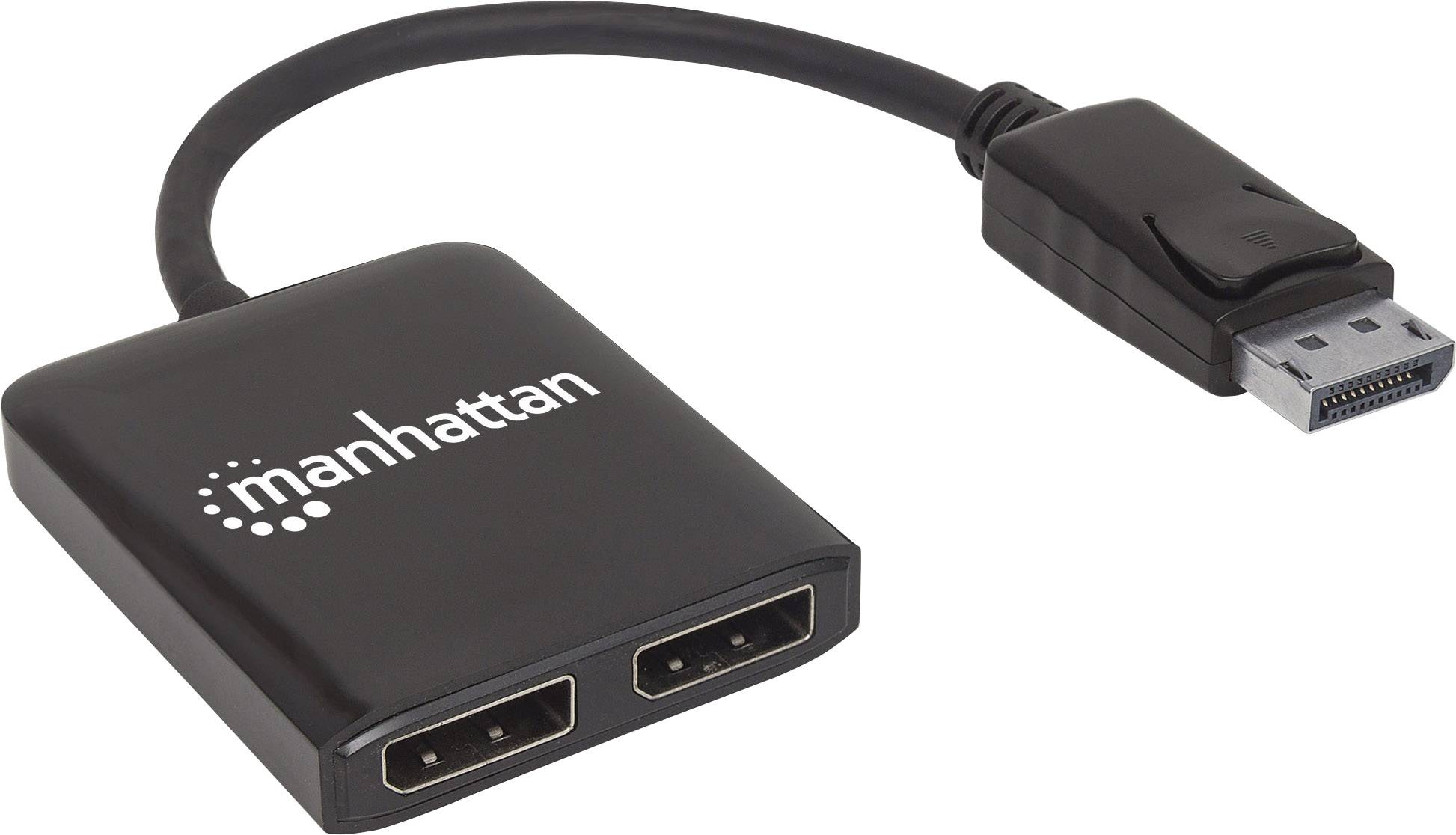

Manhattan DisplayPort to 2-Port Display port splitter hub with MST
Highlights & Details
- For splitting a displayport signal to two Displayport monitors in 4K / UHD
- Supports display modes mirrored, expanded and multi-stream transport (MST) for maximum capacity for work or gaming
- Mirrored display mode, the PC signal, and it is duplicated on two displays, with resolutions up to 4K@30Hz
- Extended display mode increases the desktop area on two displays with resolutions up to 4K@30Hz
- Display Mode MST creates a video wall on two displays with resolutions up to 3840 x 2160 at 30 Hz - and thus two images to a large picture; requires a graphics card, the video wall function supports
Technical specifications
- 7.1 Surround sound
- Product type
DisplayPort splitter
- Supported monitors
2
- Interfaces (input)
DisplayPort
- Interfaces (output)
DisplayPort
- No. of inputs
1 x
- No. of outputs
2 x
- Resolution (max.)
3810 x 2160 p
- Factory colour
Black
- Power supply (LOV)
via USB
- Width
50 mm
- Height
11 mm
- Depth
250 mm
- Weight
50 g
- Port
2 ports
- Supported audio file formats
DTS
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1888255 Manhattan 207768 2 ports DisplayPort splitter 3810 x 2160 p
User & Safety Instructions
User & Safety Instructions 1888255 Manhattan 207768 2 ports DisplayPort splitter 3810 x 2160 p
Description
Distributes a 4K-signal on multiple displays
This Manhattan Splitter-Hub with MST distributes a signal on the display port from one video source to two Displayport screens and in 4K quality. The innovative MST-feature (multi-stream Transport) makes it even supports the display as a video wall.
Flexible solution for many AV applications
As the ideal accessories for exhibitions, classrooms, video conferences, presentations and retail applications, this adapter is the video signal in either mirrored or extended mode. With the appropriate support your graphics card, you can also use the video wall mode by MST. With this versatility is clearly superior to the splitter-hub comparable fragments and adapters.
Easy to set up
The Manhattan Splitter-Hub is easy to install - simply connect Displayport cable (not included) as well as the integrated display port cable and the USB power cable included in the delivery, the 4K Multi Display solution by Plug & Play.
This text is machine translated.
This Manhattan Splitter-Hub with MST distributes a signal on the display port from one video source to two Displayport screens and in 4K quality. The innovative MST-feature (multi-stream Transport) makes it even supports the display as a video wall.
Flexible solution for many AV applications
As the ideal accessories for exhibitions, classrooms, video conferences, presentations and retail applications, this adapter is the video signal in either mirrored or extended mode. With the appropriate support your graphics card, you can also use the video wall mode by MST. With this versatility is clearly superior to the splitter-hub comparable fragments and adapters.
Easy to set up
The Manhattan Splitter-Hub is easy to install - simply connect Displayport cable (not included) as well as the integrated display port cable and the USB power cable included in the delivery, the 4K Multi Display solution by Plug & Play.
This text is machine translated.
Features
- 1 x 5V/2A USB micro-B power socket (input)
- Signal input/output:
- Input Video signal: 0.5 - 1.0 V p-p
- Input DDC Signal: 5 V p-p (TTL)
- Max. Single Link range: 5.4 Gbit/s, 3840 x 2160 resolution at 30 Hz
- Video signal output: HDCP 2.2, DVI 1.0
- Video resolutions:
- DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
- USB power cable with micro-B plug: 1 m
- Operating temperature: 0 - 40°C
- Storage temperature: -20 to 60 °C
- Air humidity (non-condensing) 0 - 96%
Scope of delivery
- Display port on 2-Port Display port splitter with MST
- USB power cable
- Quick guide
System requirements
- Windows XP/Vista/7/8.1/10
DP 1.2 Graphics Card
