Manhattan 207959 HDMI™ Extension via RJ45 network cable 120 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Manhattan 207959 HDMI™ Extension via RJ45 network cable 120 m
Highlights & Details
- Extends an HDMI signal from one HDMI-source to a HD monitor or HD projector on up to 120 m per unmanaged network switch and a network cable.
- Is compatible with existing network infrastructure via TCP/IP

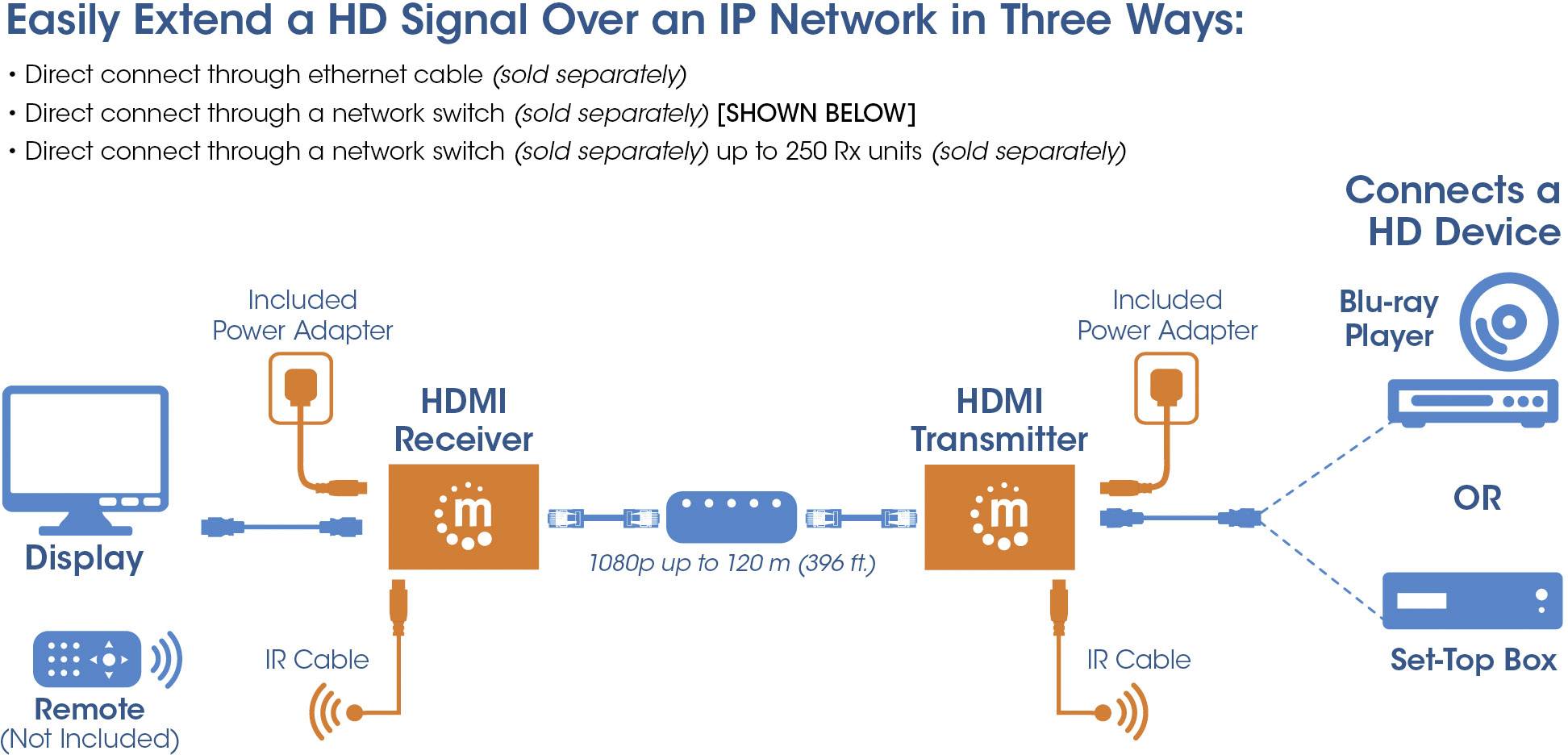

- Supports three connection configurations: direct connection of the transmitter unit (Tx) to the receiver unit (Rx); from tx-einheit via the network switch to Rx-Einheit; Tx-Einheit via the network switch to several Rx-Einheiten
- With additional rx-einheiten up to 250 displays can be connected to the network
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
550 g
- Length
100 mm
- Width
59 mm
- Height
25 mm
- Dim
(L x W x H) 100 x 59 x 25 mm
- Type A
HDMI plug
- Type B
HDMI plug
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1888305 Manhattan 207959 HDMI™ Extension via RJ45 network cable 120 m
User & Safety Instructions
User & Safety Instructions 1888305 Manhattan 207959 HDMI™ Extension via RJ45 network cable 120 m
Description
They reinforce a high-definition (HD) Signal easily with a single network cable over an IP network.
The Manhattan 1080p HDMI via IP Extender Kit is the ideal solution for virtually every digital HDMI source (PlayStation, Xbox, Blu-ray player, Satellite Receiver, digital recorder, etc.) via an IP network and a single network cable with a HD display or HD projector on up to 120 m. This with power supplied HMDI Extender Set enables a reliable 1080p video and multi-channel audio transmission over larger distances than with HDMI cables. In addition, the transmitter and receiver modules via additional 3.5-mm connections for infrared (IR), which is the control of the source from the site of the display.
Flexible solution for many A/V-applications
This Extender is ideal for exhibitions, class rooms, home theater, conference rooms, offices and retail. The Manhattan 1080p HDMI via IP Extender Kit is a cost-effective solution, an HDMI signal is amplified and expanded there, where it is needed. Ethernet cable UTP, SSTP or SFTP (cable not included) - are more cost effective and easier to install than HDMI cable and inline signal-Repeater. In conjunction with our extender set delivers this cable over long distances, a crisp, sharp and vibrant picture.
High-quality workmanship and easy installation
The Manhattan 1080p HDMI via IP Extender Kit is HDCP-compliant and has been tested to ensure performance and reliability. It is installed quickly and it must be neither a software runs, additional hardware installed.
This text is machine translated.
The Manhattan 1080p HDMI via IP Extender Kit is the ideal solution for virtually every digital HDMI source (PlayStation, Xbox, Blu-ray player, Satellite Receiver, digital recorder, etc.) via an IP network and a single network cable with a HD display or HD projector on up to 120 m. This with power supplied HMDI Extender Set enables a reliable 1080p video and multi-channel audio transmission over larger distances than with HDMI cables. In addition, the transmitter and receiver modules via additional 3.5-mm connections for infrared (IR), which is the control of the source from the site of the display.
Flexible solution for many A/V-applications
This Extender is ideal for exhibitions, class rooms, home theater, conference rooms, offices and retail. The Manhattan 1080p HDMI via IP Extender Kit is a cost-effective solution, an HDMI signal is amplified and expanded there, where it is needed. Ethernet cable UTP, SSTP or SFTP (cable not included) - are more cost effective and easier to install than HDMI cable and inline signal-Repeater. In conjunction with our extender set delivers this cable over long distances, a crisp, sharp and vibrant picture.
High-quality workmanship and easy installation
The Manhattan 1080p HDMI via IP Extender Kit is HDCP-compliant and has been tested to ensure performance and reliability. It is installed quickly and it must be neither a software runs, additional hardware installed.
This text is machine translated.
Features
- Distance between the source and the switch: up to 100 m
- Distance between switch and display: up to 100 m
- Combined distance source-to-distributor-to-Display: 120m
- Cat 6 cable: 1080p at 120 m
- Cat 6 cable: 720p at 160 m
- Cat 6 cable: 480p at 200 m
- Cat 5e cable: 1080p at 100 m
- Cat 5e cable: 720p at 140 m
- Cat 5e cable: 480p 180
- Current: 5 V/2 A 1.4 m power cable
- LED display

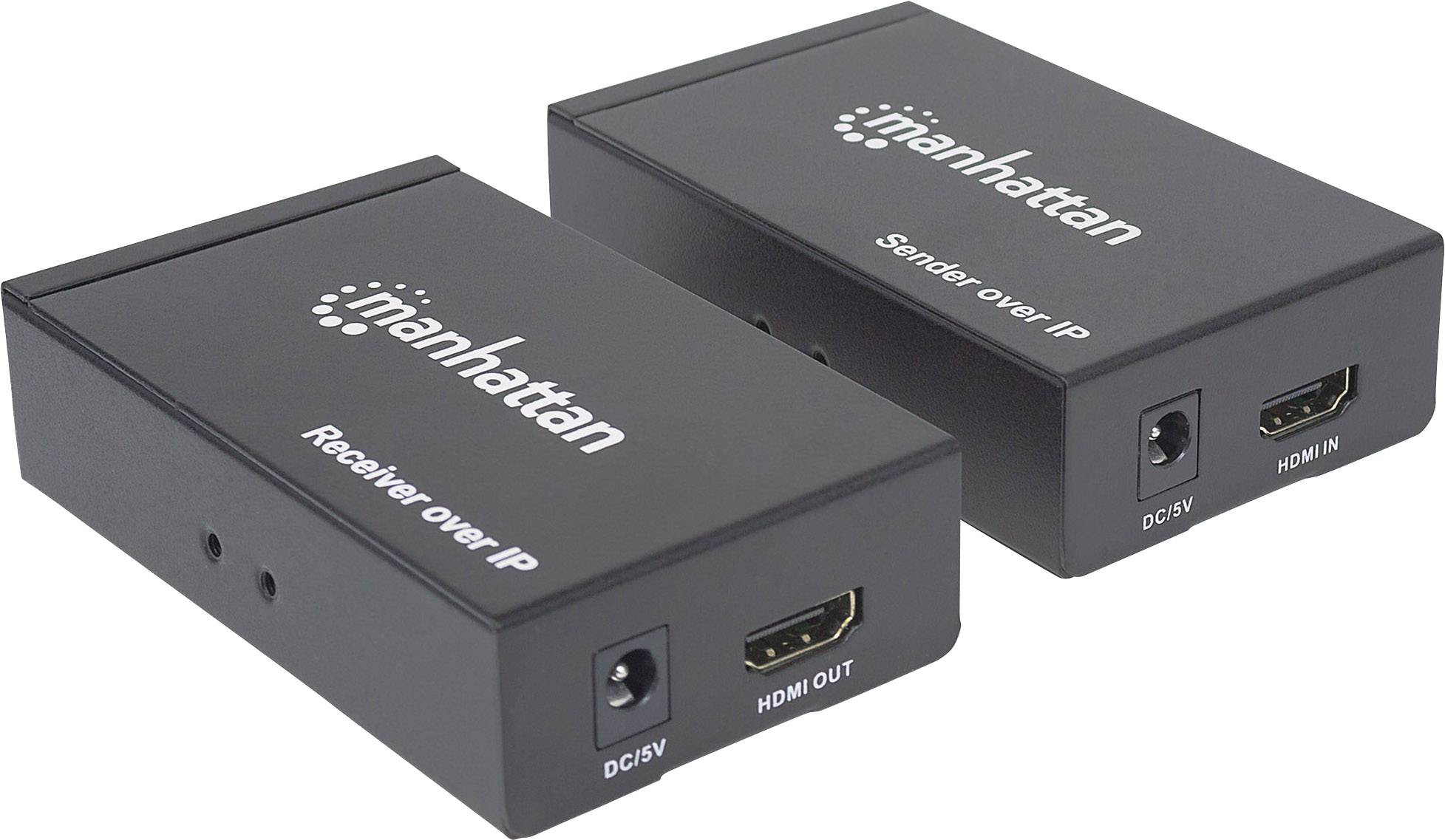

- 1 x HDMI socket, 19-pin. (Transmitter/receiver)

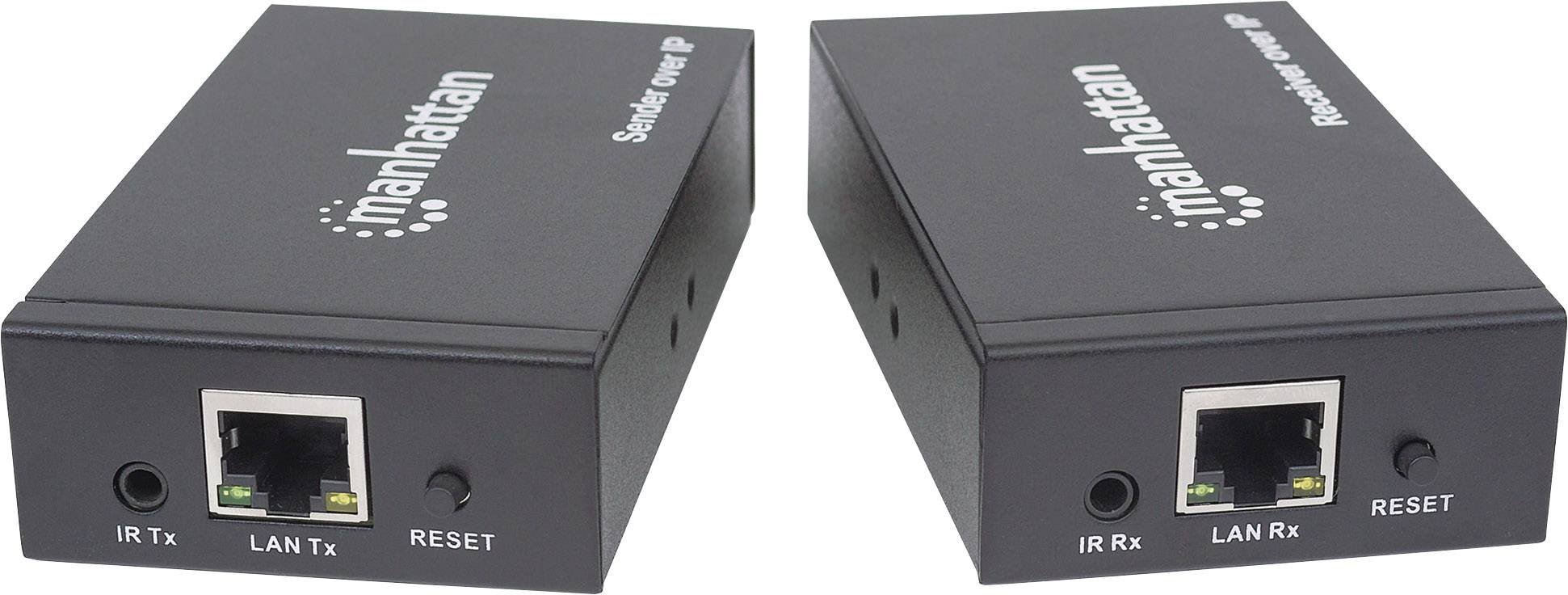

- 1x RJ45 socket (transmitter/receiver)
- 1 x 5 V power socket, outside diameter 5.5 mm / Internal diameter 2.1 mm (transmitter/receiver)
- 1 x 3.5 mm IR-socket (transmitter/receiver)
- Signal input/output
- Video input signal: 0.5 - 1.0 V p-p
- DDC-Input signal: 5 V p-p (TTL)
- Maximum single-link range: 1.65 Gbit/s and 1080p resolution
- Video output: HDCP 1.2, DVI 1.0
- Frequency: 1.65 GBit/165 MHz
- Video resolutions
- SD, HD
- SDTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- Operating temperature: 0 °C - 40 °C
- Storage temperature: -20 to 60 °C
- Air humidity (non-condensing): 20 - 96%
Scope of delivery

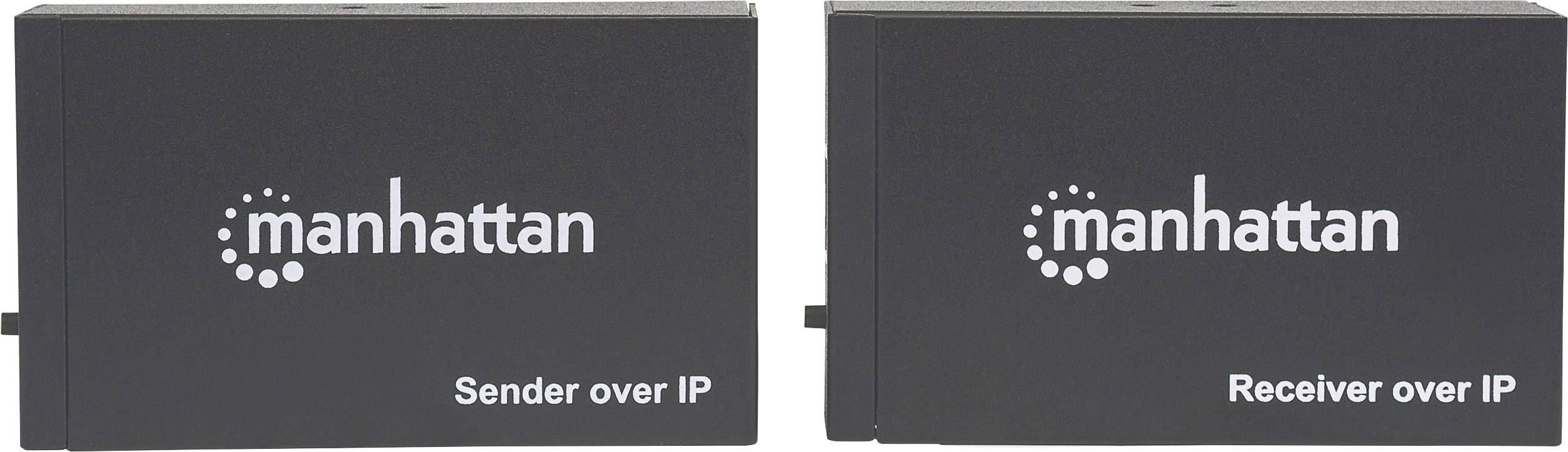

- 1080p HDMI via IP extender set (receiver and transmitter module)
- Power supply (two units)

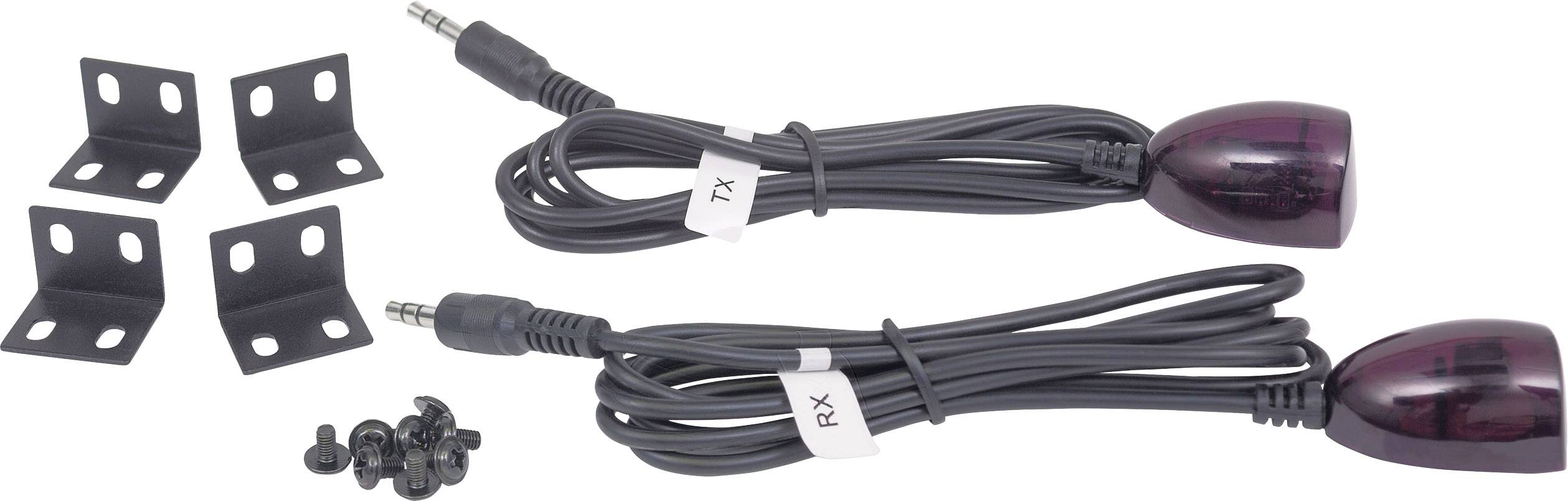

- IR transmitter and receiver (a unit)
- Parts for wall mounting (two units)
- Quick guide
