Buy Manhattan 461405 TV wall mount 33,0 cm (13") - 106,7 cm (42") Tiltable, Swivelling

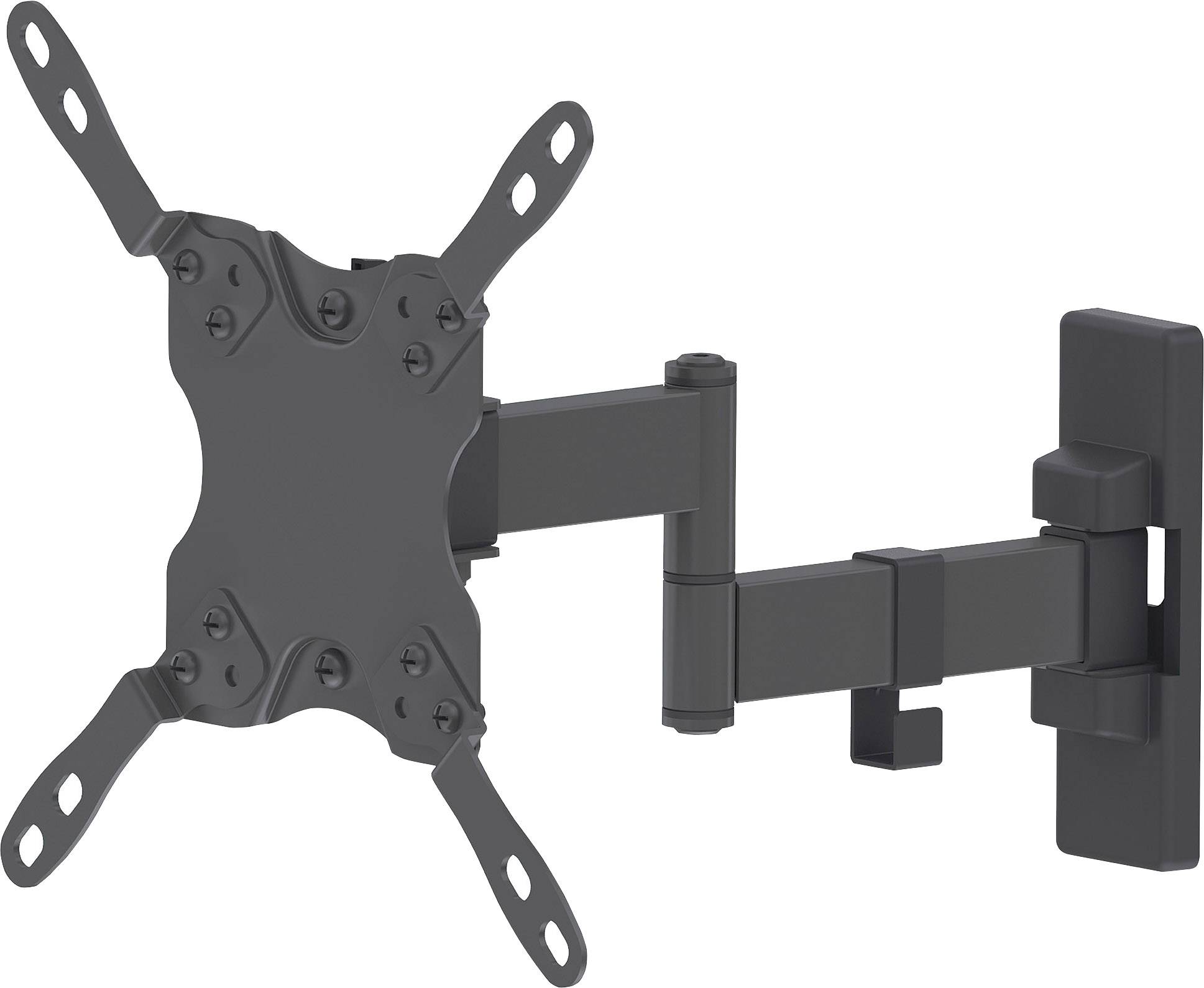

Swivel TV Wall Mount in Black, Suitable for Flat Screens. Adjustable for Optimal Viewing Angle.

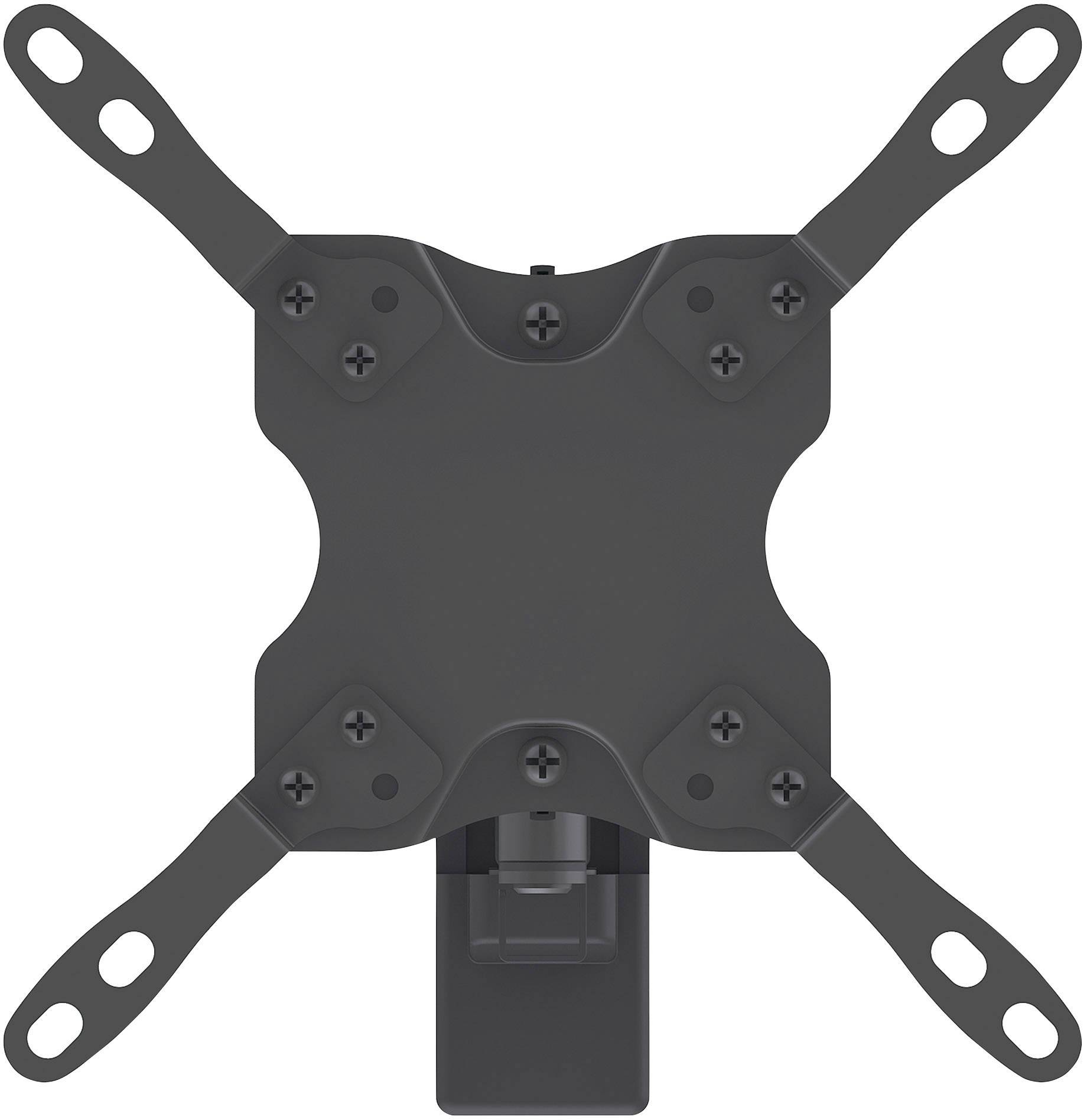

A black wall-mounting adapter with four arms and screws, designed for securing displays.

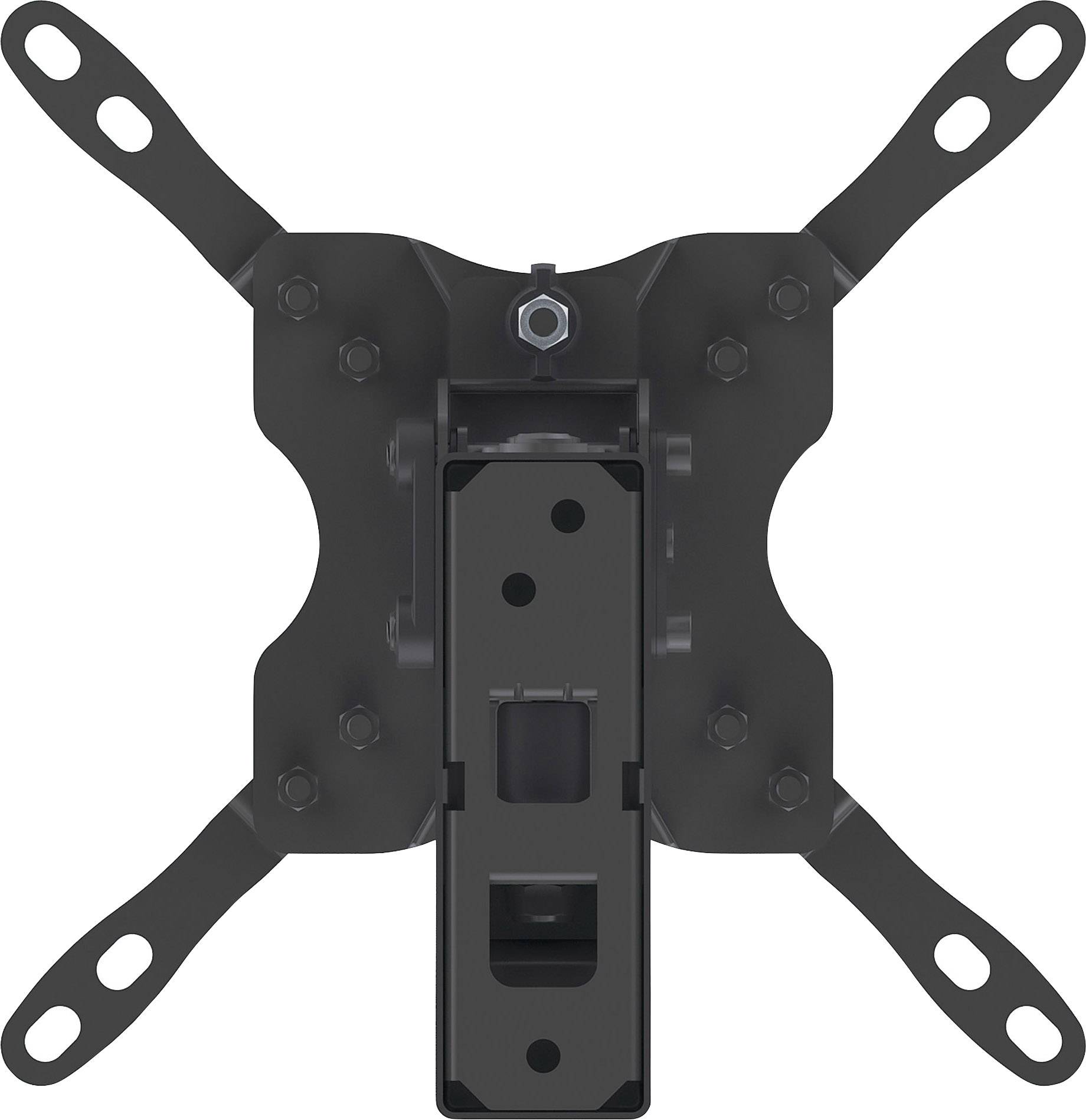

Black metal TV wall mount with four adjustable arms and central mounting screw, suitable for flat screen televisions.

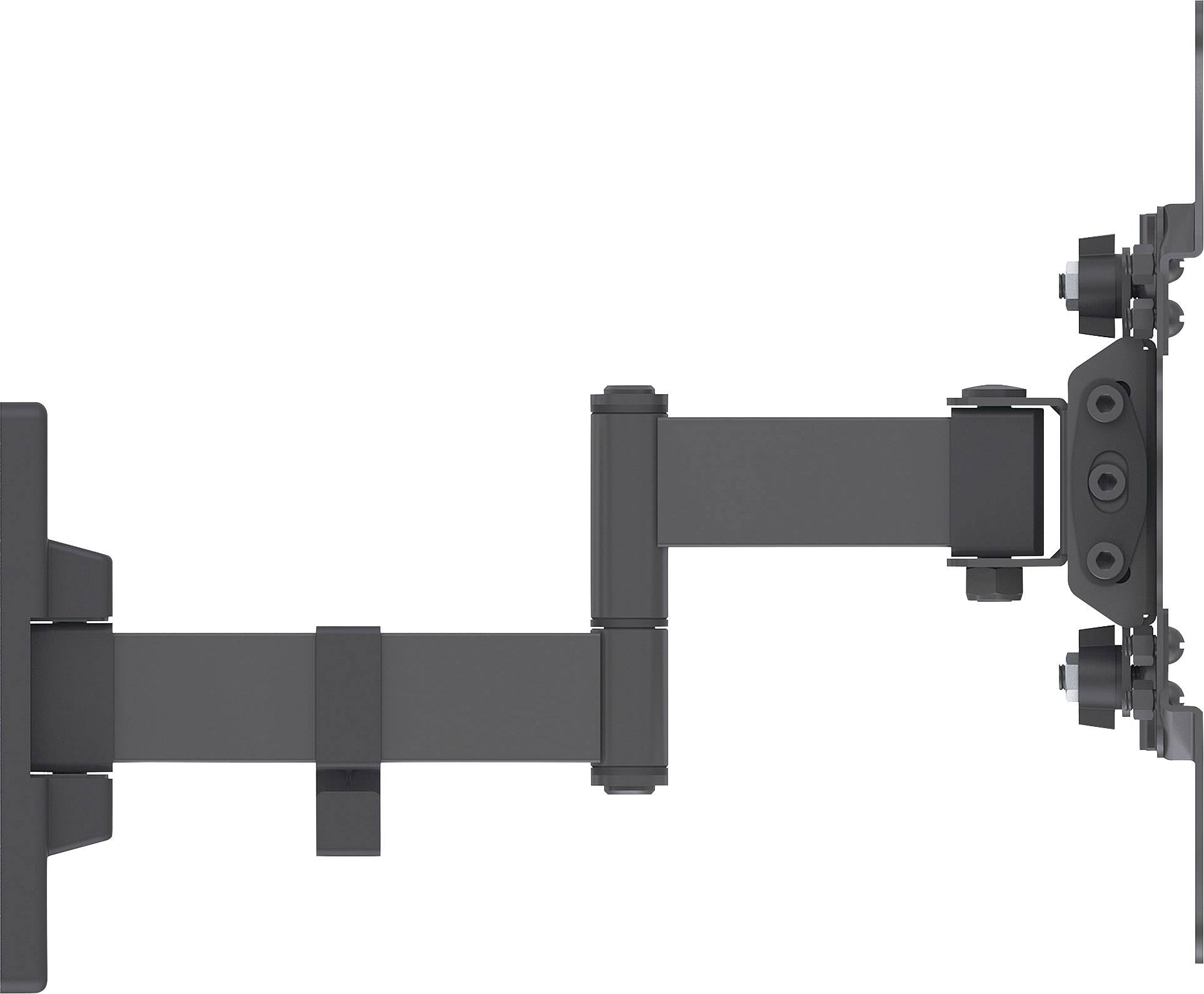

Side view of a black, articulated monitor mount with multiple joints and mounting components at the ends.

1/4

Datasheet (PDF)

Unavailable

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Manhattan 461405 TV wall mount

Highlights & Details

Holder type: Tiltable, Swivelling
Supports VESA standards up to
Suitable for displays sized (range): 33,0 cm (13") - 106,7 cm (42")
Load capacity (max.) 20 kg

Technical specifications

Product type: TV wall mount

Suitable for: 33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
35,8 cm (14,1")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
Show more

Suitable for: 33,0 cm (13") - 106,7 cm (42")

Holder type: Tiltable
Swivelling

Max. load capacity: 20 kg

: No

: 100 x 100 mm
200 x 100 mm
200 x 200 mm
75 x 75 mm

Tilt range (bottom): -12°

Tilt range (top): 5°

Swivel range (left): 45°

Swivel range (right): 45°

Distance to wall (min.): 190 mm

Distance to wall (max.): 273 mm

Width: 220 mm

Height: 220 mm

Depth: 273 mm

Factory colour: Black

Material (details): Steel

Weight: 1.3

Dim: (W x H x D) 220 x 220 x 273 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1592206 Manhattan 461405 TV wall mount 33,0 cm (13") - 106,7 cm (42") Tiltable, Swivelling

User & Safety Instructions

User & Safety Instructions 1592206 Manhattan 461405 TV wall mount 33,0 cm (13") - 106,7 cm (42") Tiltable, Swivelling

Description

An arm's length in advance
Poor apartment design, bulky furniture and reflected sunlight can make setting up and enjoying your flat screen a difficult undertaking. This Manhattan universal joint arm mount for flat screens can be comfortably on the wall and with the swivelling arm, you can use your screen extremely flexible positioning. Thanks to VESA-equivalent and quality material, this mounting is suitable for a large range of LCD, LED and plasma display sizes and provides reliable attachment to the ground. Ideal for residential, office, restaurants, classes and conference rooms, digital signage and other commercial applications.

This text is machine translated.

Features

Universal TV wall mount, tilt and swivel
Suitable for VESA compliant screens with 75 x 75, 100 x 100, 200 x 100 or 200 x 200
Mounting profile: 60 to 273 mm
