Manhattan 462426 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Landscape
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
Only 4 Piece(s) available
Manhattan 462426 TV wall mount
Highlights & Details
- Holder type: Tiltable, Swivelling, Landscape
- Supports VESA standards up to
- Suitable for displays sized (range): 94,0 cm (37") - 177,8 cm (70")
- Load capacity (max.) 35 kg
Technical specifications
- Product type
TV wall mount
- Suitable for
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
Show more
- Suitable for
94,0 cm (37") - 177,8 cm (70")
- Holder type
Tiltable
Swivelling
Landscape
- Max. load capacity
35 kg
No
100 x 100 mm
100 x 150 mm
100 x 200 mm
150 x 100 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
Show more
- Tilt range (bottom)
15°
- Tilt range (top)
3°
- Swivel range (left)
60°
- Swivel range (right)
60°
- Distance to wall (min.)
63 mm
- Distance to wall (max.)
358 mm
- Width
640 mm
- Height
420 mm
- Depth
358 mm
- Factory colour
Black
- Weight
2750 g
- Dim
(W x H x D) 640 x 420 x 358 mm
- Add-on displays
1 Display(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3461742 Manhattan 462426 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Landscape
User & Safety Instructions
User & Safety Instructions 3461742 Manhattan 462426 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Landscape
Description
Fully moving TV mount for the wall with perfect perspective
This robust, universal TV wall bracket by Manhattan holds your television securely on two flexible joint arms. It can be tilted +3 to 15° and swivels +/- 60° for the best view from any perspective. Suitable for flat and curved LCD, OLED or plasma TVs up to 70" at a load capacity of 35 kg as well as VESA compliant up to 600x400. With the spirit level included in the delivery and the +/-3° adjustability even after mounting, you can align the holder perfectly horizontally to the wall. The holder is Ideal for living rooms, offices, restaurants, classrooms, conference rooms, Digital signage (digital signage) and other commercial applications. No matter where you place it, the universal Manhattan full-motion TV-wall holder puts the best TV-experience in the center.
This text is machine translated.
This robust, universal TV wall bracket by Manhattan holds your television securely on two flexible joint arms. It can be tilted +3 to 15° and swivels +/- 60° for the best view from any perspective. Suitable for flat and curved LCD, OLED or plasma TVs up to 70" at a load capacity of 35 kg as well as VESA compliant up to 600x400. With the spirit level included in the delivery and the +/-3° adjustability even after mounting, you can align the holder perfectly horizontally to the wall. The holder is Ideal for living rooms, offices, restaurants, classrooms, conference rooms, Digital signage (digital signage) and other commercial applications. No matter where you place it, the universal Manhattan full-motion TV-wall holder puts the best TV-experience in the center.
This text is machine translated.
Features
- Suitable for curved and flat screens from 37" to 70"
- Carry load: 35 kg
- Tilts +3-15°
- Tilts +/-60°
- Horizontal adjustment according to mounting: +/-3°

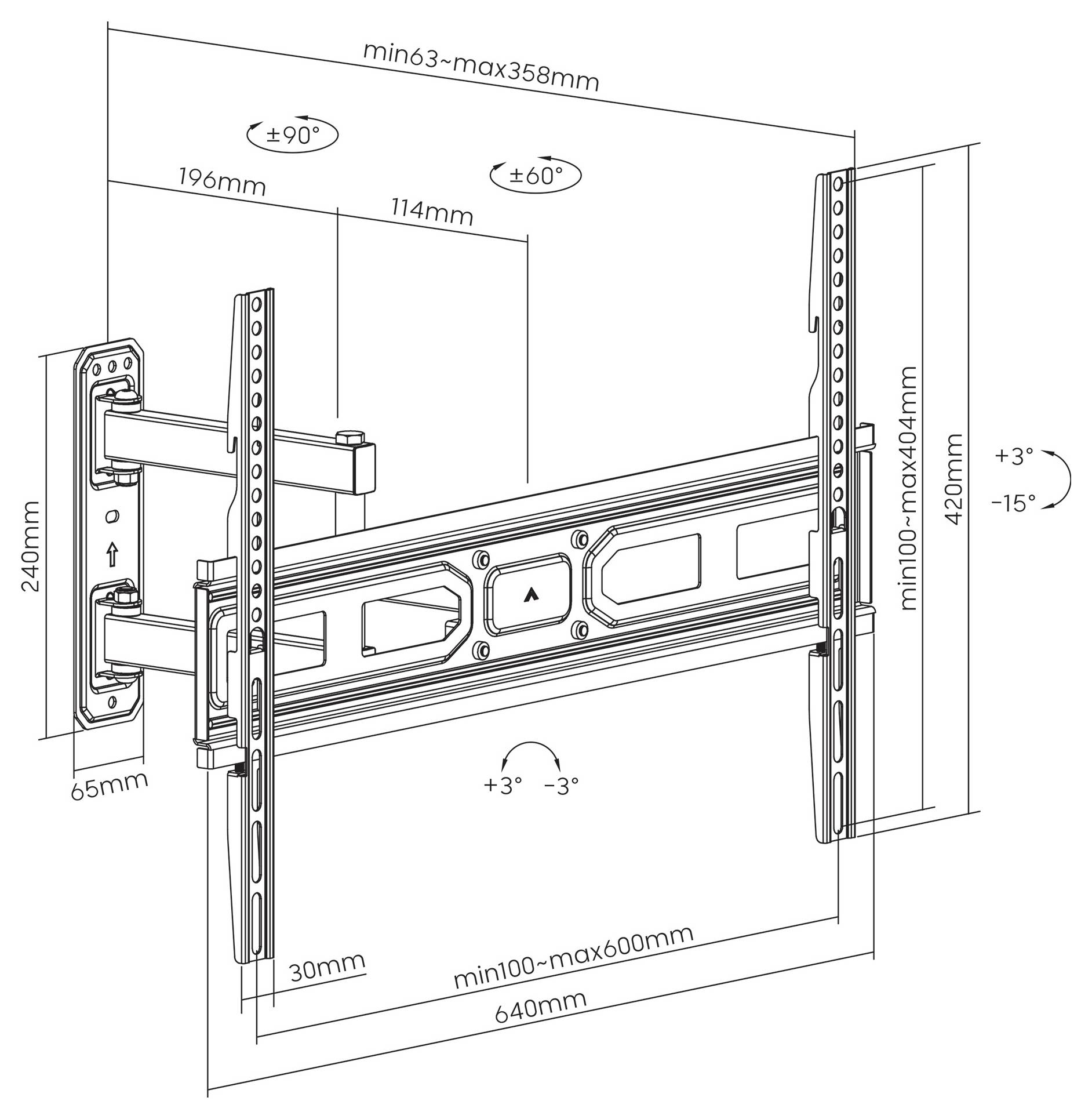

- Dimensions (L x W x H) 358 x 640 x 420 mm
- Wall profile 63 to 358 mm
- Net weight: 2.52 kg
- Gross weight: 3.02 kg
- Material: Steel
- VESA standards 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400
Scope of delivery
- TV wall bracket, full motion/fully movable and can be adjusted horizontally
- Attachable spirit level
- Mounting material and instructions
