Manhattan AV Converter 152426 [VGA, USB 2.0 - HDMI] 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)

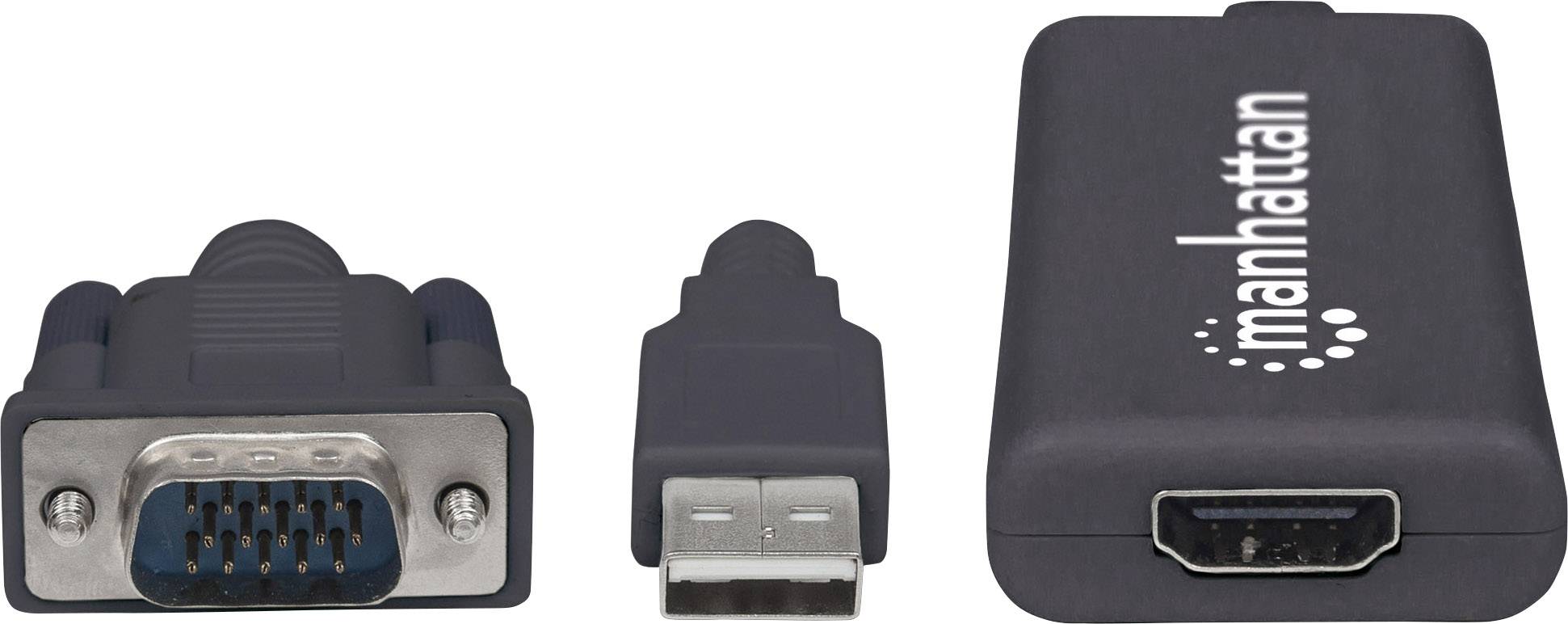

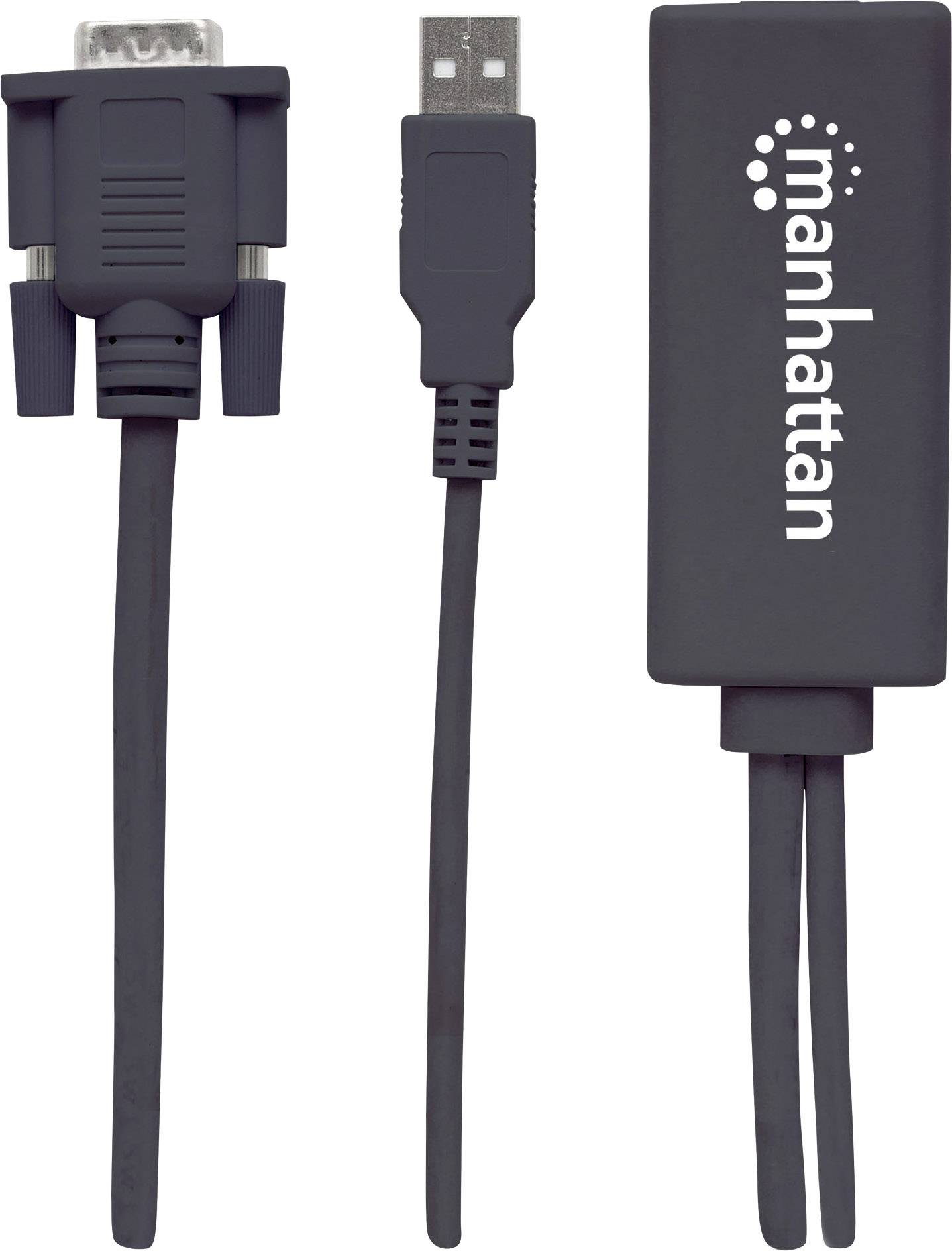

Manhattan VGA and USB to HDMI converter
Highlights & Details
- Ideal for connecting PCs, Macs and notebooks to the HD-monitors, HD-tvs, HD projector and more
- Supports VGA and HDMI resolutions up to 1920x1080, 1080p @ 60Hz, 24-bit color depth and video bandwidth of up to 1.65 Gbit/s/165 MHz
- Compact design fits easily in the laptop cases, ideal for presentations on business trips and more
- Ideal in combination with Manhattan High-speed HDMI cable with Ethernet channel
- Plug & Play, Windows and Mac-compatible, easy installation
Technical specifications
- Product type
AV Converter
- Connection type
AV
- No. of A connectors
1 x
- Type A
VGA plug
USB 2.0 connector A
- No. of B connections
1 x
- Type B
HDMI socket
- Video resolution
1920 x 1080 Pixel
- Cable length
29 m
- Factory colour
Black
- Connector version
straight
- Version
Converter
- Cable use
AV
- Weight
102 g
- Width
89 mm
- Height
29 mm
- Dim
(W x H x D) 89 x 29 x 68 mm
- Port
1 port
- Depth
68 mm
- Interfaces (output)
HDMI™
- Power supply (LOV)
via USB
- No. of outputs
1 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1592181 Manhattan AV Converter 152426 [VGA, USB 2.0 - HDMI] 1920 x 1080 Pixel
User & Safety Instructions
User & Safety Instructions 1592181 Manhattan AV Converter 152426 [VGA, USB 2.0 - HDMI] 1920 x 1080 Pixel
Description
Converts the analogue signals VGA video and USB audio into a digital HDMI signal.
This text is machine translated.
This text is machine translated.
Features
- FCC
- Supports HDCP pass-through
- Current 5 V/1 A
- VGA video formats: VGA, XGA, SVGA, SXGA, UGA
- Input Video signal: 0.5 - 1.0 V p-p
- Input DDC Signal: 5 V p-p (TTL)
- Output Video: HDMI 1.3, HDCP 1.3
- Frequency: 1.65 Gbps/165 MHz
- LEDs for power and connection
- Operating temperature (0 - 40 °C)
- Storage temperature: -20 to 60 °C
- Air humidity (non-condensing) 0 - 96%
Scope of delivery
- VGA and USB to HDMI converter
- Quick guide
