Manhattan USB 3.2 2nd Gen (USB 3.1 2nd Gen) Adapter [1x USB 3.2 2nd Gen connector A (USB 3.1) - 1x USB 3.2 2nd Gen 2 por
EAN:
Part number:
Item no:

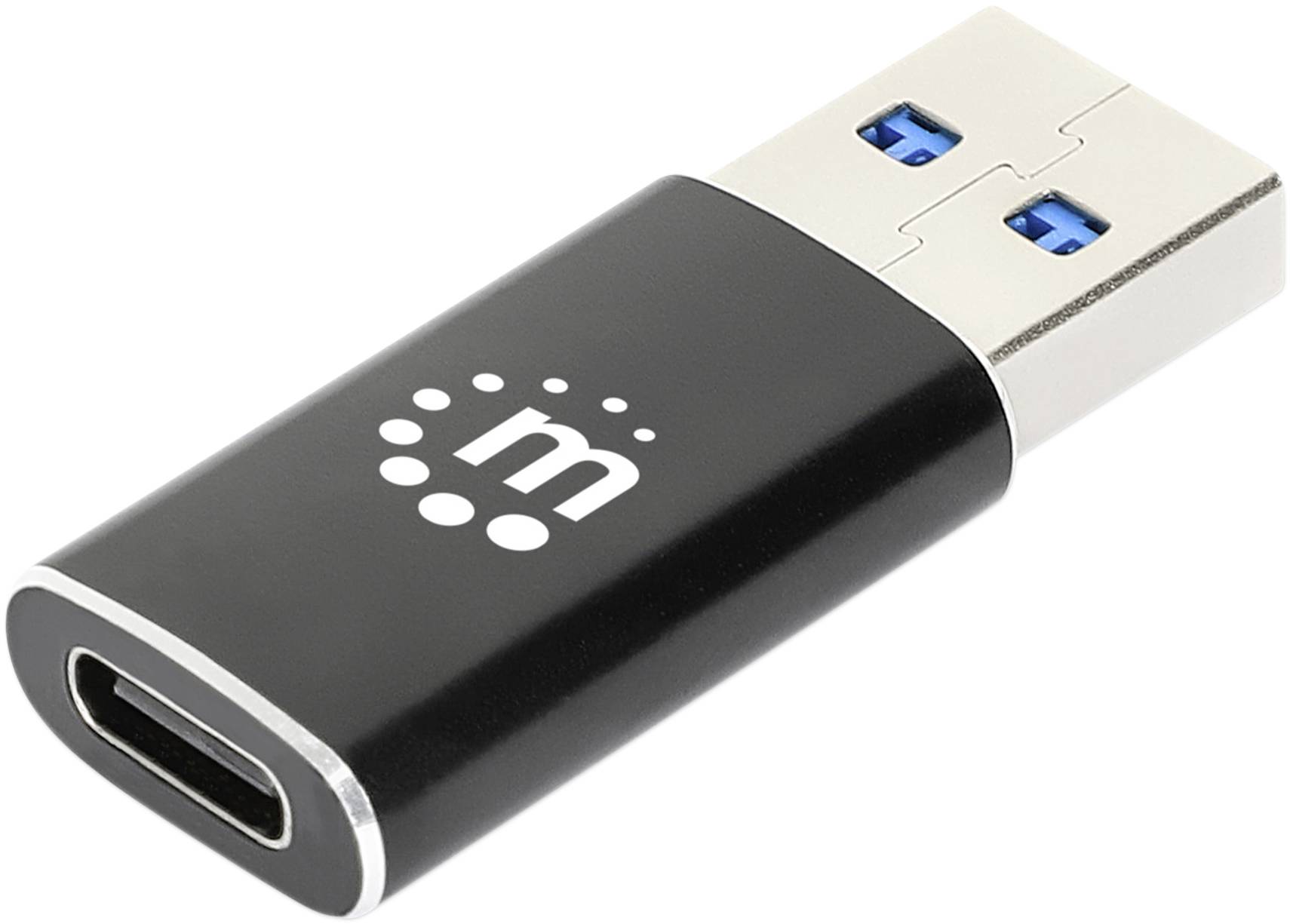

Manhattan USB-A to USB-C adapter USB 3.2 Gen 2 type A plug to type C socket 10 Gbit/s SuperSpeed+ USB 3 A aluminum black
Highlights & Details

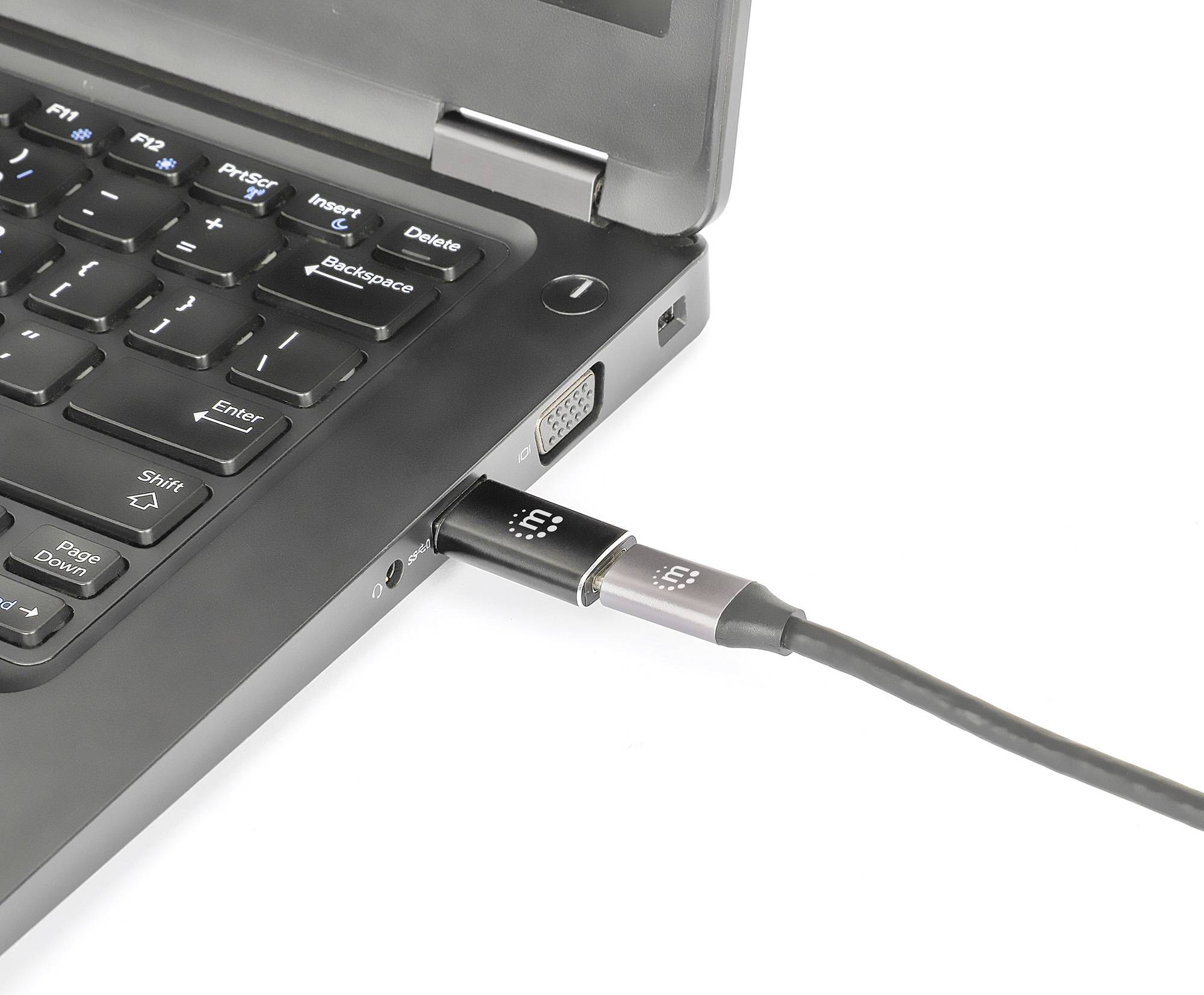

- For easy connection of a USB-C device to a USB A port
- USB 3.2 1st Gen 2-compliant with SuperSpeed+ transfer rates of up to 10 Gbps; is backward compatible with USB 3.0/USB 2.0/USB 1.1

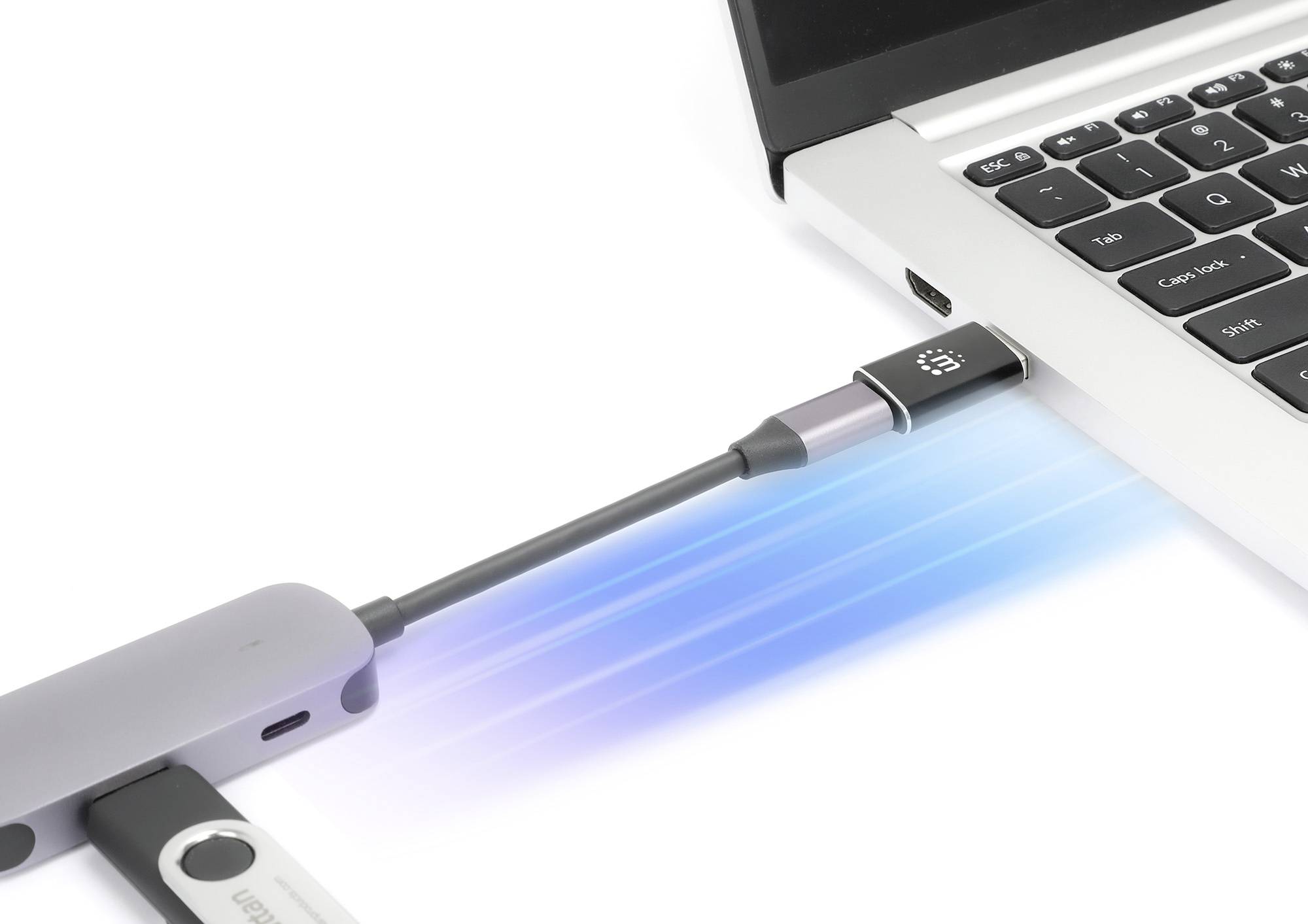

- Ideal for connecting type C accessories such as USB hubs, external hard disks, sync-/charging cable and more
- Suitable for all compatible USB-A host devices such as PC, laptop, MacBook®, Chromebook™, Surface® and more
- Supports current up to 3 A.
Technical specifications
- Product type
USB 3.2 2nd Gen (USB 3.1 2nd Gen) Adapter
- Connection type
USB-C®
- No. of A connectors
1 x
- Type A
USB 3.2 2nd Gen connector A (USB 3.1)
- No. of B connections
1 x
- Type B
USB 3.2 2nd Gen 2 port C (USB 3.1)
- Cable length
0 mm
- Factory colour
Black
- Connector version
straight
- Cable use
USB 3.2 2nd Gen (USB 3.1 2nd Gen)
- Version
Adapter
- Range of use
USB adapters
- Max. power
15 W @ 5 V / 3 A
- Transfer rate (max.)
10 GBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338818 Manhattan USB 3.2 2nd Gen (USB 3.1 2nd Gen) Adapter [1x USB 3.2 2nd Gen connector A (USB 3.1) - 1x USB 3.2 2nd Gen 2 por
Description
USB Type C / Type A adapter - converts a USB A port to a USB-C port for connecting old peripherals to new devices at ultra fast 10G

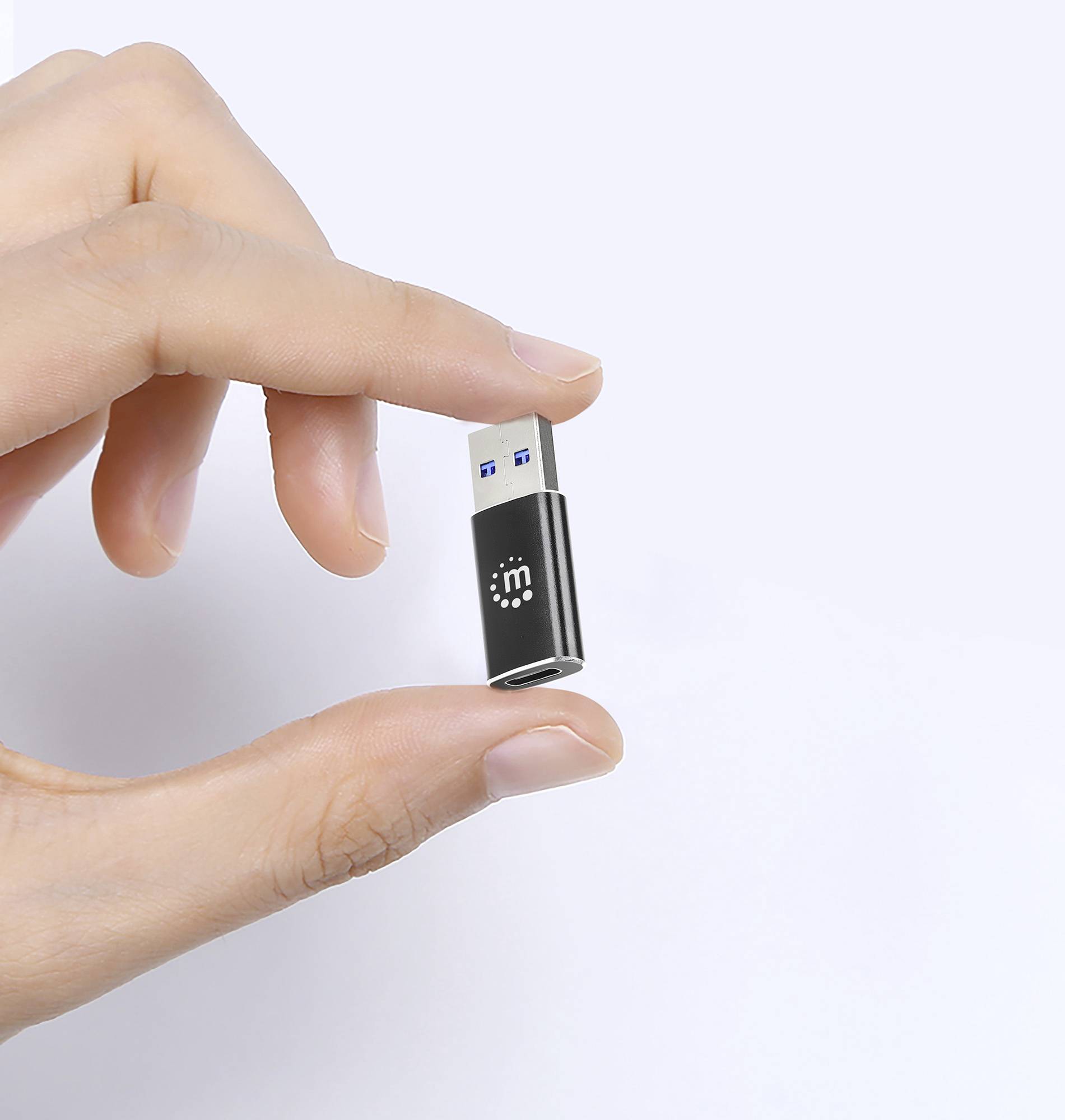

The Manhattan USB-A to USB-C adapter connects USB-3.0 and USB 2.0 devices such as mice, keyboards, USB sticks, printers, etc. to USB-C ports on your smartphone, tablet or computer. Since USB-A ports are in particular in modern laptops and MacBooks® defective goods, this adapter is an extremely convenient connection help. It measures only 37 mm in length and can therefore be transported very comfortably. With SuperSpeed+ support, data transfer rates of up to 10 Gbps can be achieved
Universal compatibility for easy installation
The adapter is compatible with almost all devices as it does not need any additional software or drivers. It works across platforms for as different operating systems as Windows®, MacOS®, Linux and Chrome OS.
This text is machine translated.
The Manhattan USB-A to USB-C adapter connects USB-3.0 and USB 2.0 devices such as mice, keyboards, USB sticks, printers, etc. to USB-C ports on your smartphone, tablet or computer. Since USB-A ports are in particular in modern laptops and MacBooks® defective goods, this adapter is an extremely convenient connection help. It measures only 37 mm in length and can therefore be transported very comfortably. With SuperSpeed+ support, data transfer rates of up to 10 Gbps can be achieved
Universal compatibility for easy installation
The adapter is compatible with almost all devices as it does not need any additional software or drivers. It works across platforms for as different operating systems as Windows®, MacOS®, Linux and Chrome OS.
This text is machine translated.
Features
- Standards and certifications
- USB 3.2 1st Gen 2
- CE
- RoHS
- REACH
- UKCA
- Connectivity
- 1 x 24-pin USB-C socket
- 1 x 9-pin USB-A plug
- Nickel-plated contacts
- Electrical details
- Dielectric strength 300.0 V DC 10 ms
- Insulation resistance 5 MΩ
- Constant resistance 2 Ω
- Supported current 3.0 amp
- Physical details
- Dimensions (L x W x H) 37 x 15 x 7 mm
- Net weight: 5 g
- Gross weight 10 g
- Aluminium enclosure
- Ambient conditions
- Operating ambient temperature 0 - 85°C.
- Ambient temperature during storage -10 - 85°C.
- Humidity (non-condensing): 10 - 90% RH
Hints
NOTE: Supports USB data transfer and charging only - does not support audio/video signal transmission
System requirements
- Windows 7/8.1/10/11
Linux
Chrome OS
MacOS
