Manuflex AS0002.2001 Housing base PACKPOOL, useful height 300 mm with 3 drawers. For table depth 800 mm
EAN:
Part number:
Item no:
Technical specifications
- Dim
(W x H x D) 500 x 360 x 580 mm
- Factory colour
Red orange (RAL 2001)
- Material
Steel (powder-coated)
- Max. load (table)
200 kg
- No. of drawers
3
- Load capacity per drawer
35 kg
- Width
500 mm
- Height
360 mm
- Depth
580 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2223355 Manuflex AS0002.2001 Housing base PACKPOOL, useful height 300 mm with 3 drawers. For table depth 800 mm
Description

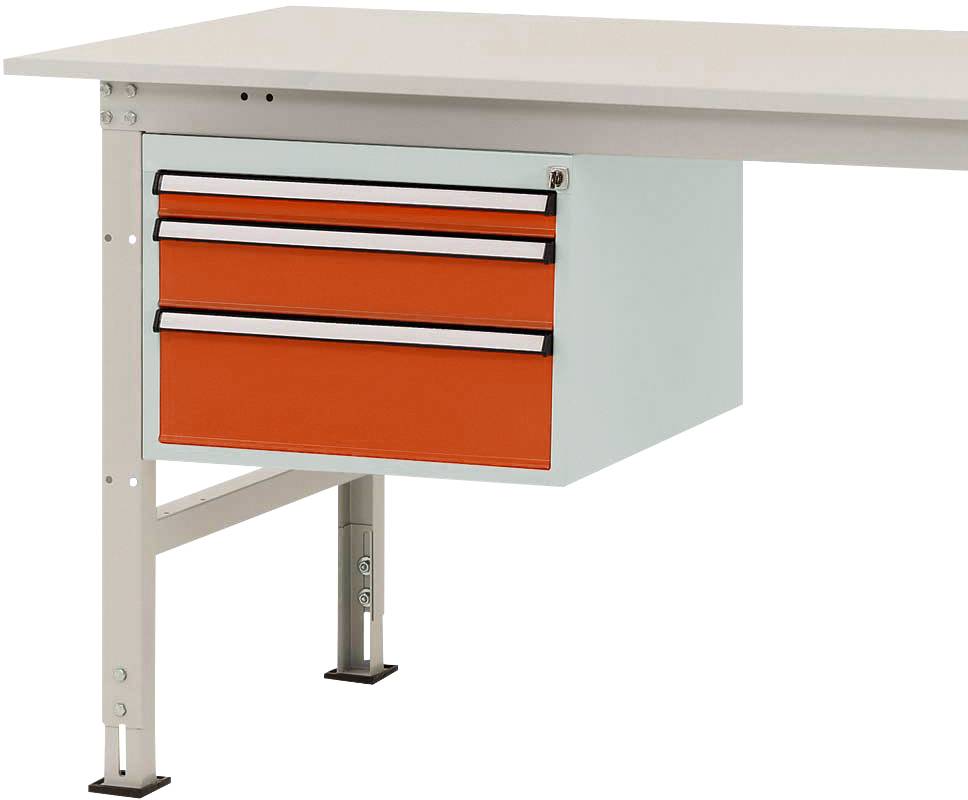

Complete housing substructure for packing table PACKPOOL . For the intelligent and clean order at the workplace with a width of 500 mm, a depth of 580 mm and a height of 360 mm. The housing consists of a solid reinforced steel sheet construction, high-quality powder-coated in red-orange RAL 2001. The housing can be loaded for all PACKPOOL packing tables up to 200 kg (Ergo = 100 kg). The housing can be used on all PACKPOOL packing tables. The housing is fitted with a cylinder lock and 2 keys as standard, as well as a central lock. The housing has a working height of 300 mm and consists of 3 drawers with the aperture heights 1 x 50, 1 x 100, 1 x 150. The drawers can be extended up to 80% and can be loaded up to 35 kg. The drawers are equipped with a large handle bar and also with a label for labeling the drawers. In addition, the housing is also equipped with a single extension lock. This prevents the unintentional, simultaneous opening of several drawers and thus reduces the risk of crushing and injury.
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
