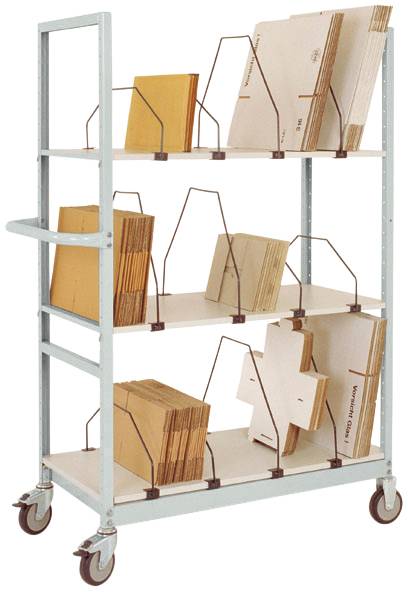

Manuflex AS1401.0001 AS1401.0001 Cardboard box trolley Brake Steel powder-coated

Reduce your packing times! With the aid of the cardboard box transport cart, cardboard boxes can be conveniently pre-sorted and transported to the packaging workstation. The long transport routes can also be shortened and your employees are relieved. The mobile cardboard trolley is also ideally suited for in-process storage. The VARIMOBIL cardboard box trolley is characterized by a high flexibility and durability! The base frame in the U-profile 30 x 30 mm is high-quality powder-coated in gray-green HF 0001 and made of sheet steel and reinforced with struts. As standard with large handy sliding handle. The mobile transport wagon is equipped with 2 steering wheels, 2 Bock-TPE-wheels (thermoplastic elastomers), Ø 125 mm. For your safety, both castors are equipped with locking device in accordance with EN 1757-3 . Other roller versions are available on request. The base frame has a height of 1250 mm, a width of 1030 mm and a depth of 500 mm. The capacity of the VARIMOBIL cardboard box trolley is 250 kg. The carton transport wagon has 2 shelves with a loading area of L x B 1000 x 500 mm. The height of the floor is 450 mm. The shelves can be adjusted in the grid of 50 mm and can thus be adjusted exactly to your needs. The shelves are 19 mm thick and made of a melamine resin coating on E 1 (emission class 1) 3-layer chipboard with fine structure on both sides. It is resistant to abrasion, scratches and glare. The smooth surface is easy to clean. The load capacity is 30 kg per floor with uniform load distribution. The shelves are equipped with anthracite magazine steel bars. The delivery includes 2 large brackets with a height of 400 mm and 2 small brackets with a height of 250 mm. You can move and place them as desired. Thus, they create a clear transport of your cardboard boxes. If required, you can also order additional steel brackets with article number AS1197, height = 250 mm, or AS1199, height = 400 mm. The VARIMOBIL cardboard box trolley can be supplemented by additional floor levels in case of need (additional loading area article number: AS1400)
