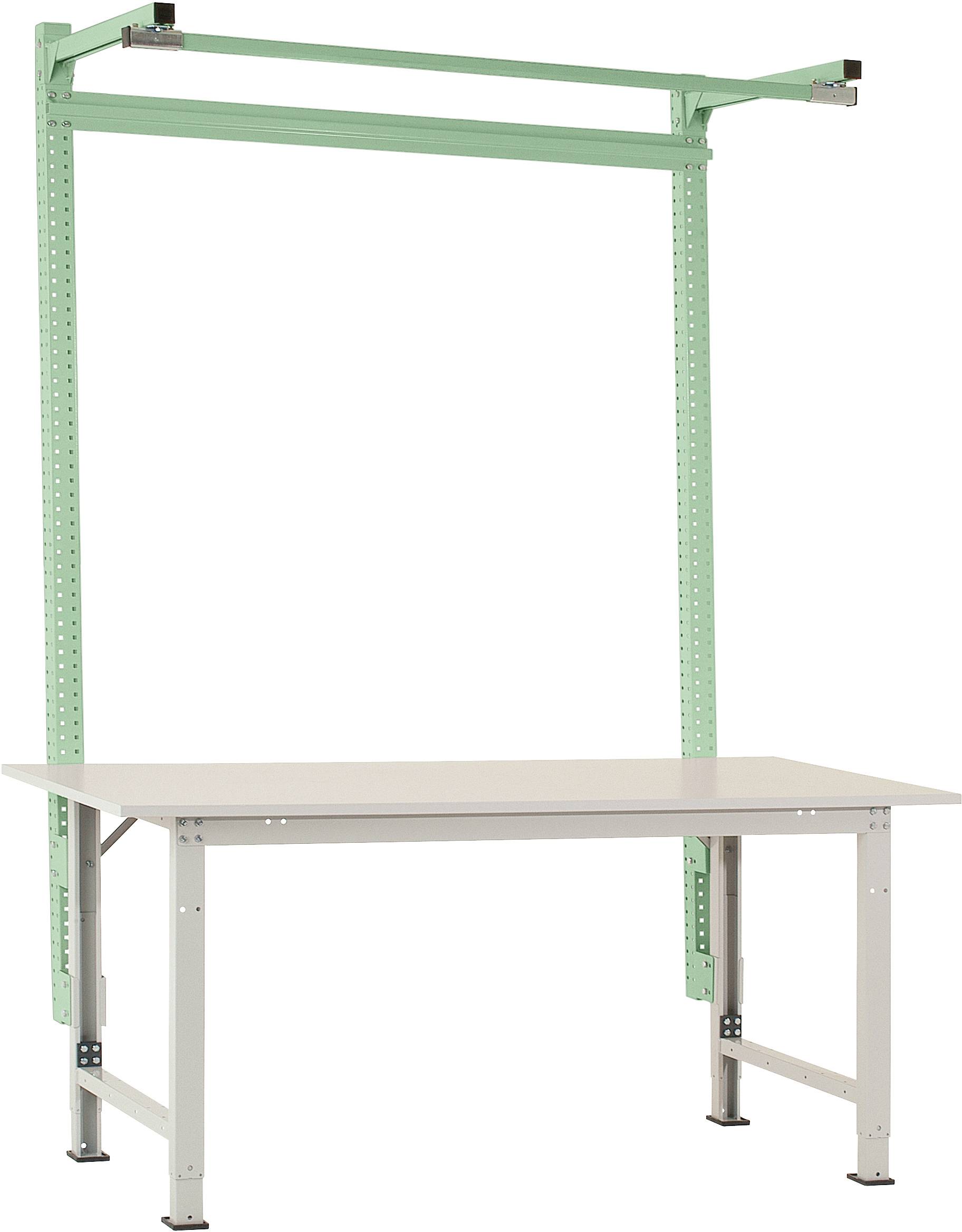

Manuflex AS1611.6011 Surface mounting portal with beam in Reseda green RAL 6011, for PACKPOOL standard with width of 175

Surface-mounted portals make a packing table a fully expanded workplace. Use the work area above the table top for tools, devices or workplace lighting. This creates a unit in which rational and ergonomic work can be carried out. The surface mounting portal with a working height of 1500 mm, with a total height of 2100 mm, can be used on all PACKPOOL standard packing tables with a table width of mm. The complete mounting portal consists of 2 assembly columns and a transverse stabilization strut as well as 2 rail track booms and a rail track slide rail for the attachment of tools, devices or workplace lighting. The high-quality powder-coated construction portal in Reseda green RAL 6011 is made from three-sided in 30 mm pitch punched profile steel. It is used to attach structural components such as perforated plates, slot plates, storage consoles etc. These can be adjusted in a height of 30 mm pitch. The surface-mounted portal can be loaded with 120 kg. The rail outlayer has a depth of 700 mm. With boom depth 350 mm, the boom can be loaded with 40 kg, with boom depth 700 mm with 25 kg. The mounting portal has a working height of 1500 mm, a component width of 1596 mm and a depth of 55 mm. The individual pillars have a width of 60 mm (dimensions including fittings for fixing to the table frame).

This text is machine translated.
