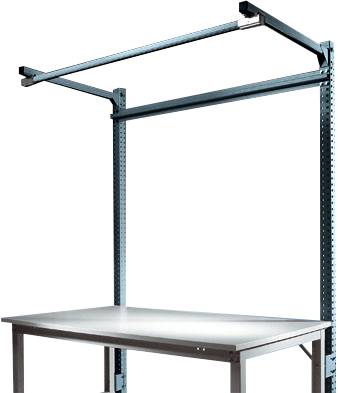

Manuflex ZB3841.7016 Mounting portal with boom for UNIVERSAL + PROFESSIONAL standard basic tables, working height 1500 m

Construction portals make a work table a fully expanded work place. Use the work area above the table top for tools, devices or workplace lighting. This creates a unit in which rational and ergonomic work can be carried out. The mounting portal with a working height of 1500 mm, with a total height of 2100 mm, can be used on all Universal + PROFESSIONAL standard workbenches with a table width of 1000 mm and from a table depth of 800 mm. The complete mounting portal consists of 2 assembly columns, a transverse stabilizer strut, 2 rail track arms, as well as a rail track running rail for the attachment of tools, devices or of workplace lighting. The high-quality powder-coated surface-mounted portal in anthracite RAL 7016 is made from three-sided in 30 mm pitch punched profile steel. It is used to attach structural components such as perforated plates, slot plates, storage consoles etc. These can be adjusted in a height of 30 mm pitch. The mounting portal can be loaded with 120 kg . The rail outlayer has a depth of 700 mm. With boom depth 350 mm, the boom can be loaded with 40 kg, with boom depth 700 mm with 25 kg. The mounting portal has a working height of 1500 mm, a component width of 996 mm and a depth of 55 mm. The individual pillars have a width of 60 mm (dimensions including fittings for fixing to the table frame). The universal + PROFESSIONAL standard basic portal can be extended at any time and without limits with additional mounting portals (universal mounting portal + PROFESSIONAL standard product number: ZB3842.7016).
