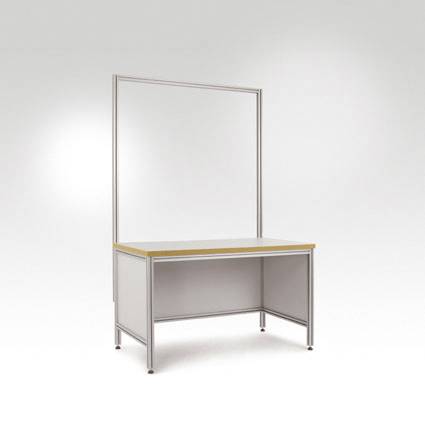

Manuflex ZB8202 Aluminum mounting portal without boom for ALU work tables with table width = 1000 mm

Construction portals make a work table a fully expanded work place. Use the work area above the table top for tools, devices or workplace lighting. This creates a unit in which rational and ergonomic work can be carried out. Combined with the ALU working style system, this creates a particularly flexible, visually beautiful and well-thought-out workplace. Surface-mounted portal components can be quickly fixed by the slot system and positioned flexibly in the height. This system can be mounted on 4 sides. The surface mounting portal with a working height of 1500 mm, with a total height of 1950 mm, can be used on all ALU work tables with a table width of 1000 mm and with a table depth of mm. The complete mounting portal consists of 2 assembly columns and a transverse stabilization strut for the attachment of tools, devices or of workstation lighting. The mounting portal is made of natural anodized aluminum profile 45 x 45 mm. It is used to attach structural components such as perforated plates, slot plates, storage consoles etc. The portal is infinitely height-adjustable. The mounting portal can be loaded with 100 kg. The mounting portal has a working height of 1500 mm, a component width of 985 mm and a depth of 45 mm. The individual pillars have a width of 45 mm (dimensions including fittings for fixing to the table frame).

This text is machine translated.
