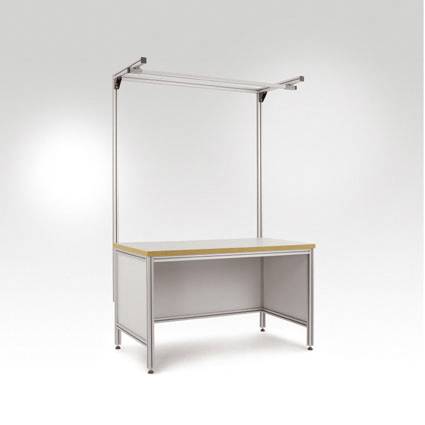

Manuflex ZB8205 Aluminum mounting portal with boom for ALU work tables with table width = 1000 mm and depth = 600 mm

Construction portals make a work table a fully expanded work place. Use the work area above the table top for tools, devices or workplace lighting. This creates a unit in which rational and ergonomic work can be carried out. Combined with the ALU working style system, this creates a particularly flexible, visually beautiful and well-thought-out workplace. Surface-mounted portal components can be quickly fixed by the slot system and positioned flexibly in the height. This system can be mounted on 4 sides. The surface mounting portal with a working height of 1500 mm, with a total height of 1950 mm, can be used on all ALU work tables with a table width of 1000 mm and with a table depth of 600 mm. The complete mounting portal consists of 2 assembly columns and a transverse stabilization strut as well as 2 rail track outriggers and a light gray RAL 7035 powder-coated rail track running rail for the attachment of tools, devices or of workplace lighting. The mounting portal is made of natural anodized aluminum profile 45 x 45 mm. It is used to attach structural components such as perforated plates, slot plates, storage consoles etc. The portal is infinitely height-adjustable. The mounting portal can be loaded with 100 kg. The rail outlayer has a depth of 655 mm. With boom depth 225 mm, the boom is loadable with 35 kg, with boom depth 325 mm with 30 kg, with 455 mm with 25 kg, with boom depth 655 mm with 20 kg.The mounting portal has a working height of 1500 mm, a component width of 985 mm and a depth of 45 mm. The individual pillars have a width of 45 mm (dimensions including fittings for fixing to the table frame).

This text is machine translated.
