Buy Märklin 038327 H0 Steam locomotive 18 323

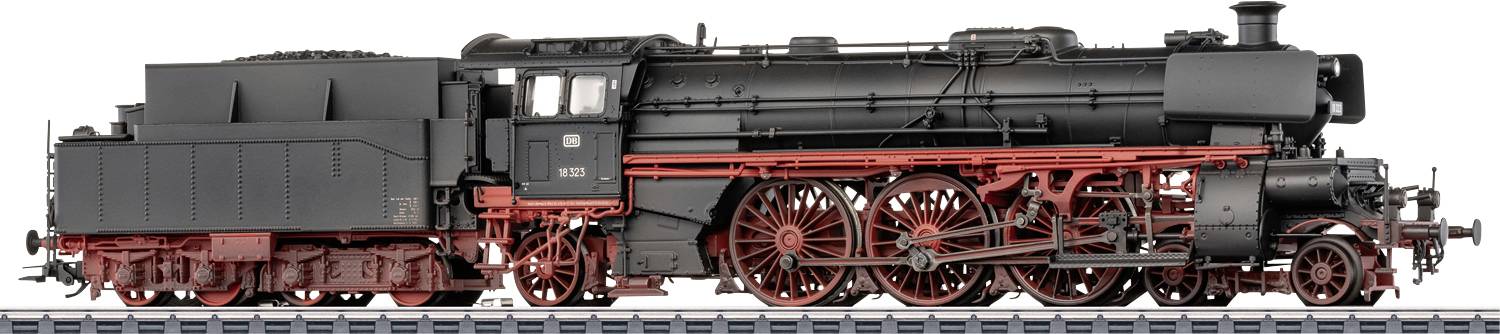

Side view of a black steam locomotive with red wheels and trim, shown on a white background.

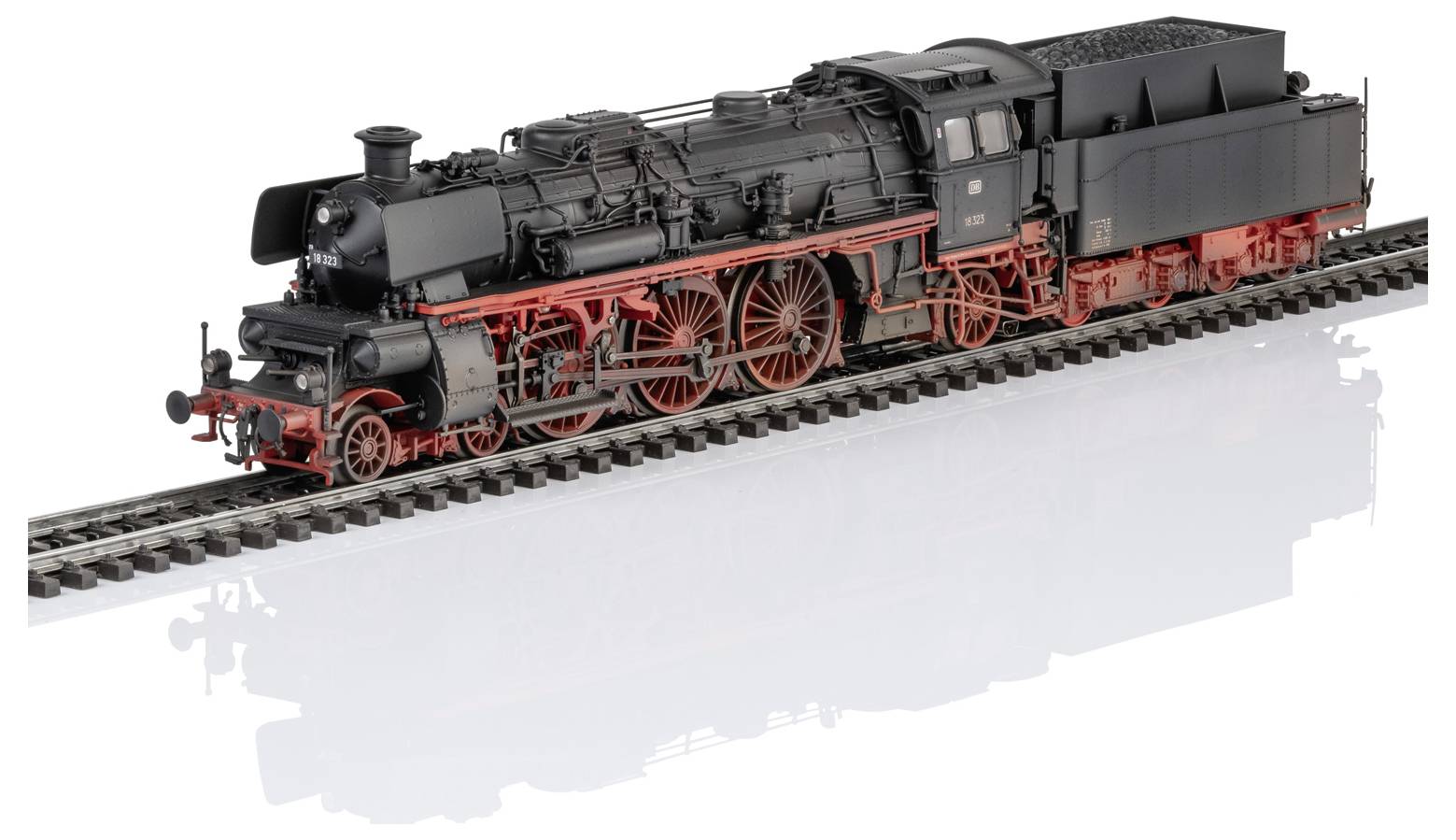

Black steam locomotive with red wheels and undercarriage on a short section of track, shown in side view on a white background.

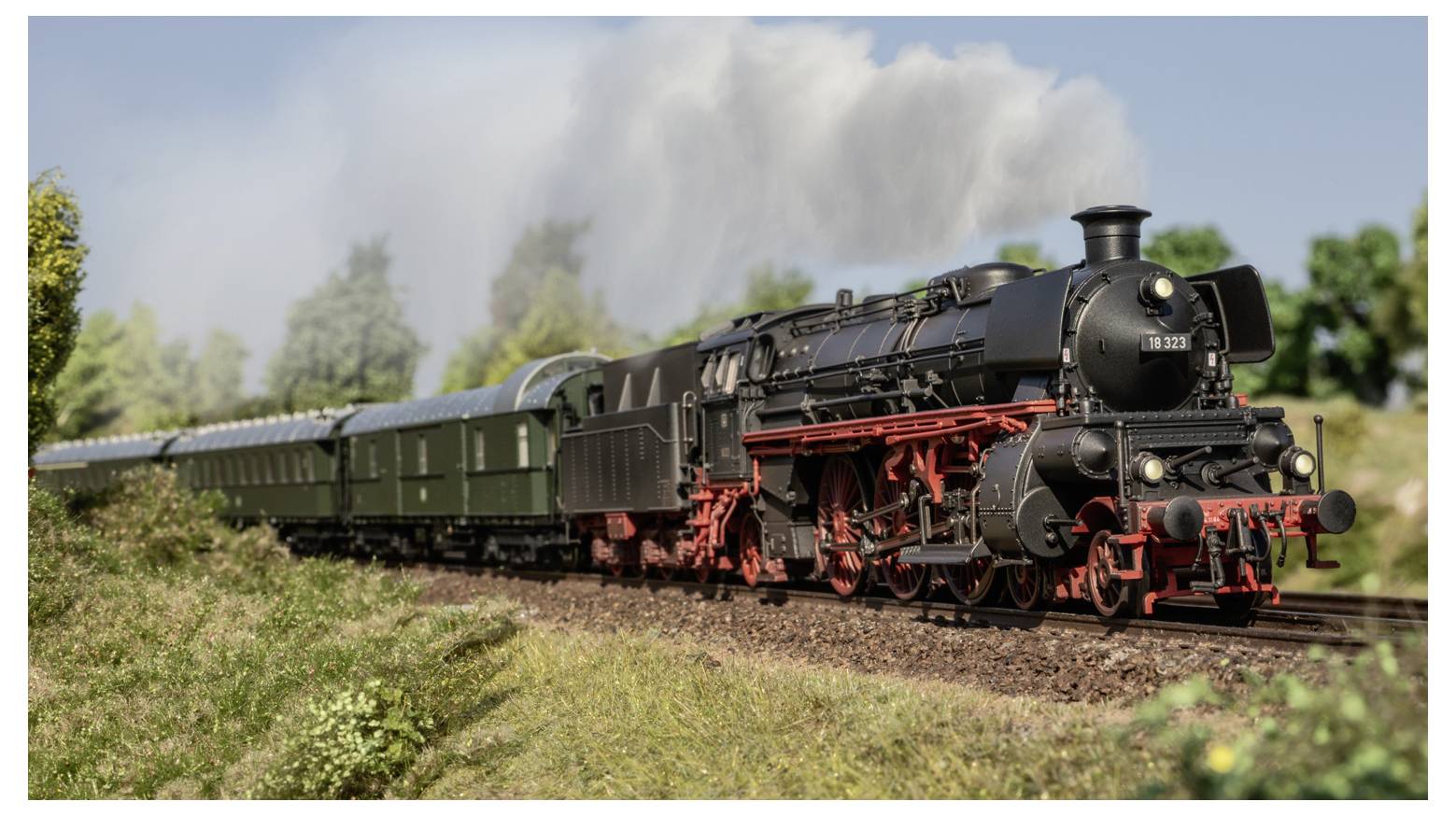

A black steam locomotive pulling passenger cars through a rural landscape, with smoke billowing from the engine.

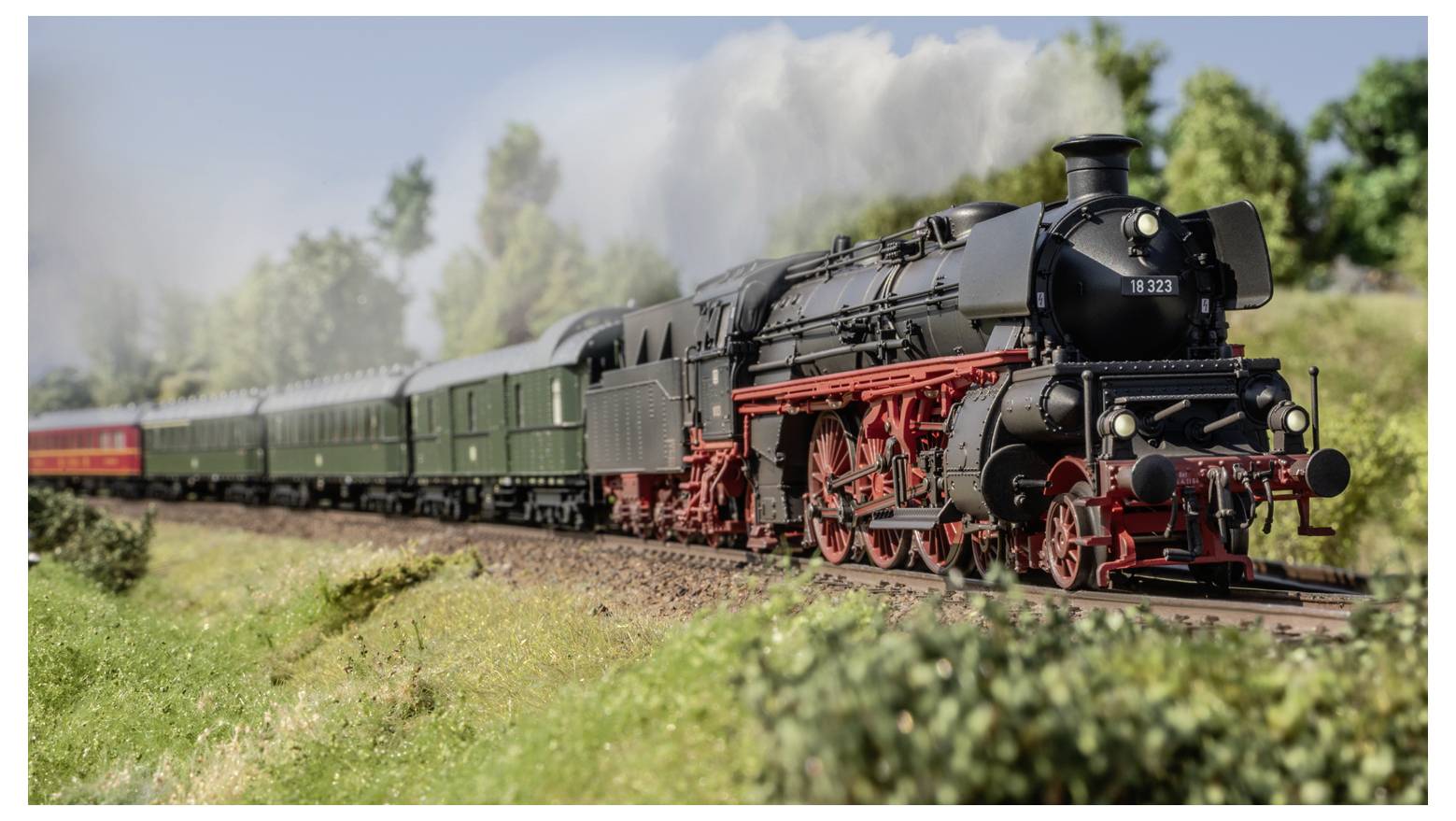

Black steam locomotive pulling green passenger cars through a rural landscape with smoke billowing behind it.

1/4

Fast track dispatch on Mon, 5 Oct

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 617.65 / piece)

€ 617.65

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

H0 Steam locomotive 18 323

Locomotive with authentic signs of aging.
Especially intricate metal construction
A variety of applied details.
Buffer height on locomotive and tender according to NEM.
Standard smoke application with speed-dependent, dynamic smoke emission.
Driver's cab lighting, undercarriage lighting and firebox flickering can be switched digitally.
Mfx decoder with extensive operating and sound functions
Fold-away plate between driver's cab and front tender.

Technical specifications

Manufacturer part #: 038327

Type: Steam locomotive

Size: H0

Power supply system: Digital AC Sound

LoB/LoC: 272 mm

Age category: 15 years and over

Type (carriage): Chassis + metal body

Train company: DB

Era: III

Connector: NEM pocket with close coupling shifting link

Ditch lights: Three ditch lights, directional

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3775709 Märklin 038327 H0 Steam locomotive 18 323

Description

The most beautiful among the beautiful One queen for the model railway
It was until the late sixties a real icon on DB tracks: The massive 18 323 high-speed steam locomotive, which has the stuff of becoming a star in the Märklin program as a perfectly designed model. Up to 1969, it was used as a heavy and fast machine in the entire Federal Republic under the direction of the Federal Railways Central Office. The Märklin-model is thus a real highlight in every collection and on every system, which plays in the important DB-Epoch III. Their performance in the midst of then ultra-modern diesel and electric locomotives and the widely used unit steam locomotives will create a great sensation, as in the past with the large model. With unusual stories associated with this German locomotive icon

Model: Express train steam locomotive 18 323 with coal towing tender 2'2 T29.6 of the German Federal Railways (DB). Former Baden IVh. Test locomotive at the Federal Railways experiment Minden. Black/red base coloring. With Witte smoke deflectors and Indusi on the engine driver side Chimney with Caledonian-brim Operating condition circa 1966.

Model: With mfx digital decoder and extensive sound functions. Regulated high-power drive with flywheel mass in the boiler. 3 Powered axles Traction tyres. Locomotive and tender to a large extent made of metal. Serially installed smoke unit with speed-dependent, dynamic smoke emissions, can be switched digitally. Three-light head end signal changes dependent upon the direction of travel operated conventionally, can be switched digitally. Driver's cab lighting, undercarriage lighting and firebox flickering can also be switched separately digitally. Lighting with maintenance-free warm white and red light emitting diodes (LED). Adjustable close coupling with kinematics between locomotive and tender. Kinematic close coupling on the tender with NEM. Buffer height on locomotive and tender according to NEM. Minimum radius for operation 360 mm. For large radii or display case, more narrow ascension stairs below the cab are attached for replacement. Piston rod protection tubes, heating and brake hoses are also included. The locomotive is aged according to operation.
Length over buffer 27.2 cm.

This text is machine translated.
