Märklin 74466 74466 Point decoder incl. connector
EAN:
Part number:
Item no:
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Technical specifications
- Suitable for C-track three-way points.
- Features
for tracks with 3 conductive rails
- Decoder manufacturer
Märklin
- Digital format
Universal
- Decoder type
incl. connector
- Type
Accessories
- Selectable effects
Lighting
- Address range
Motorola Format 1 bis 320 / DCC Format 1 bis 511
- Manufacturer part #
74466
- Type
C-track three-way points
- Product type
Point decoder
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1911049 Märklin 74466 74466 Point decoder incl. connector
Description

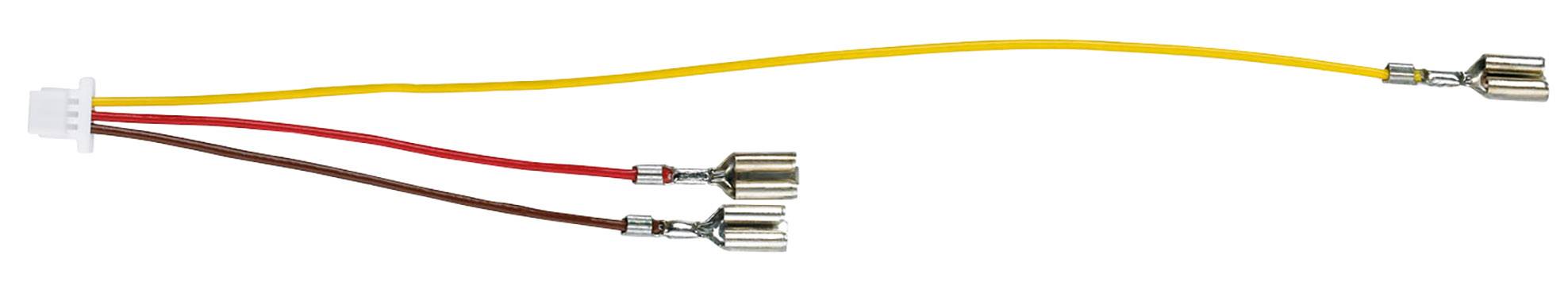

Can be retrofitted for the C-track three-way switch (24630) with electric drive. Digitalformate mfx, Motorola and DCC. Connection via plug contacts, for Märklin and Trix C-track three-way switches. Address with code switch can be set (Motorola format 1 to 320 / DCC format 1 to 511), optionally also adjustable on the programming track. Point light can be connected and switched (soldering knowledge required). A digital decoder can be used simultaneously or subsequently for the electric drive of the points. The decoder is simply connected with plug-in contacts and can be individually addressed for each switch. The digital power supply can be taken directly from the traction current contact of the switch. In this way you get a finished digital switch, which is immediately ready for use even on mobile systems.
This text is machine translated.
This text is machine translated.
Features
- Suitable for C-track three-way points.
